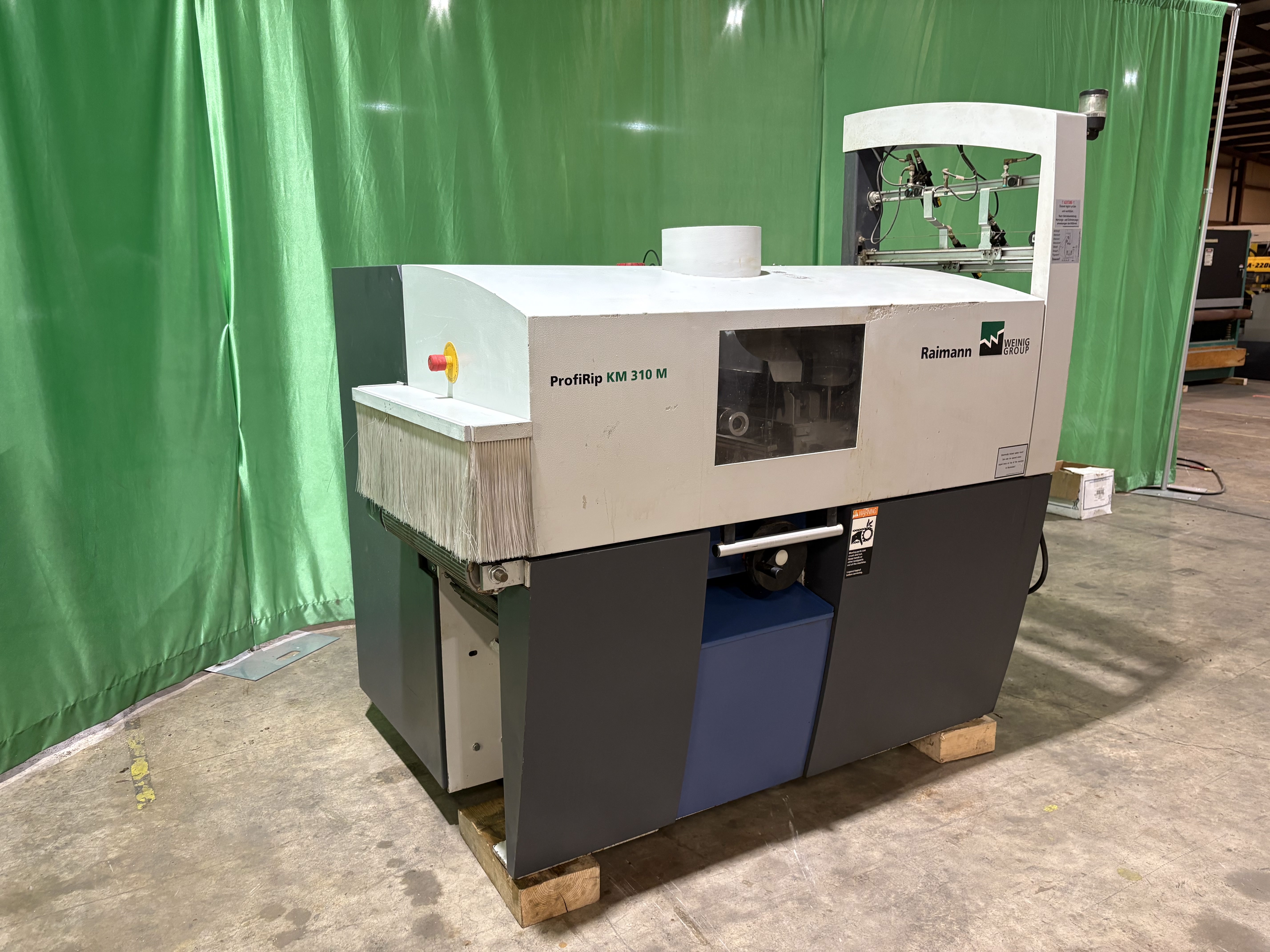

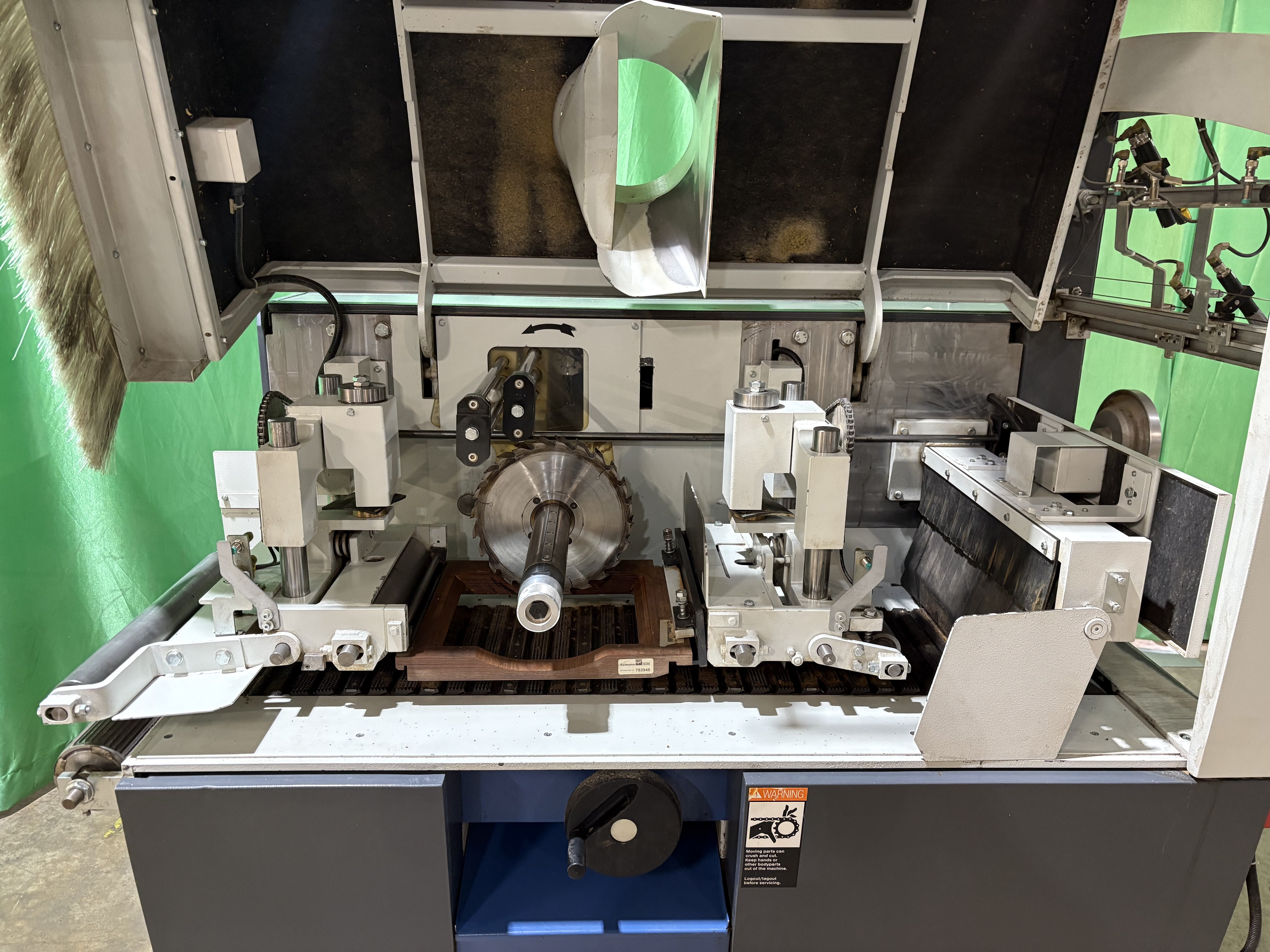

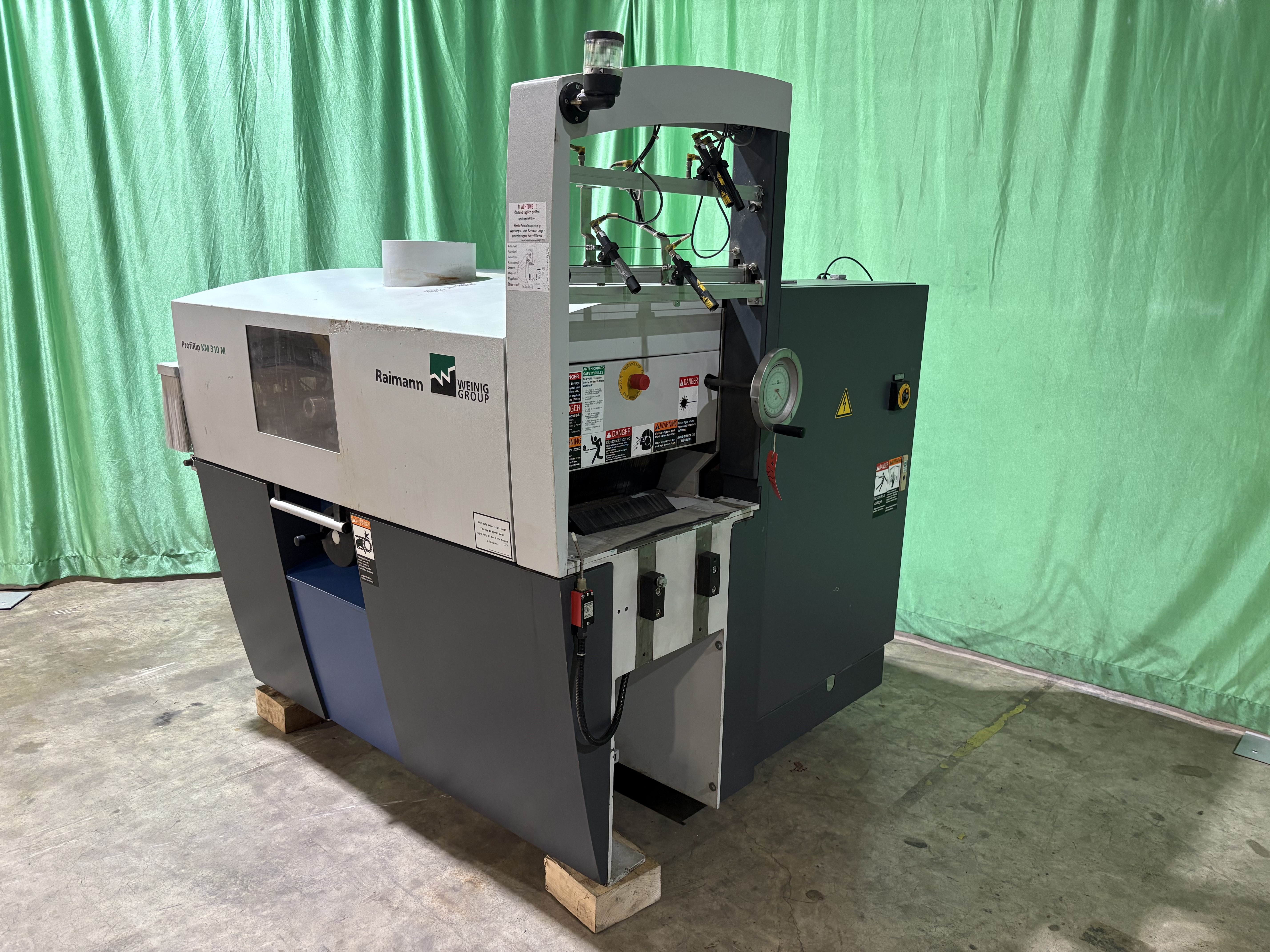

KM 310M 2 Moving Arbor Gang Rip Saw. Working dimension up to 12-¼" width. (3) fixed 15 mw laser lights. Arbor: “QUICK FIX” arbor for fast changeovers. diameter 3-1/8" hydraulic set up for saw change. 2 Moving Arbors. Saw dia. 10" to 14-7/8". Motor: 50 HP V belt drive; with cutting shaft set at 4,200 RPM. (4) sets of antikick back protection. Frequency controlled feed speed of 13 - 110 FPM, 2.2 HP feed drive. 3" max. depth of cut with pressure shoe, 3-½" depth of cut without. -- Manual thickness adjustment of upper holddown rolls with indicator scale. 7/8" min. strip width, 17-¾" min. stock length. Automatic over thickness shutoff on infeed and 7-¼" dia. dust hood Serial#06165 Mfr.2006
Operating Manual w/ specs included
Used Weinig Raimann Rip Saw
