Description

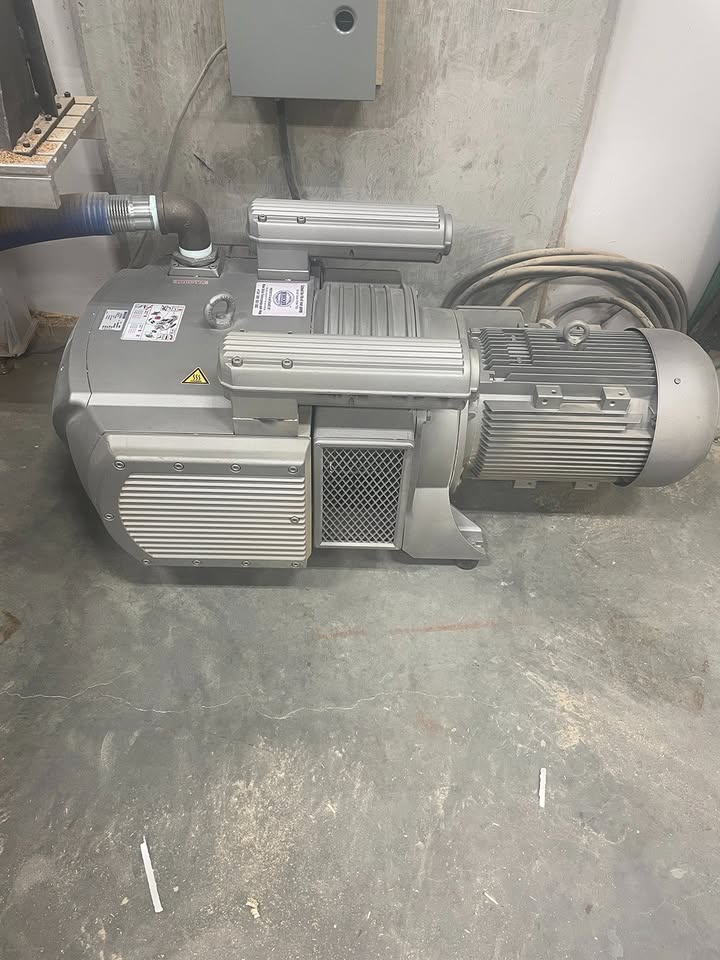

VTLF 2.250 DRY VACUUM ROTARY VANE PUMP (G050375) used for 5x10 3-axis CNC router. Bought new in 2020, single owner, limited use, in great shape. Loose conductor for hardwire, requires new junction box.
"The VTLF 2.250 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilizes self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. This specific pump has a peak pumping speed of 169 CFM at 60 Hz and a nominal rotation speed of 1167 rpm."
100% dry-running (oil-less) operation
Long vane life
Continuous duty rated
VTLF 2.250 VACUUM PUMP 6.6KW IE3
3PHASE MOTOR, 6,6KW (8.9Hp), 1167 RPM operating speed
Nominal inlet capacity: 286 M3/Hr. (168 CFM)
Maximum vacuum: 200 mbar (5.9″ Hg)
60HZ: 230/460V +/- 10%, IE3 (Missing junction box)
60HZ: 208V +/- 10% (Missing junction box)
THERMAL CONTACT 155C, ISO CL. F, IP55
UL/CSA, UL# E235514, CC329B
BLOW-OFF VALVE
VACUUM SAFETY VALVE
COMPLETELY ASSEMBLED
151kg weight
$5,700USD / $7,900CAD or by inquiry.
Local delivery available in Vancouver.
