Thermwood Corporation

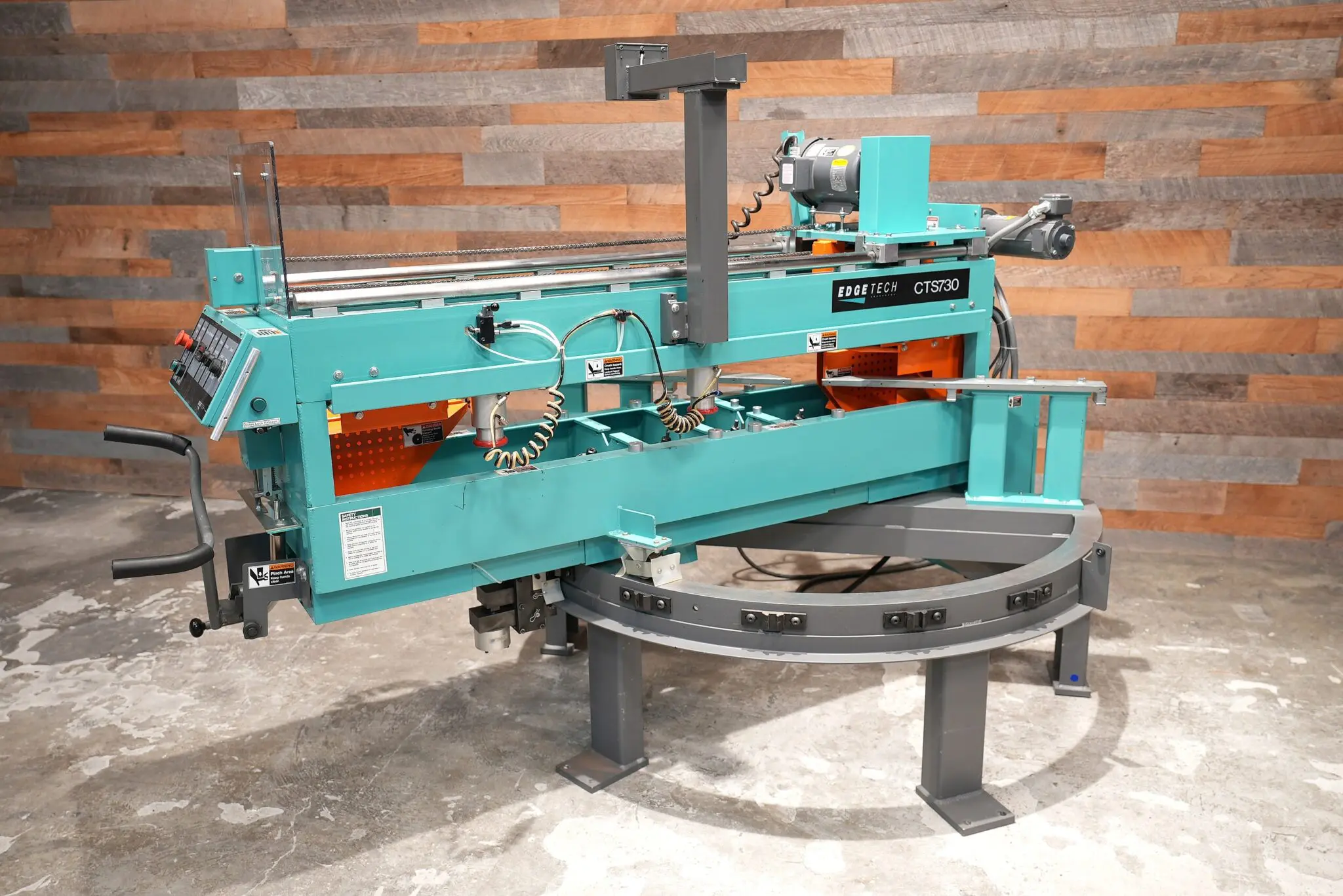

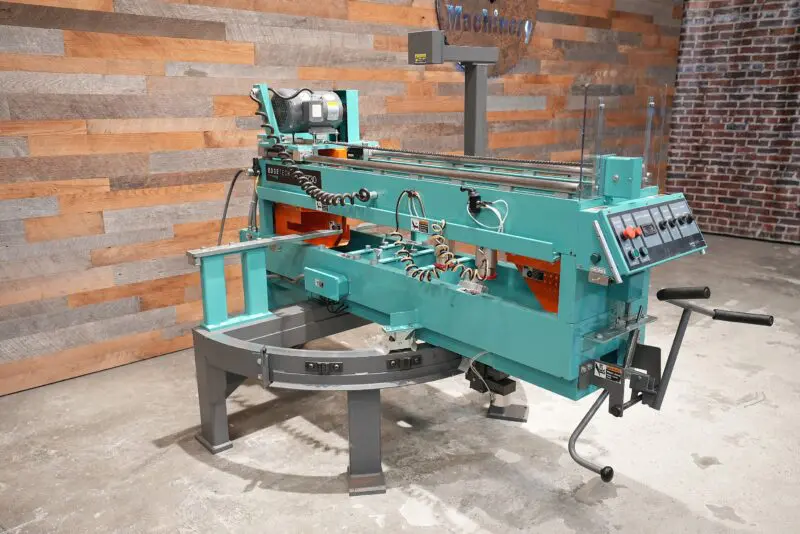

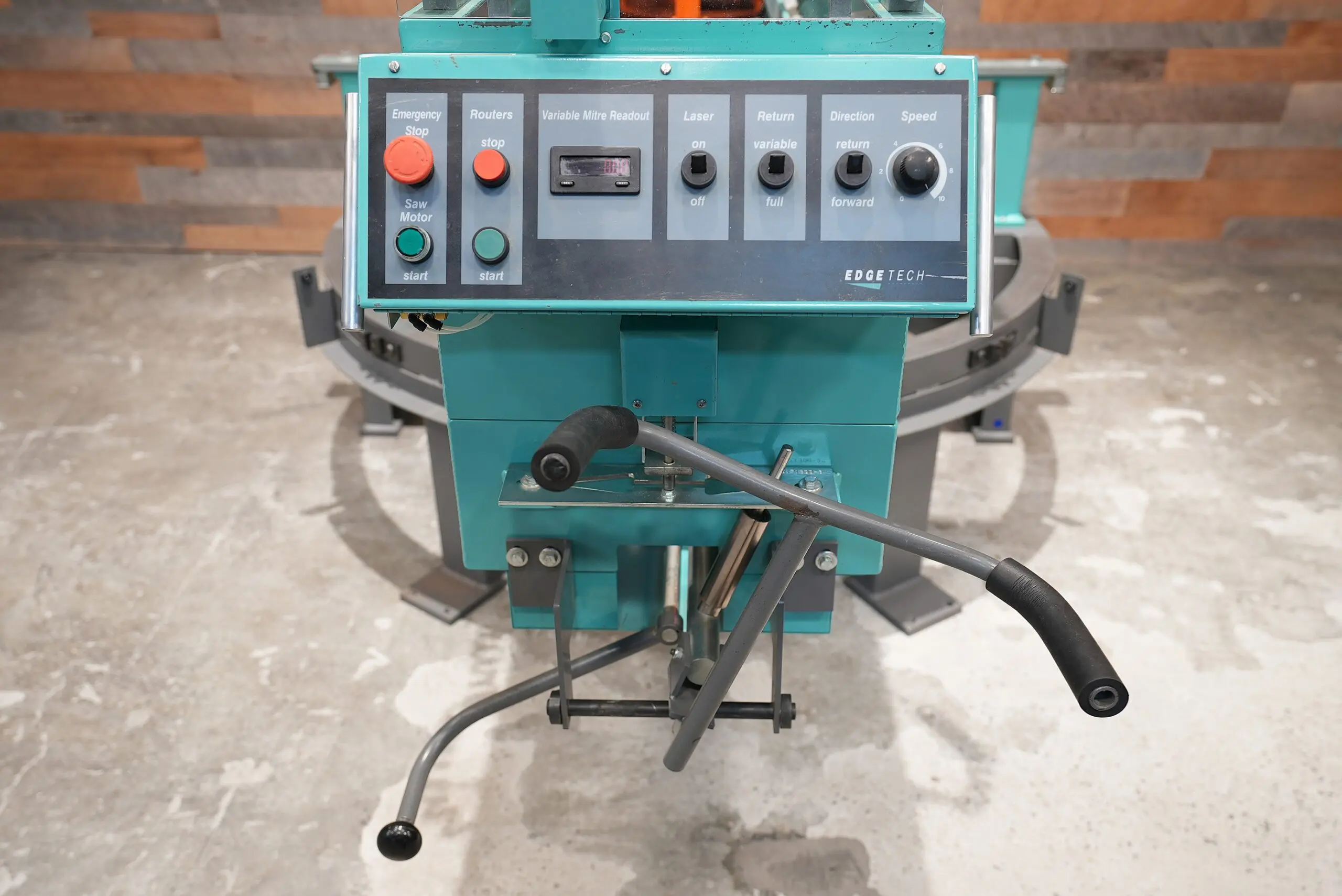

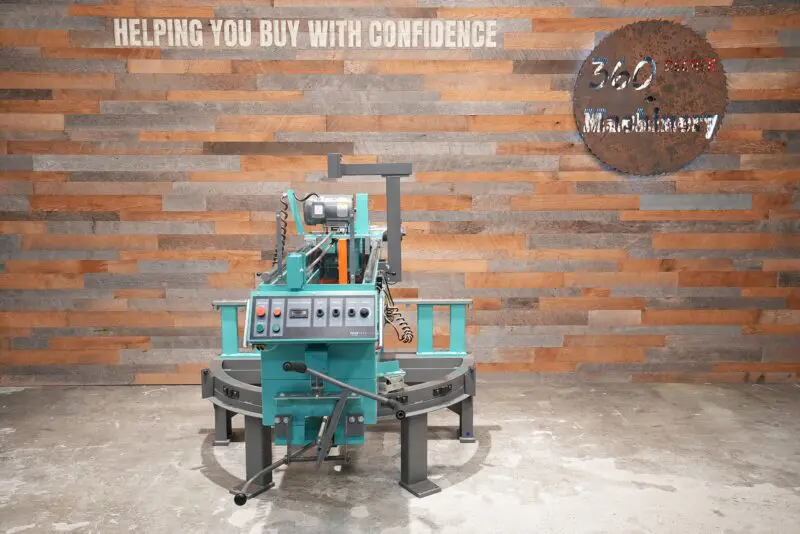

Edgetech CTS730 Countertop Saw W/Variable Miter

Listing #553825 Listed on: 11/09
Details - Machine for Sale
Category:Other
Price: $13,000.00
Type:Used - Very Good
Manufacturer:Edgetech
Model:CTS730
Location:Kingston, TN
Sale Type:Dealer
Seller:360 Degree Machinery LLC [Contact]
Phone:630-229-6705
Year:200?
Electrical:3PH
More Info:Link to more images and info at 360
Description




In 2025, ALL NEW countertop saws with Lasers and Variable miters are now more than $50,000+. This is an excellent example of a pre-owned Edgetech CTS730 Countertop Saw with variable miter. Ultra clean and without issue!

Designed for cutting and mitering post formed, self-edged, coved or solid surface countertops with bolt mortising all in a single operation

5 HP Belt driven main motor, 0.5 HP feed drive motor

5-3/4″ depth of cut with build-up (5″ without build-up)

Variable miter

45″ crosscut capacity at 90°, 42″ at 22-1/2°, 31″ cut at 45°

Upper machine structure rotates to left and right to (5) fixed stops at miter positions of 90°, 45°, right and left, and 22-1/2° right and left, pneumatically actuated index pin secures position

Variable feed speed from 0 to 45 FPM in cutting direction, 45 FPM fixed return speed

16″ Diameter blade capacity, 1″ diameter arbor

Hardened and ground saw carriage guides with linear bushings

(4) 1-3/4 HP high speed router motors for routing the draw bolt mortises, 1/2″ dia. x 2-1/4″ long bits, full visible router template with rotating pin to reduce template wear

(4) Independently positioned pneumatic hold downs for different top sizes

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Link to more images and info at 360
