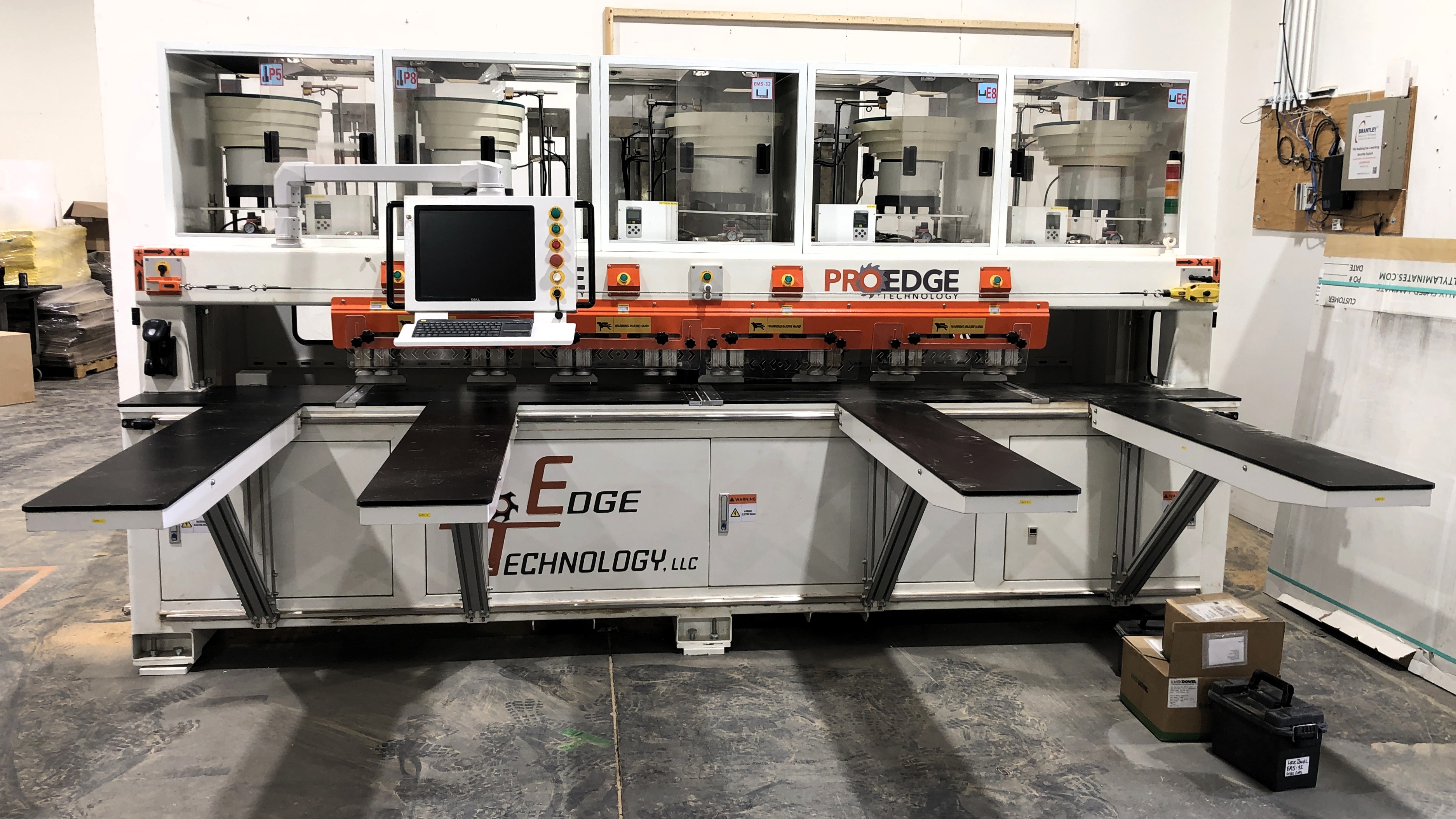

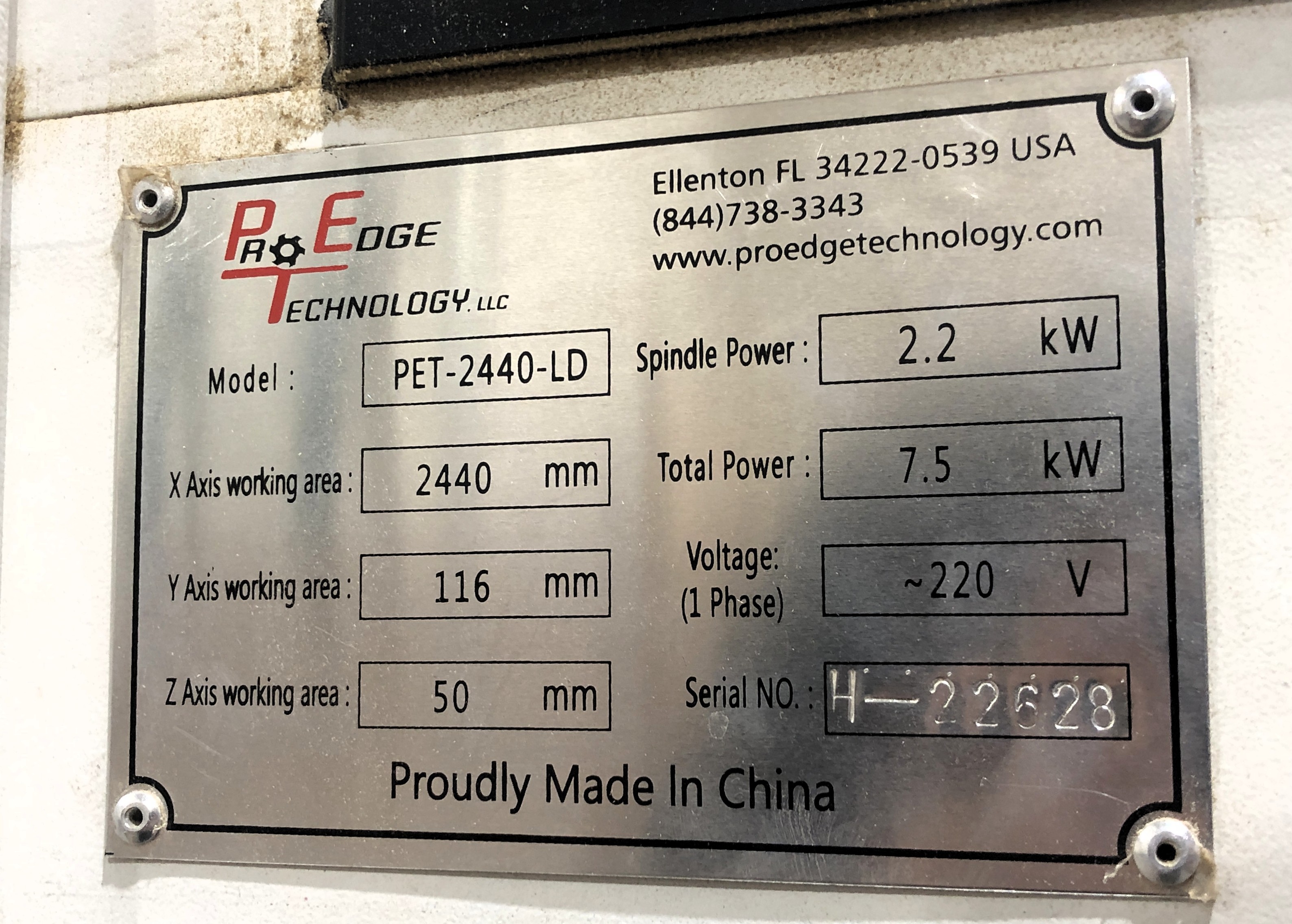

Manufacturer: Pro Edge Technology
MAXIMUM LENGTH OF PART (USING 1 ZONE): 96 inches
MAXIMUM THICKNESS OF PART: 2 inches
4 INDEPENDENT ZONES: 23.6 inches
CENTER STOP FOR ZONES 2 & 3: Raised and lowered by CNC
ELECTRO SPINDLE: 4,000 - 24,000 RPM
SPEEDS FOR X/Y/Z: X = 131 fpm / Y = 32 fpm / Z = 32 fpm
PROGRAMMABLE LIMITS FOR X/Y/Z: X = 96” / Y = 3.15” / Z = 2”
4 INDEPENDENT VIBRATOR FEEDERS: 5mm spring pin, 5mm mini barbed channel lock, 8mm spring pin, 8mm barbed channel lock
AUTOMATIC LASER MEASUREMENT SYSTEM Selectable on/off through program
4 HORIZONTAL EDGE INJECTORS: 5mm spring pin, 5mm mini barbed channel lock, 8mm spring pin, 8mm barbed channel lock
CYCLE SPEED: 60 cycles per minute (drills or dowel inserts)
FIBER OPTIC SENSORS: For Lockdowel fasteners present to prevent misfires
4 PHOTO SAFETY EYES: 1 in each zone for part placement
OFFLINE PROGRAMMING: Software can be install on another computer for offline programming
VOLTAGE: 10 kW / 220 V / 1 Ph
AMPS: 40
APPROXIMATE DIMENSIONS : 157” x 113” x 82”
APPROXIMATE WEIGHT: 6600 pounds
