Description:

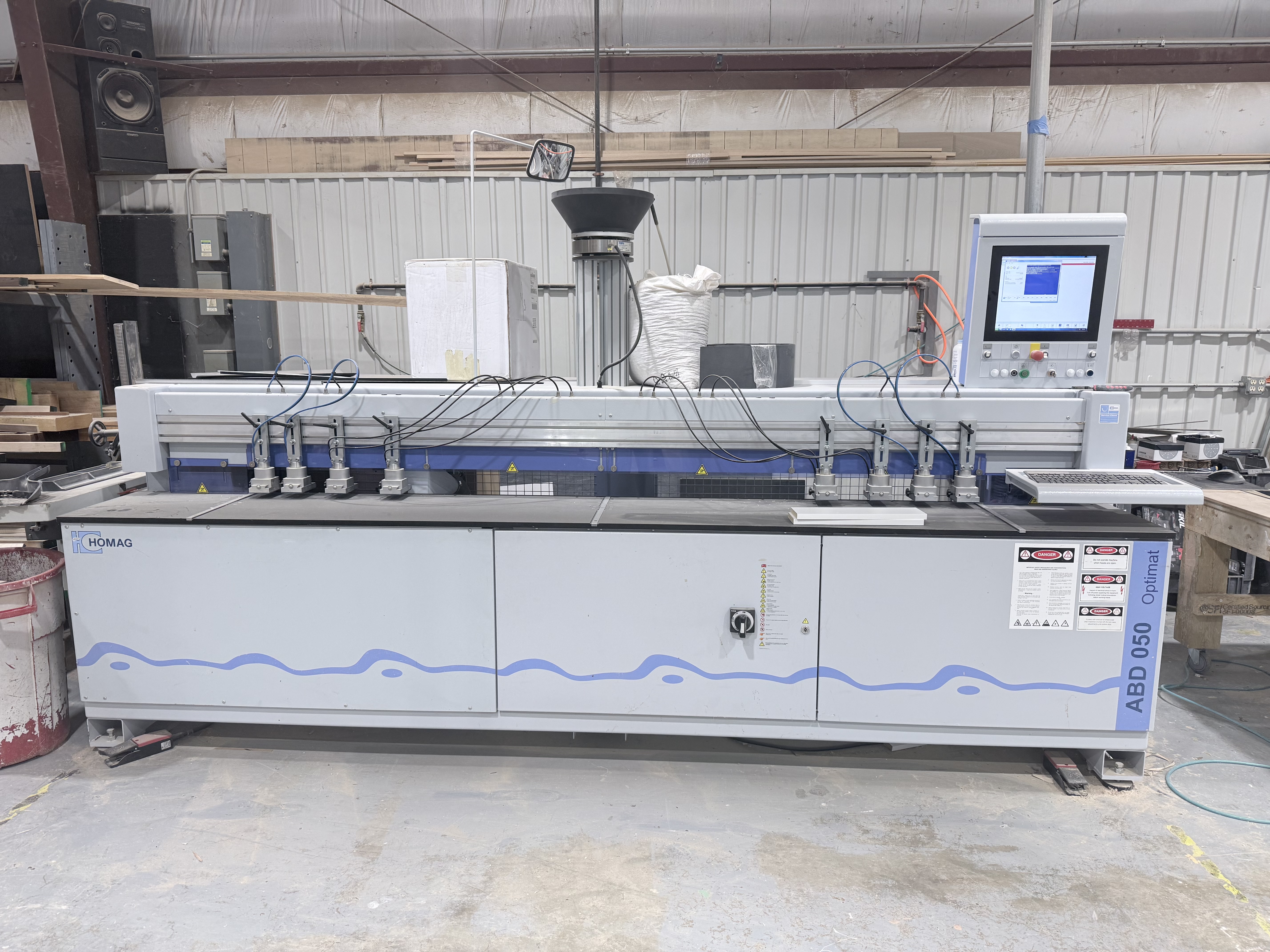

CNC dowel inserter for horizontal drilling and dowel inserting
Engineered to spray glue or water (has been used with water)
Features a Sorbtech™ main beam to minimize vibration
Pneumatic control of center stop and right and left fences
Open end table for machining longer parts
Vibrating hopper for automatic feeding of dowels
Larger 17" display and Woodwop™ programming
Technical Specs:
Maximum part length; 2800 mm / approx. 110"
Minimum part length; 20 mm / approx. 0.79"
Maximum part width; 800 mm / approx. 31.5"
Minimum part width; 20mm / approx. 0.79"
Maximum part thickness; 60 mm / approx. 2.36"
Minimum part thickness; 10 mm / approx. 0.39"
Horizontal drilling aggregate; (1) spindle, 7,500 rpm
Standard dowel dimensions; 8 x 30 mm / 8 x 35 mm
Drill shank diameter ; 10 mm
Total length of drill bit; 70 mm
