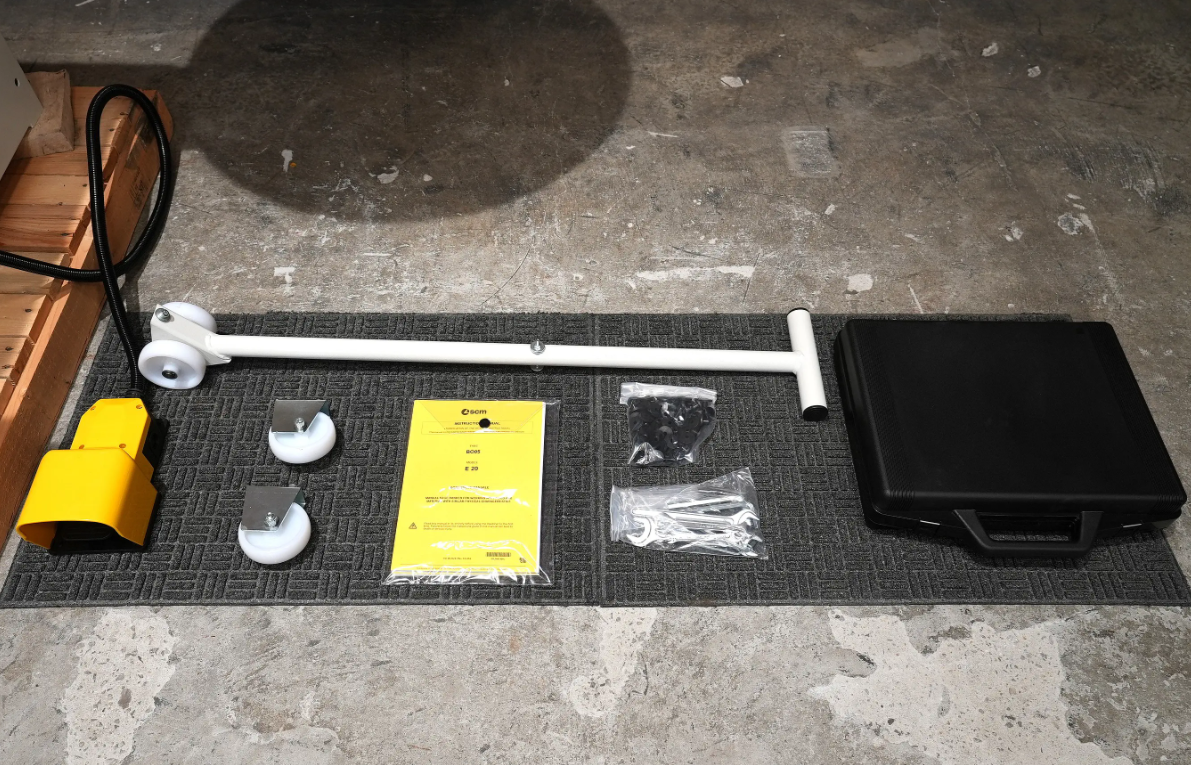

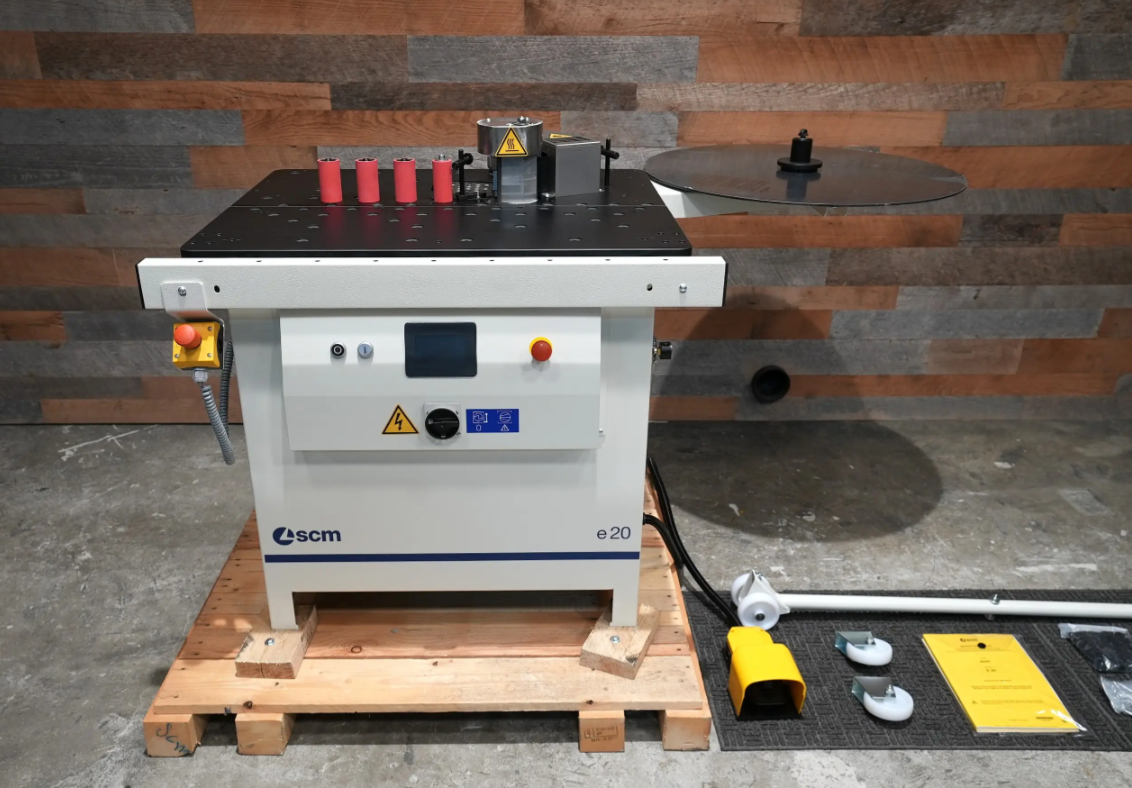

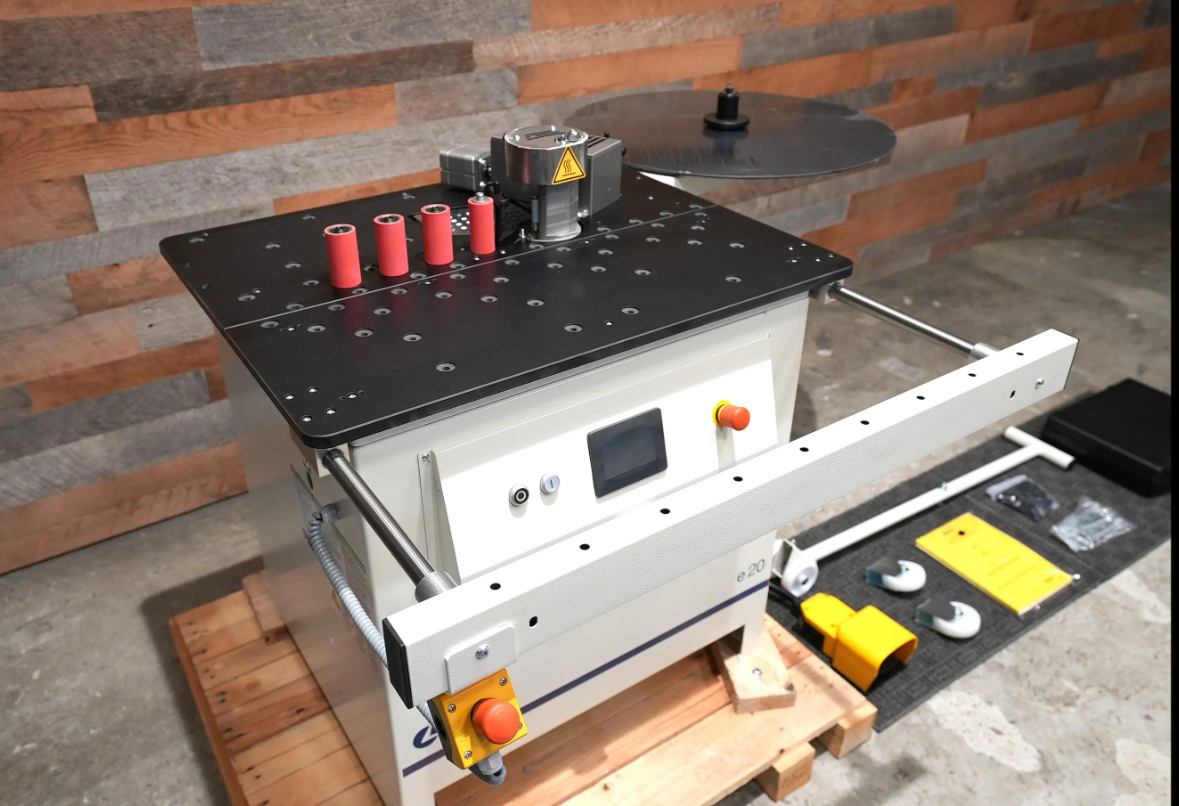

NEW 2025 SCM e 20 Contour Edgebander. Still has its protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price.
Specs:
Thickness of pre-cut edges in strips: 0.4 3 mm
Thickness of edges with shear device:
(80 mm height): 0.4 1.5 mm
(50 mm height): 0.4 2.5 mm
(45 mm height): 0.4 3 mm
Edges height: 10 84 mm (13/32 3.3)
Panels thickness: 8 80 mm (5/16 3 19/32)
Min. panel width: 50 mm (2)
Min. panel length to be applied: 290 mm (11 7/16)
Min. internal radius with 0.4 mm edge thickness (concave profile): 25 mm (1)
Min. external radius with 0.4 mm edge thickness (convex profile): 5 mm (13/64)
Feed speeds: 3-4-5-6-7-8 m/min
Operating temperature: 140 -220 °C (284 -428 °F)
Installed motor power: 6.9 kW
Overall dimensions: 1,010 x 810 x 1,100 mm (39 3/4x 31-7/8 x 43-5/16)
High rigidity and stability steel monoblock base
4,3 touch screen with advanced functions. Complete with:
Adjustment of the edge feed speed from 3 to 8 m/min
Management of manual work modes, programmed cutting and measure of the panel perimeter
Automatic calculation of the required edge length with reference to the most common geometries
Anti-scratch phenolic multilayer work table with modular holes complete with supports (no. 80 standard supports)
Shear device for rolled edges complete with roll-holder plate
Teflon-coated hot melt glue pot installed underneath the worktable to ensure a continuous glue recirculation and avoid its overheating
Powerful heating system for an immediate use with timed stand-by

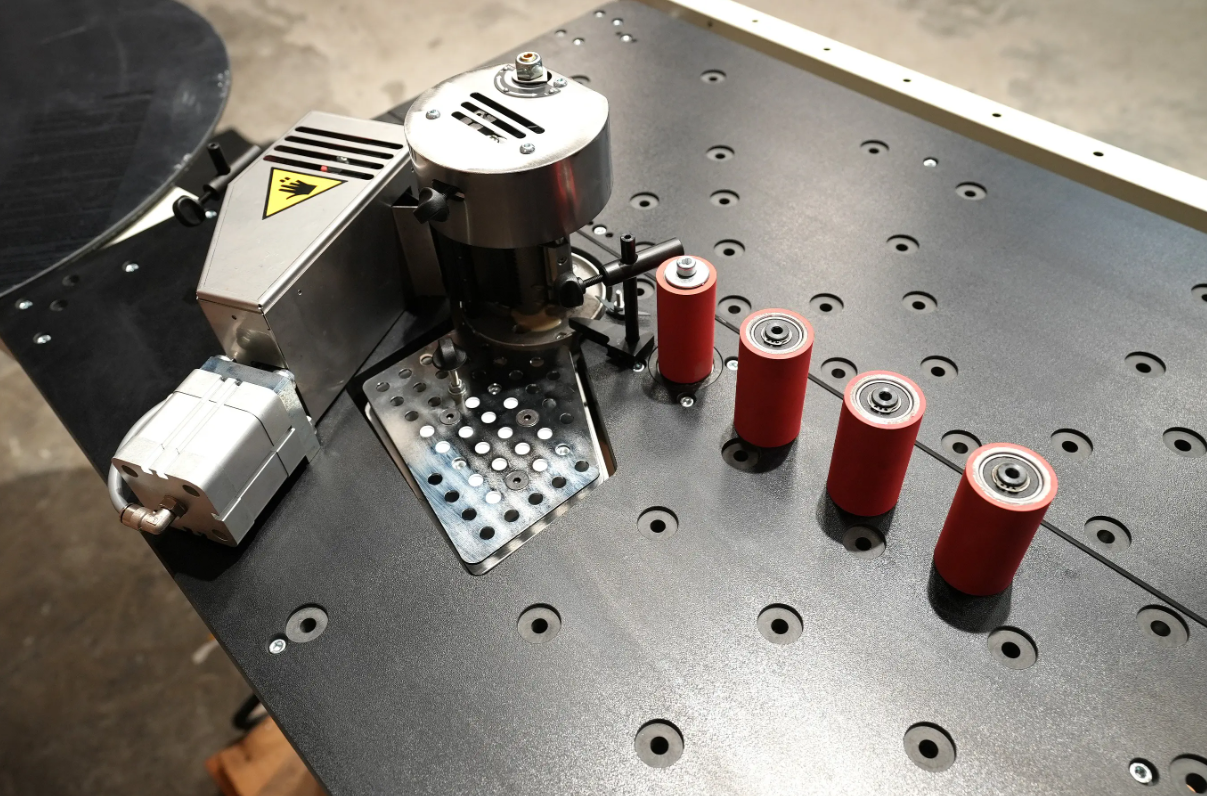

Glue application of edging material by means of a powered glue spreading roller
no. 1 powered pressure roller
Can apply edges on square, shaped and round panels;
Start/stop cycle pedal
Emergency push button located on front of machine
Pad lockable main switch
Stabilized power supply for auxiliary circuit 24V in direct current
Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate.
Link to more images and info at 360
