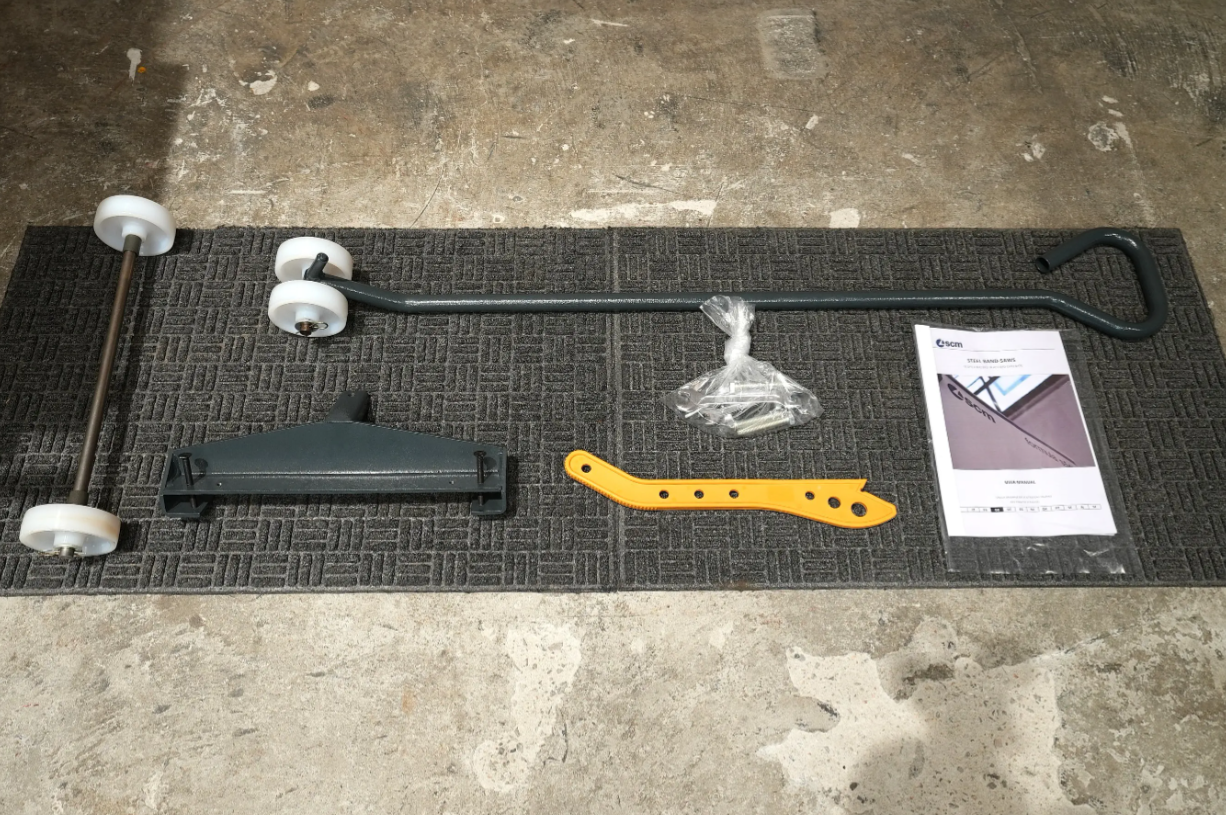

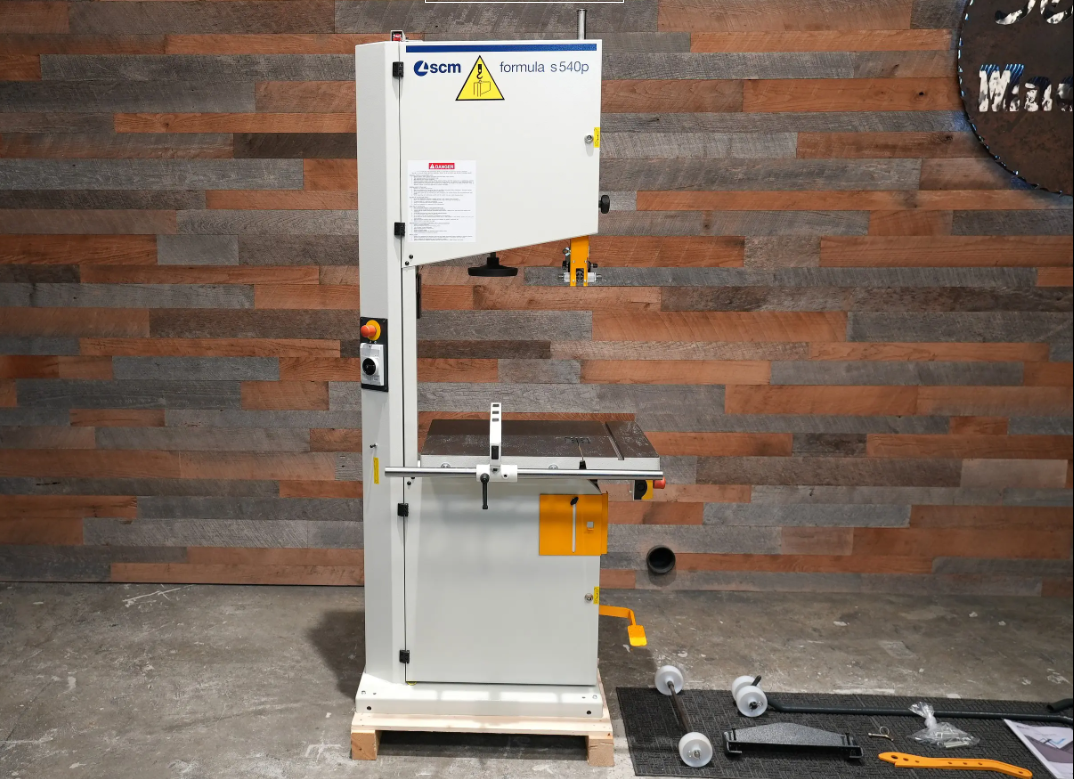

NEW 2025 SCM formula s 540p Bandsaw. Still has its protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price!

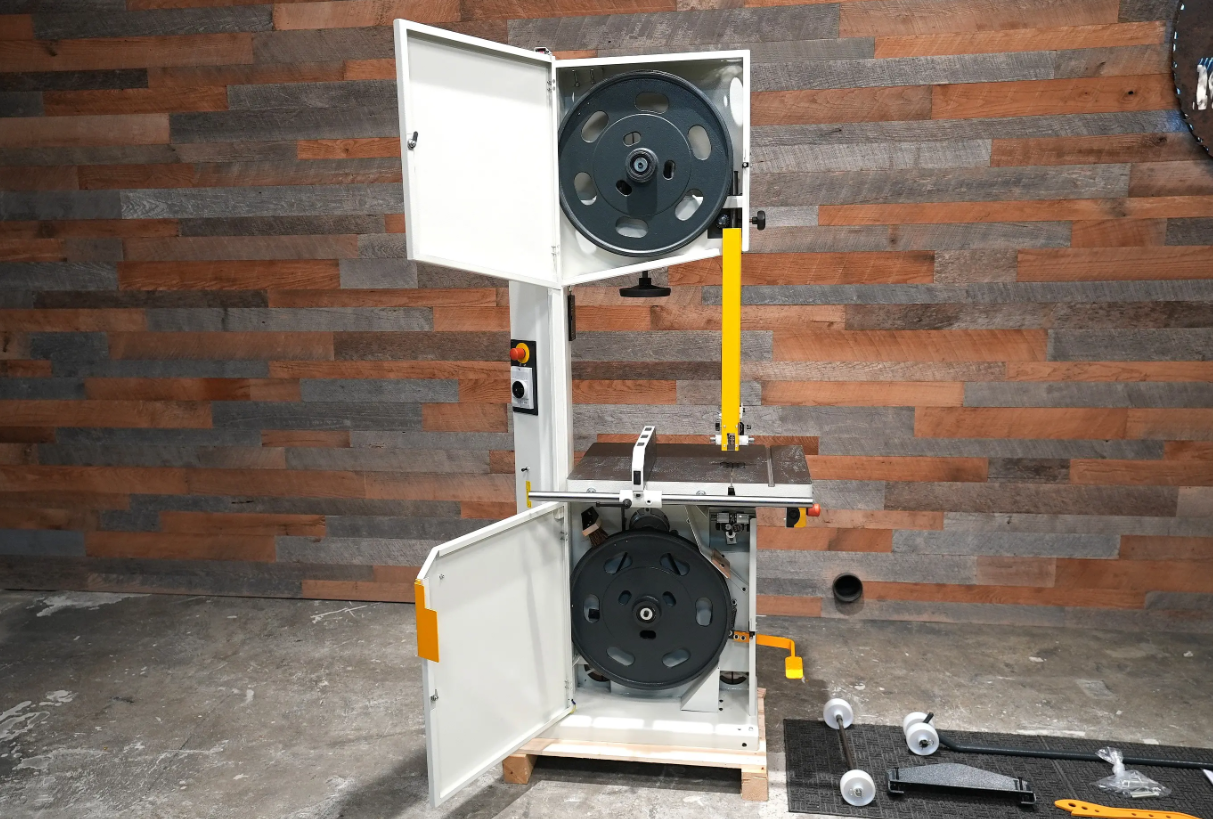

The s 540p formula band saw is equipped with a cast iron work table as well very thick cast iron wheels running on sealed for life ball bearings
This has a positive effect on the stability, precision and therefore reliability of the machine.
The top and bottom high precision blade guides ensure a perfect result when carrying out the straight and tilted cuts on wooden, plastic or aluminum materials
MACHINE CONFIGURATION
(Options and accessories included with this machine)
Wheels for machine movement
Single-phase motor (USA version)
TECHNICAL FEATURES
Worktable dimensions m/min 520 x 720 (20.5 x 28.37)
Cast iron saw wheels diam. mm(in) 540 (21.25)
Saw wheels width mm(in) 38 (1.5)
Max. cutting height (inches) mm(in) 500 (20)
Max. cutting width mm(in) 520 (20.5)
Worktable tilting 0° χ 45°
Min./max. blade dimensions mm(in) 6/35 (0.25/1.37)
Standard single-phase motor mm(in) 3,6kW 4,8hp 60Hz
Exhaust outlet diameter mm(in) N° 2 x 120 (4.75)
Miter gauge slot 3/8 x 3/4
MINIMUM INSTALLATION REQUIREMENTS
Extraction air consumption m3/h 1630
Exhaust air speed (dry shavings) m/s 20 (65.62)
Installed motor power VA 3600
Voltage Frequency 220 V 60 Hz
Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate.
Link to more images and info at 360
