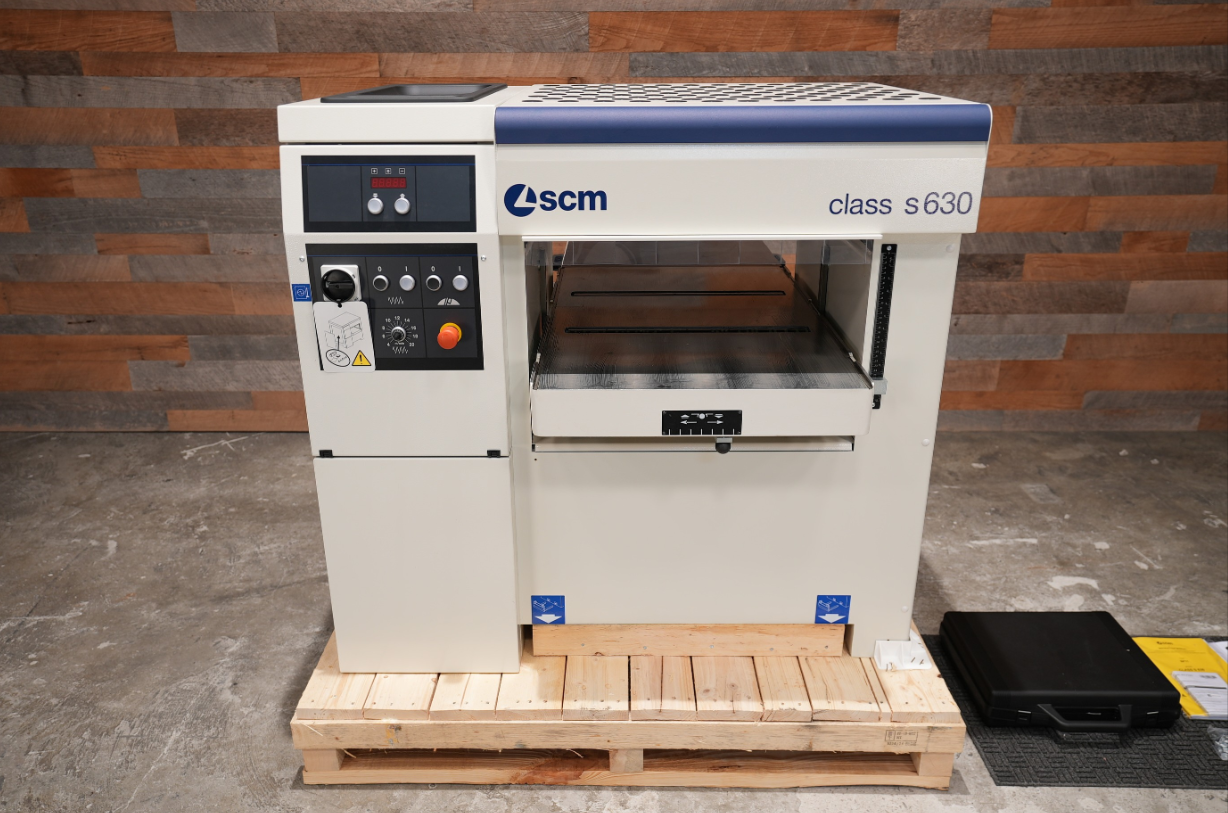

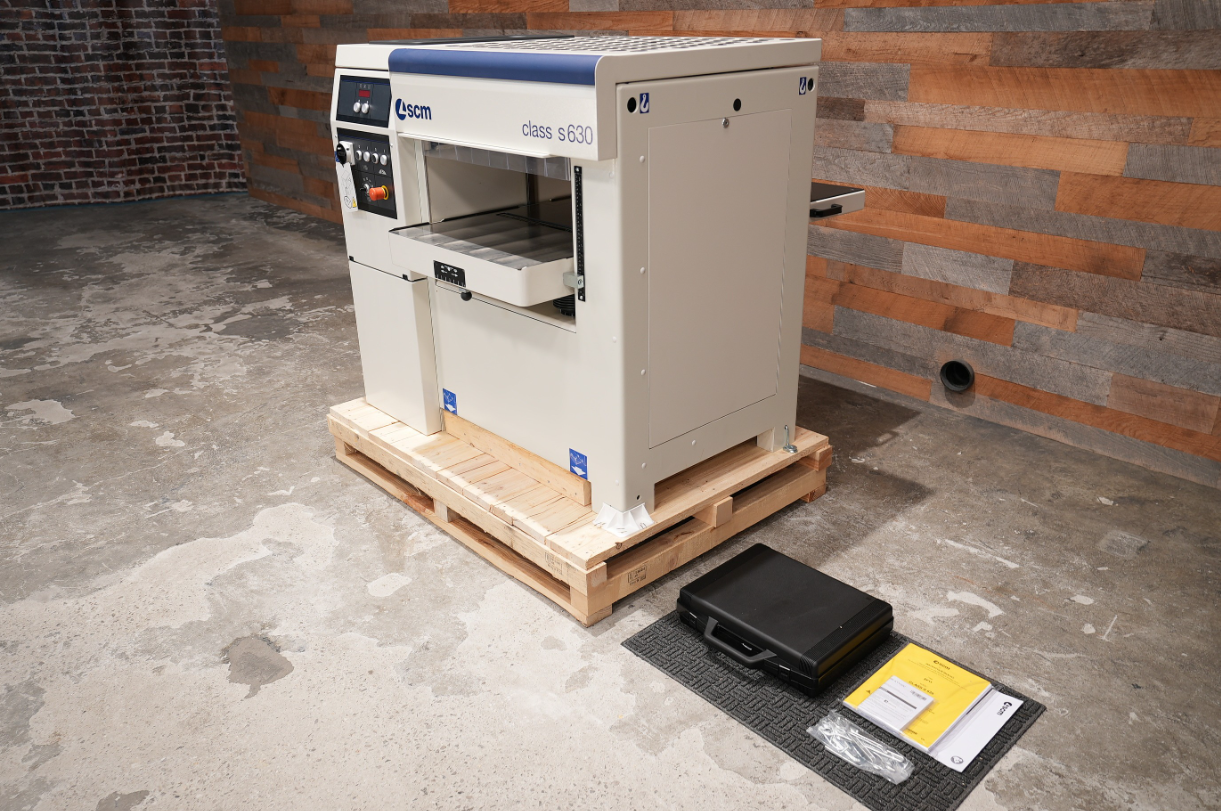

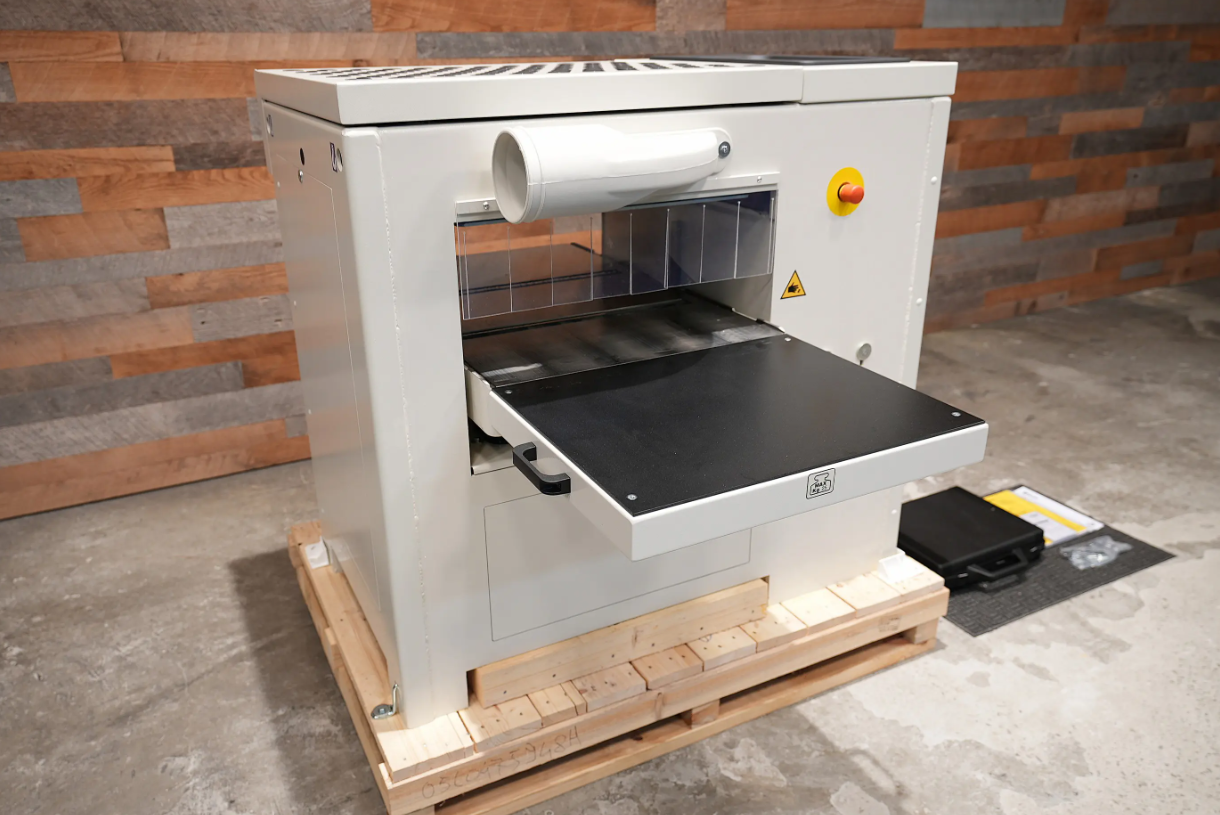

NEW 2025 SCM class s 630 Thicknessing planer +Tersa head + Outfeed Table Extension BLACK FRIDAY SPEC

Listing #553996 Listed on: 11/23
Details - Machine for Sale
Category:Planers-Single
Price: $20,948.25
Type:New - New
Manufacturer:SCM
Model:class s 630
Location:Kingston, TN
Sale Type:Dealer
Seller:360 DEGREE MACHINERY LLC [Contact]
Phone:630-229-6705
Year:2025
Electrical:3PH
More Info:Link to more images and info at 360
Description



NEW 2025 SCM class s 630 Thicknessing planer with a Tersa head + 77404 Thicknessing outfeed table extension. Still has it’s protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price!

STANDARD EQUIPMENT

Monoblock Base and Cast iron table
The solid, welded base undergoes a treatment call normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point. The cast iron tables are machine polished. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use.
Powered planer table lifting; 2 speeds with micrometric adjustment
Numerical readout of working height with decimal control
Planer table movements by means of 4 steel screws, with 2 side linear guides
Variable feed speeds, electronically controlled by means of inverter from 4 to 20 m/min

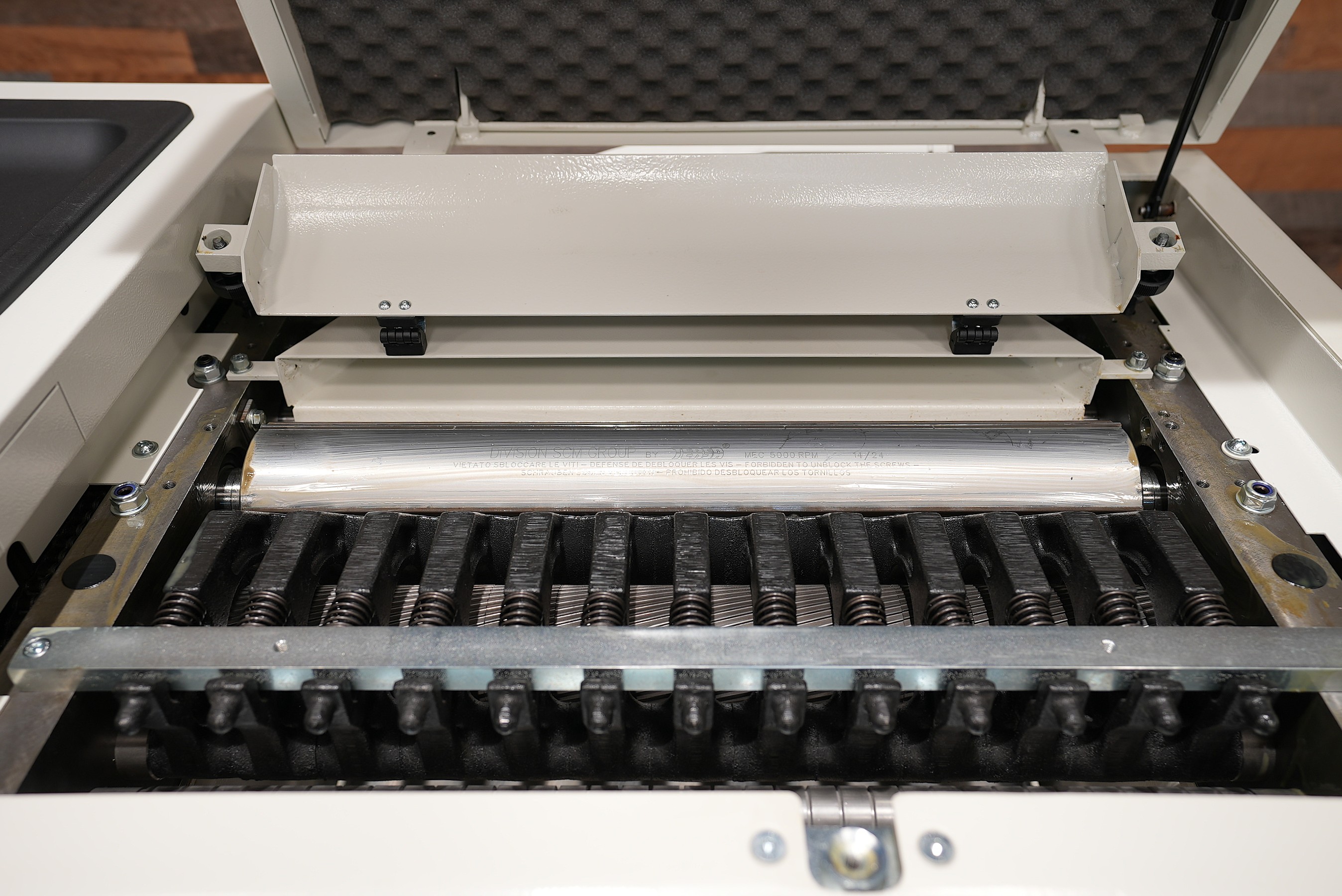

Sectioned steel infeed roller
2 rubber-coated steel outfeed rollers
Interchangeable outfeed rollers


TOOLING INCLUDED

4 Cr TERSA knives, dimensions: 35x3x640 mm (1.37 x 0.06 x 25.19”)
Push stick and push handle
Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog


SAFETY/PROTECTIONS

Soundproof infeed and outfeed barriers
Overload switch protection
Auxiliary low voltage circuit (110 volt)
Emergency pushbutton
Main power switch can be locked in the off position with a padlock


MACHINE CONFIGURATION

10.03.39 USA version
R1.07.57 Class s 630
93.07.34 Volt 220
93.15.01 Frequency 60 hz
97.04.68 Motor 14 HP – 11 kW
Automatic star delta start
34.02.13 “TERSA” cutterblock with 4 rapid-locking knive slots Knife dimensions: 35x3x640 mm (1.37 x 0.06 x 25.19”)
32.01.51 1st infeed sectioned steel roller
Note: not interchangeable
32.03.06 Worktable with 2 idle rollers
08.06.36 Seaworthy packing
10.99.91 Machine language: ENGLISH
*Does not include power cable

TECHNICAL SPECIFICATIONS
Motor power 14 HP – 11 kW
Working width 630 mm (24.8”)
Worktable length 1000 mm (39.37”)
Maximum depth of cut 8 mm (0.31”)
Cutterblock diameter 120 mm (4.75”)
Cutterhead speed 4500 rpm
No. of knives No. 4 // 35x3x640 mm (1.37Χ0.06Χ25.19”)
Min/max. working thickness 3.5 / 300 mm (0.12” / 11.75”)
Minimum working length / width 260 / 10 mm (10.24” / 0.37”)
Feed speed 4χ20 m/min (13χ66 ft/min)
Exhaust outlets diameter 150 mm (5.87”)
Installation requirements
Nominal extraction air consumption 1300 m3/h (754 CFM)
Air exhaust speed 20 m/s (66 ft/s)
Electrical requirements


220 V – 60 Hz – 3 phase – 49A
Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate. Can not ship to protected SCM sales areas.
