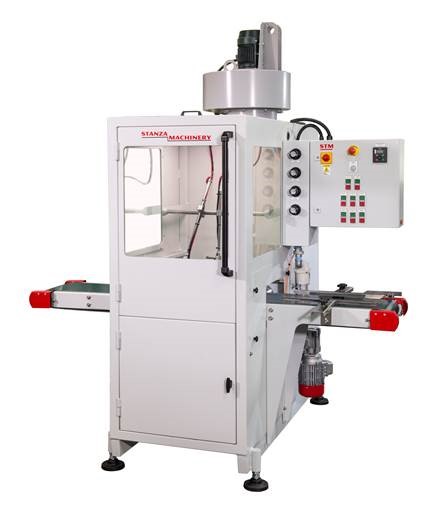

The Stanza SSP series sprayers are ideal for linear profiles in a wide range of materials. They are capable of utilizing both water and solvent based coatings including stains, paints, and lacquers.

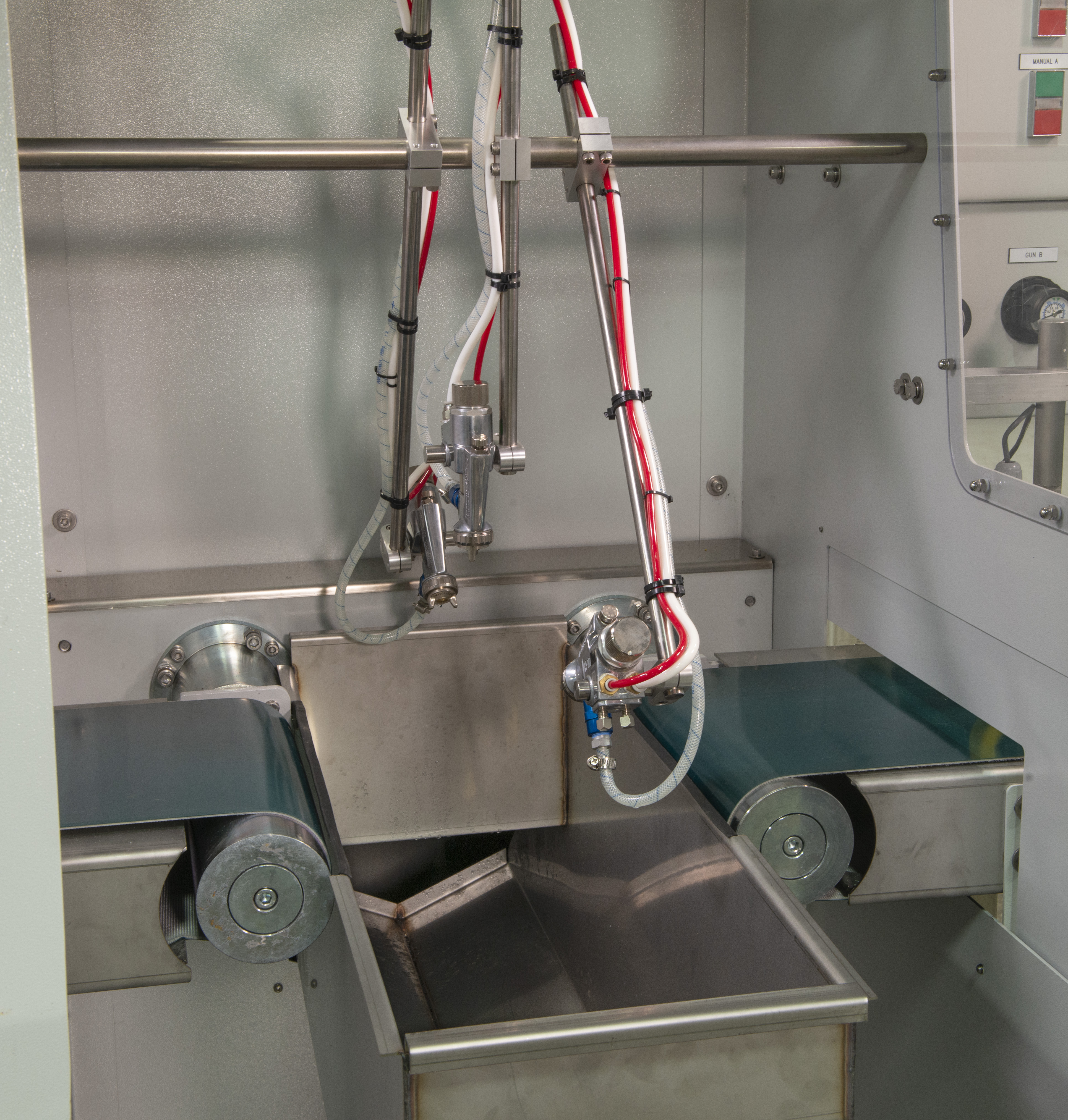

Spray guns are automatically timed for the start and stop of the spray cycle to ensure best spray efficiency. The overspray is captured by the spray trough and can be recovered while atomized spray is captured by fiberglass media and clean air is exhausted from the spray cabin.
Specs:
Work Piece max. width 12”
Work piece min. length 30″
Feed Speeds 30-150+ FPM
Feed Motor 1 hp
Extraction Fan 3 hp
Number of Spray Guns 3
Recovery Troughs 1
Spray Gun Trigger Photocell

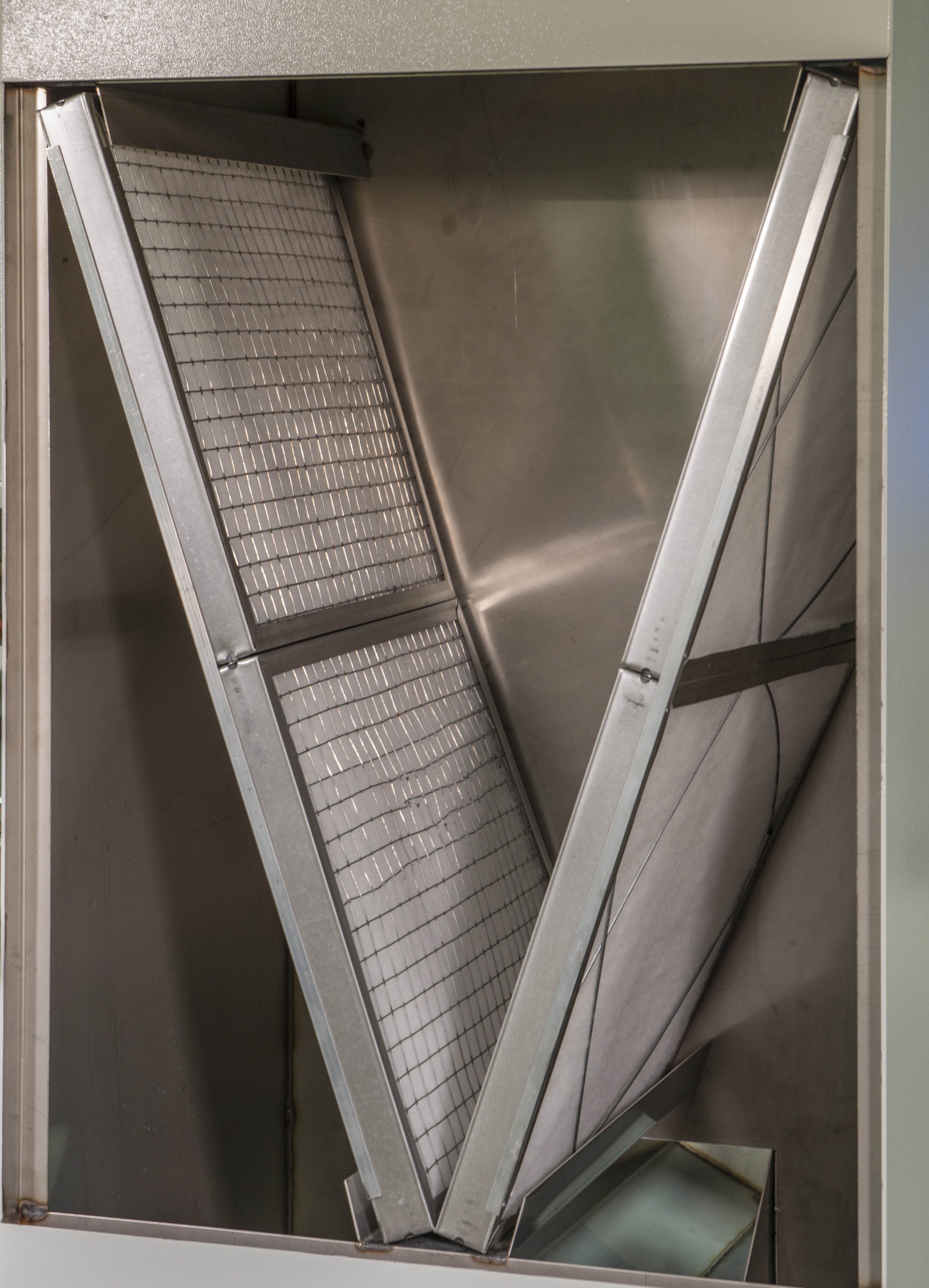

Filter Media Replaceable fiberglass media
Voltage 480V, 3ph, 60Hz
Made in USA,
come see in action in Charlotte, NC.
