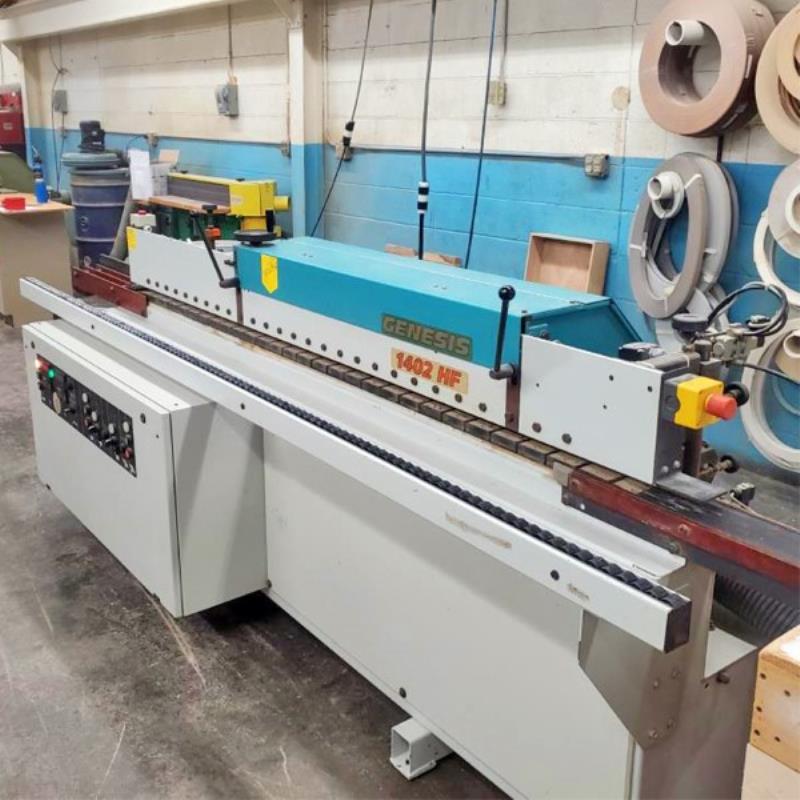

HOLZ-HER 1402 HF Compact Edgebander
Cartridge glue system, 3 mm edge thickness cap.,
Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the Edgebanding. Digital glue height indicator.

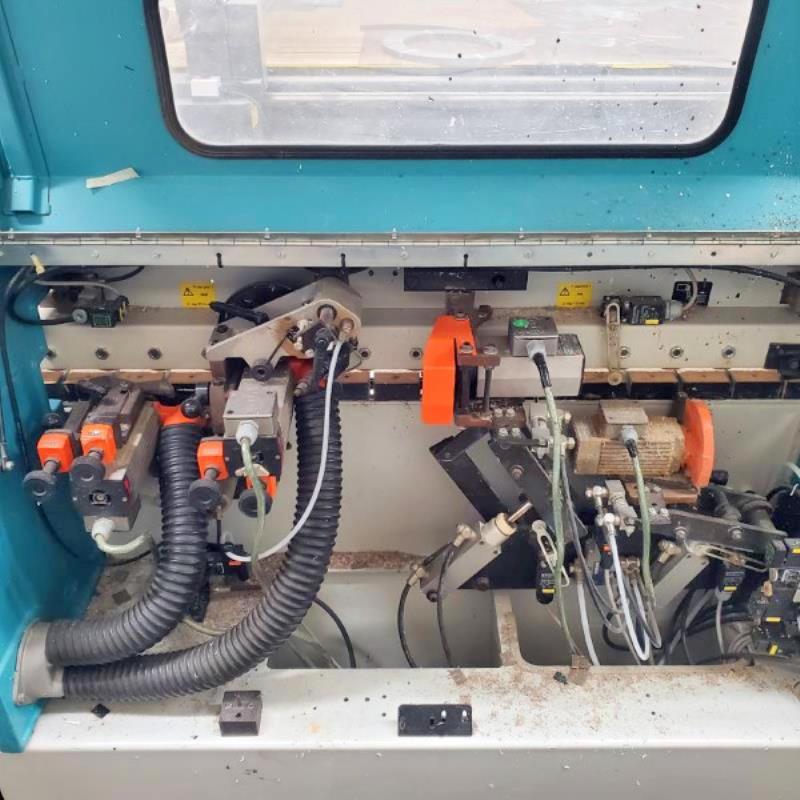

Workstations:
Double motor end trim (1 HP - 10,500 RPM motor ea.)
Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy).
Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius.
Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea.
Single feed speed of 35 FPM.
*** Please click the link for full description***
Holz Her 1402 HF Compact Edgebander
