0.4 - 3 mm Thickness coil edgebanding. 0.4 - 12 mm thickness of strips (HPL, veneer, solid wood strips).
Panel thickness minimum 10 mm and 60 mm maximum. Minimum panel length 140 mm.(5.5"), minimum panel width 85 mm (3.3).
Automatic strip & coil feed magazine with 3 mm PVC guillotine.
Hot Melt glue system, 10 Minute heat-up time. 1" Dia. Glue applicator roller; pressure section with (1) large dia. "non-stick" coated drive roller.
Workstations:
Front & Rear End Trims: (0.33 HP - 12,000 RPM motors), motors travel on (2) straight slides and pneumatic tilt 0° - 25° on horizontal plane.
Top & Bottom Rough Trims with motors (0.75 HP - 12,000 RPM motors), digital readouts for easy setup.
Top & Bottom Fine Trims with motors (0.5 HP - 12,000 RPM).
Top & Bottom Profile Scrapers with digital readouts for horizontal adjustments.
Top & Bottom Glue Scrapers, digital readout for horizontal adjustments.
Feed Speed of 12 MPM (39 FPM), 3 HP feed drive.
*** Please click the link for full description***

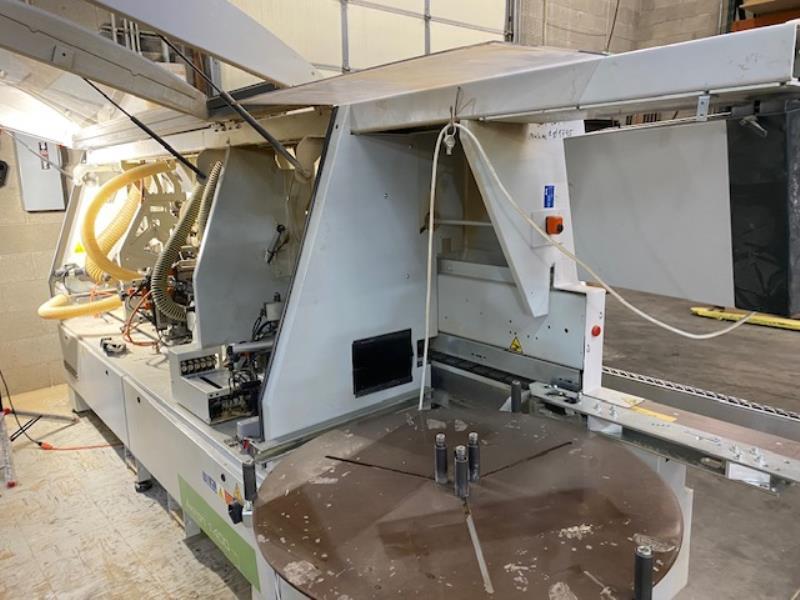

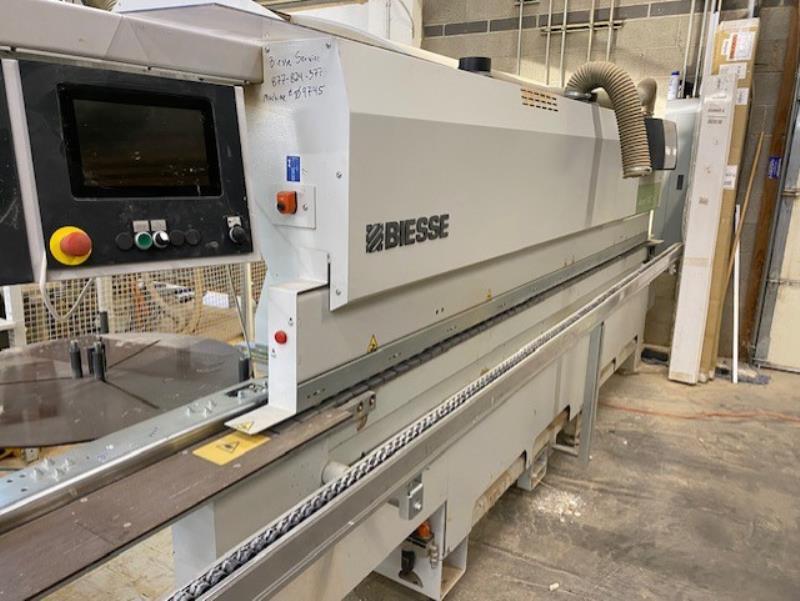

Biesse Akron 1430A Edgebander
