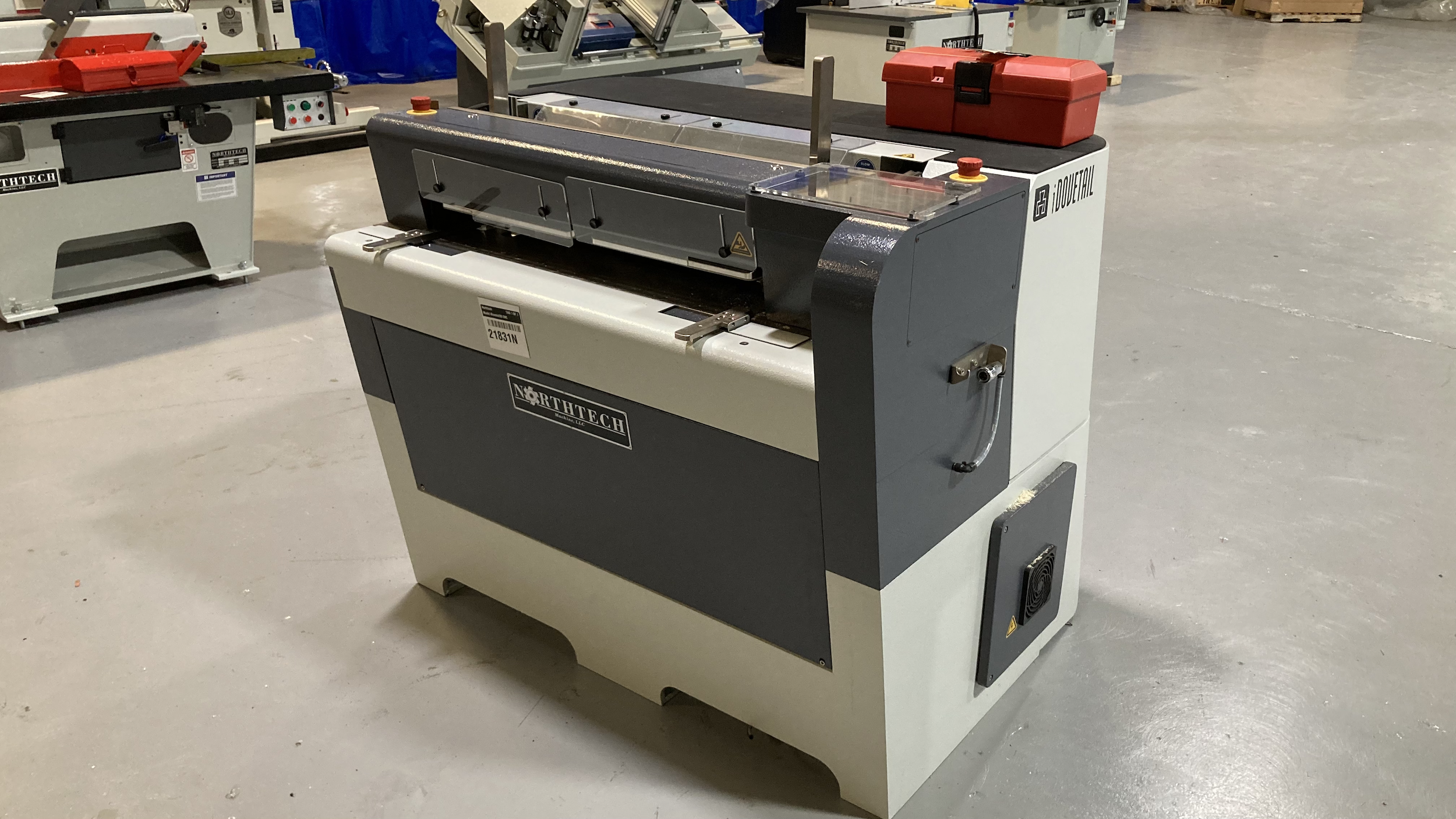

Northtech Model iDovetail30 CNC Dovetailer
Serial #:A226259
Condition: New

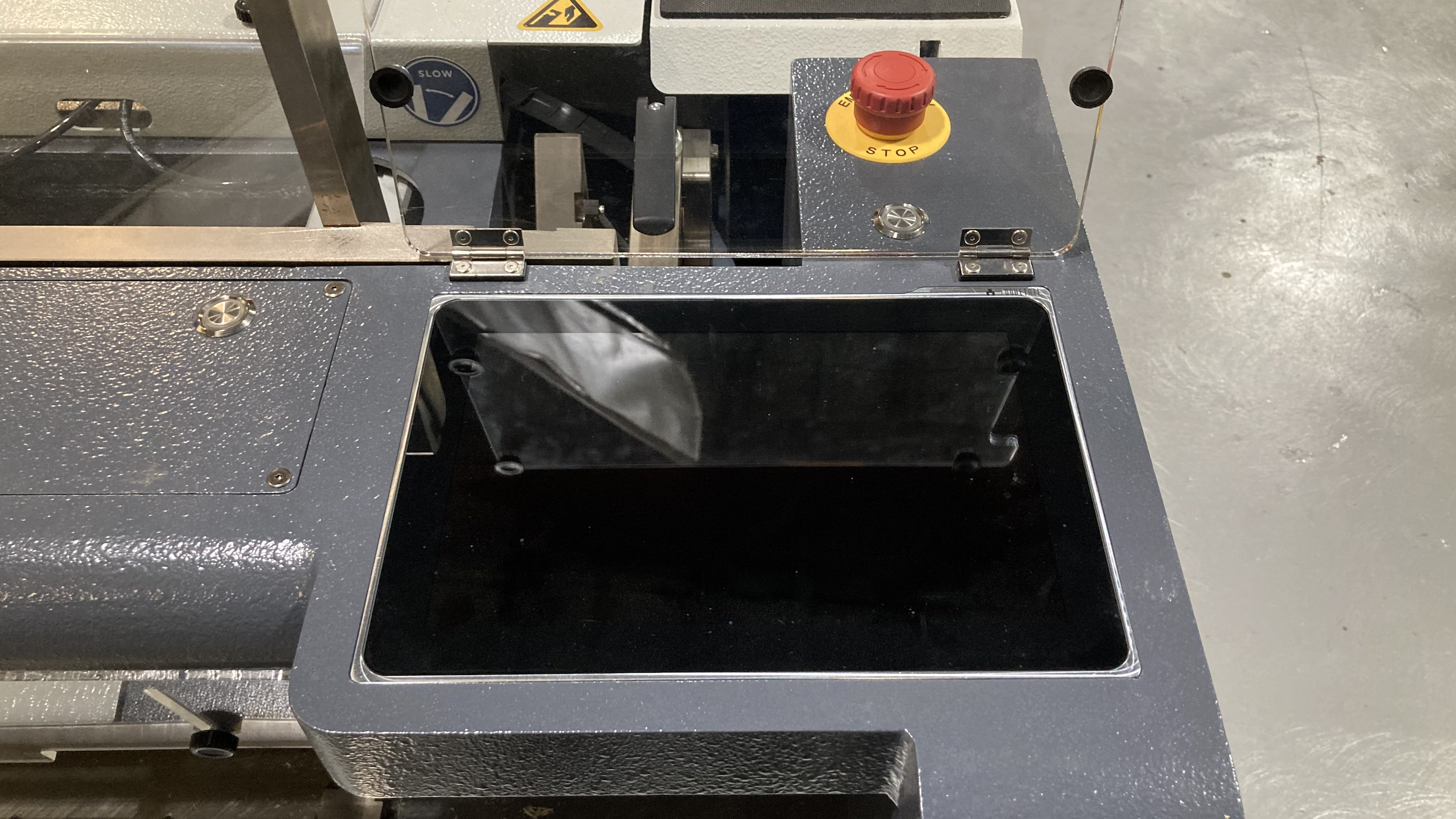

Northtech's Dovetail30 is our largest award winning single spindle 3-axis CNC dovetailer boasting a 30" working width. This machine has servo controlled X-Y and Z positioning that allows for quick processing of over 8 different profile modes. The (2) zone work station design allows operator to load one station while profiling the other for higher production capability. The Dovetail has an easy to use interactive touchscreen interface that not only shows the operator a step by step tutorial, but is the heart of the Dovetail designer. This touchscreen platform provides real-time 3D renderings of 8 different profile designs, including mitered and mortise & Tenon joinery. This interface allows the operator to rotate and twist the 3D part for any view, even showing the drawer bottom groove ensuring the correct placement of dovetails on the first part. The ability to see the dovetail layout before running a part, automatic positioning fences, and automatic proper bit verification before cycle start will reduce most customers bad units out by over 8%. Hands down the most versatile and easy to use dovetailer ever made.

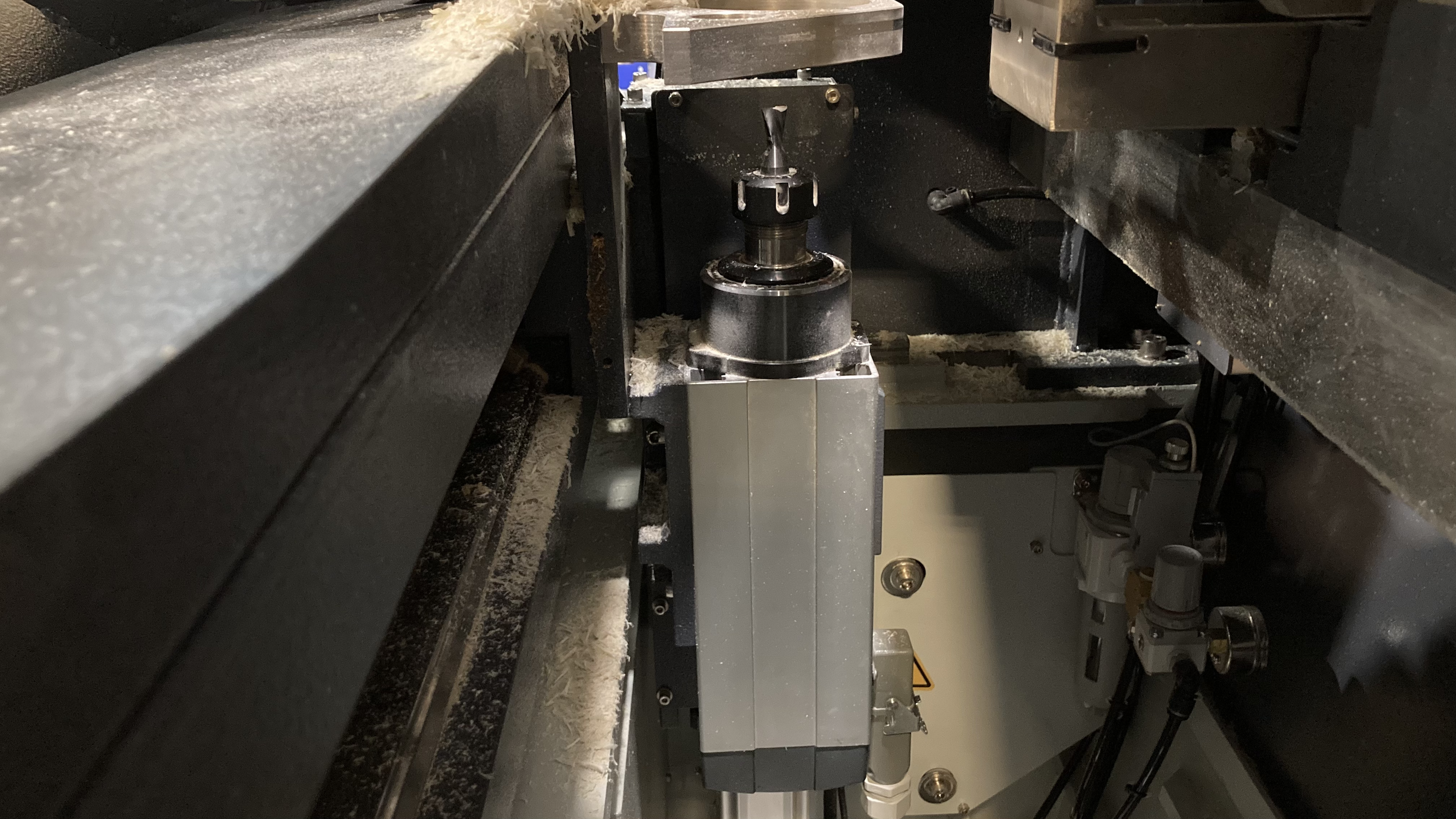

4.2kw (6HP) powered spindle
Programmable spindle controls with a maximum 18,000RPM
Maximum processing width: 750mm (30")
Tenon dimensions: See following profile mode specific details
Workable part dimensions: See following profile mode specific details
Spindle vertical adjustment: 100mm (4") servo positioned
Recommend working pneumatics: 90PSI on a 3/8" air line
Dust port: (1) 4" requiring 436CFM @ point of extraction
195in/min dovetail bit acceleration
Bit sharpening compensation adjustments via touchscreen interface
Automatic bit recognition
Horizontal & Vertical pneumatic clamping allows individual part release and mitered profiles
Easy to understand error detection and display

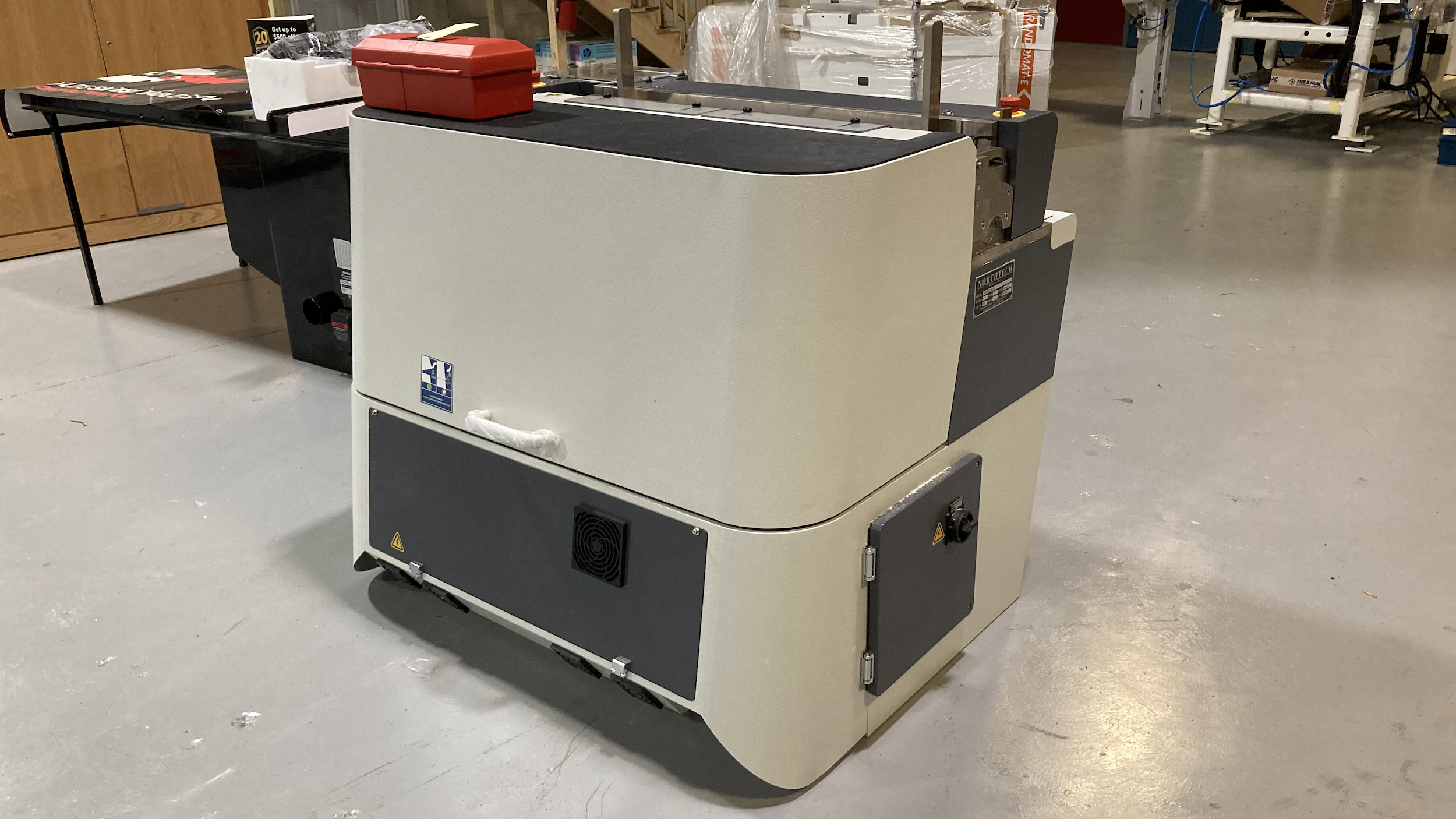

- Don't mind the dust in the photos, recently ran a demo in our showroom
- RT Stock No. 21831N
