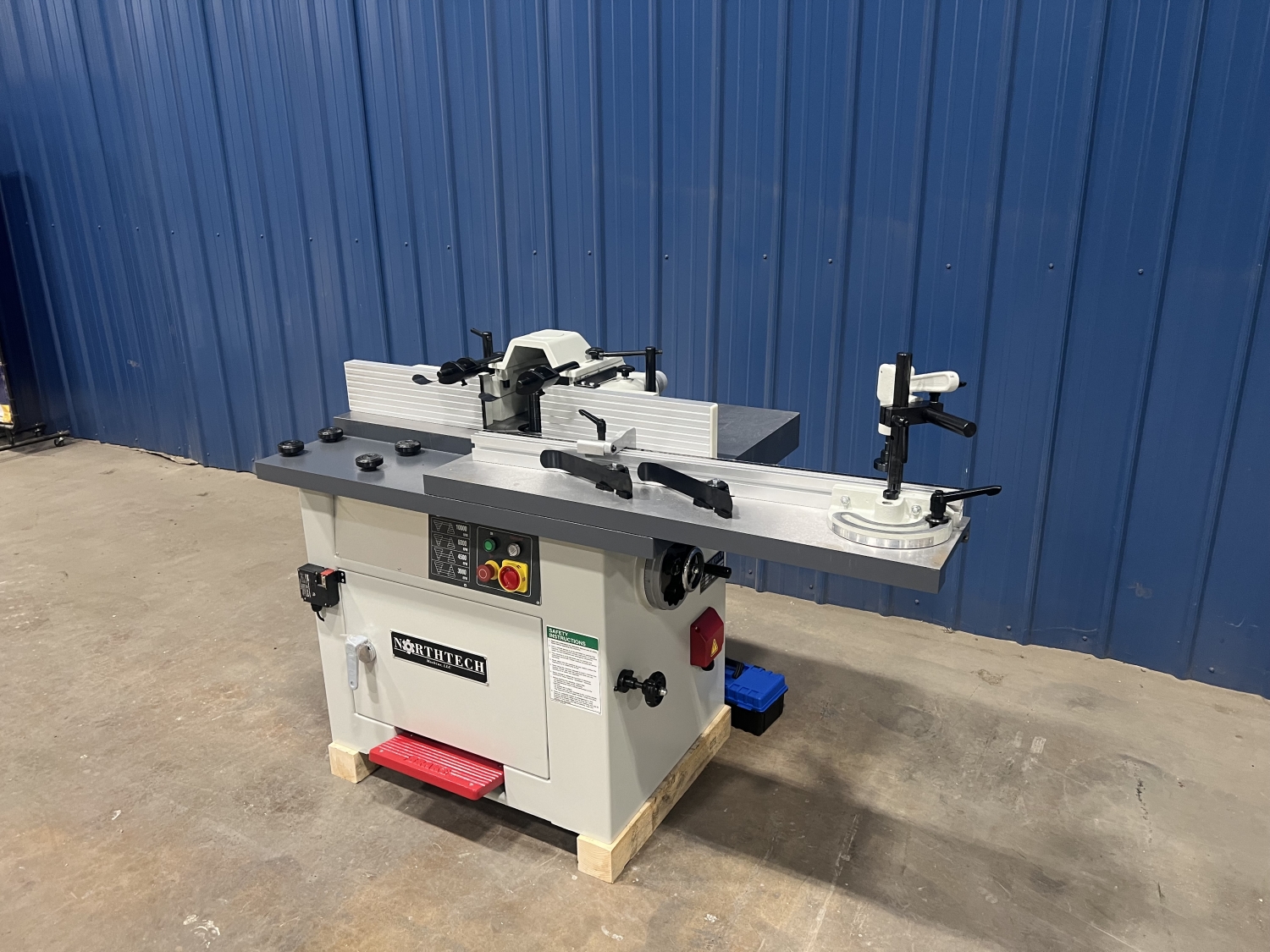

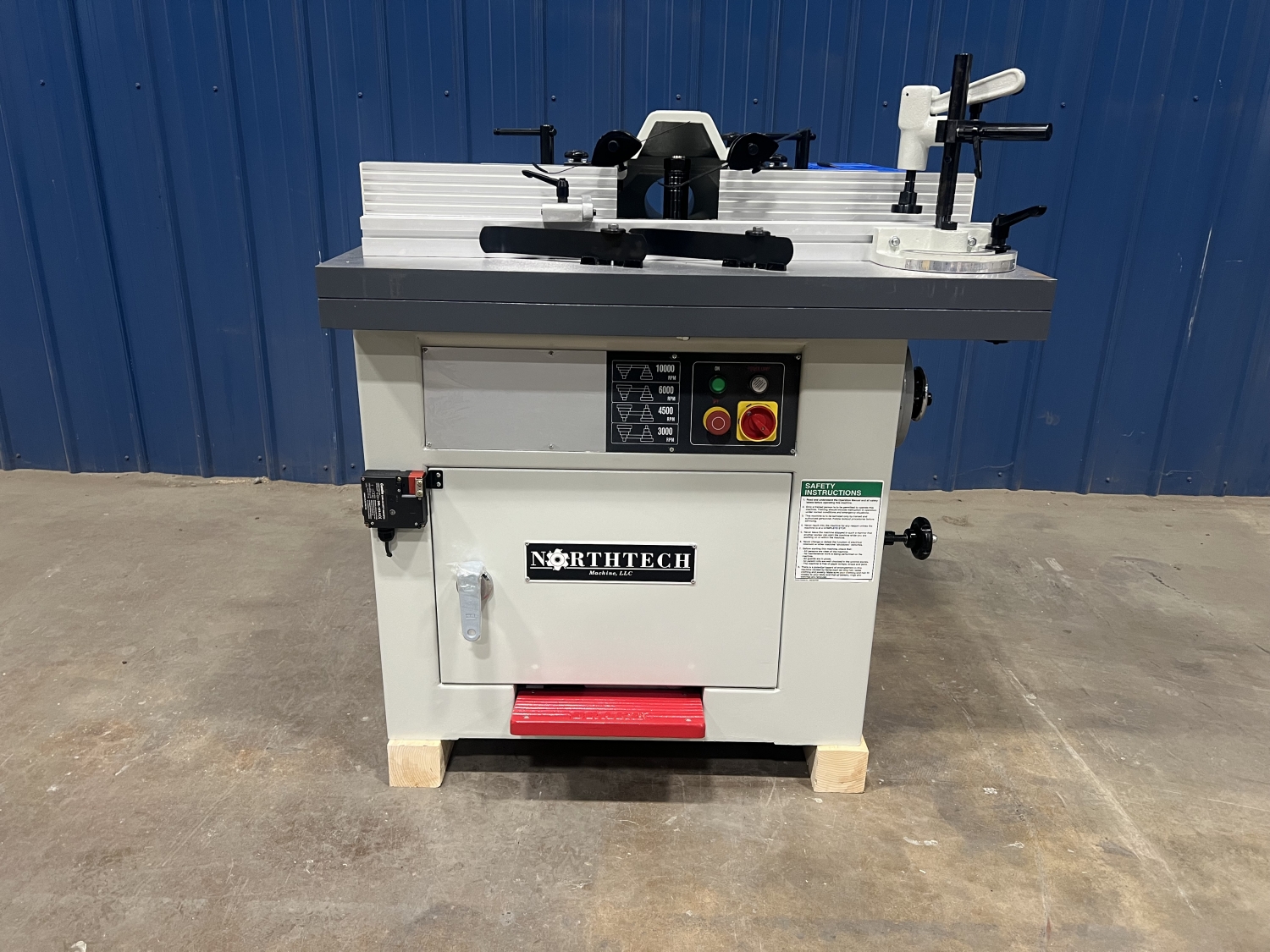

Northtech Model NT-625MS Sliding Table Shaper
Serial #:230091
Condition: New
The NT 625MS is the 625 shaper equipped with a sliding table. The 625 series features a large stable base and foot operated brake for quick spindle stop. The oversized precision ground table on solid steel cabinet provides stable vibration free milling. The 7.5HP 4 speed interchangeable spindle provides flexibility for customer specific applications.

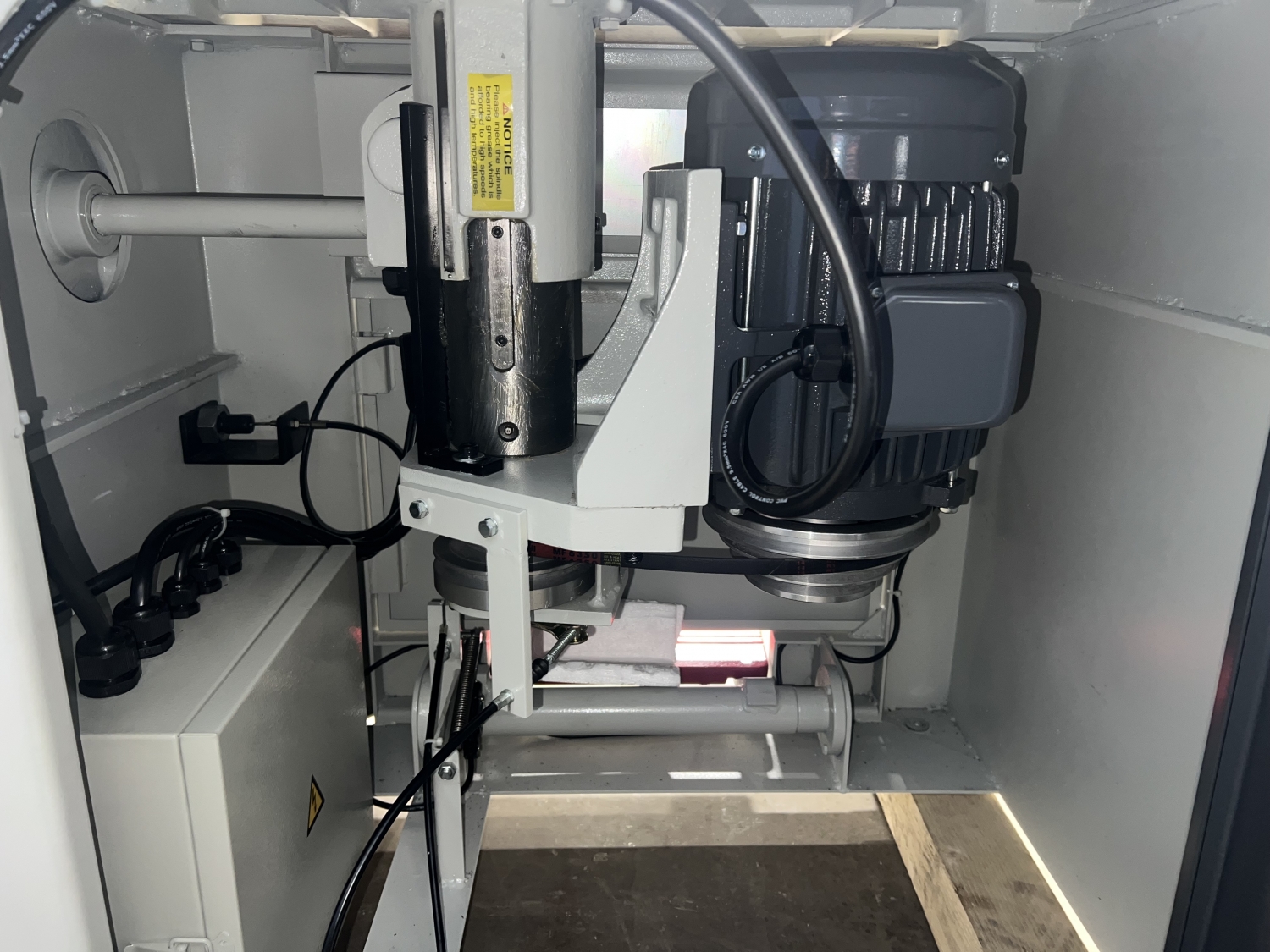

7.5 HP Spindle Motor
1-1/4" Spindle
4 Speeds: 3000RPM, 4,500RPM, 6,000RPM, 10,000RPM
(2) 5"x17" Micro Adjustable Fence
Foot Operated Spindle Brake
31-1/8"x41-3/8" Worktable
5" Under Nut Spindle
5" Vertical Spindle Travel
33-3/4" Table Height
(1) 4" Dust port requiring 436CFM at point of extraction
- RT Stock No. 931762N
Northtech Model NT-625MS Sliding Table Shaper
