2017 SCM Pratix S15 C CNC Machine – 5′ x 12′ Flat Table

Listing #554599 Listed on: 01/18
Details - Machine for Sale
Category:Routers-Cnc
Price: $60,000.00
Type:Used - Very Good
Manufacturer:SCM
Model:Pratix S15 C
Location:Kingston, TN
Sale Type:Dealer
Seller:360 Degree Machinery LLC [Contact]
Phone:630-229-6705
Year:2017
Electrical:3PH
More Info:Link to more images and info at 360
Description

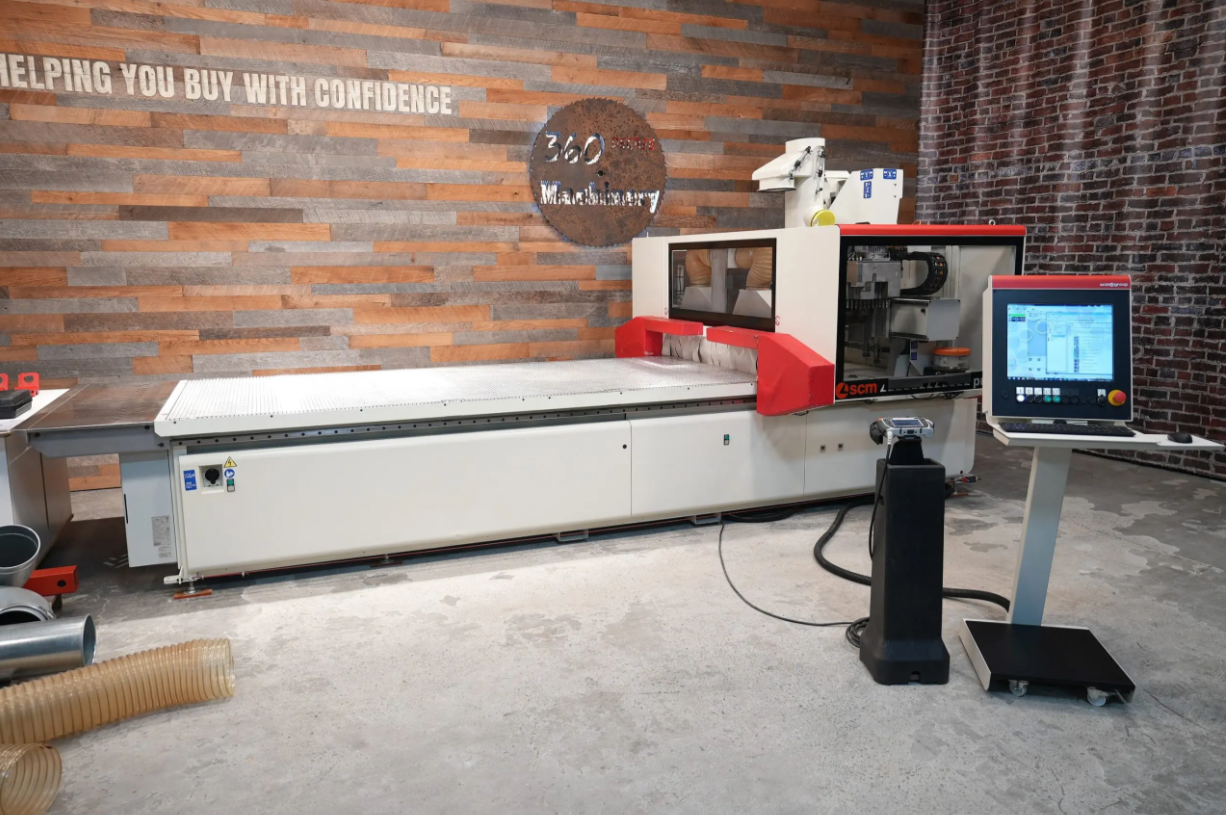

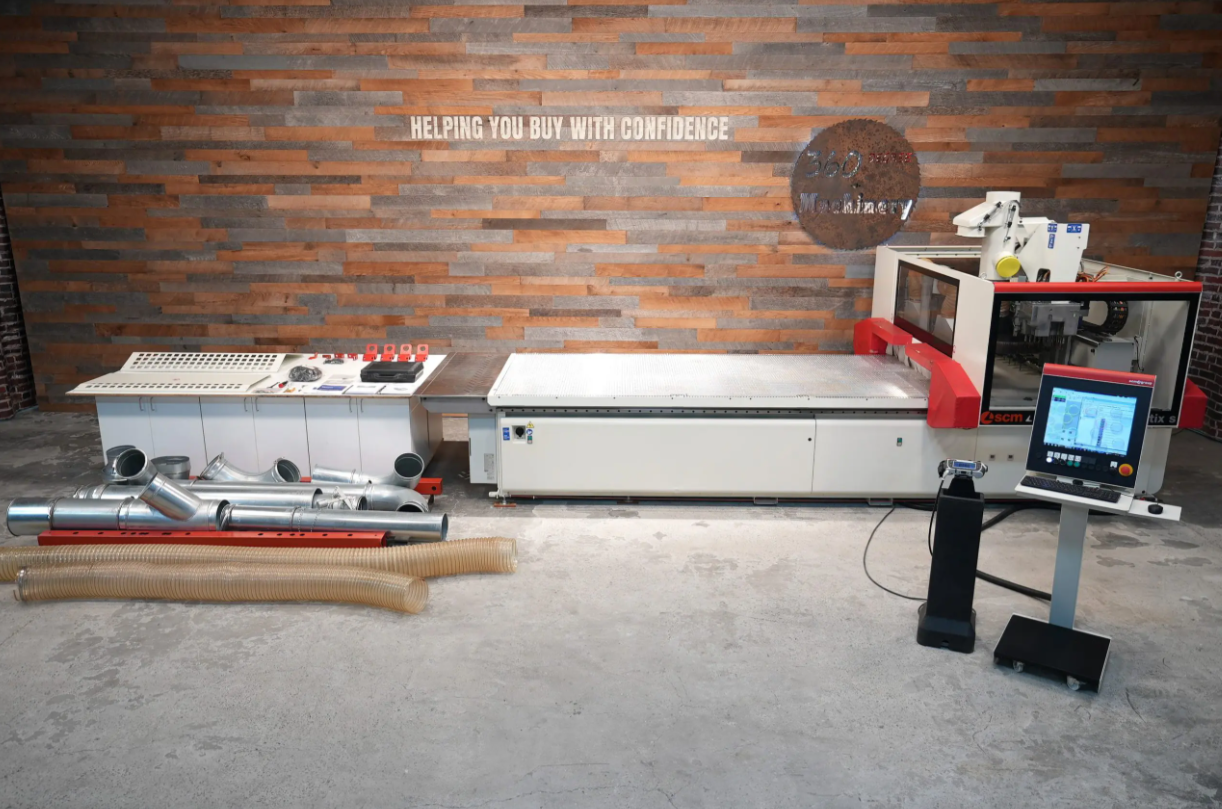

Clean, lower use 2017 SCM Pratix S15 C CNC Machine. What is really nice about these machines is how compact they are. All electrical and drives are stored under the front left side. While the twin Beckers reside under the rear deck. This really reduces the footprint. This particular model has a 11 hp 24,000 RPM tool changing spindle (14 Position) with a probe for tool length detection. The boring dead is powered by a 2.2 KW/3 HP motor 12 vertical spindles (7 on X-axis, 5 on Y-axis). Aluminum vacuum table with MATRIX (145″ X 61″) square grid pattern for versatile fixturing with a vacuum rake system.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Specs:
X Axis Travel: 145″
Y Axis Travel: 61″
Z Axis Travel: 10″
Spindle Speed: 24,000RPM
Key Features:
Vacuum Rake System: Includes aluminum vacuum table with MATRIX square grid pattern for versatile fixturing.
Vacuum Pumps: (2) 6.4 KW/8.5 HP Becker VTLF 2.250/0-79.1 (stored under grid table/rear)
Boring Head: 2.2 KW/3 HP motor, 6,000 RPM with 12 vertical spindles (7 on X-axis, 5 on Y-axis).
Routing: 11 HP electro spindle (8 kW), speeds 1,500-24,000 RPM.
Automatic Tool Changer (ATC): 14-position tool rack for efficient tool swaps.
High-Speed Precision: X/Y Axis at 115 FPM (35 MPM), Z Axis at 82 FPM (26 MPM).
Closed Loop AC Servo Drive: High precision with rack & pinion system in X & Y, and ground ball screw in Z.
Working Field: X-axis 145.2” (3,686 mm), Y-axis 61.2” (1,555 mm), Z-axis stroke 9.8” (250 mm). Max material thickness 4” (100 mm).
PC Front-End: 17” LCD display, ergonomic keypad, USB ports, RS-232
Probe – Tool Length Detector

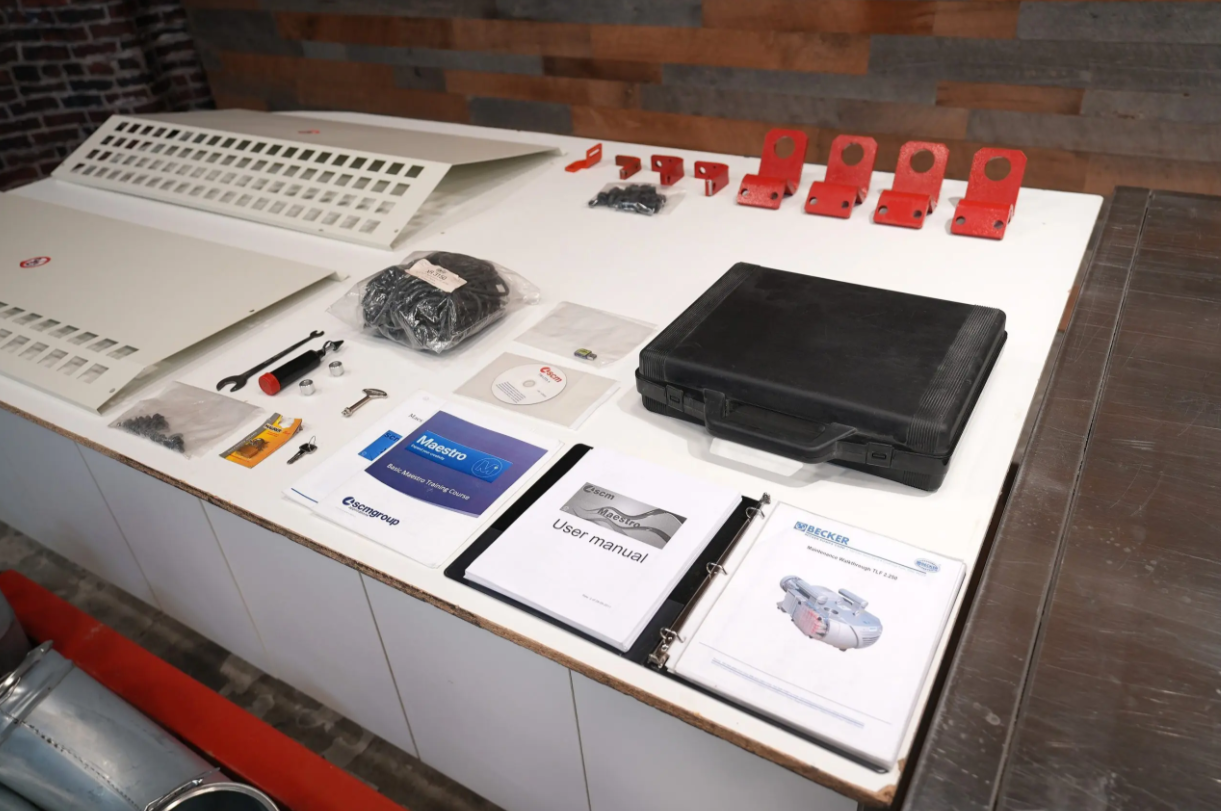

Includes (10) HSK Tool Holders

Link to more images and info at 360
