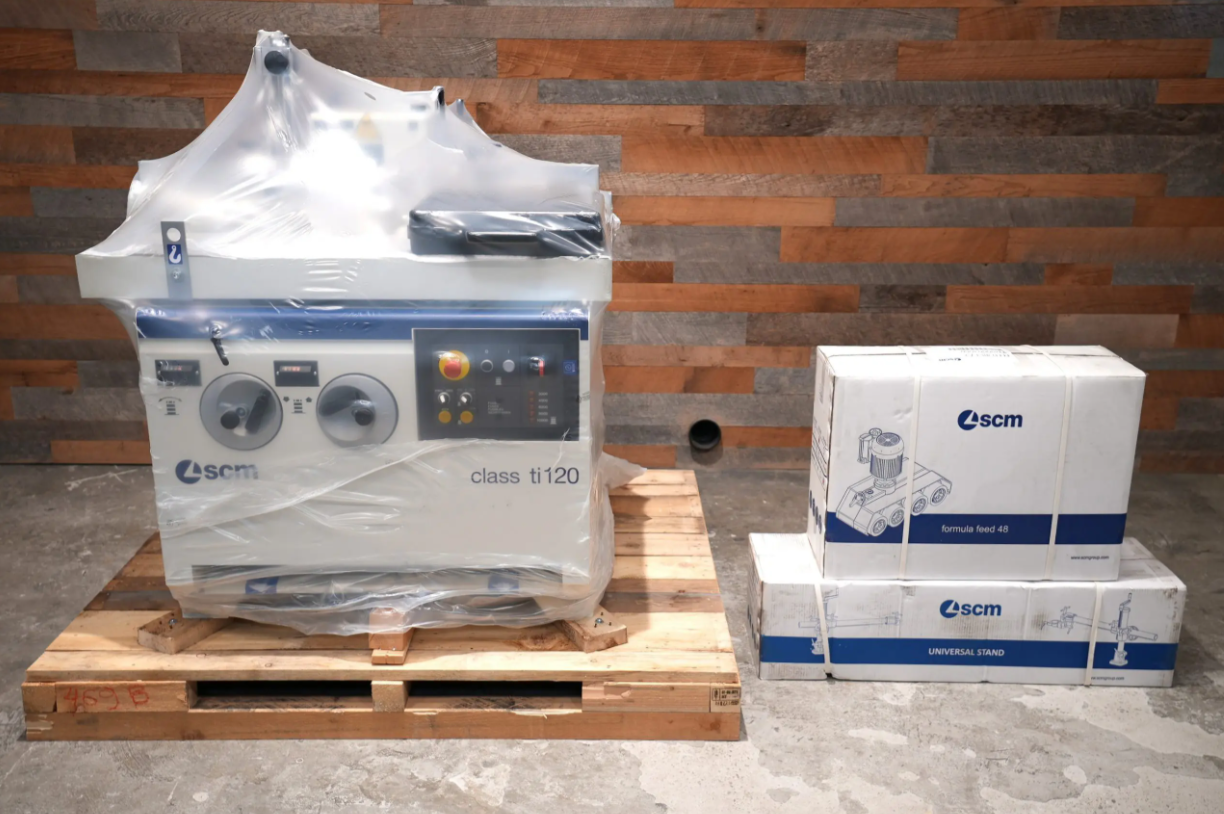

NEW 2025 SCM Class TI 120 Tilting Spindle Shaper + SCM Feed 48. Still has its protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price! This particular machine first arrived in the US mid December and to us in Mid January. (Machine is still sealed in factory Plastic/Non-plastic sealed Pictures and Video are of another machine so you know what you are getting)
Specs:
Table dimensions: 47.19″ x 31.87″ (1,200 x 810 mm)
Spindle dia.: 1-1/4″
Max. useful spindle length: 7.06″ (180 mm)
Tilt angle: 45° / +45°
No. 4 Morse Tape Spindle Mount: MK4
Max. tool dia. retractable under table: 12.56″ x 2.31″ (320 x 60 mm)
5 Spindle speeds (RPM): 3,000 / 4,500 / 6,000 / 7,000 / 10,000
Dust outlets dia. (hood): 4.69″ (120 mm)
Dust outlets dia. (base): 2x 3.12″ (80 mm)
Min. required dust collection: 900 CFM
Motor power: 11hp (8 kW)
Electrical requirements*: 220V, 60Hz, 3-phase, 26 A
Features:
Cast iron construction
Front-handwheels with mechanical readouts for adjusting the spindle and fence positions
5 spindle speeds
MK4 interchangeable spindle
Overload switch protection
Mechanical brake on the main motor
Specifications:
formula feed 48
Number of rollers 4
Feed speed m/min 2/4/5,5/7/11/13/16,5/33
Rollers diameter mm 120
Rollers width mm 60
Rollers excursion mm 18
Three-phase motor power kW (Hz) 0,75 (50)
Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate. Can not ship to protected SCM sales areas.
Link to more images and info at 360
