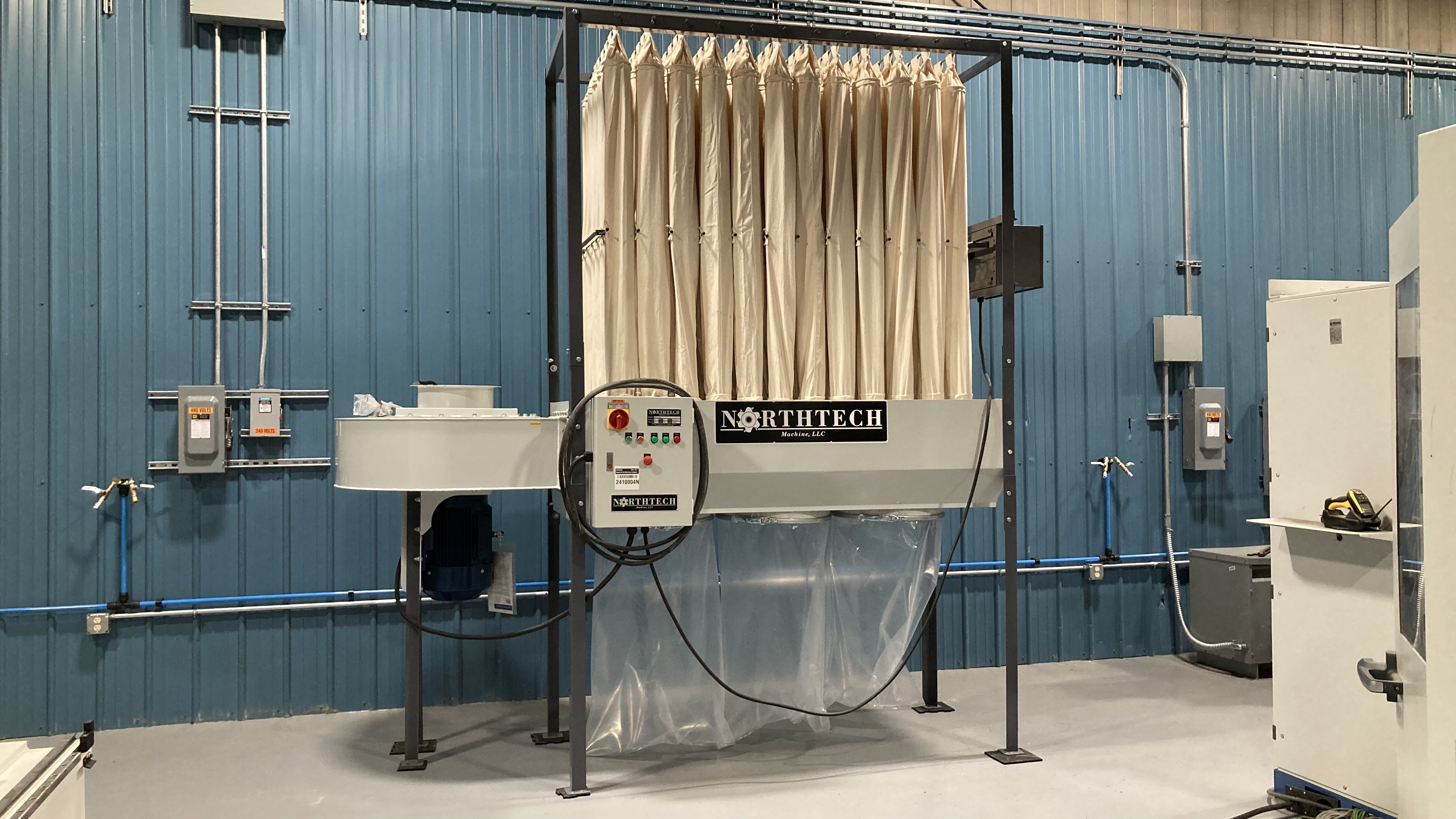

Northtech Model NT DC15SS Dust Collector
Serial #:172-113
Condition: New (installed in our showroom for demo)

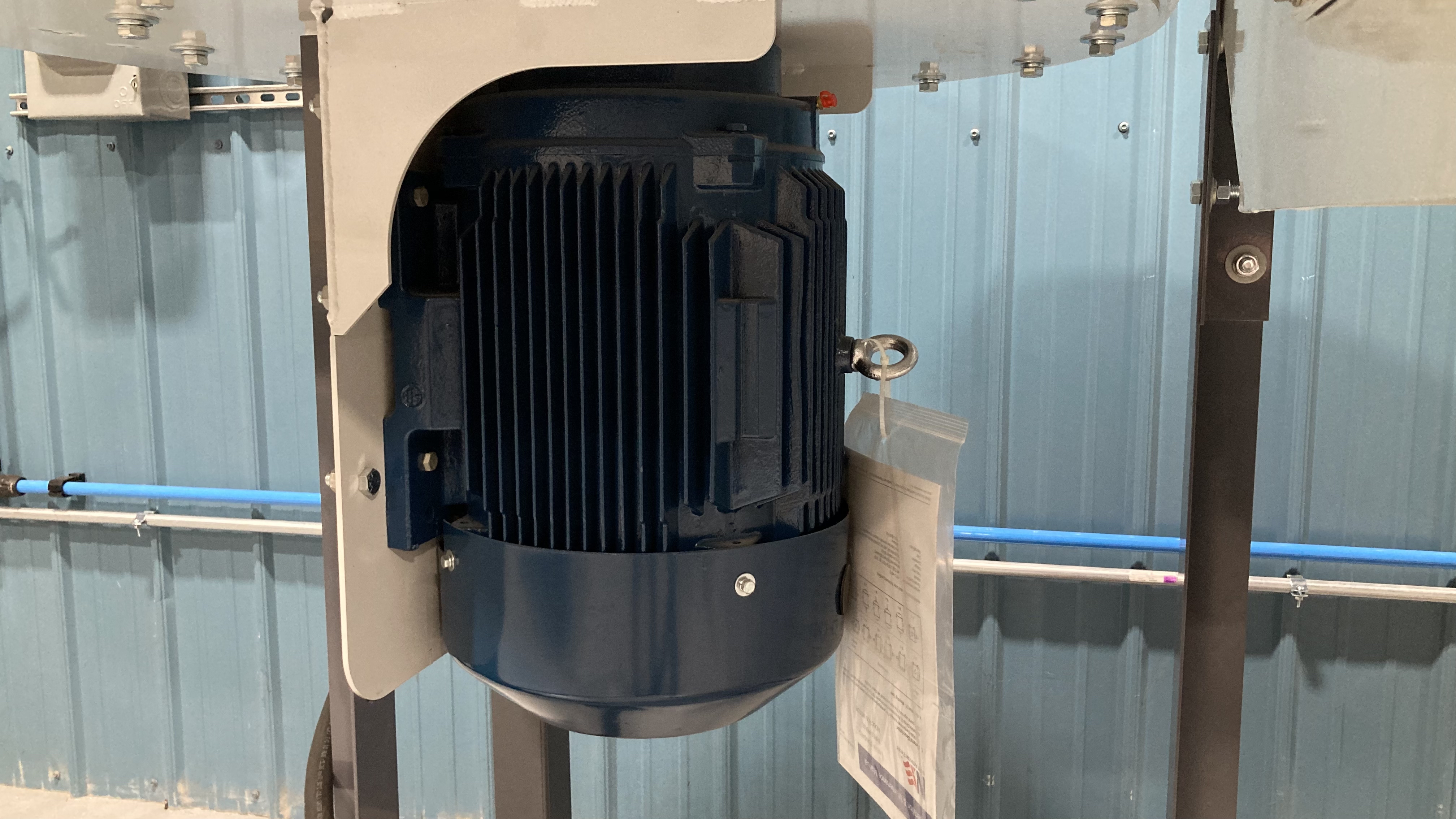

Powerful 15HP direct drive motor rated for continuous use.
The steel high static pressure blower fan has (8) blades and is balanced at 3500 RPM for premium vibration free operation.
Optional aluminum non sparking fan prevents sparking in the event metal hits the blower fan.
The Cammed shaker physically shakes every bag simultaneously and vigorously to free any dust stuck to the bags. 1/2HP shaker motor.
Keeping the filters clean is extremely beneficial for peak performance of any dust collection system.
Filters are stitched inside out removing upper seams commonly left on competitive models which create shelves for dust to collect inside the filter.
Bags are equipped with belt loops for mechanical shakers to affix to bags.

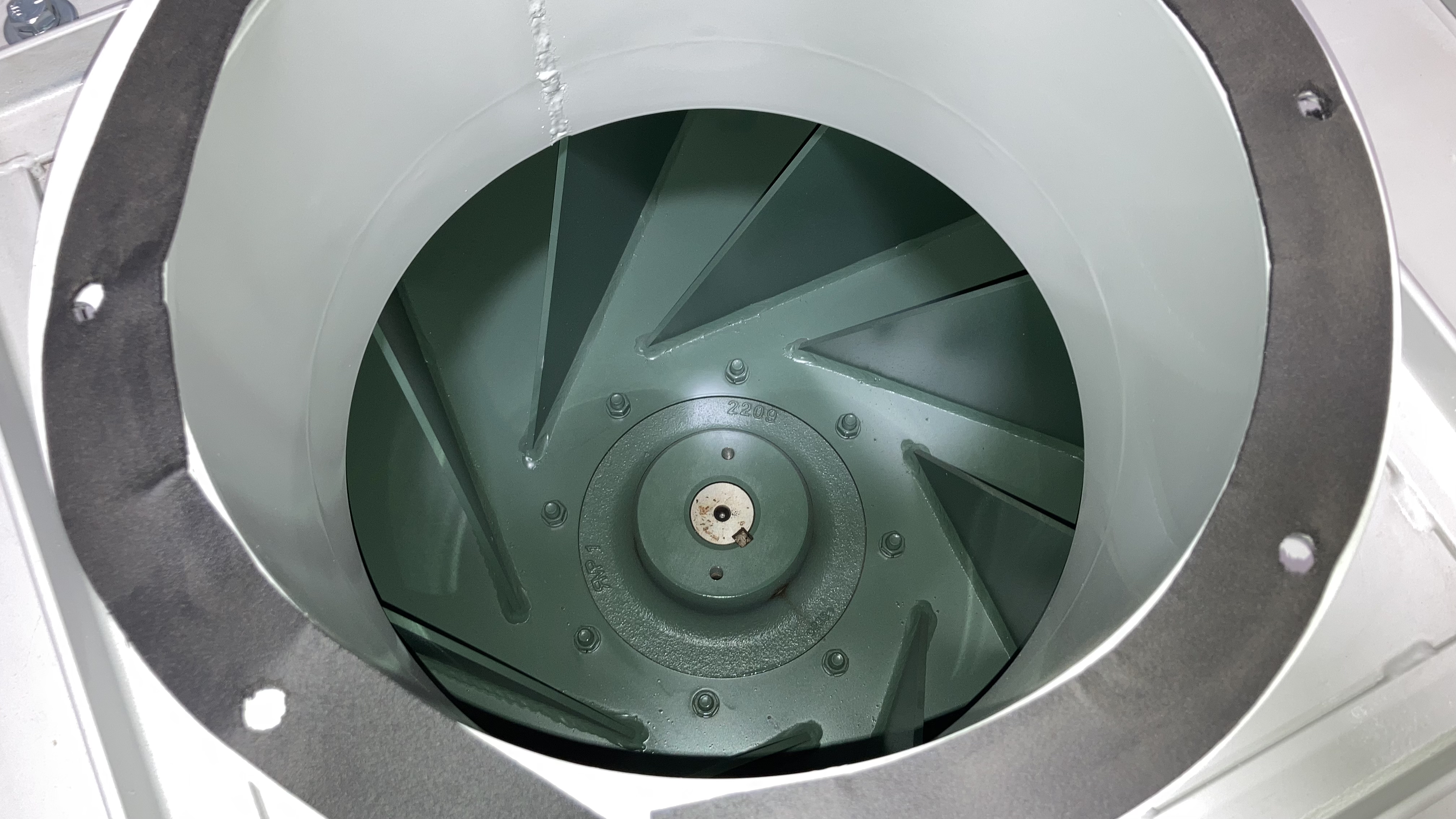

26-3/8" 8-Blade Impeller
Machine CFM Rating: 5000
Inlet Dust Port Size: 16" Round
Outlet Dust Port Size: 12"x15"
Filters: Seventy-Two 5"x60 Clothe Bags
Bottom Bags: 22"x48"
- RT Stock Number: 2410004N
