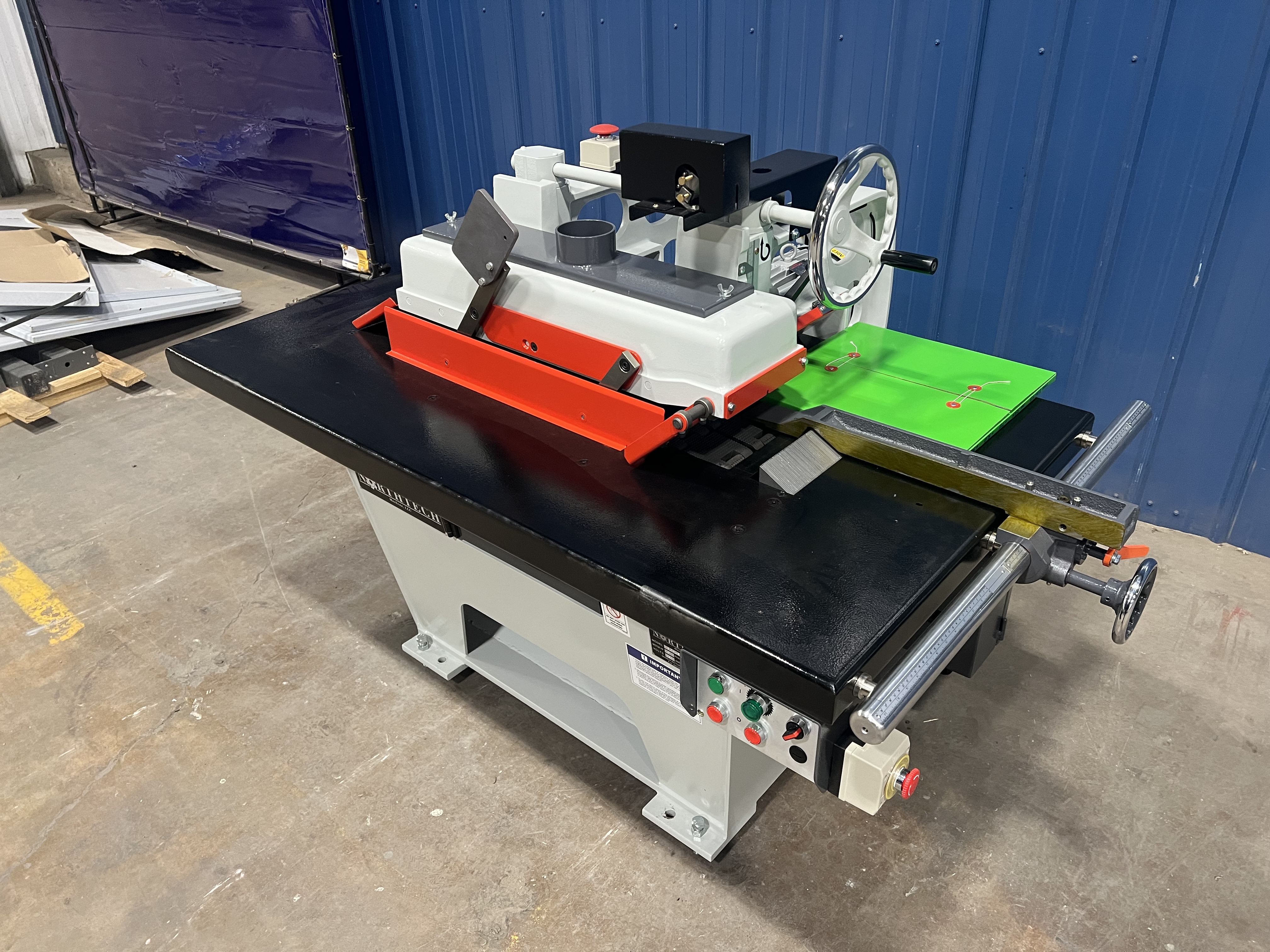

Northtech Model NT-SLR-14SC Straight Line Rip Saw
Serial #:12071
Condition: New
Northtech offers the strongest line of straight line rip saws. The NT-SLR14SC bottom arbor saw has the premium engineered design of bigger saws. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. Power through over 3" stock with 14" blade driven by the 15HP arbor motor.
FEED SYSTEM
Saw motor: 15HP, 3PH 230V/460V
Feed: 1.5HP variable feed range from 40 - 120 fpm
PRODUCT DIMENSIONS
Min. thickness: 3/16"

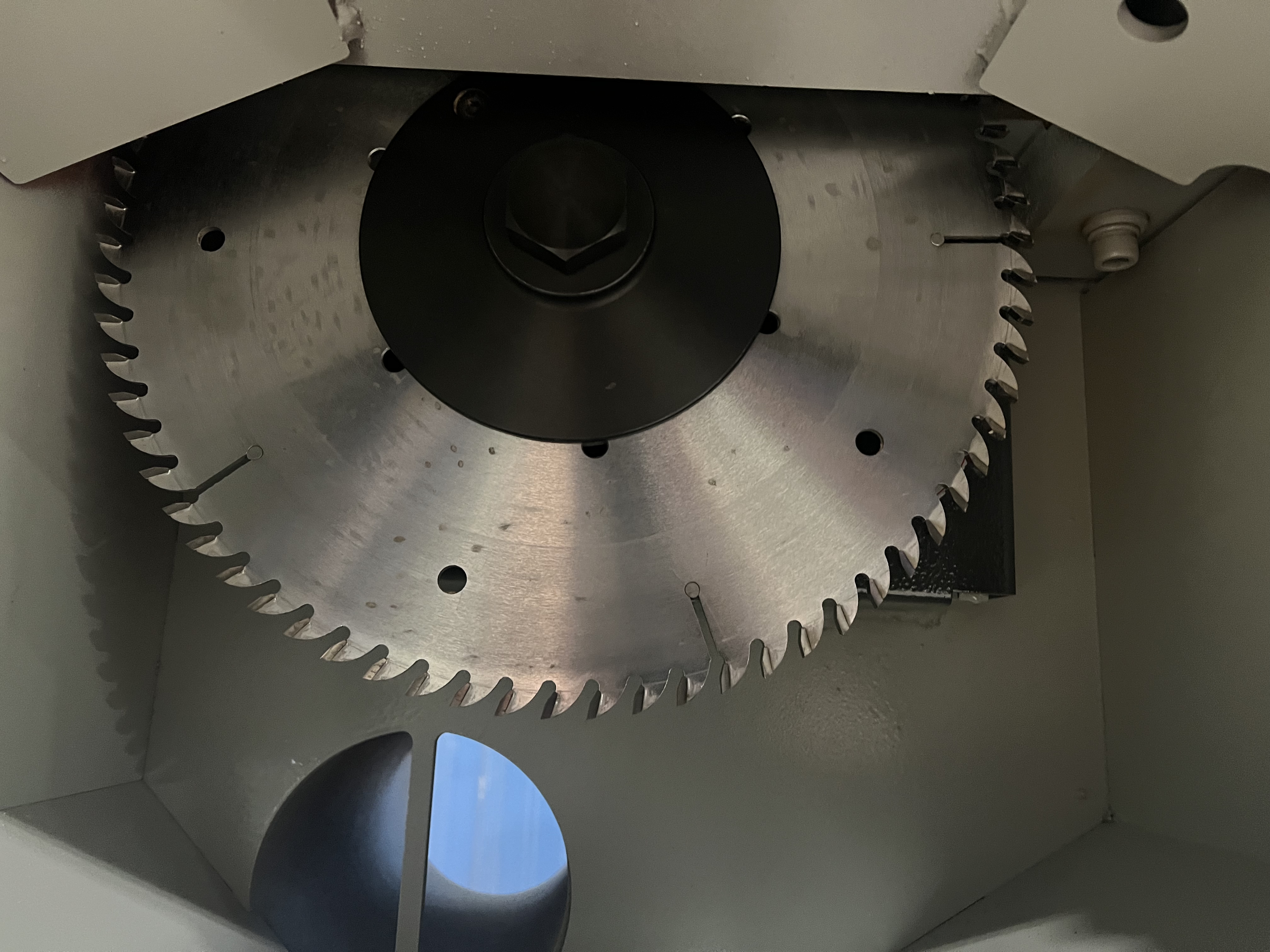

Max depth of cut: 3-1/8" with 14" Ø blade
Max. width of stock: (Blade to column arms) 18"
FEATURES Chain and Race equipped with NT "True Track" adjustment
Table size 61" x 34"
Machine frame is constructed of a 1" thick base plate
Solid steel frame with 1" thick column arms
Safety interlock on blade access door preventing operator entry while blade is spinning
Blade is equipped with pneumatic braking system
2" arbor and large support bearings
Glue line rip is 8ft on 4/4 stock at 50fpm
Motors and electrical components are UL/CE rated
Industrial fence with cam lock quick release on rack and pinion glide
Passline: 31-3/8"
Machine Dimensions 70" X 54" X 63"

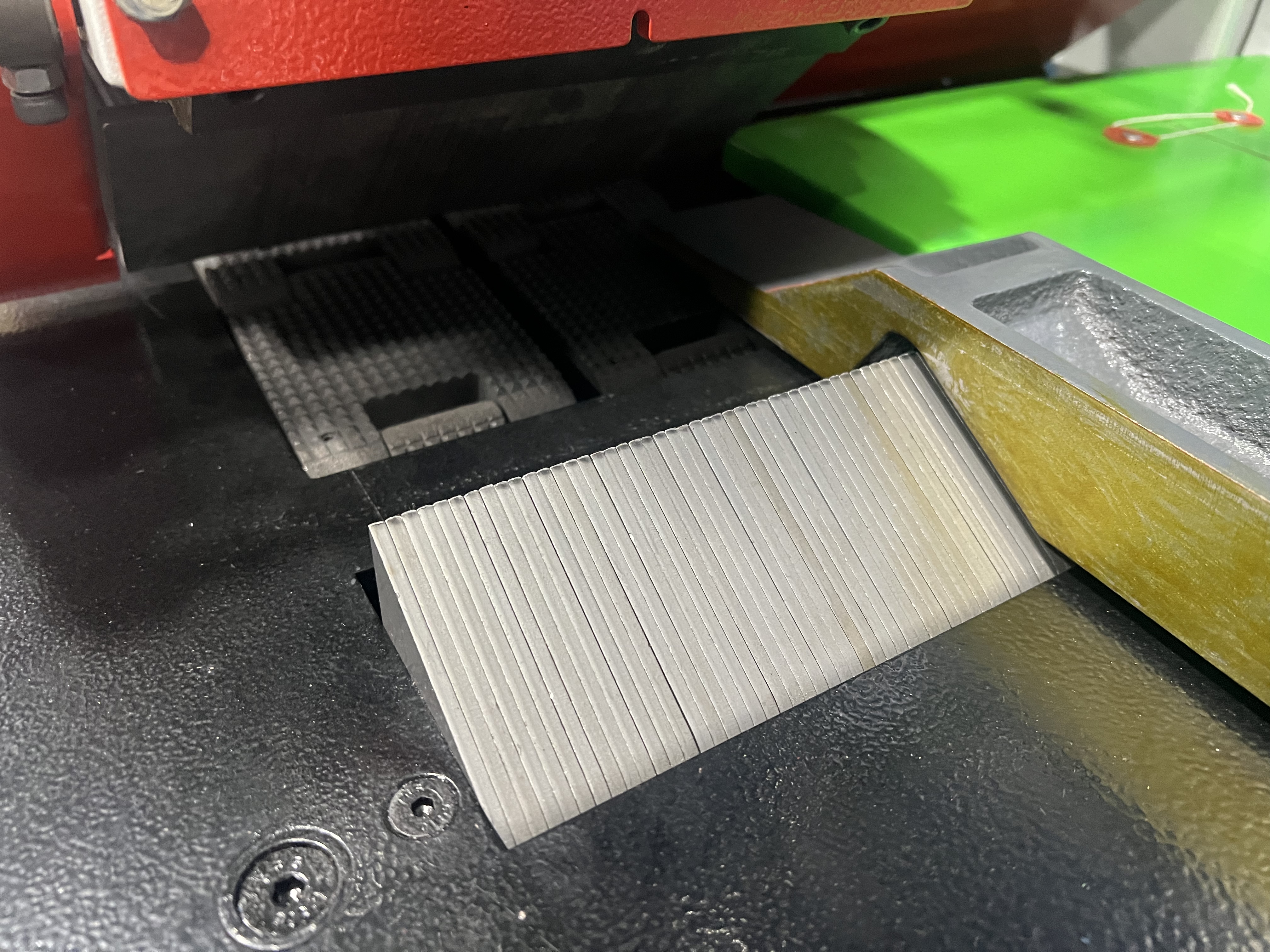

Two rows of heavy duty kickback fingers
(6) large pressure rollers for optimum holding power
An automatic mechanical oiling system with low level feed stop
- RT Stock Number: 85456N
Northtech Model NT-SLR-14SC Straight Line Rip Saw
