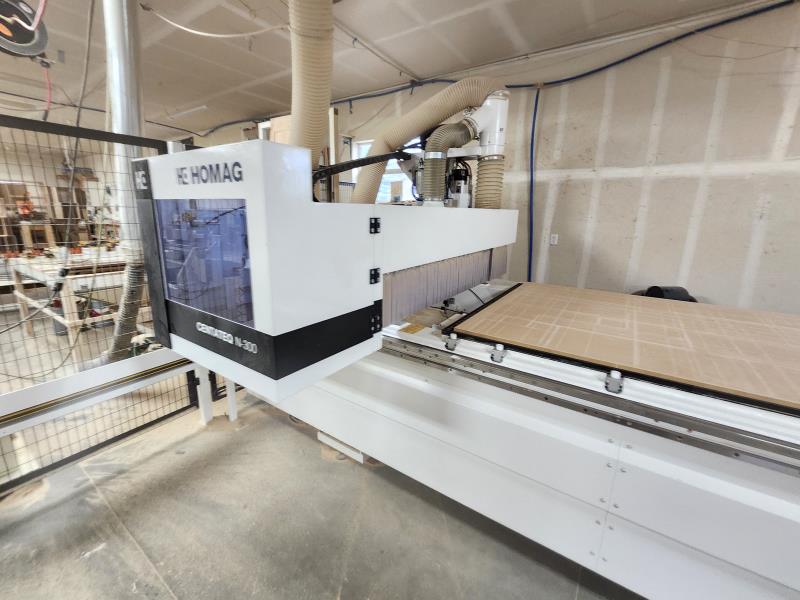

Specifications: 4' x 8' Flat Table "Bridge Gantry" machine with User-Friendly "MATRIX" grooved phenolic vacuum table.
Working Area: "X" Axis is 99.2" (2,520 mm), "Y" axis 49.2" (1,250 mm), "Z" axis stroke is 9.6" (245 mm), max. material thickness of 3.9" (100 mm).
Positioning speed: "X" Axis is 236 FPM (72 MPM); "Y" axis is 203 FPM (62 MPM); "Z" axis 82 FPM (25 MPM). The machine head travels on THK linear motion guides on all axes
Worktable: (1) Pneumatic locator/positioning rail in "X" Axis & (1) pneumatic locator/positioning rail in "Y" Axis. - (4) NC Controlled Vacuum Table work zone
Boring Unit: 3.6 HP (2.7 kW) motor, (12) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM

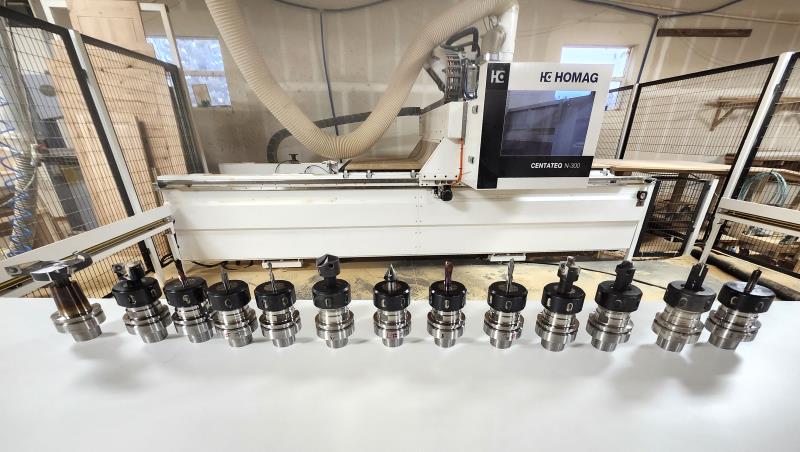

Machining: (1) 16 HP (12 kW) High-speed electro-spindle router with: "HSK F63" Adaptor; constant duty; variable speed from 1,250 - 24,000 RPM, RH or LH rotation. (1) 13-Position Rotary Tool Changer

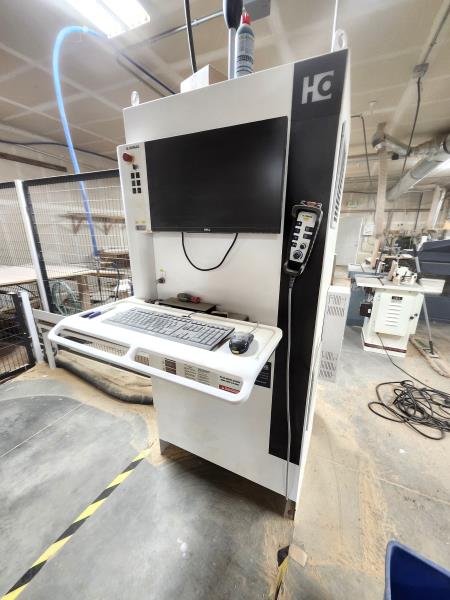

Operator Interface: PC Front-End with: WEEKE "PC 85T" + Windows "10 PRO" + WoodWOP Operating System. 17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; ...
***Please click the link for full description***

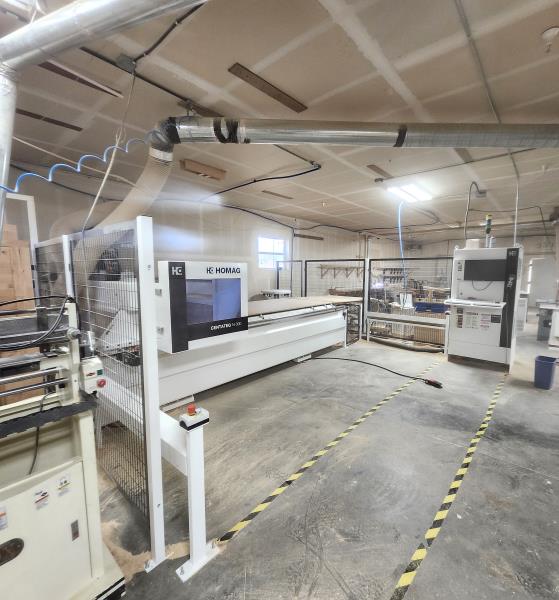

Homag CENTATEQ N 300 Flat Table Machine
