Price : $14,200 CAD
24" x 8" Cap., min. material length 12-1/2" and min. thickness 3/8".
25 HP Top & 20 HP Bottom belt drive motors.
Helical Spiral cutterheads that rotate @ 4,600 RPM; (6) rows or spirals of 4-sided carbide inserts 14mm X 14 mm.
Variable feed speed from 20 - 95 FPM; powered by 3 HP drive to lower feed rolls & upper feed mat.
Infeed table: Hard chrome plated for max. wear resistance; relieves upper feed mat with spring loaded spikes; allows cupped bowed or warped boards to feed into the heads for max. straightening capability.
Powered lowering & raising of bed table on: (4) Columns via a 1 HP motor; handwheel for fine adjustment of thickness control.
*** Please click the link for full description***

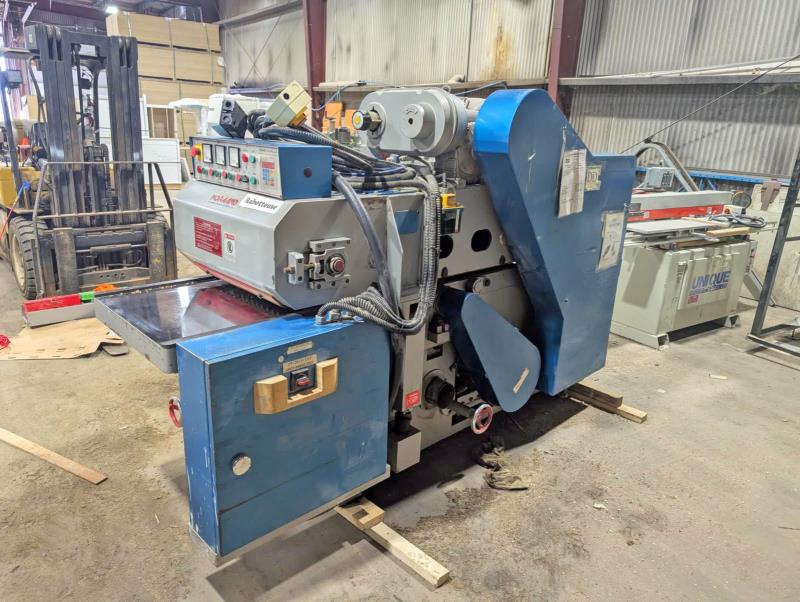

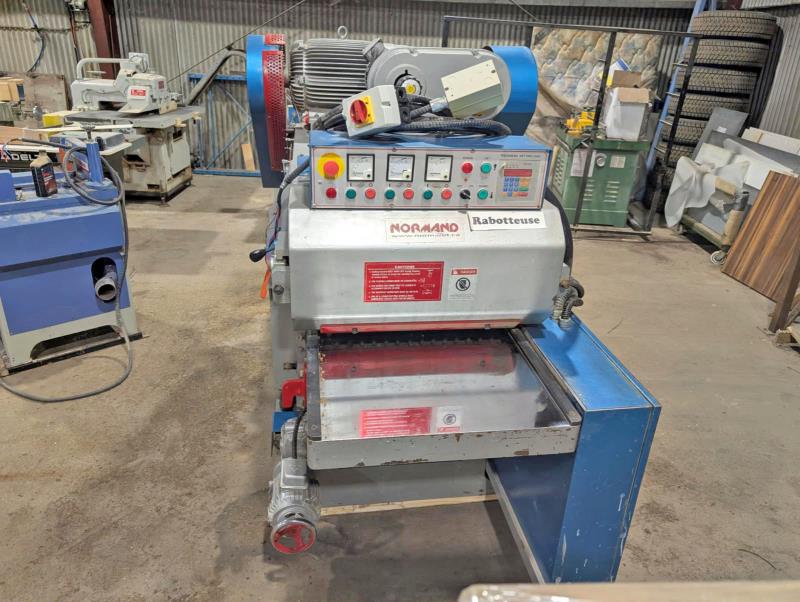

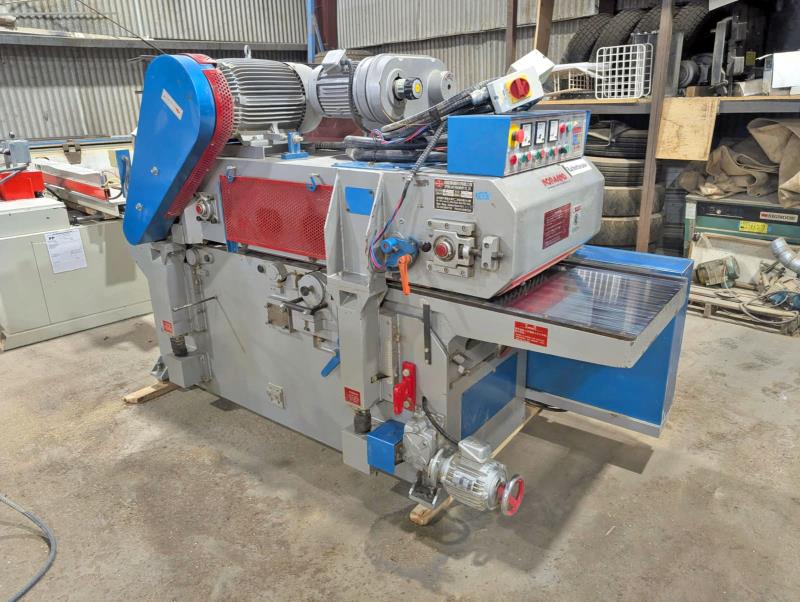

Extend Light GY-610-S Double Surface Planer
