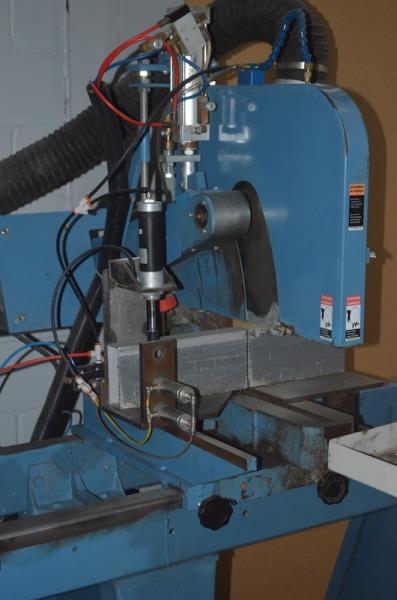

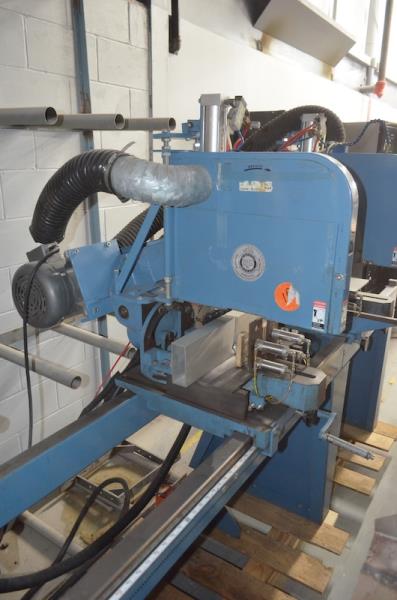

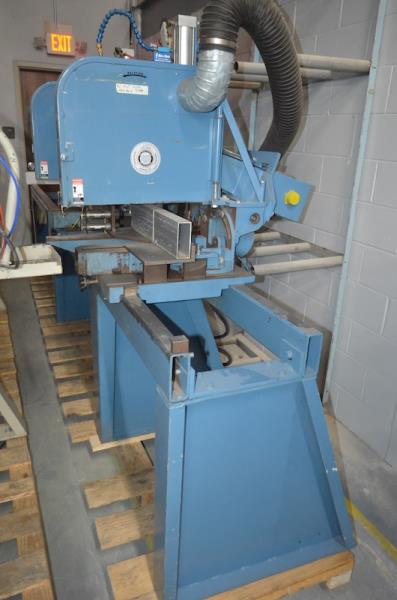

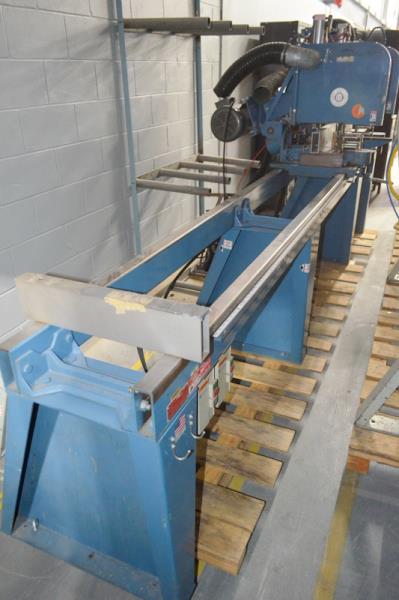

CTD CDM 60 16" Double-End Compound Miter Saw
Cutting cap.: 10-1/2" W x 4" H at 90°, 7-1/4" W x 4" H at 45°, & 10" W x 2-5/8" H 90° Front-to-back/45° Compound.
Distance between blades 20” - 130”. Table height 39". Arbor dia. 1". Blade speed 2,700 RPM. Production rate: Approx. 10 SPM.
Left-Hand fixed & Right-Hand movable heads, with 90° & 45° Positive stops, Compound cut to 45° on each side of vertical plane & 15° on other side with graduated degree quadrants for angle settings.
3 HP - 1,725 RPM - 208-230/460 V Motors
*** Please click the link for full description***
Ctd CDM 60 Double Miter Saw
