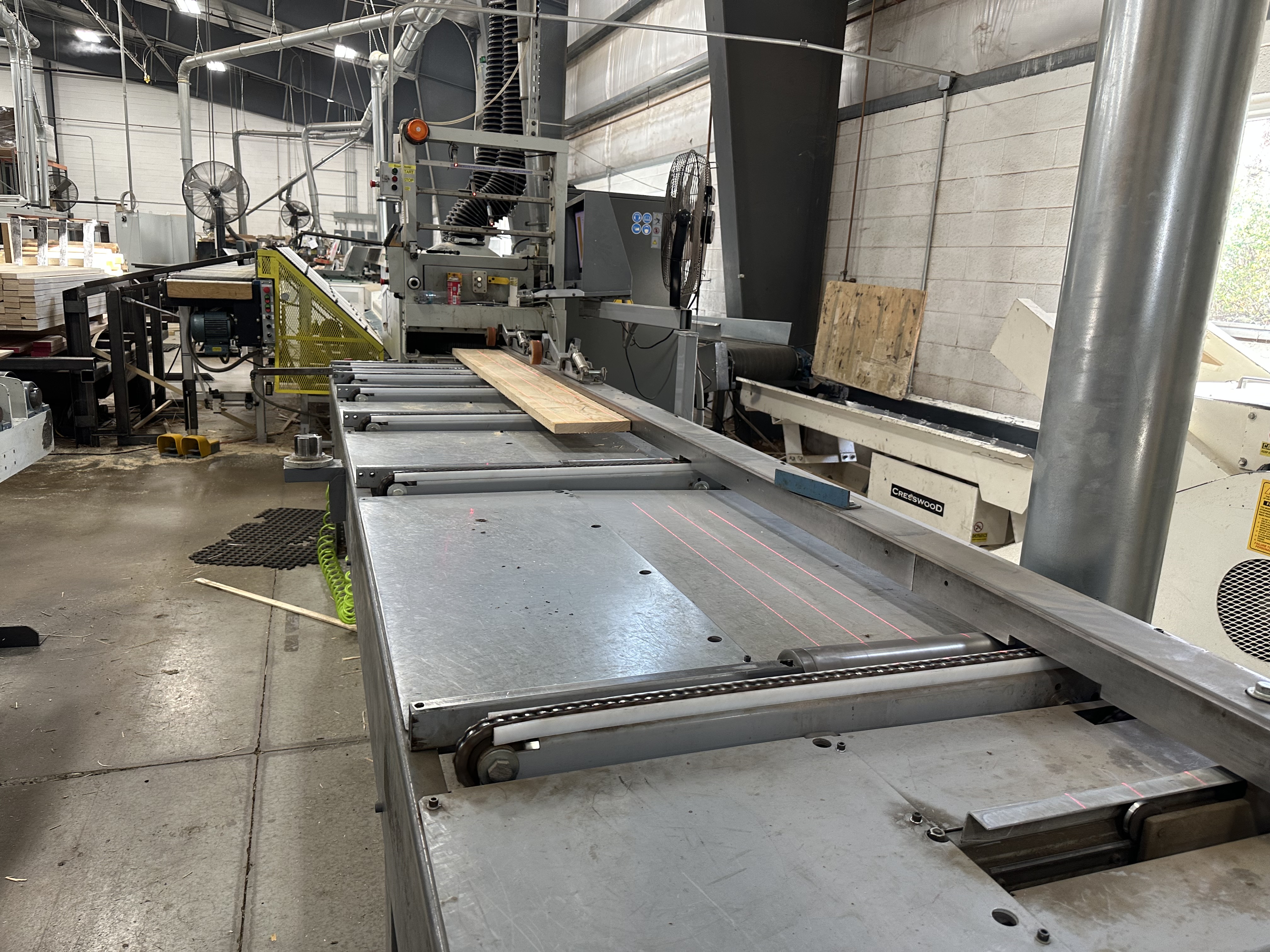

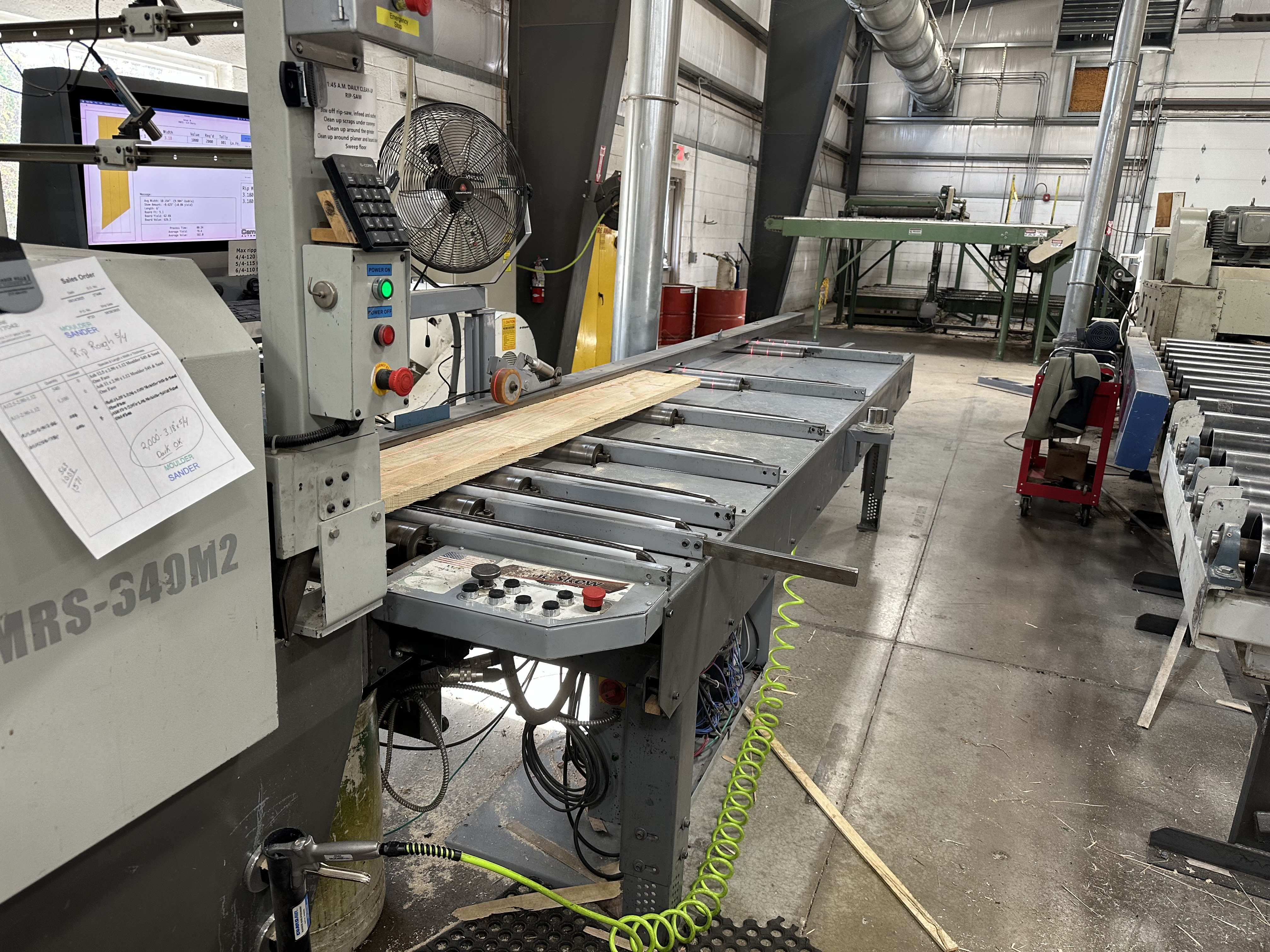

Cameron Automation Model # MRS-340M2 Gang Rip Saw w/ Model #411A-16I-12S-16L-220 Skew Infeed Fence The Skew Rip Optimizing System with Skewable Fence.
Condition: As Taken From Service
- 16 Laser Width Scanners at 1' Intervals to profile each board
- (2) Drive Press Rollers
- Infeed Cross Chains for feeding boards
- Computer, Frame, & hardware to feed 12" Gang Rip Saw
- Machine to handle material from 4' to 16' Long
- Kit for Skew to Communicate to Moving Blade Saw
MRS-340M2 Gang Rip Saw Specifications
- 12" Wide Arbor
- (2) Servo Controlled Movable Blades
- (2) Fixed Blades
- Feed Speed 26-130 ft/min (8 - 40 m/min)
- Arbor Motor: 50 Hp
- Feed Motor: 3 Hp
- Three (3) sets of anti-kickback fingers
- (4) individual Pneumatic pressure rolls
- Steel dip chain construction with urethane inserts
- Powered out-feed roller
- Digital controlled lubricator for feed chain.
- Amp meter for monitoring arbor motor running amperage
- Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
- Easy access to spindle and blades for maintenance and tooling changes
- RT Stock Number: 201640

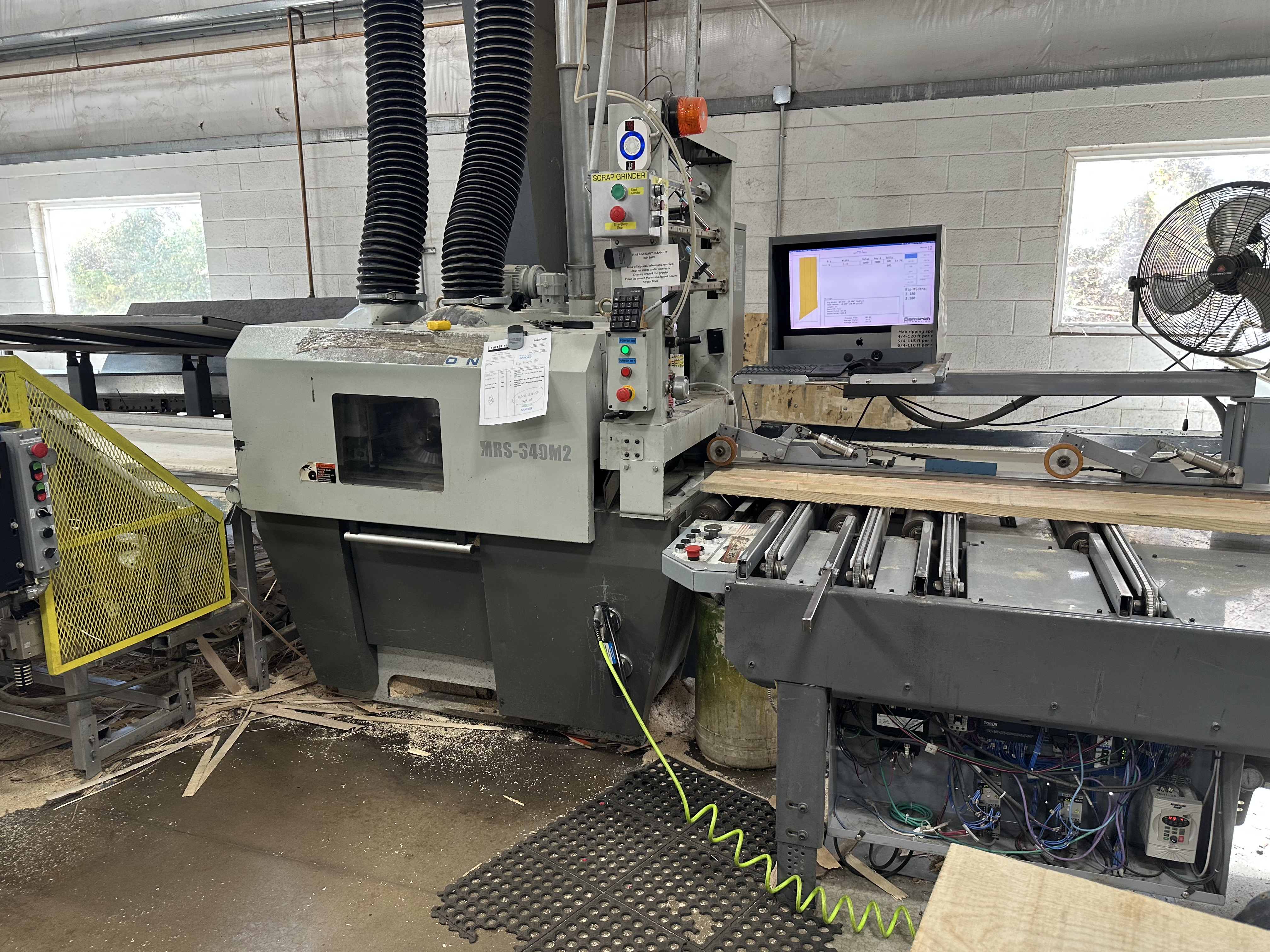

Cameron Automation MRS-340M2 Gang Rip Saw with Skew Infeed
