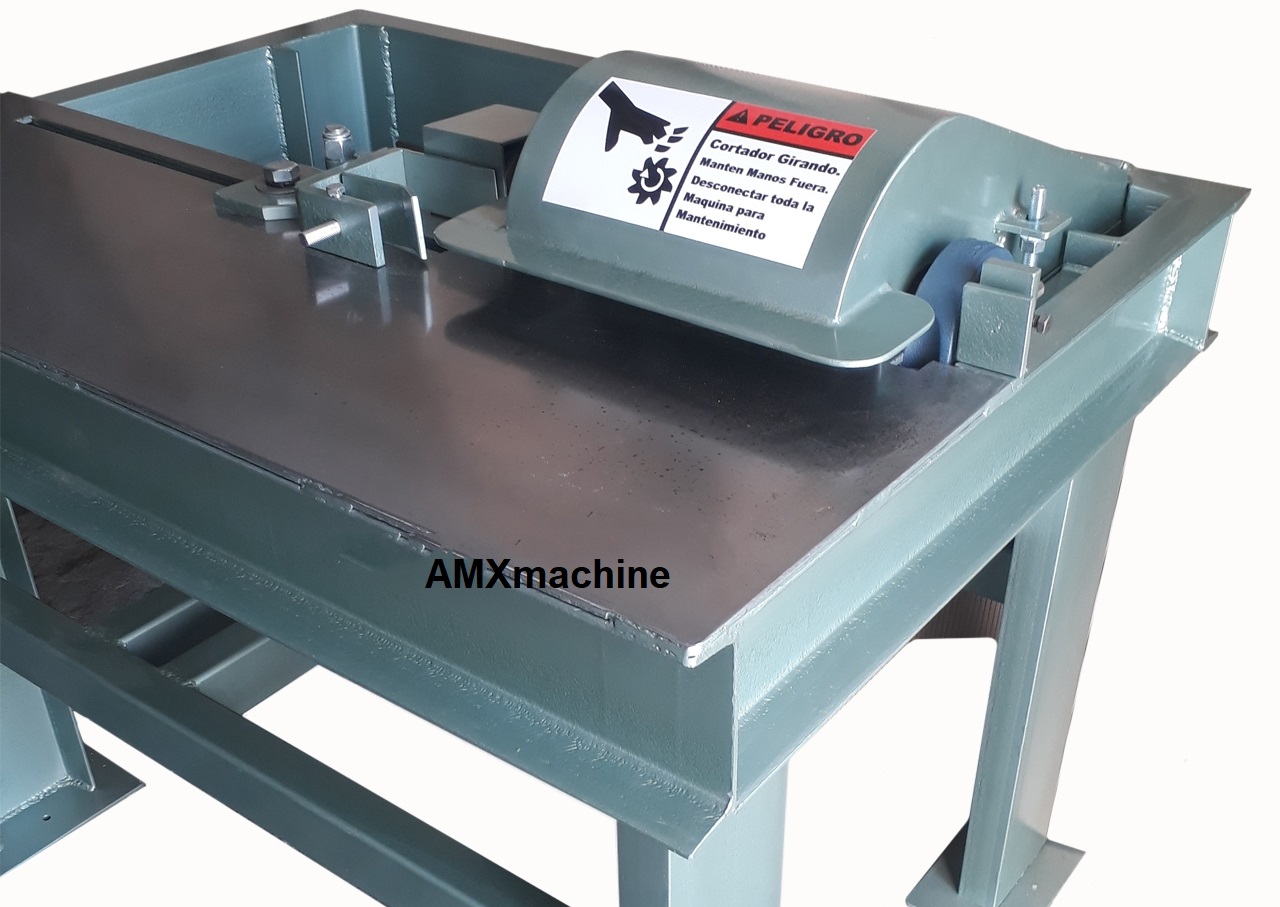

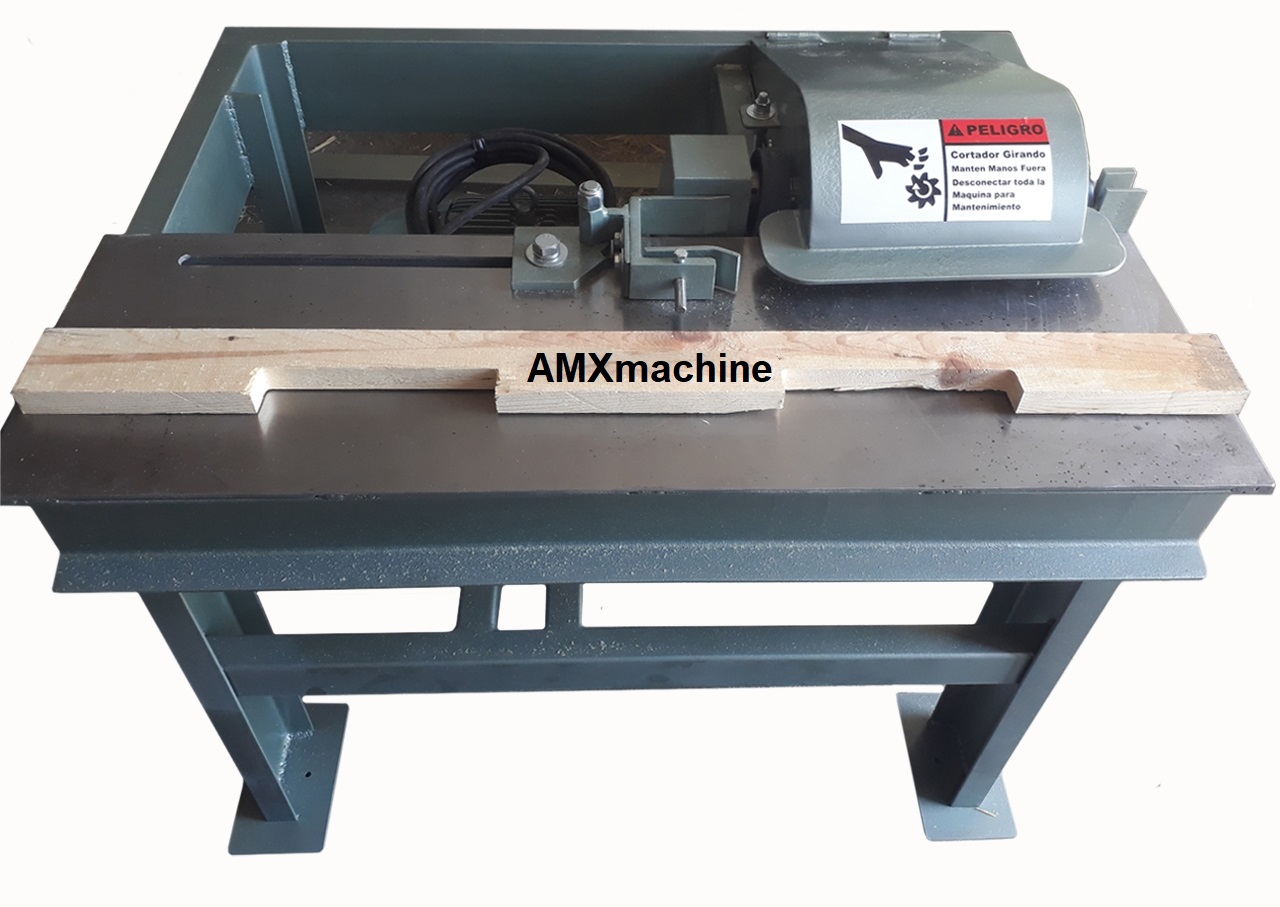

PART: 1AM-1150 – PALLET NOTCHER – 9” LENGTH – 4 KNIVE CUTTERHEAD - HEAVY DUTY
New with warranty – 6-month warranty on manufacturing defects on mechanical parts only
Motor 10 HP, 220/440V, 3 phase - connected to 220V
Maximum notcher size 9” long x 2-1/2” height x 1-5/8” depth
400 to 800 notcher/hr. approximate

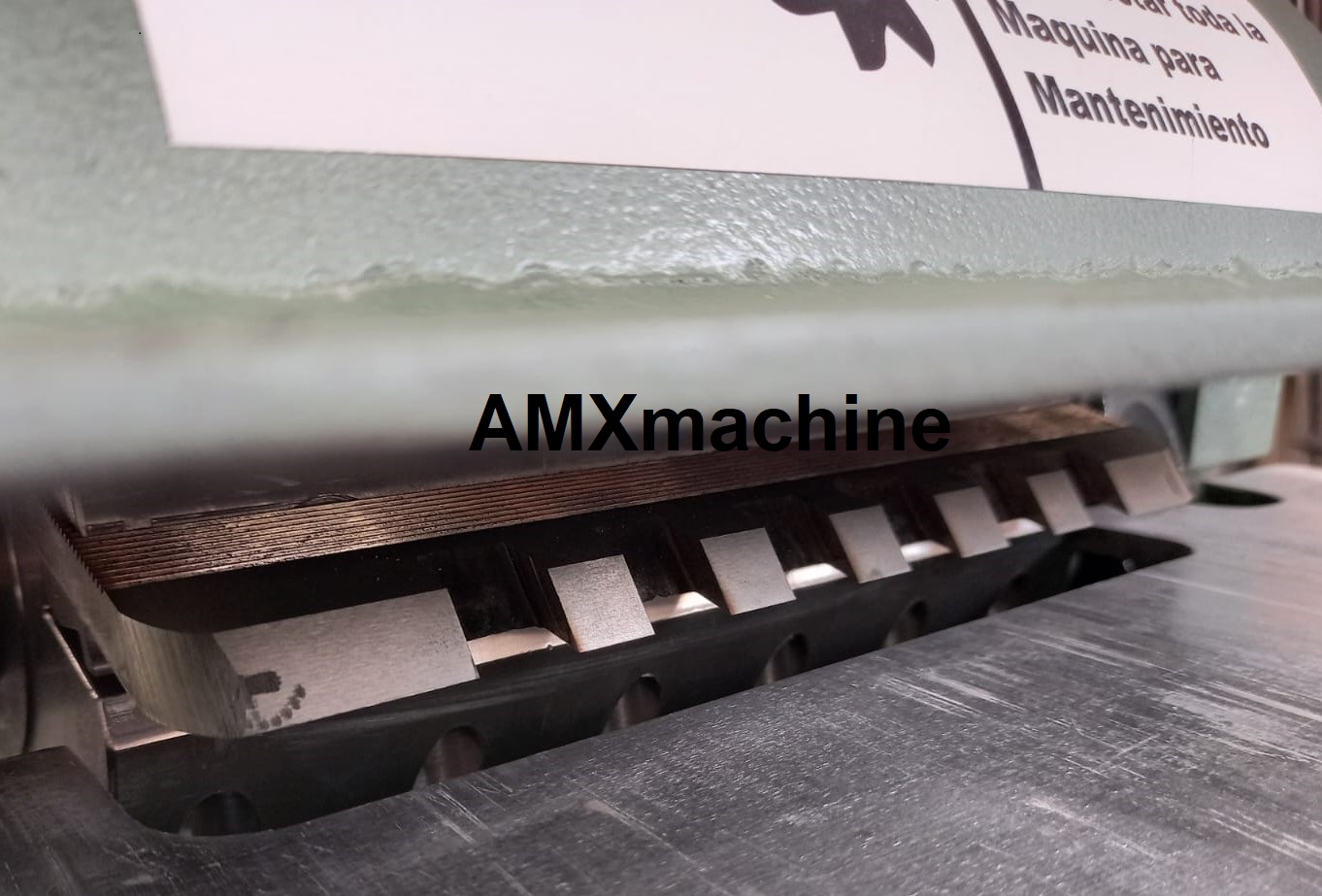

1 Cutterhead with 4 HSS knives installed
On/Off Switch with magnetic starter
Machine dimensions: 48” length x 36” width x 40” height - Weight: 662 lb.
Shipping dimensions: 48” length x 40" width x 44” height - Weight: 720 lb.

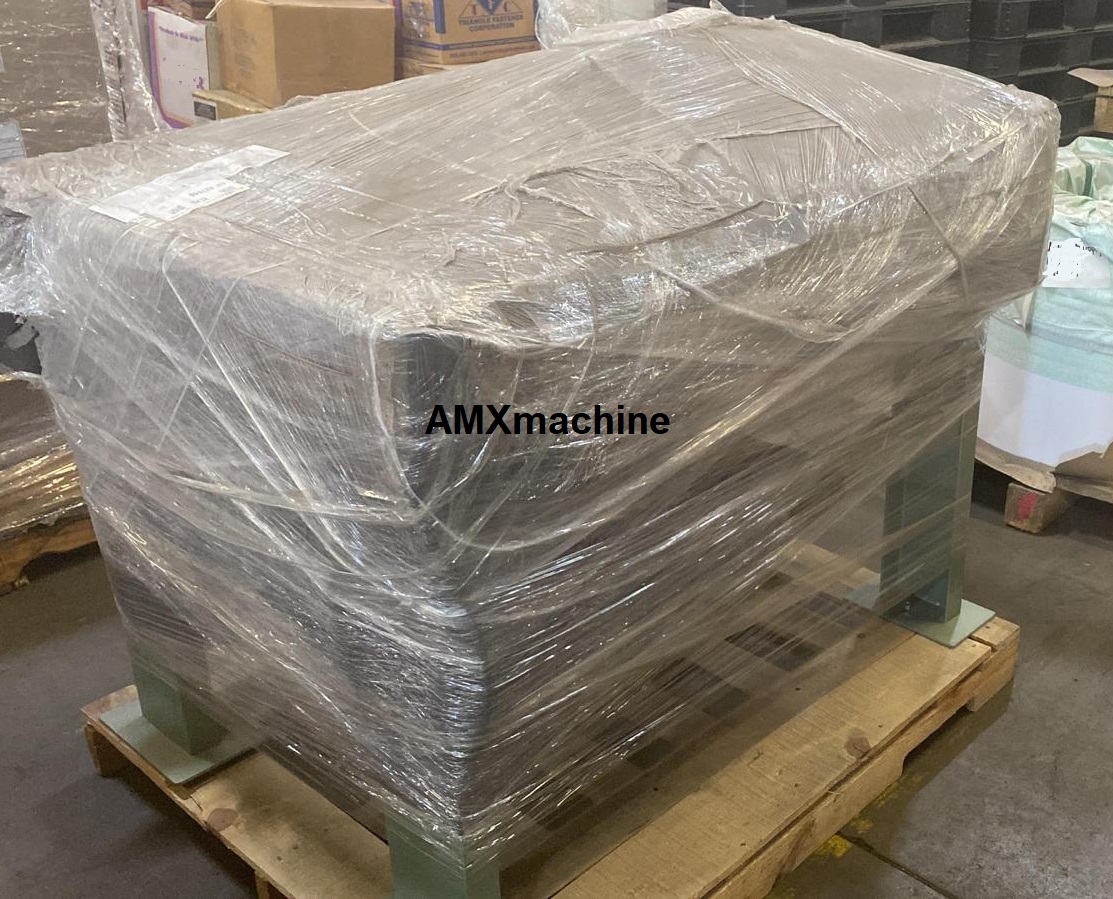

Machine palletized for shipping
Saw dust removal: 12.25” wide x 10.5” tall opening in the back side
Saw dust removal: 2,300 CFM recommended, equivalent to a 3 HP dust collector
Product specifications are subject to change without notice
www.AMXmachine.com
