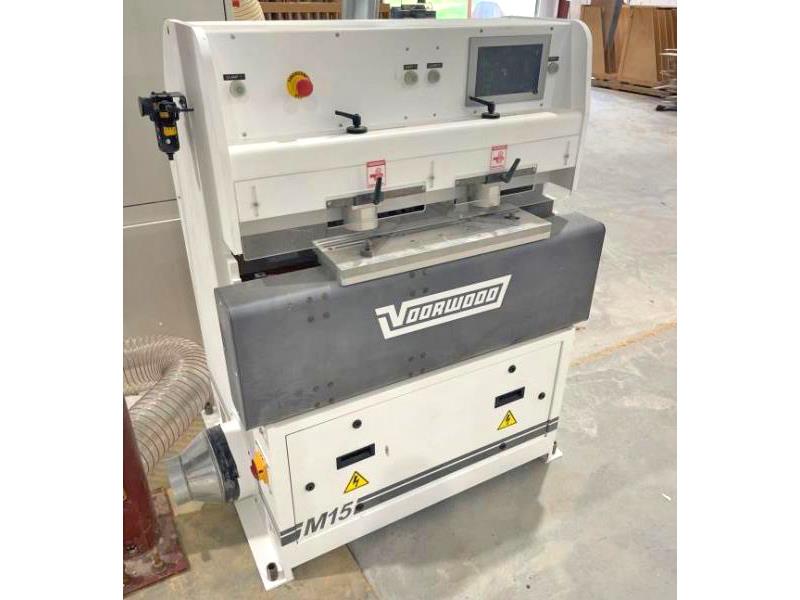

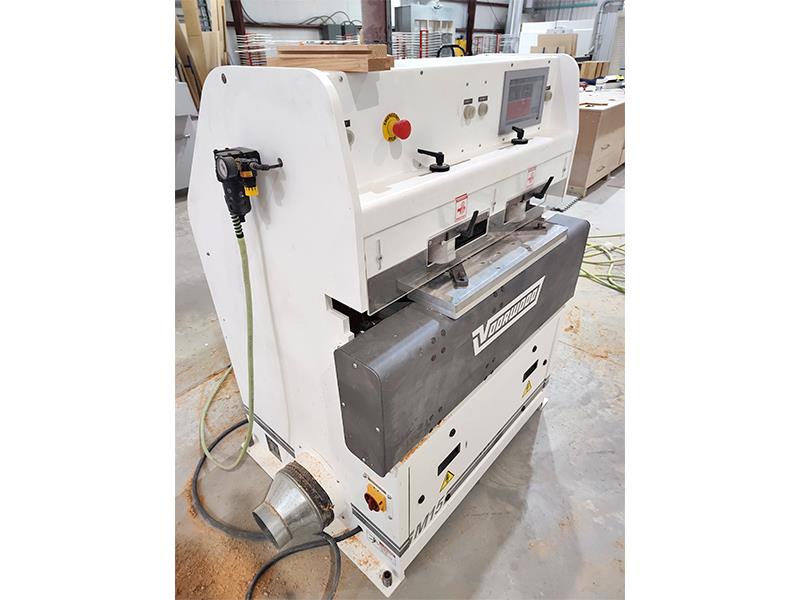

The "M15A" Miter Machine is designed to rapidly make mortise and tenon cuts at 0°, 45° Only, . Parts can be up to 1.5” thick and up to 4” wide, and of ANY length.
A primary application for this machine is for miter cabinet door frames. Parts can be quickly transferred from left to right. They are mortised on the left side of the machine and tenoned on the right. The machine can also mill the slots.

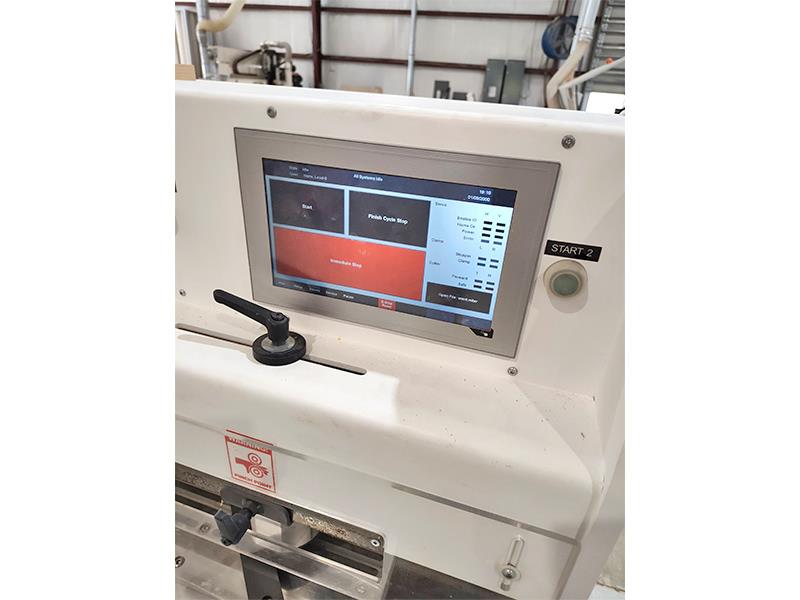

The mortise station has (3) servo-controlled axes (X, Y, and Z) that are coordinated by the machine controller to achieve complex CNC motion. It is equipped with a collet-style router spindle for cutting.

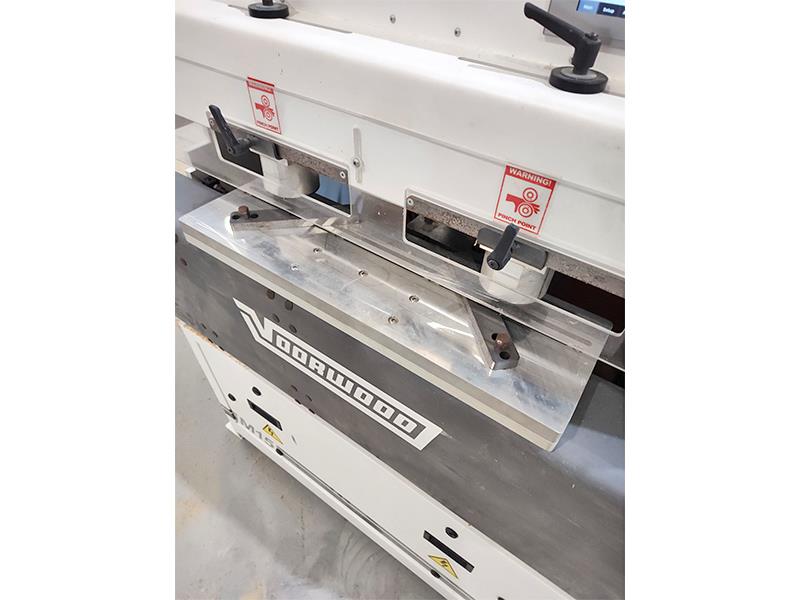

The tenon station uses the same X- and Y-servo-controlled axes as the mortise station and is configured for pneumatically actuated in-and-out movement along the Z-axis. The tenon station is equipped with a direct drive shaper spindle for cutting.
*** Please click the link for full description***
Voorwood M 15A CNC Round End Tenoner & Mortiser for 45° Door
