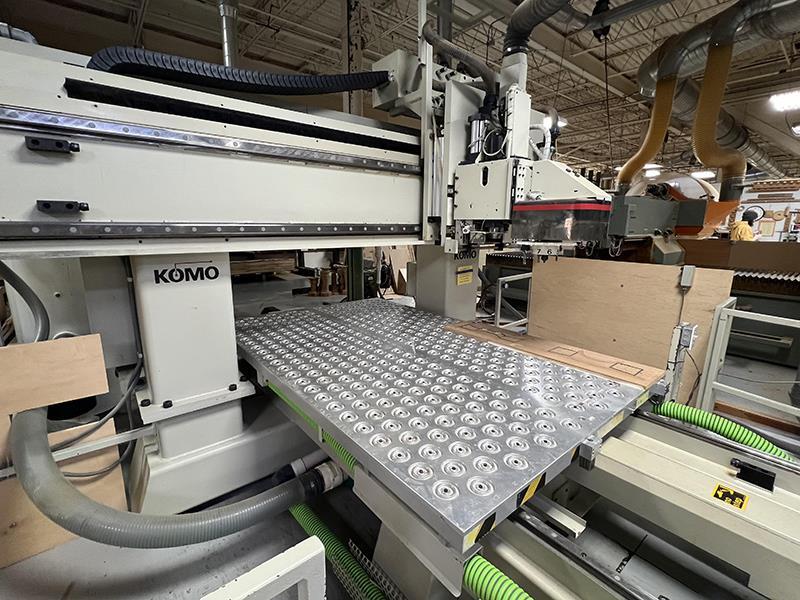

60" x 96" Moving table with (2) 48" vacuum zones, 2" thick solid cast aluminum plate, machined vacuum table w/ground surface finish, extra Heavy Duty fixed gantry bridge.

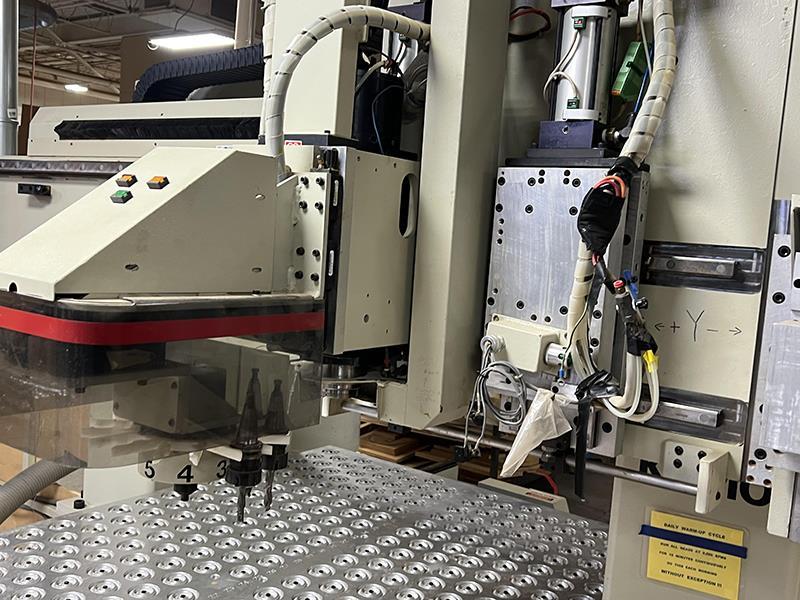

(1) 12 HP Colombo "ATC" router w/ ISO 30 taper tool holders for vertical routing, variable speed 6,000 - 18,000 RPM; with a 8 position ride along tool changer.
Movement System: Closed loop Servo drive system with precision ground pre-loaded precision ball screws driven by brushless AC Servo motors for positioning, 0.001 - 750 IPM max. machining feed rate with 1,000 IPM rapid traverse on X- & Y-axis, 500 IPM on Z-axis.
Axis Travel: X-Axis travel 97", Y-axis 84", Z-axis 6" with 11" clearance under the gantry,

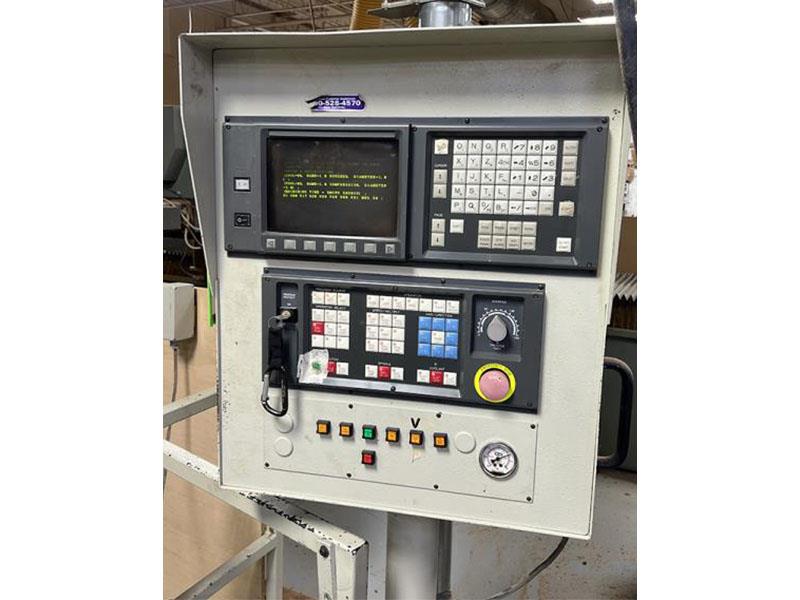

GE/FANUC "OMC" Series computer control w/9" high resolution CRT
BECKER Vacuum pump,
*** Please click the link for full description***

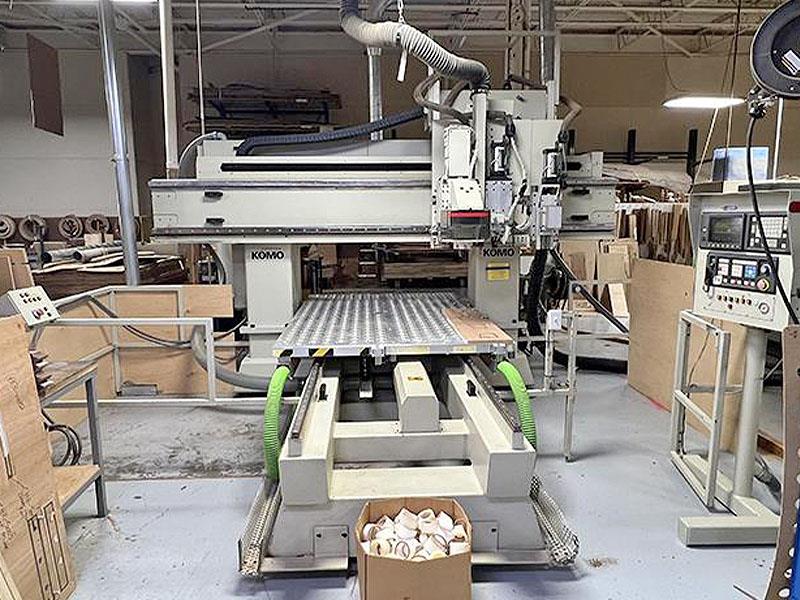

Komo VR 508 Cnc Router
