Single spindle cuts male & female dovetail (English type) in (2) joining drawer parts in (1) cutting cycle.
Head manually operated from slot-to-slot, accommodates both through-style and half-blind dovetails.
1.5 HP - 3,450 RPM Motor, cutter speed 16,500 RPM, 2-3/8" depth of cut, 1-1/2" - 15" max. working width, equipped with special 4-sided cam that produces dovetails on 1" - 1-9/16" - 2" - 3-1/8" centerlines and enables unique custom designs;
3/8" - 3/4" Max. material thickness for fronts & backs, 3/8" - 3/4" max. thickness on sides.
*** Please click the link for full description***

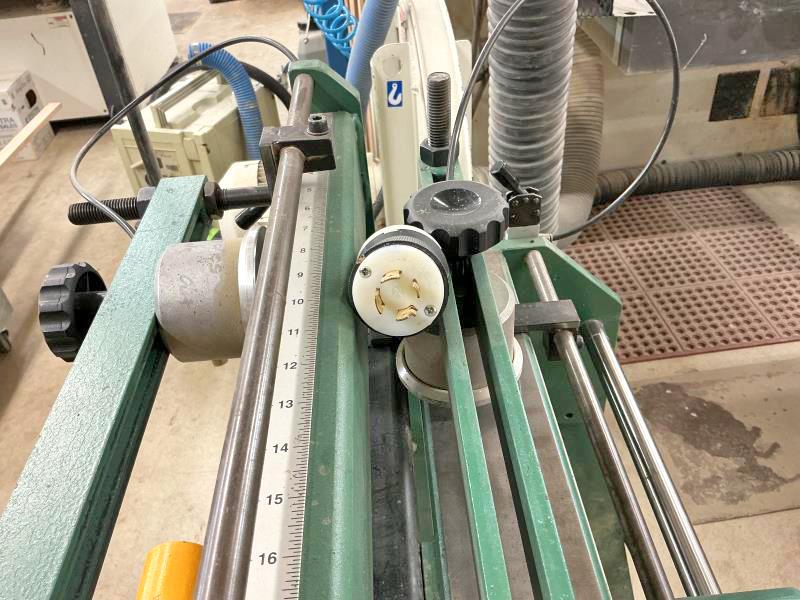

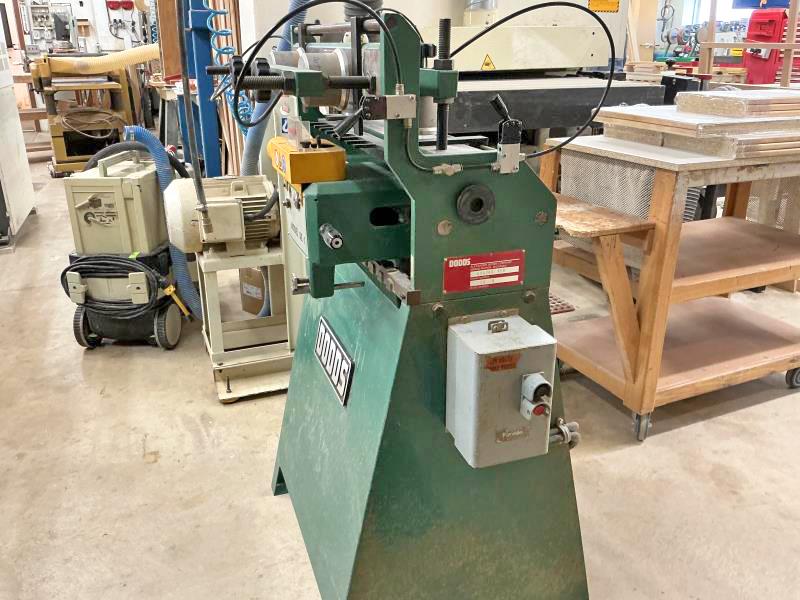

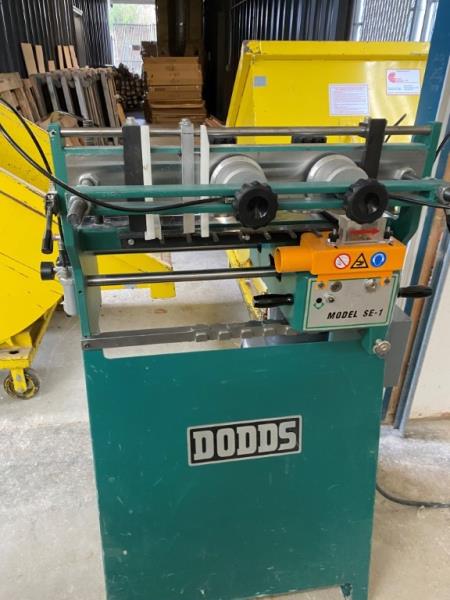

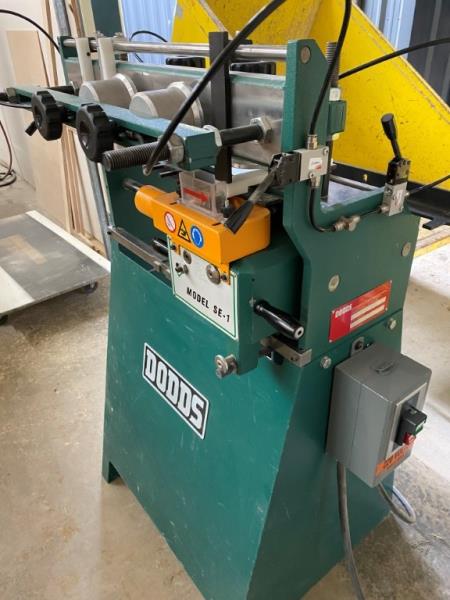

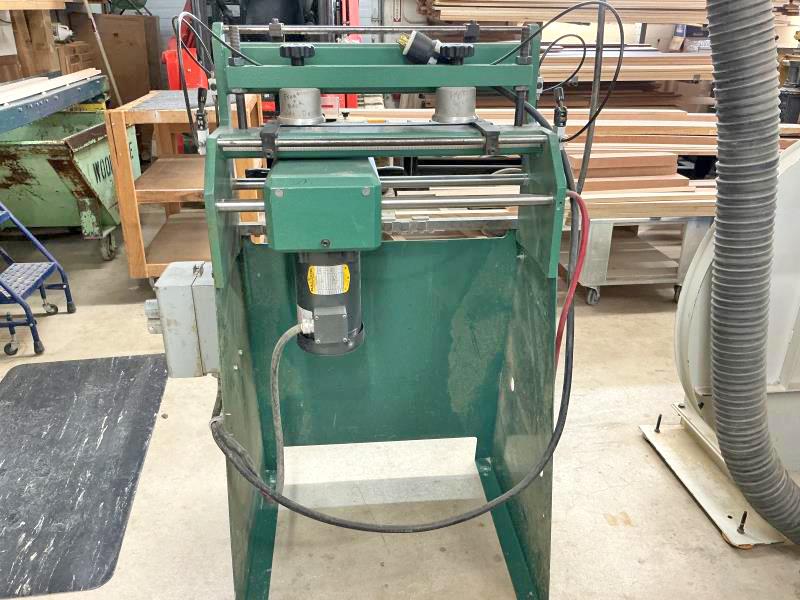

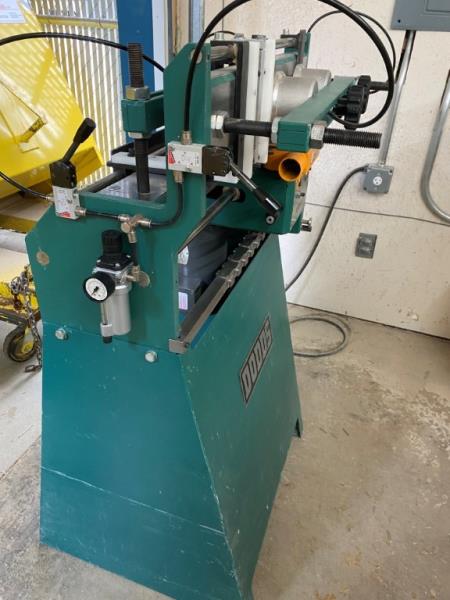

Dodds SE1 Dovetailer
