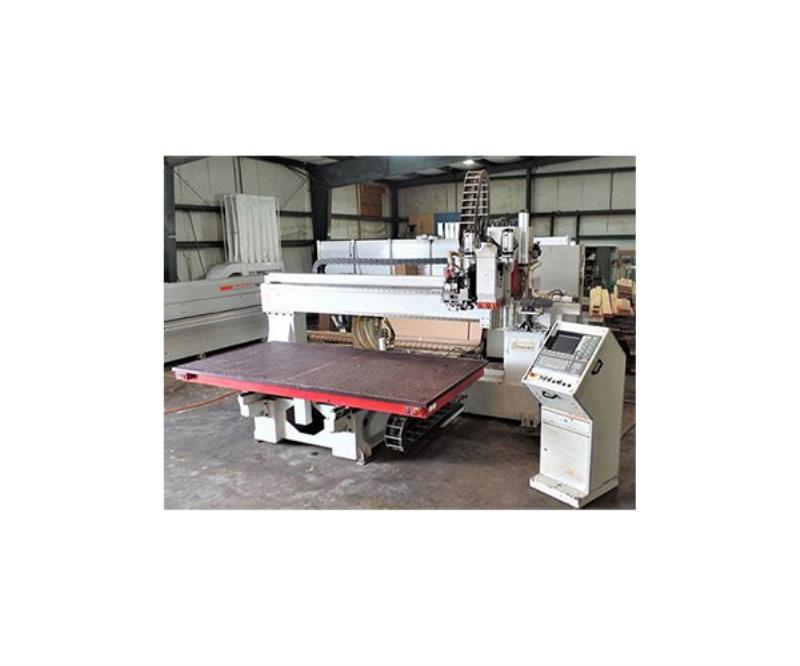

63" x 122" Fixed table: Moving gantry design in a front-to-back configuration; 2-zone Phenolic vacuum table with pop-up pins for part location.

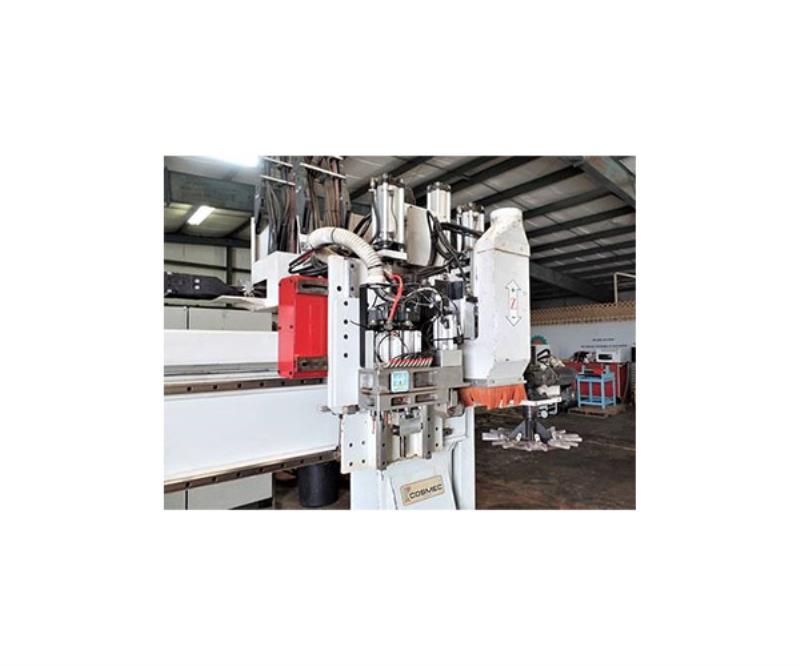

(1) 10 HP "HSD" ISO 30 Type ATC spindle, 8-position side-mount tool carousel, variable spindle speed from 800 - 18,000 RPM, 11" Z-axis stroke.

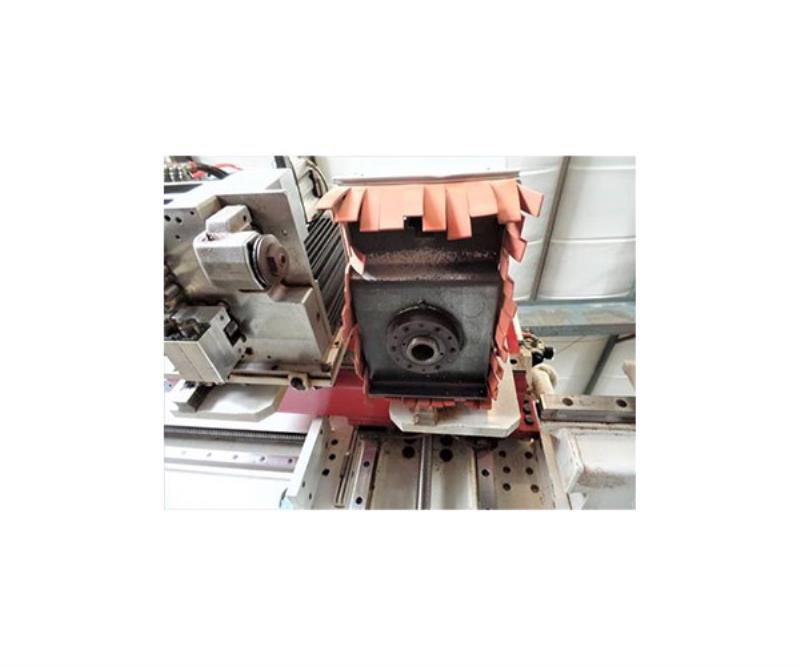

Boring unit: (1) 17-Spindle boring block (11) vertical and (6) horizontal and X-Axis - 5,000 RPM.
Axis travel: X-Axis travel 3,190 mm (125.6"), Y-Axis travel 2,010 mm (79.1"), Z-Axis travel 280 mm (11.0"); Z-Axis clearance under rail 250 mm (9.84") - Rapid traverse on X- & Y-axis 38 m/Min (1,496 IPM).
Control: OSAI series 10 numerical control with screen ...
Vacuum pump, assorted tool holders, and manuals.
*** Please click the link for full description***
Cosmec NR32-16CUK Cnc Router
