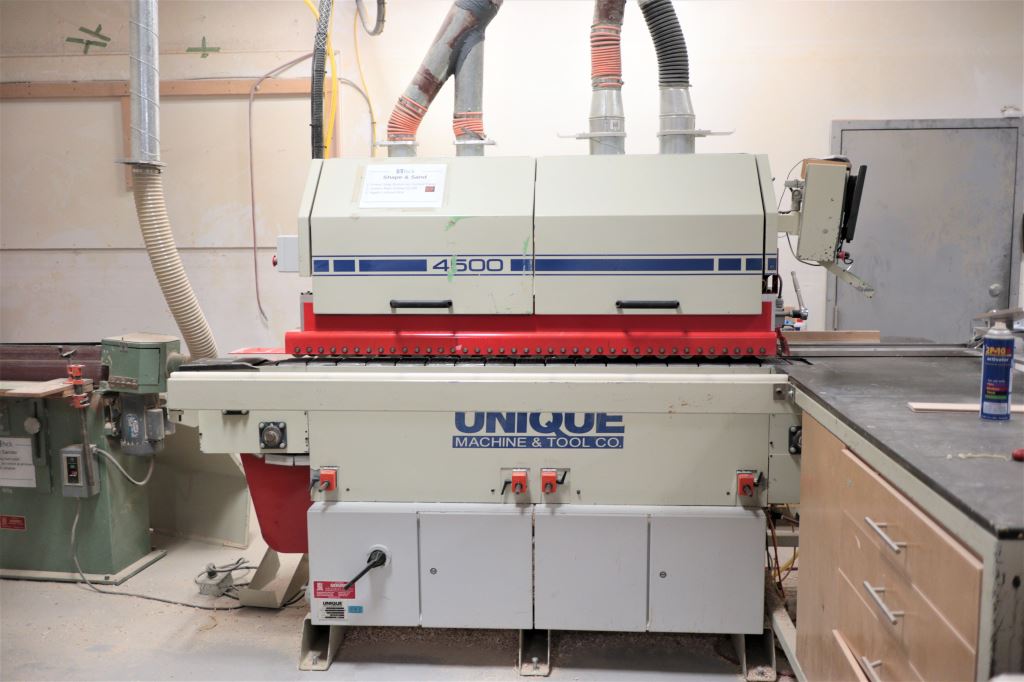

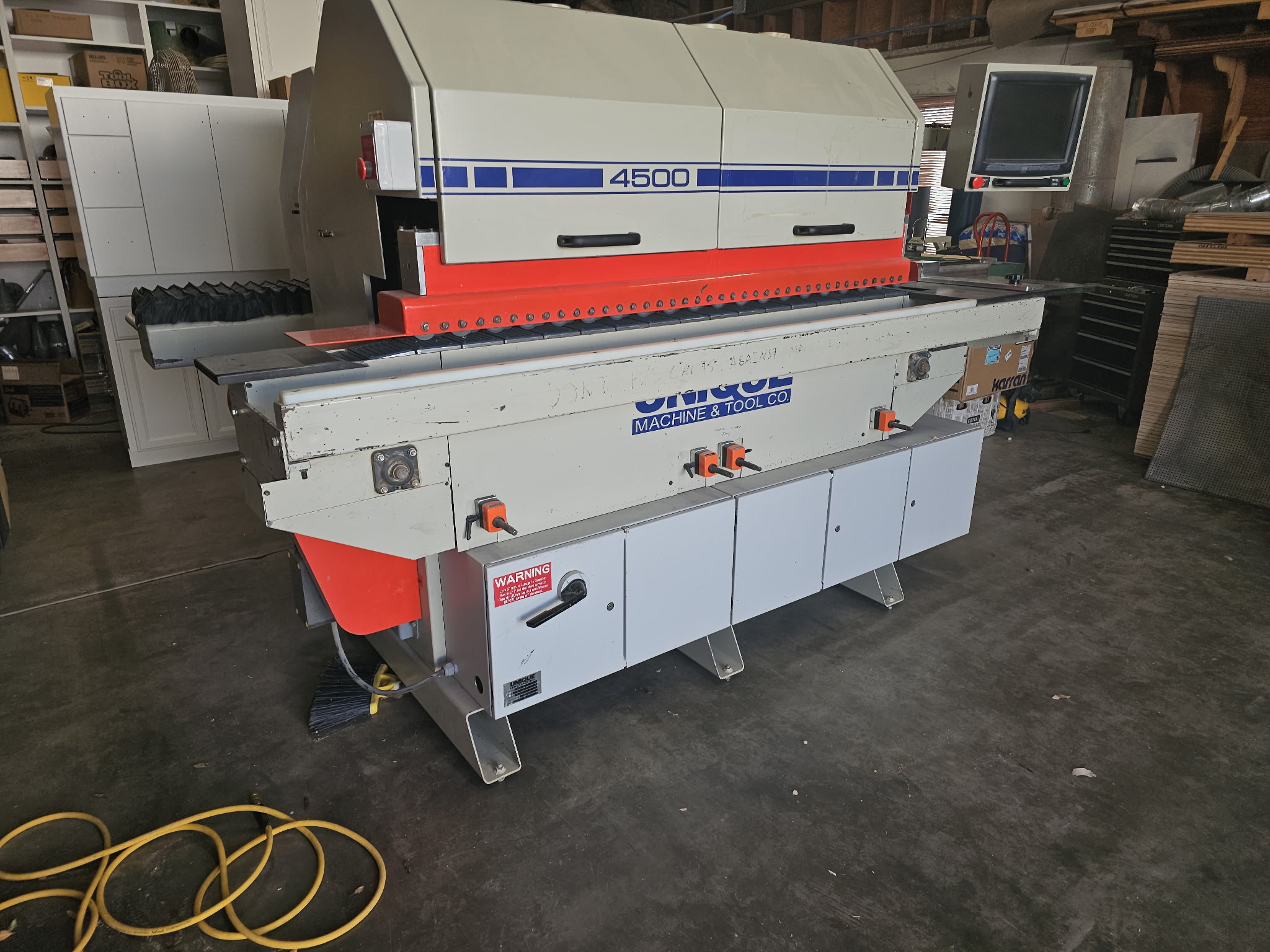

The Unique 4522 Shape-N-Sand is a feed-through profiling machine designed primarily for cabinet door and furniture component production, allowing shaping and sanding to be completed in one pass.
Machine Overview
Year: 2005
Model: 4522
Configuration: 4-Station Shape & Sand
Spindles: HSK quick-change tooling
Typical Layout: Jump Cope → Shape → Sand → Sand

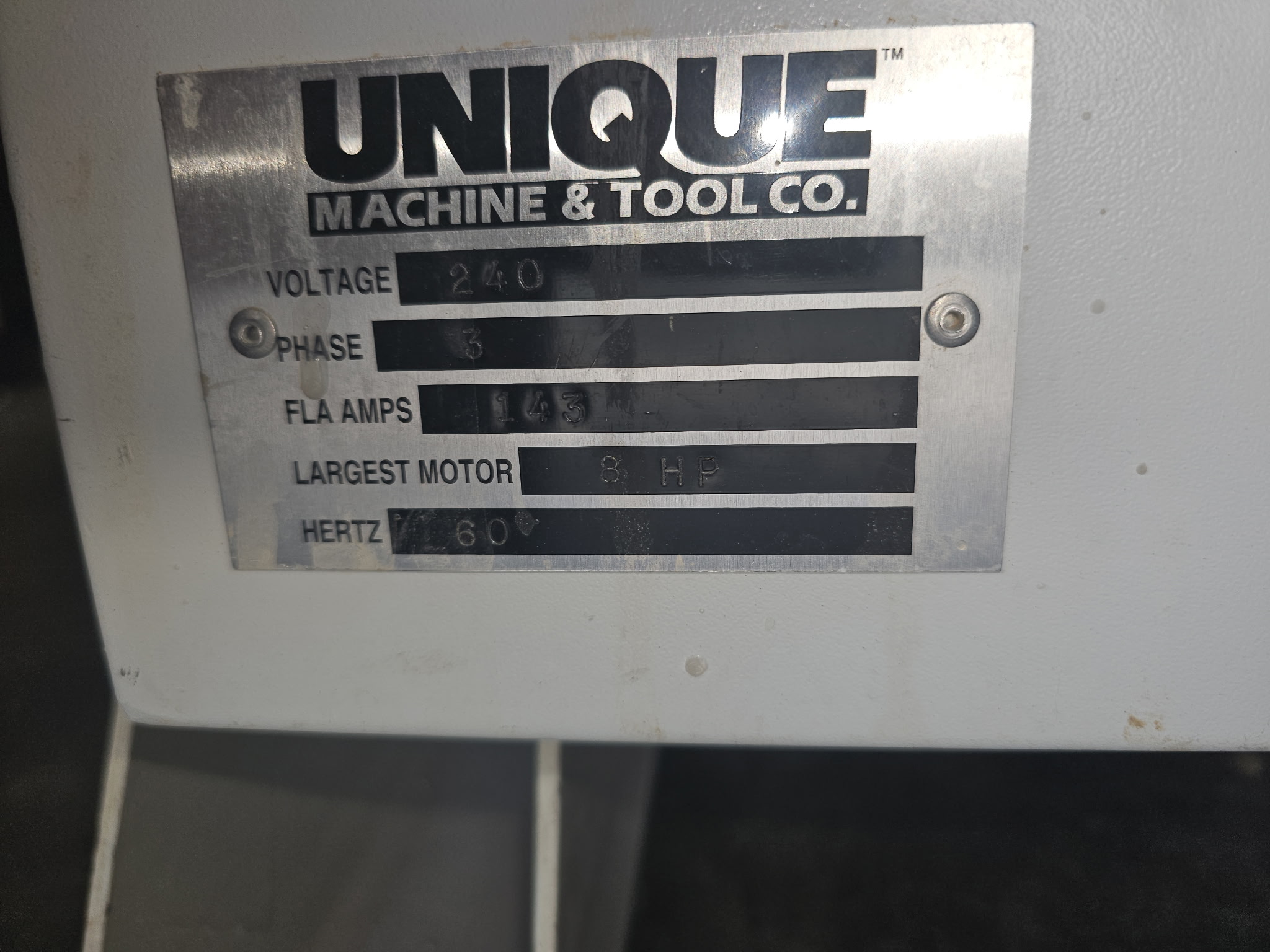

Power: 230V, 3-Phase
Key Specifications
Shaper motors: approx. 10 HP direct-drive spindles
Shaper RPM: approx. 6000–9000 RPM
Sanding motors: approx. 2 HP direct-drive sanding stations
Shaper arbor: 1-1/4"
Sanding arbor: 1"
Feed system: variable-speed conveyor
Feed rate: up to ~35 ft/min
Max material thickness: approx. 2.5"
Stack tooling capacity: about 5" depending on setup
Features
HSK quick-change tooling system for fast cutter changeover

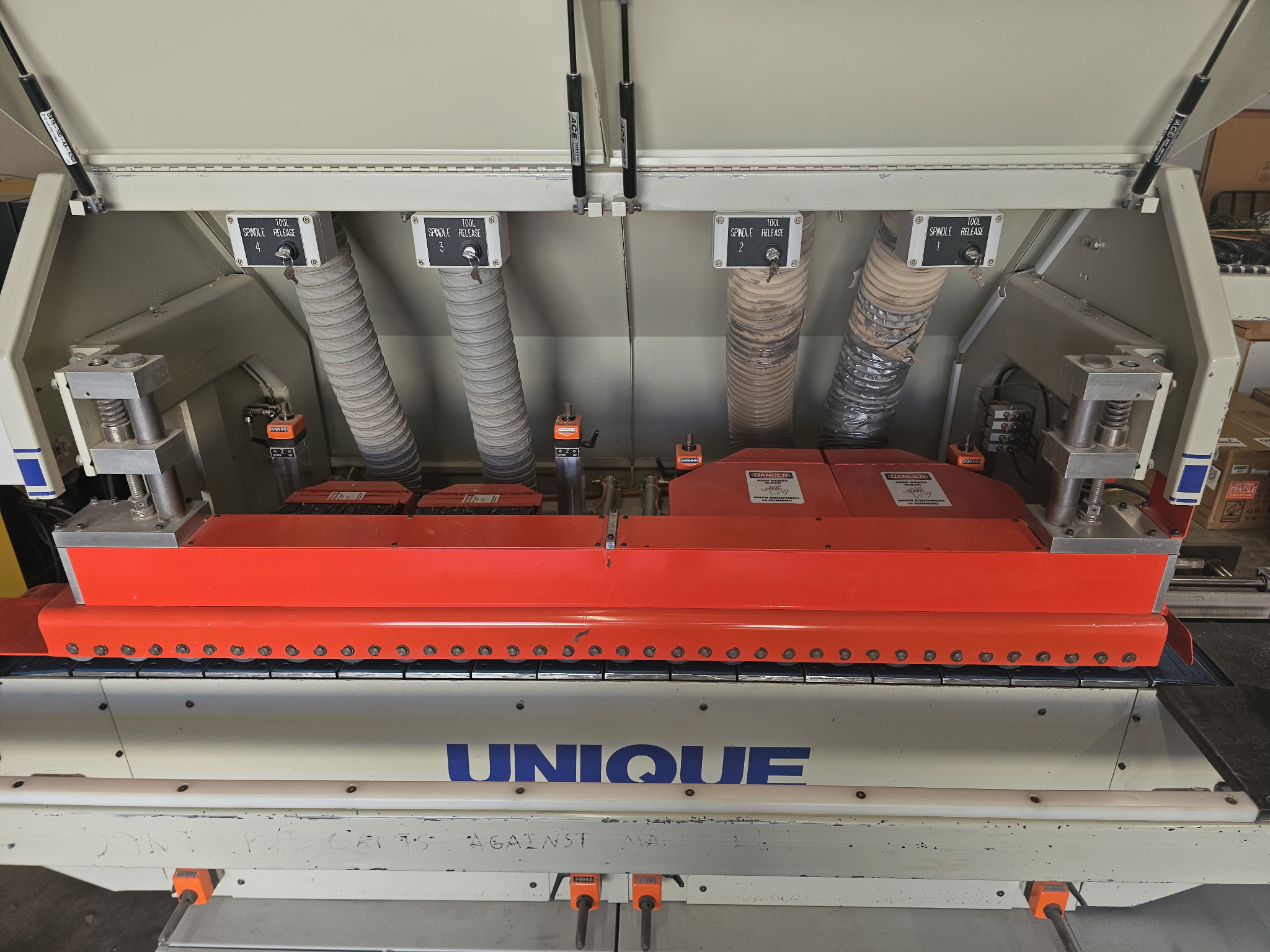

Floating heads to maintain profile accuracy on arched or irregular parts
Variable speed conveyor and sanding stations
Climb-cut capability for improved finish quality
No tooling supplied with the machine
MACHINE LOCATED IN NOR CAL
