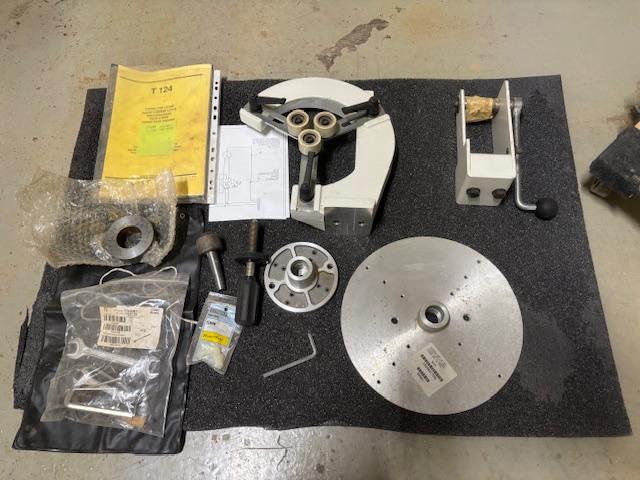

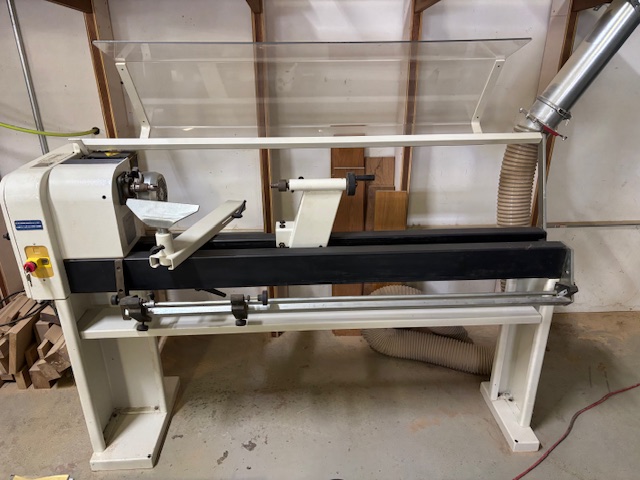

Technical Specification Motor: 2.5 HP (1.5 kW), 2 phase (requires 2 pole breaker or phase converter), 230V Distance Between Centers: 1150 mm (approx. 45.25") Center Height (Swing): 200 mm (approx. 7.8") Max Working Diameter (Copying): Approx 400mm / 15.75" Speeds: 4 speeds - 570 / 1000 / 1850 / 2500 RPM Copying Device: Included with handheld feed Steady Rest: Mobile steady rest with pre-cutting tool Spindle Taper: Morse Taper 2 Weight: Approx. 500 lbs
Features Copying Capability: Allows for copying work at different diameters than the template. Rugged Construction: Heavy-duty cast iron base for stability. Versatile Operation: Suitable for both manual turning and template-based copying. Safety: Equipped with a transparent guard.
*Set of 4 Ashley Iles turning tools included for free.
