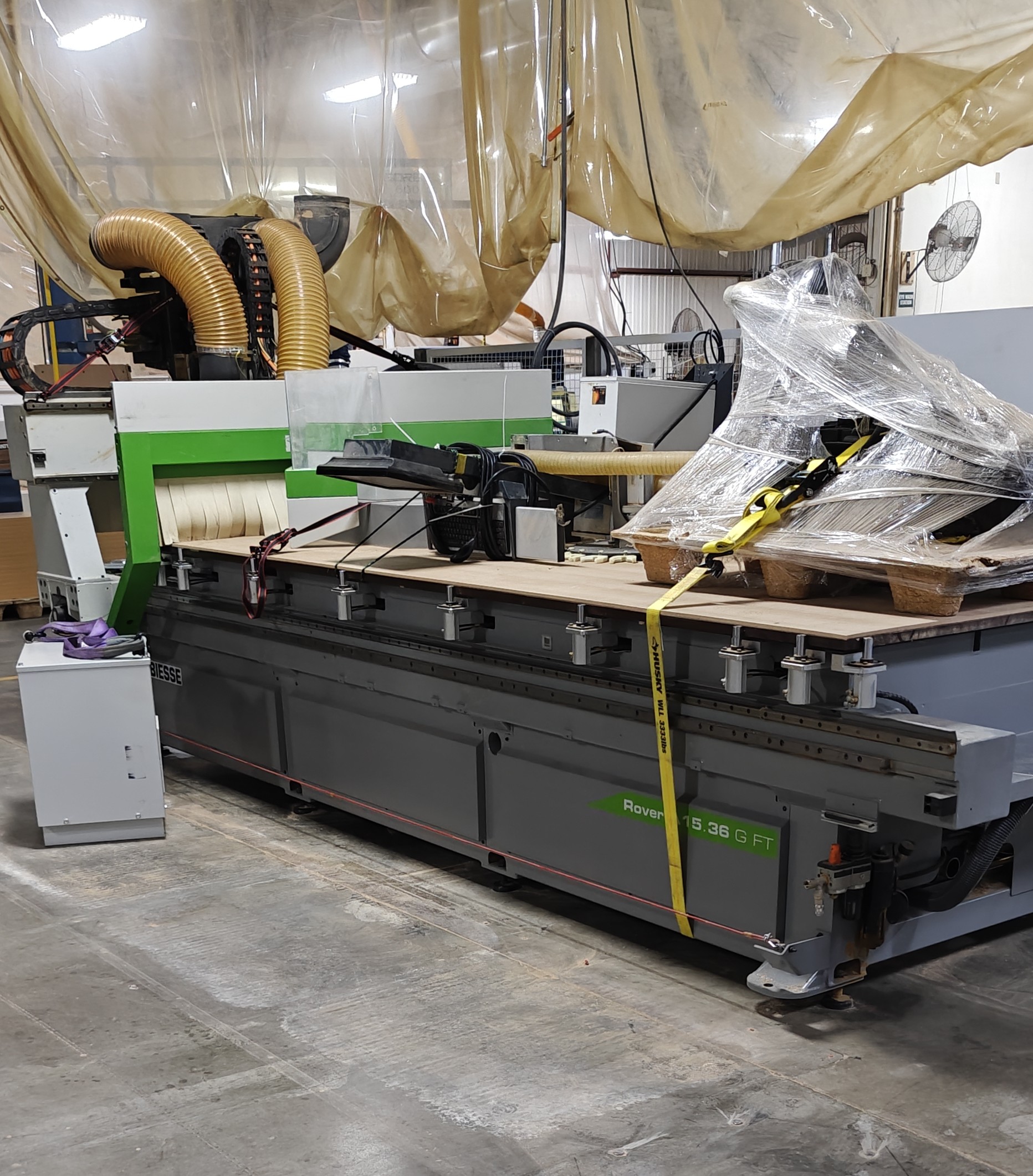

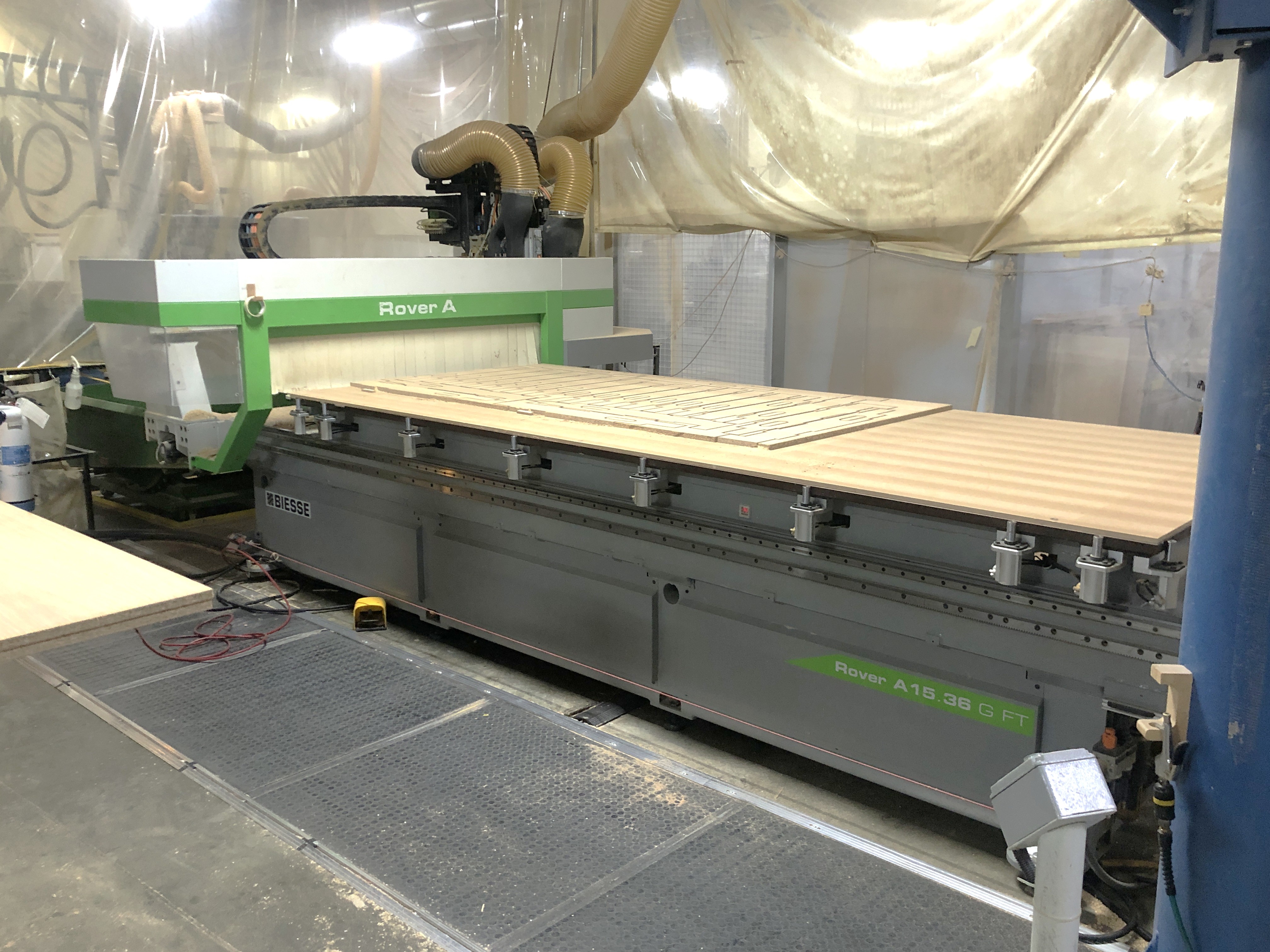

61″ x 148″ phenolic router table)
Table length 3765 mm (148.22")
Table width 1585 mm (62.4")
Workpiece clearance in Z 120 mm (4.72")
14 Popp up Loacation pins!
Spindle power 12 kW (16.5 hp)
C-Axis
Spindle speed 1000- 24000 rpm
Spindle taper HSK-F63
Tool changer 16 positions
Tool length pre-setter
16 Spindle Drill head 0-6000RPM programmable
(10 Vertical (6@X and 4@Y) ) and (3 double horizontal (2 @X and 1@Y))
Grooving Saw (3kw (4hp)) (Works in X axis)

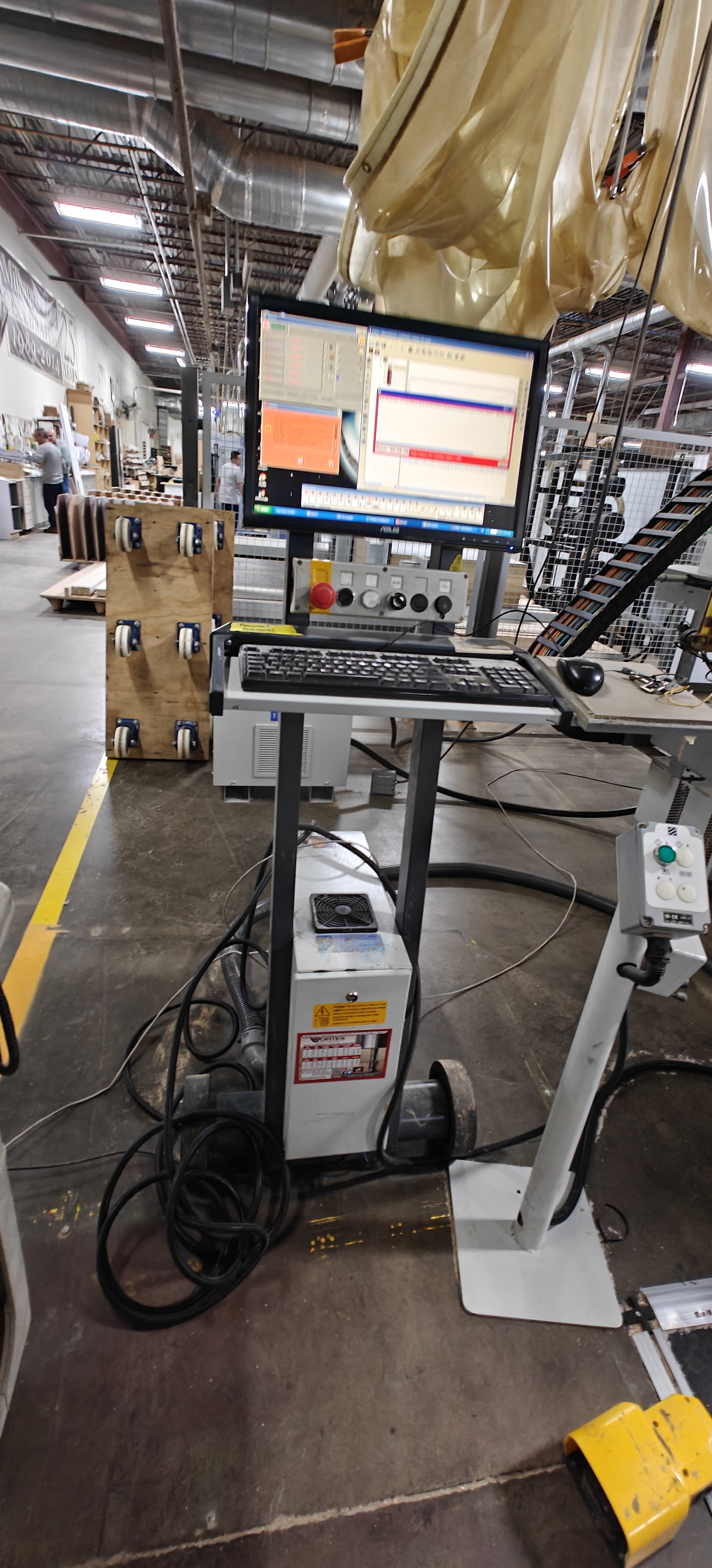

Software Biesse Works Advanced

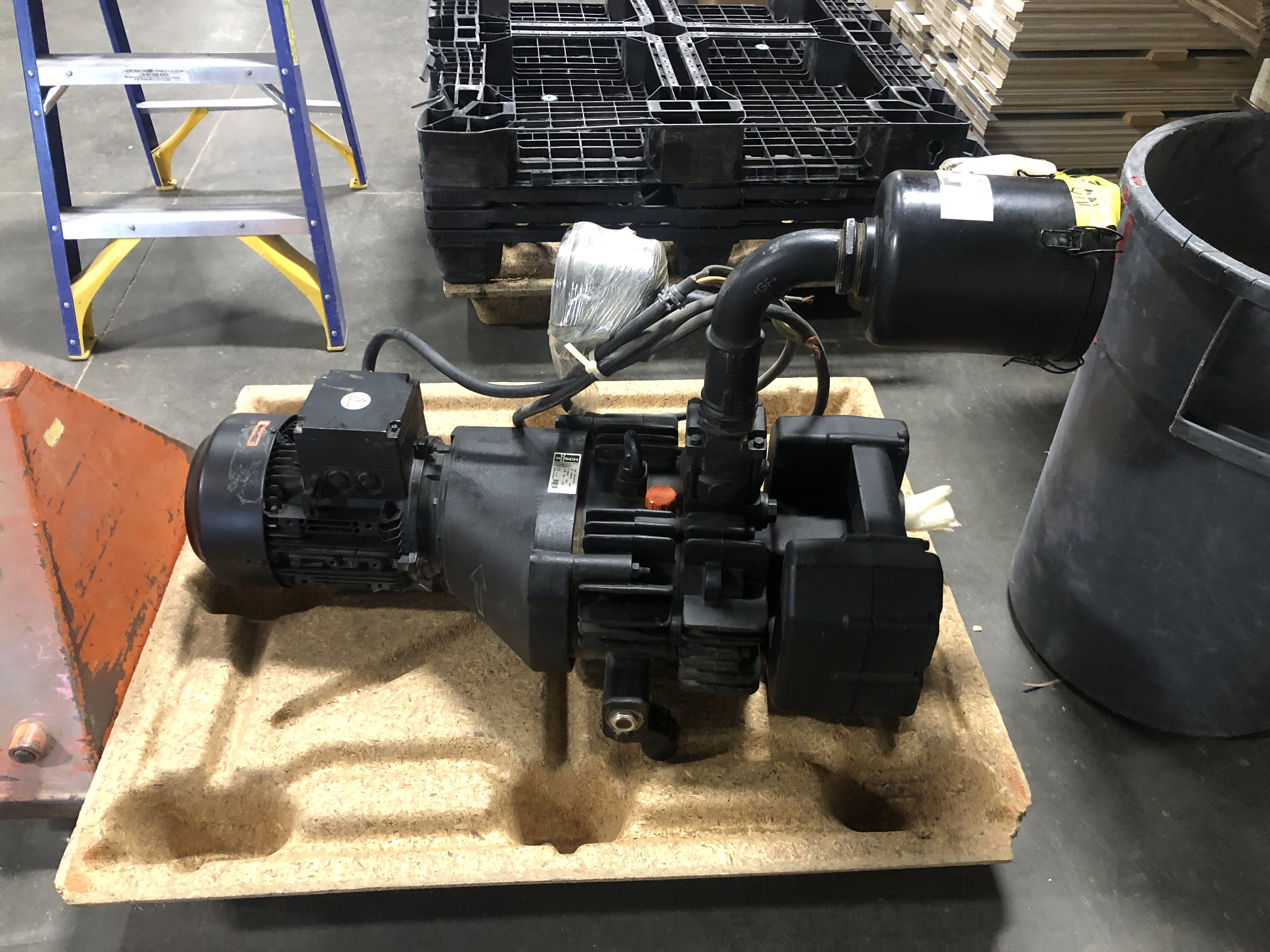

300 M3/H Rotary Claw Pump (Busch) UNUSED They have central vac. that they tied machine into. The vacuum pump is as new
Smart Vacuum Multizone System - 9 zone NC controlled system
Dimensions L 7680 x W 4436 x H 2750 mm
Nice machine. Nicely optioned and really well kept .
MachineryAssociates.com listing
