YOU WILL NOT UDNERTAND HOW VALUABLE THIS MACHINE IS UNTIL YOU WATCH THE VIDEOS. FIRST EVER ALL IN ONE PROCESSING CENTER FOR CABINET DOORS. THIS KIT INSTALL RIGHT ON YOUR EXISTING SHAPER GO TO OUR INSTAGRAM AND WEBSITE TO SEE VIDEOS. THIS IS NO HOAX OR JOKE. THIS MACHINE WILL CHANGE THE WAY CABINET DOORS ARE MADE IN ALL SHOPS ACROSS THE WORLD.

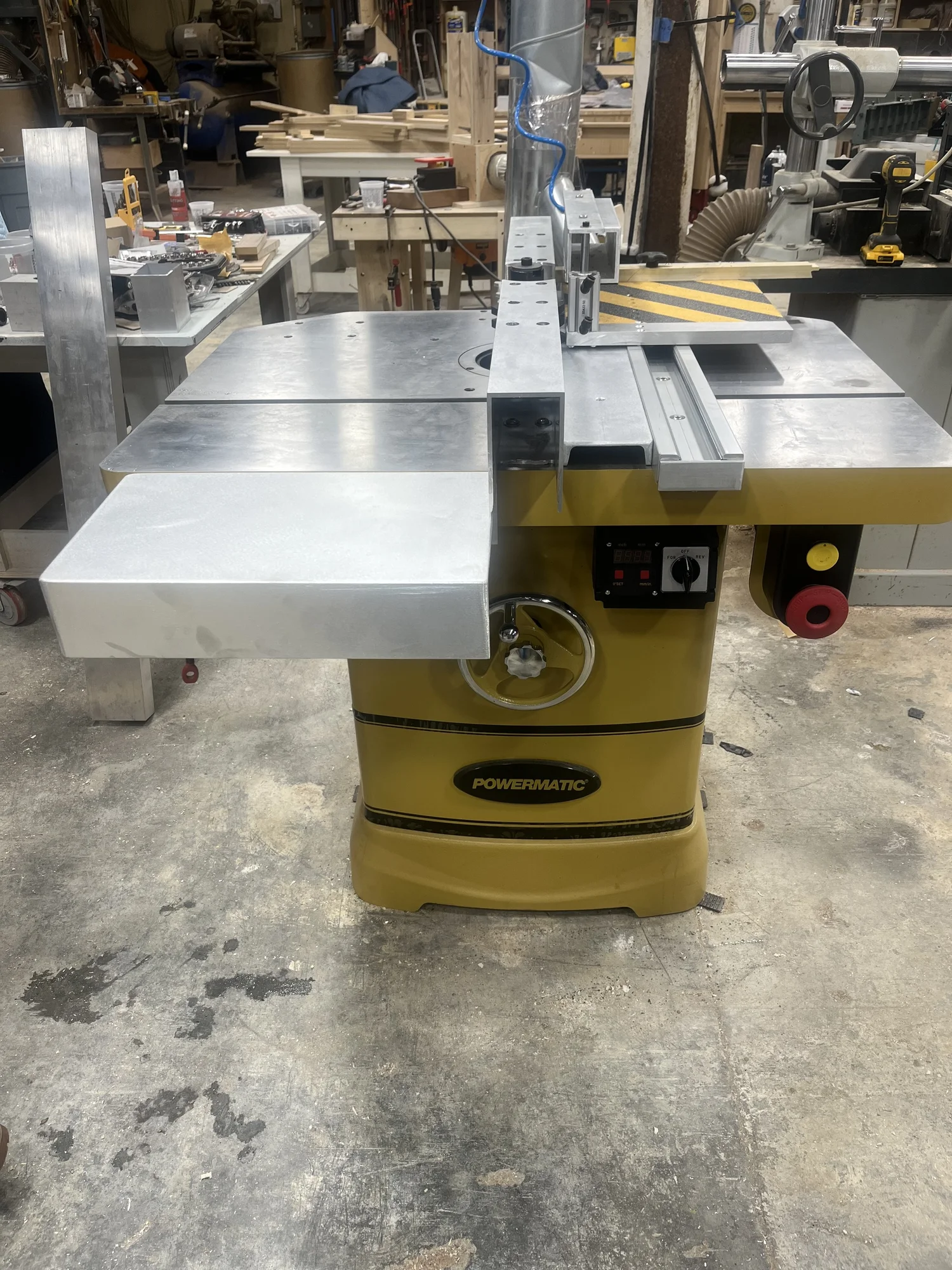

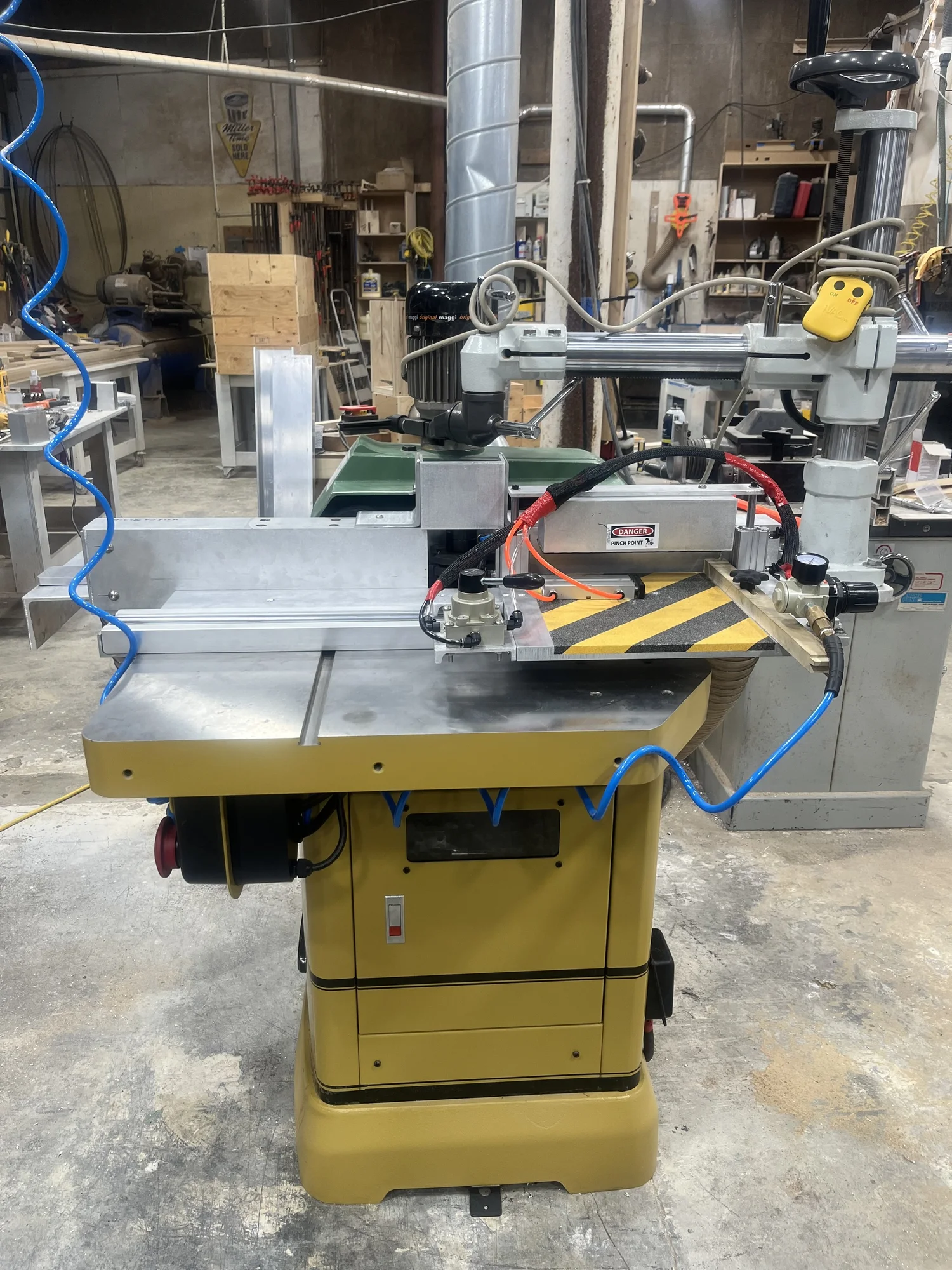

This is the full machine set up with the UNO2
This machine is fully set up with the UNO2 kit except it doesnt need the aluminum top and has a few added features not available on the standard kit.
Features include digital numerical outboard fence
Custom feeder mount bracket
Custom track feeder made just for UNO2. A real game changer . Feed stock with this feeder and our special outboard fence up to a minimum of 5 length!!! Pics of feeder will be up soon. If you decide you want a standard feeder we will swap that out for a Steff three wheel feeder. Still feed stock at 8 max minimum length.
Custom dust collection for overhead or floor mount not included on standard kit. Overhead also allows for tool storage!
Shaker Insert tooling included.
Machinery is 5hp three phase with plug ready to go to work the moment your get it.
We will leave the shaker cutters on so you can plug and play.
Kit includes
Powermatic PM 2700 5hp 3 phase
ONE SHAKER DOOR INSERT TOOLING SET 1000.00 value Other sets available for purchase.
PANEL BACK CUTTER
Full Uno2 kit described below.
1.25 spindle that allows you to cope, stick and back cut your panels. You can also buy any of our raised panel cutters that work within our geometries. Yes you can do a full raised panel on our Uno 2 system.

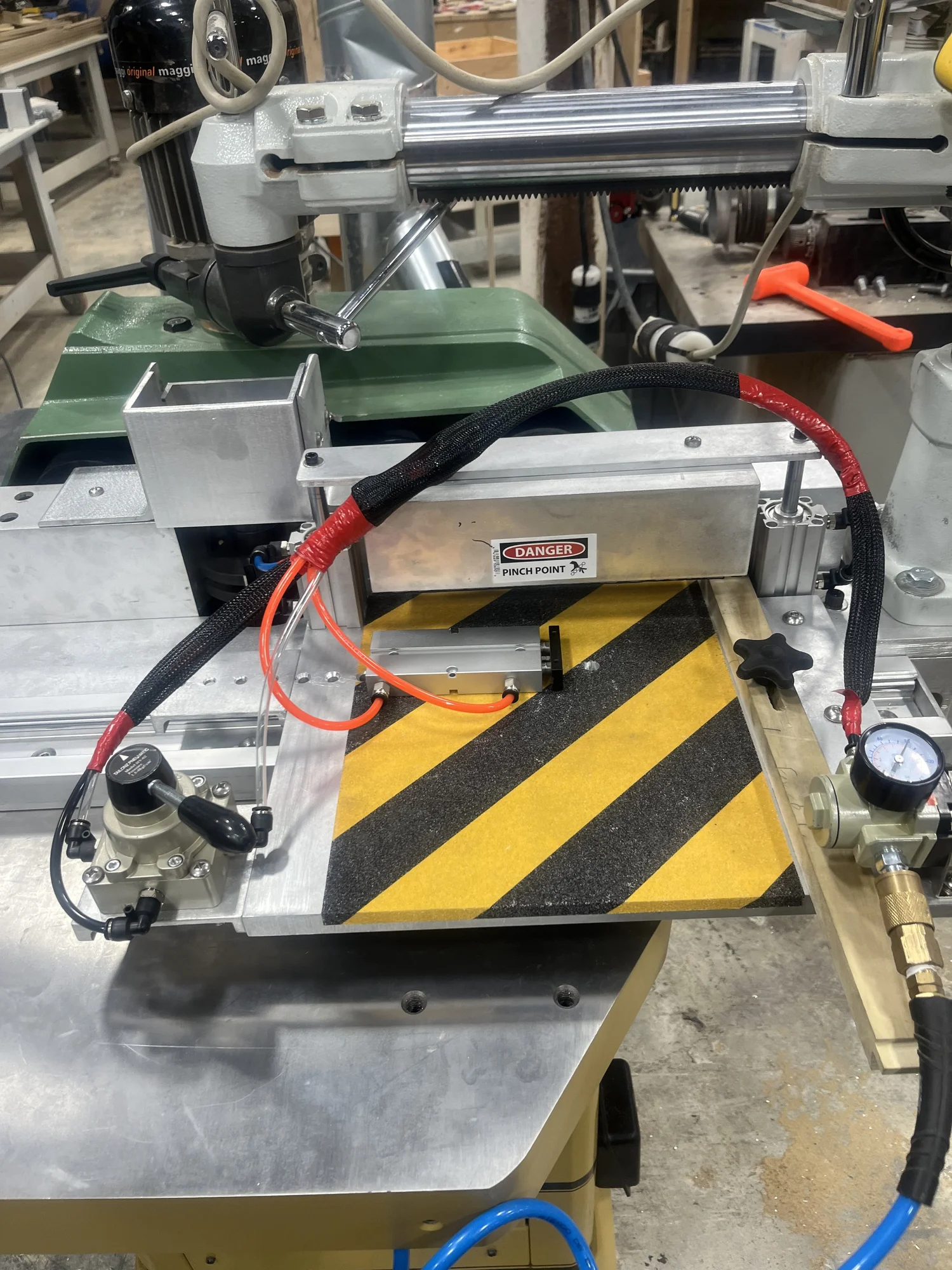

-heavy duty linear sliding table 0.75 thick aluminum table with 10x 1.375 capacity. This can be changed in just a few minutes to a larger capacity of 2 and up to 5 but is not necessary for cabinet doors. Its exactly what you saw in the most recent videos.
-Entire Uno2 patent pending system.
This set up will change the way you work and you will enjoy making doors again!
-Dust collection kit . Two custom 4 ports on either end of the machine that you can mount to go to the floor or ceiling. This patent pending kit can be used for either application.
-Outboard fence with locking knobs and a special indexing system bored directly into the machine table allows you to adjust your sizes up to 16 and more without the use of clamps.
-Patent pending dust collection hood.

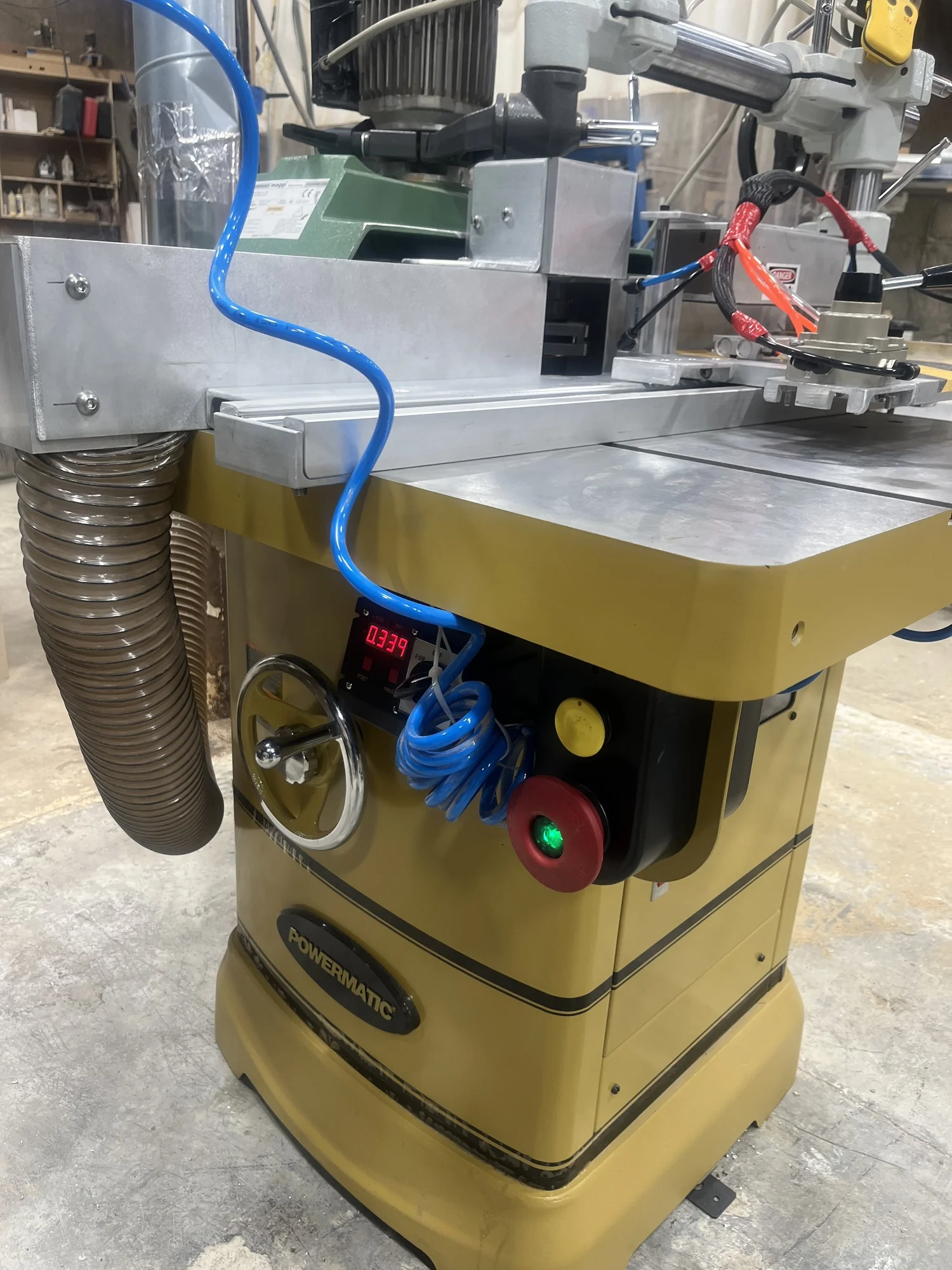

-Digital readout pre installed on Powermatic machine.
-Full instructional manual.
-Original fence with machine
This introductory price will not last long. This technology and what it does for cabinet makers and the engineering with the overwhelming amount of time that it takes to create Uno 2 will not last at these prices. if you want a complete machine and not a kit simply choose from one of those other options!
The system is based off of 1/8 stock removal on both ends of the cope as well as 1/8 stock removal on the sticking. This allows use of the sliding table to stick very small parts simply by moving the spindle up to the correct position via supplied digital read out.
Tooling with profiles and pricing from our catalog will be available to order by 3/12 to order. It wont cost much more than a standard set of insert tooling. We will have every standard profile and all custom profiles that fit within the geometry can be ordered upon request. That includes
-Shaker
-Bevel Shaker
-Ovolo
-Bead
-Bevel
-Square modern bead
-Ogee
and many others.
Specifications
SKU
PM9-1280100C
Dust Port Outside Diameter (in.)
4 in.
Fence Size
4-7/8 in. x 18-3/4 in. (2)
Gross Weight
690
Input Power
230V Single Phase
Maximum Spindle Diameter
1/1/2004
Model Number
PM2700
Motor HP
3
Net weight
664
Old Material Number
1280100C
Prewired Voltage
230
Product Type
Machines
Prop 65
Cancer and Reproductive Harm
Spindle Speed RPM
7500, 10000
Spindle Travel
4 in.
Style Type
Floor Standing
Table Height
35-1/2
Table Opening Diameter
7.33
Warranty
5 Year
