BIESSE - AKRON 246: Edgebander with Pre-Mill and Corner Rounding.
0.4 - 8 mm (5/16") Cap. Edgebanding thickness; min. panel width: 85 mm; min. length: 140 mm; panel thickness: 10 - 50 mm; automatic strip & coil feed magazine with: Robust shear type 3 mm PVC guillotine.
Workstations:
Pre-Milling Station with: (2) 3 kW (4 HP) - 150 Hz, 9,000 RPM Motors.
Front & Rear end trims (0.33 HP - 12,000 RPM motors); motors travel on (2) straight slides; pneumatic tilt 0° - 25° on horiz. plane.
Top & Bottom flush trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup.
Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position"; can be used as a 2nd Top & Bottom fine trimmer, as well.
Top & Bottom scrapers for 3 mm thick PVC banding; digitals for horiz. adjustments.
Top & Bottom (2,000 Watt) hot air blowers with temperature adjustment.
Top & Bottom buffing (0.5 HP - 2,800 RPM motors); units tilt 0° - 30°.
Feed Speed: 39 FPM, 3 HP feed drive.
*** Please click the link for full description***

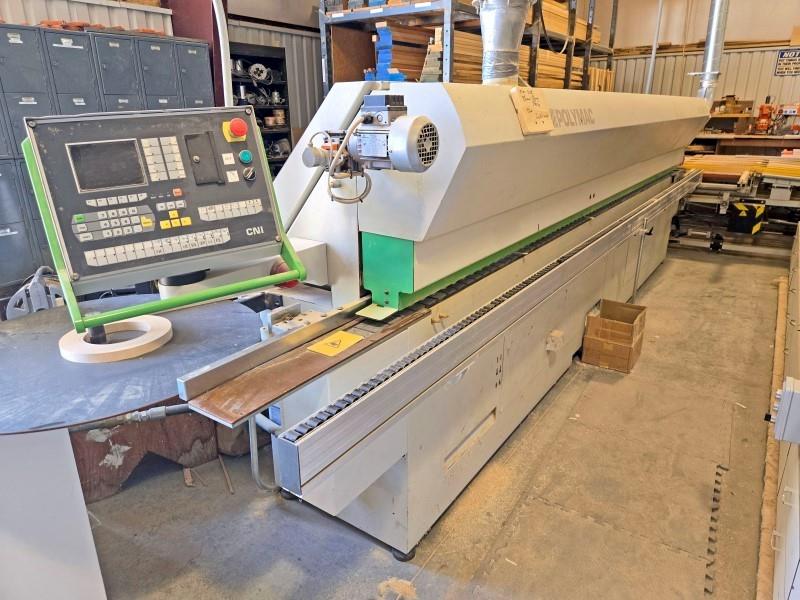

Biesse AKRON 246 Edgebander
