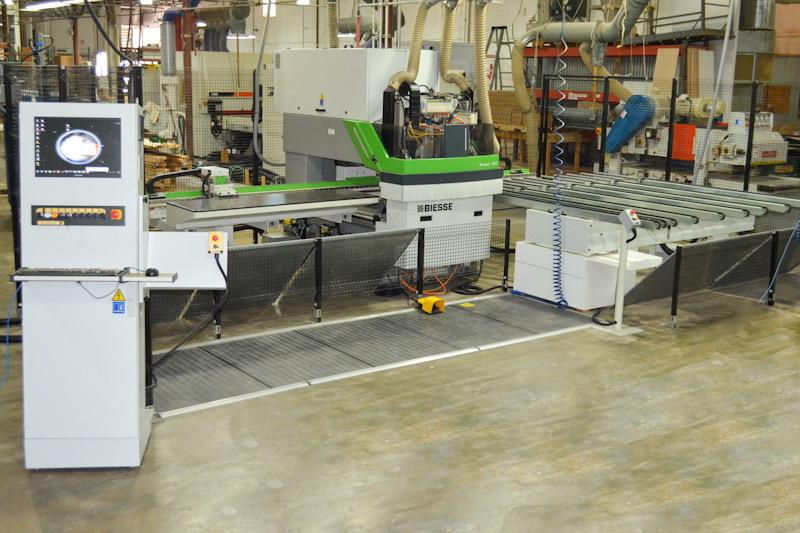

BIESSE SKIPPER 100 2-Head CNC Machining Center, with Outfeed Table
Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system.
Working Capacity:
"X" Axis 2,500 mm (98.43"), "Y" Axis 1,000 mm (39.37"), Max. part thickness 60 mm (2.36"). Min. workable part size: "X" Axis 90 mm (3.54"), "Y" Axis 70 mm (2.76"), & "Z" Axis 8 mm (0.31").
Left-hand infeed & Right-hand outfeed Y-Beam with Clamps.

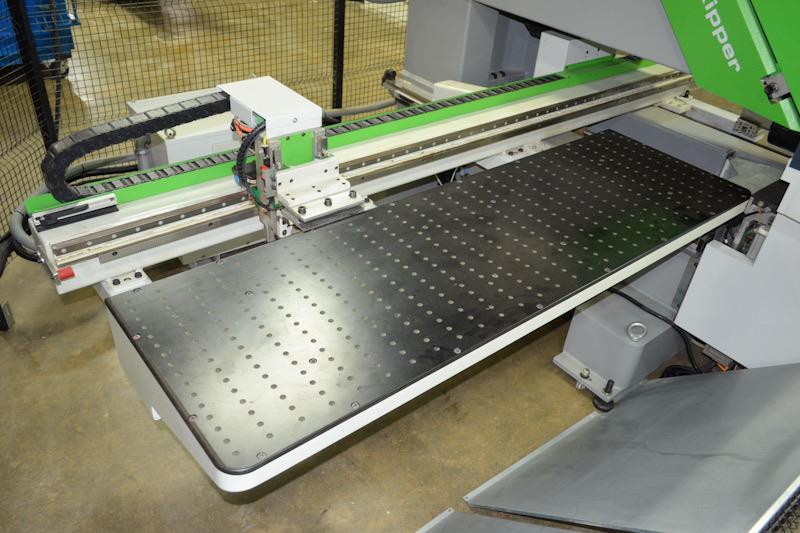

22” W x 71” L x 34-1/2” H Air flotation loading table.

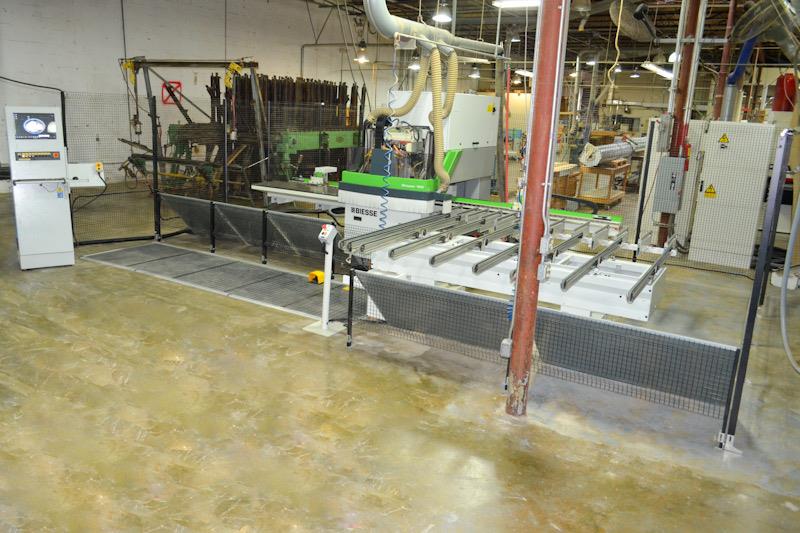

24” W x 8’ L Unloading table, with 1-1/16” Dia. Coated rollers on 9-1/8” centers.

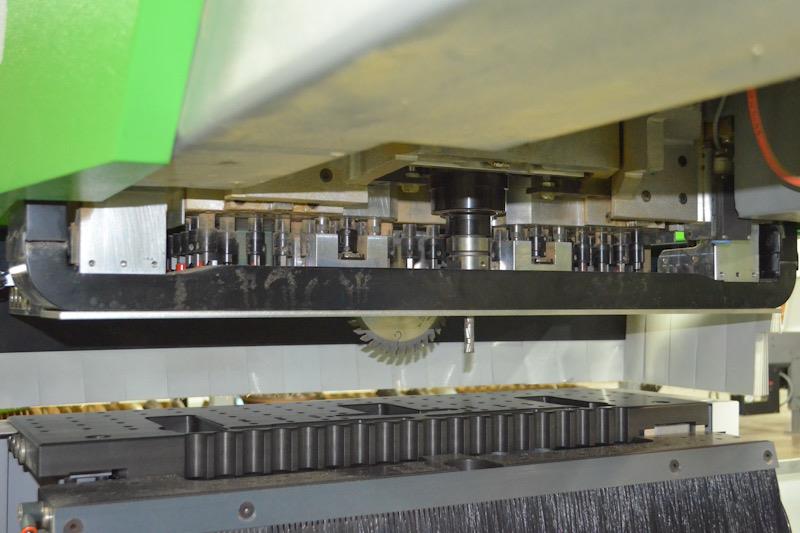

Boring Units:
(1) Top & (1) Bottom boring blocks, 1.7 kW (2-1/4 HP) Motor, Variable spindle speeds 4,000 - 6,000 RPM, Each with: (29) Vertical spindles with (17) "X" Axis & (12) "Y" Axis, (10) Horizontal spindles with (4 + 4) "X" Axis & (1 + 1) "Y" Axis, & (1) "X" Axis Grooving saw with 1.7 kW (2-1/4 HP) Motor, Blade speed 5,000 RPM, Right-hand rotation, & Blade diameter 150 mm (5.91").
Machining:
(1) Top & (1) Bottom 3.5 kW (4-3/4 HP) Electrospindles, Each with: Variable spindle speeds 7,000 - 18,000 RPM, Right-hand/Left-hand rotation, Max. tool dia. 40 mm (1.57"), HSK D-50 Adapters for Manual push-button quick tool change, ERC-32 Toolholders & RC-32 Collets.
