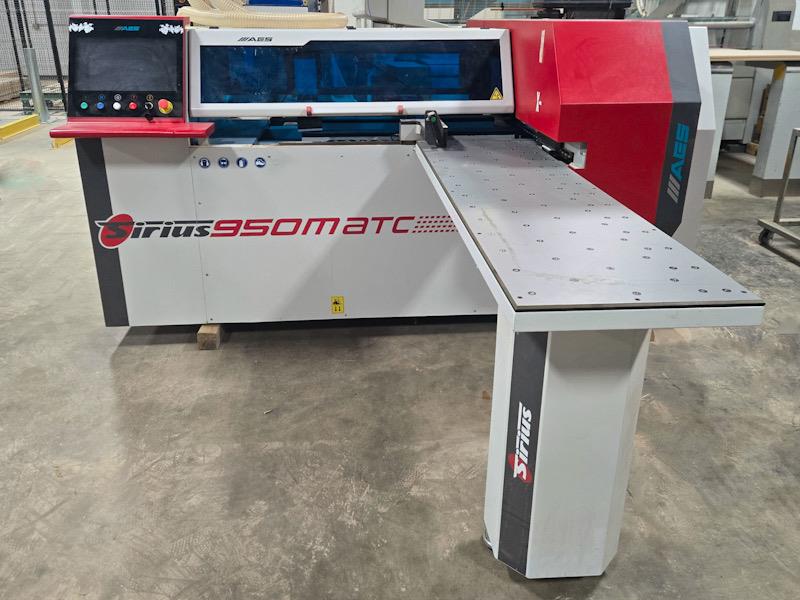

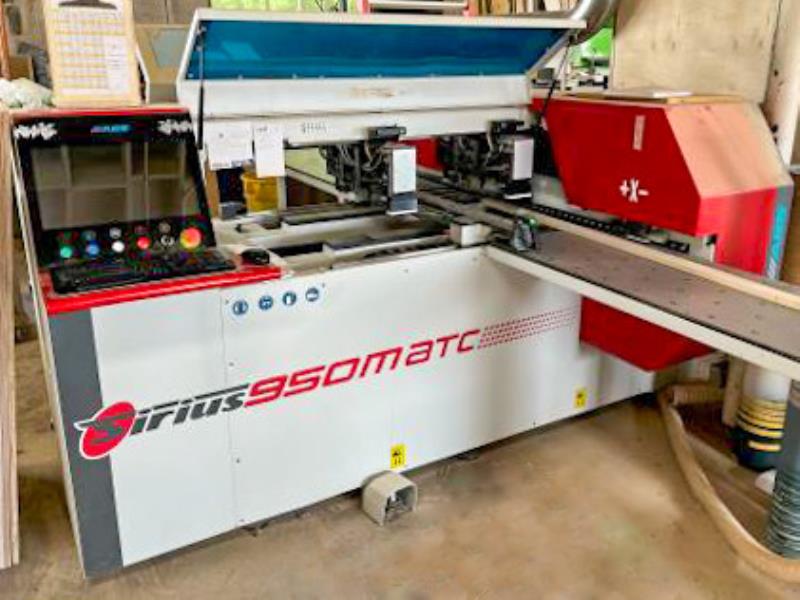

AES SIRIUS 950M ATC CNC Machining Center (Feed Thru):
Owner says SELL IT... MAKE AN OFFER!!!
Automatic CNC feed through Point to Point Boring Machine that combines flexibility and high productivity.
A perfectly suited solution for small to midsize companies & artisans in need of an automatic solution for precision drilling with a low-cost investment.

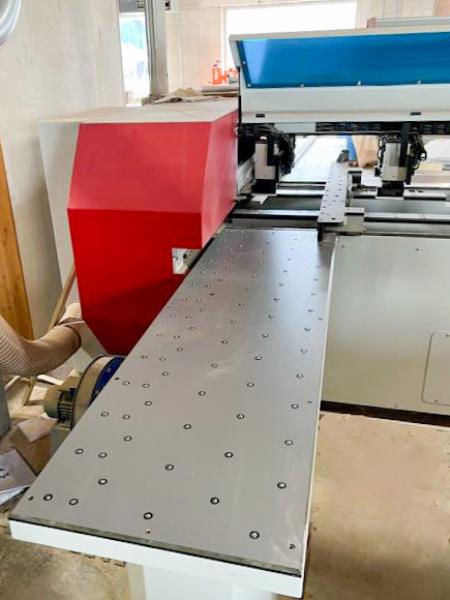

Parts can be discharged at the opposite end of the machine for automated material handling or returned to the Operator for manual unloading. ≈≈ Working Capacity:
Max. panel size on X-Axis is unlimited; Y-axis is 37.4" (950 mm); Z-axis is 2-3/4" (70 mm).
Min. panel on size X-axis is 9.84" (250 mm); Y-axis is 3.14" (80 mm); Z-axis is 0.31" (8 mm). ≈≈ Positioning Speed:
Panel feeding speed of 229 FPM (70 MPM); Y-axis at 229 FPM (70 MPM); Z-axis at 65 FPM (20 MPM).
Axes positioning by AC drives & brushless Servo motors; the Panel moves in X-axis & the boring head moves in Y & Z-axes.
NC Controlled "Optical Material Sensor" creates a zero-panel reference point by reading the panel ends; this ensures that RH & LH (mirror image) panels will always be symmetrical.

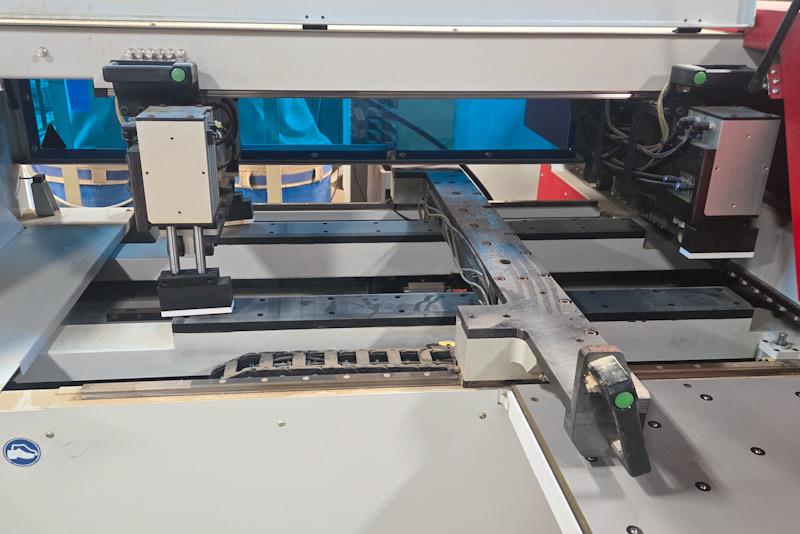

Boring Unit:
HSD Drilling head; 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor.
(10) Independent vertical spindles on 32 mm centers; (5) spindles in X-axis & (5) spindles in Y-axis.
(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.
(1) X-Axis grooving saw for max. 120 mm dia. blade; variable speed from 5,500 - 10,000 RPM. ≈≈ Machining:
HSD 7 HP (5.5 kW) spindle; variable speed from 1,000 - 18,000 RPM with manual tool change system.
(1) 6-Position ATC Automatic Tool Change system with ATC rotary magazine.
*** Please click the link for full description***
