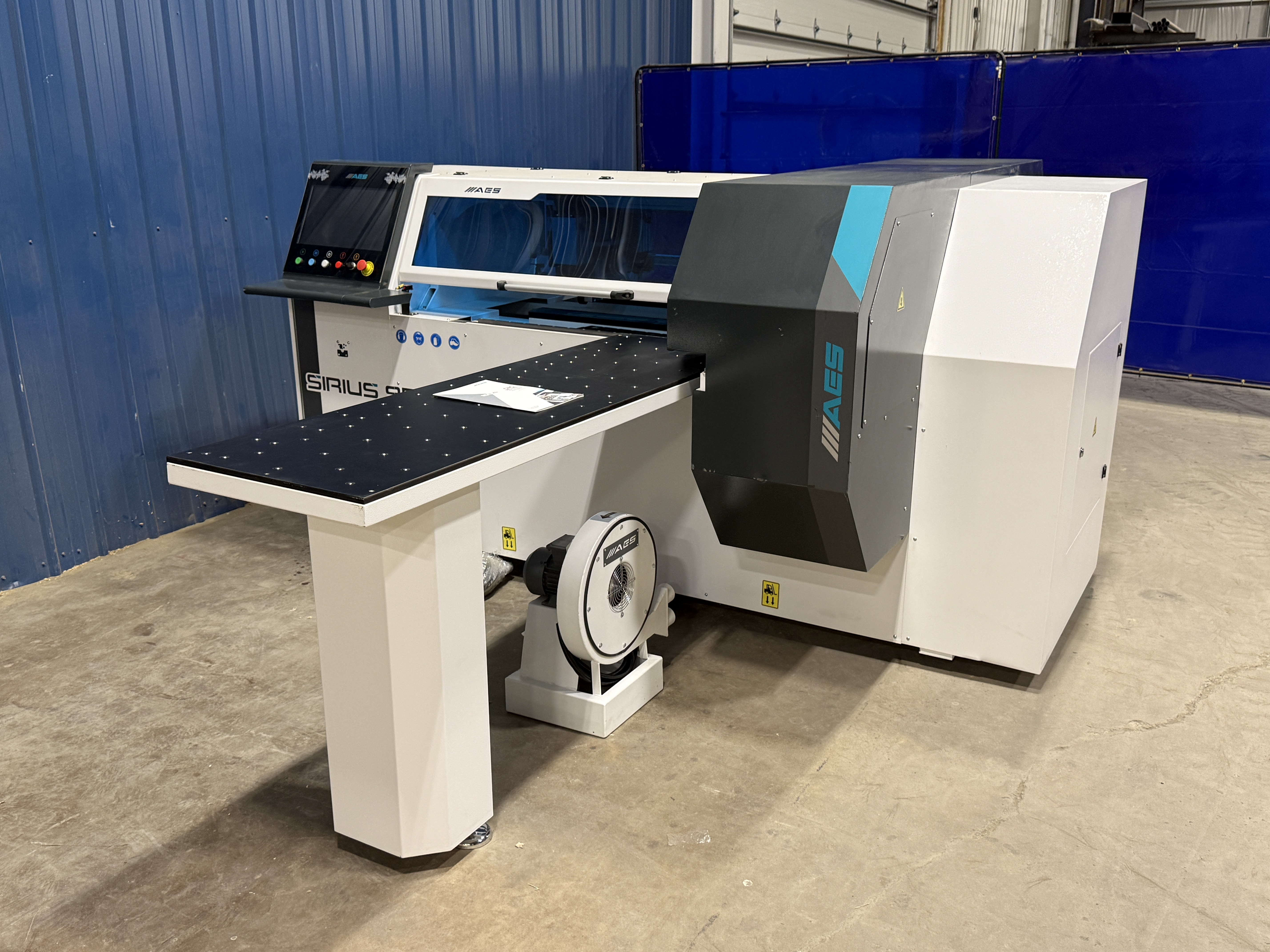

AES Sirius 950-M ATC CNC Machining Center
Serial #:10-950-218
2022 Demo unit, never used in production!
For woodworking applications requiring drilling, cutting and milling.

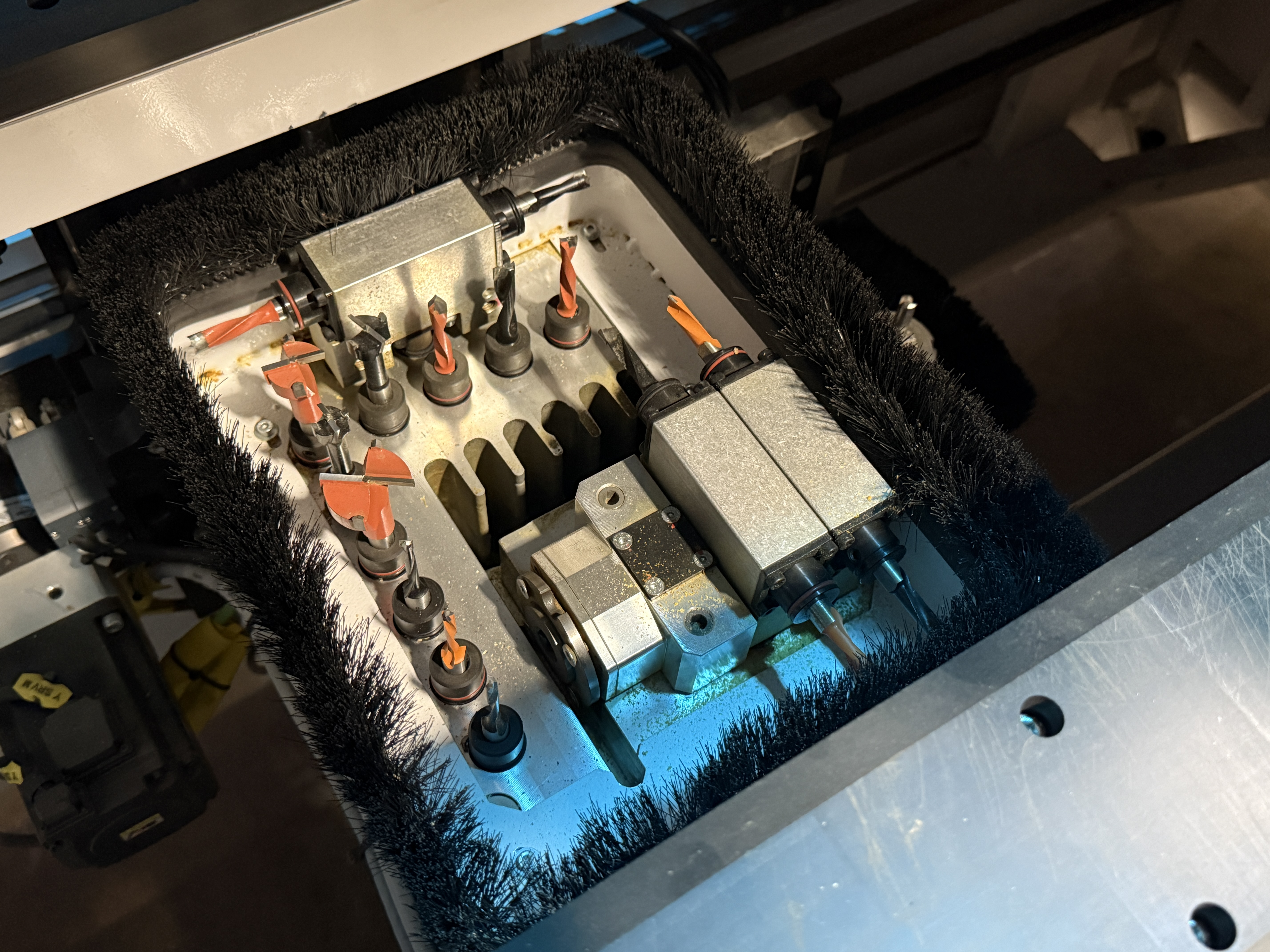

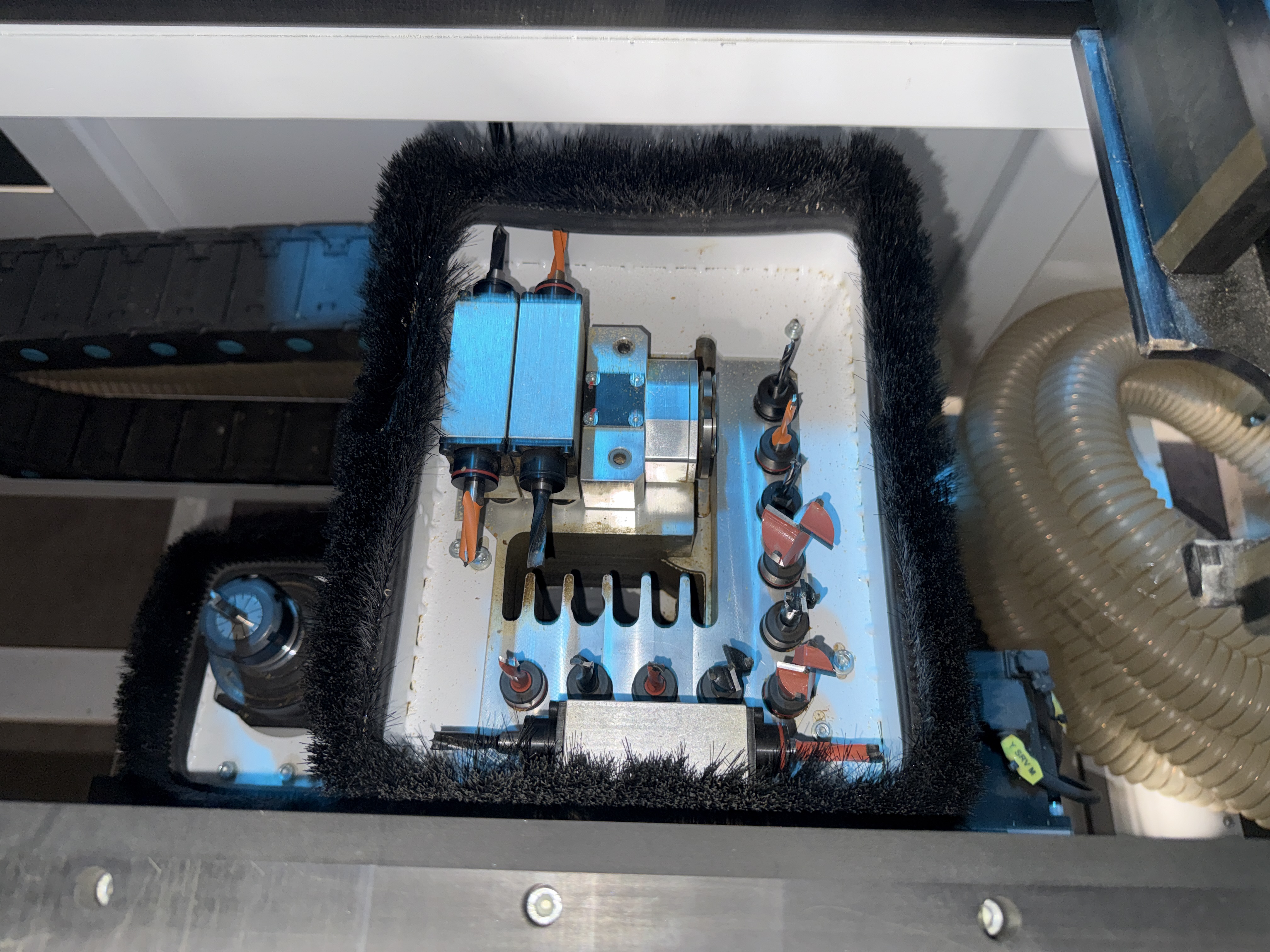

Drilling Capacity: 10 vertical x 3 horizontal spindles
Sawing Capacity: 1 saw arbor
Milling Capacity: 1 vertical milling spindle
Tool Changer: 6 position
Spindle Motor: 8 HP (5.5 kW) - ISO 30
X-axis: min. 9.8" (250mm), unlimited length
Y-axis: 3.14-37.4" (80-950mm)
Z-axis: 0.31-2.75" (8-70mm)
Axis Speed: 787 IPM
Air Requirement: 7 Bar
Total Installed Power: 15 kW
File Compatibility: DXF, DWG, STL, CAD
Software: Alphacam Essential 2D (one post), AES WOP
Total Installed Power: 17 HP (12 kW)
Weight: 1,530 kg
NOTE: Specifications from manufacturer literature.
- RT Stock Number: 57257
