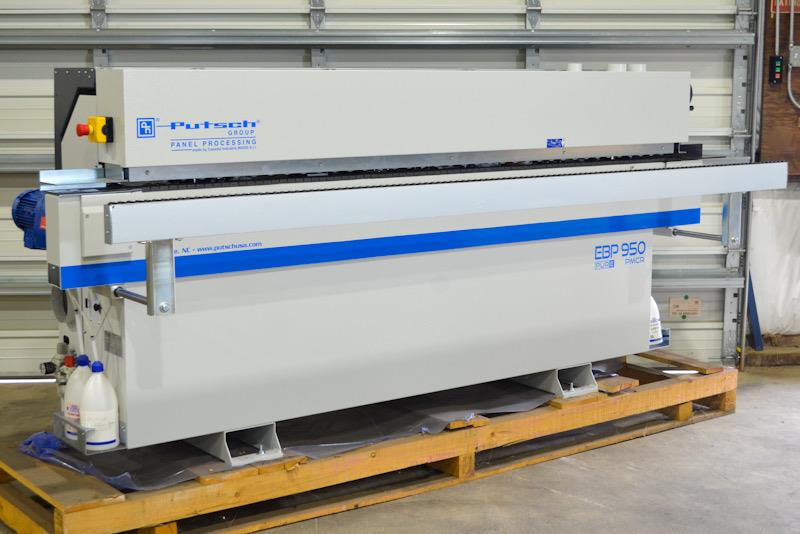

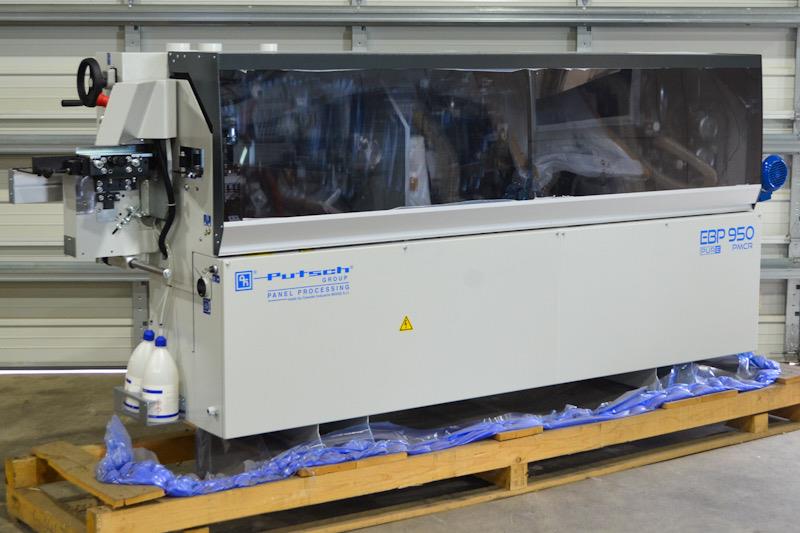

CASADEI (PUTSCH-Branded) EBP-950 PMCR Automatic Edgebander, Never Used, with Pre-Mill & Corner Rounding
Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed.
Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33").
Feed speed 9 MPM (29 FPM).
Pre-Mill Unit, with (2) 0.75 kW (1 HP) - 12,000 RPM - 200 Hz Motors,
PURE (PUR & EVA) Hot melt gluing system, with Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller,...
Workstations:
Front & Rear End Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, & (2) 80 mm (3.15”) Knives.
Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel.
Corner Rounding Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, 50 mm (1.97”) Diamond cutterheads, 50 mm (1.97”) Vertical/Horizontal copiers for profiling straight, curved, & beveled edges, & PLC-selectable front, rear, or complete panel processing.
Edge Scraping Unit, with 2 mm (0.08”) Cutters,
Top & Bottom Glue Scraping Unit, with 120 mm (4.72”) Vertical disc copier.
Top & Bottom Buffing Unit, with (2) 0.13 kW (0.17 HP) - 1,400 RPM Motors.
Polishing Spray Unit, PLC-Controlled, with (2) Sprayers.
*** Please click the link for full description***
