Ex-Factory Biesse

Powermatic TS29 Shaper, 7-1/2HP Tilting Spindle & Sliding Table

Listing #555720 Listed on: 04/26
Details - Machine for Sale
Category:Shaper-Single
Price: $11,500.00
Type:New - New
Manufacturer:Powermatic
Model:TS29
Location:Kingston, TN
Sale Type:Dealer
Seller:360 DEGREE MACHINERY LLC [Contact]
Phone:630-229-6705
Year:2025
Electrical:3PH
More Info:Link to more images and info at 360
Description

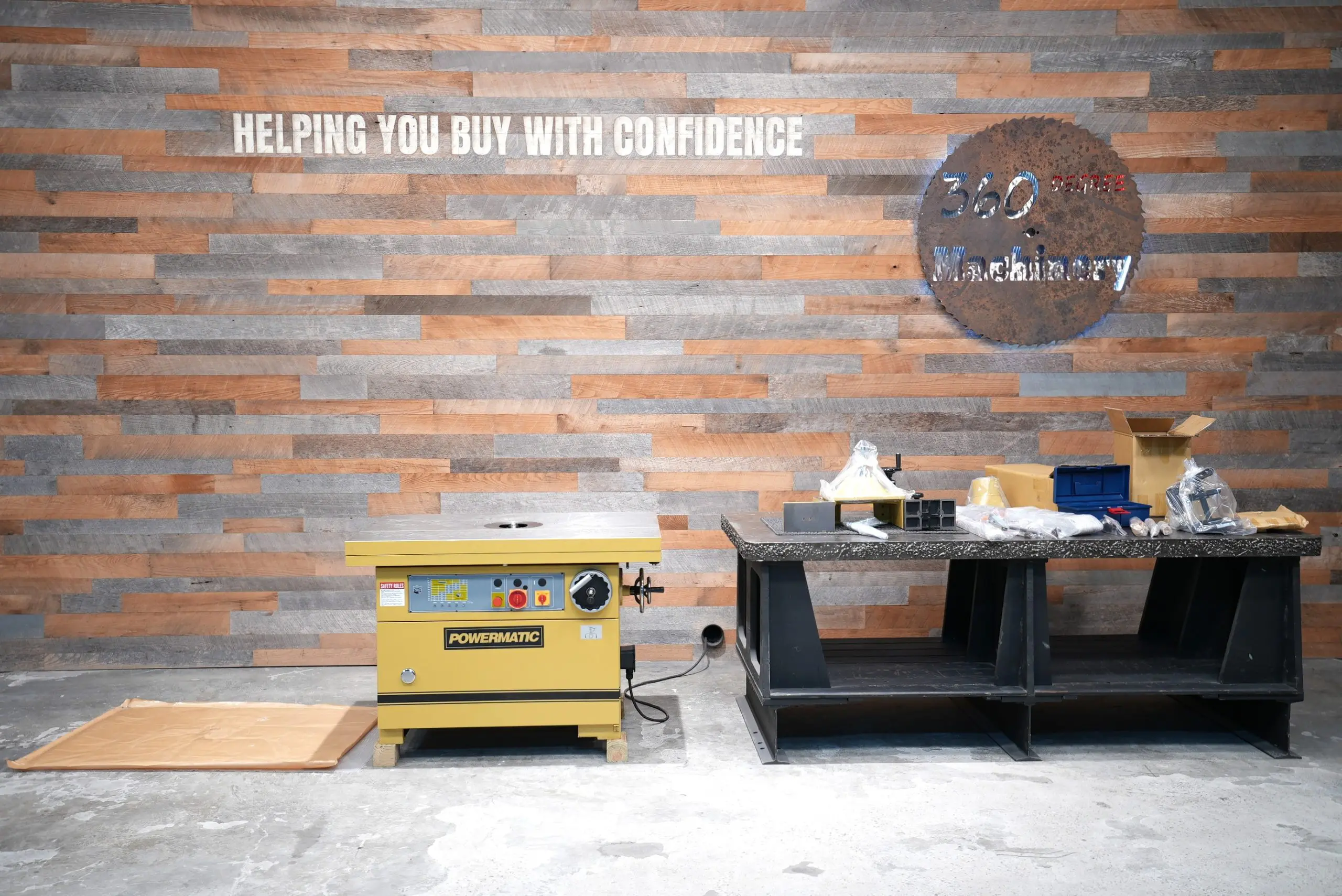

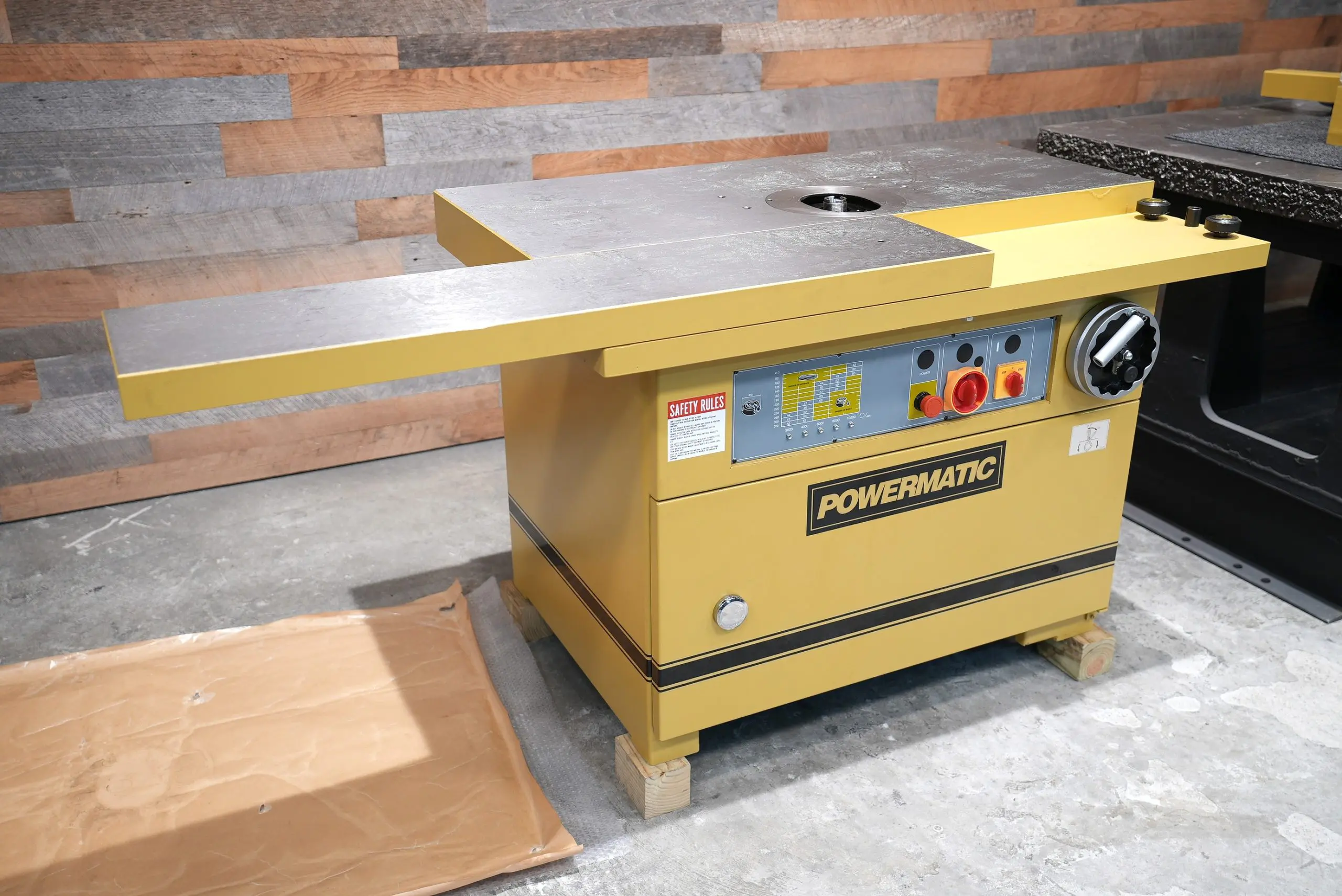

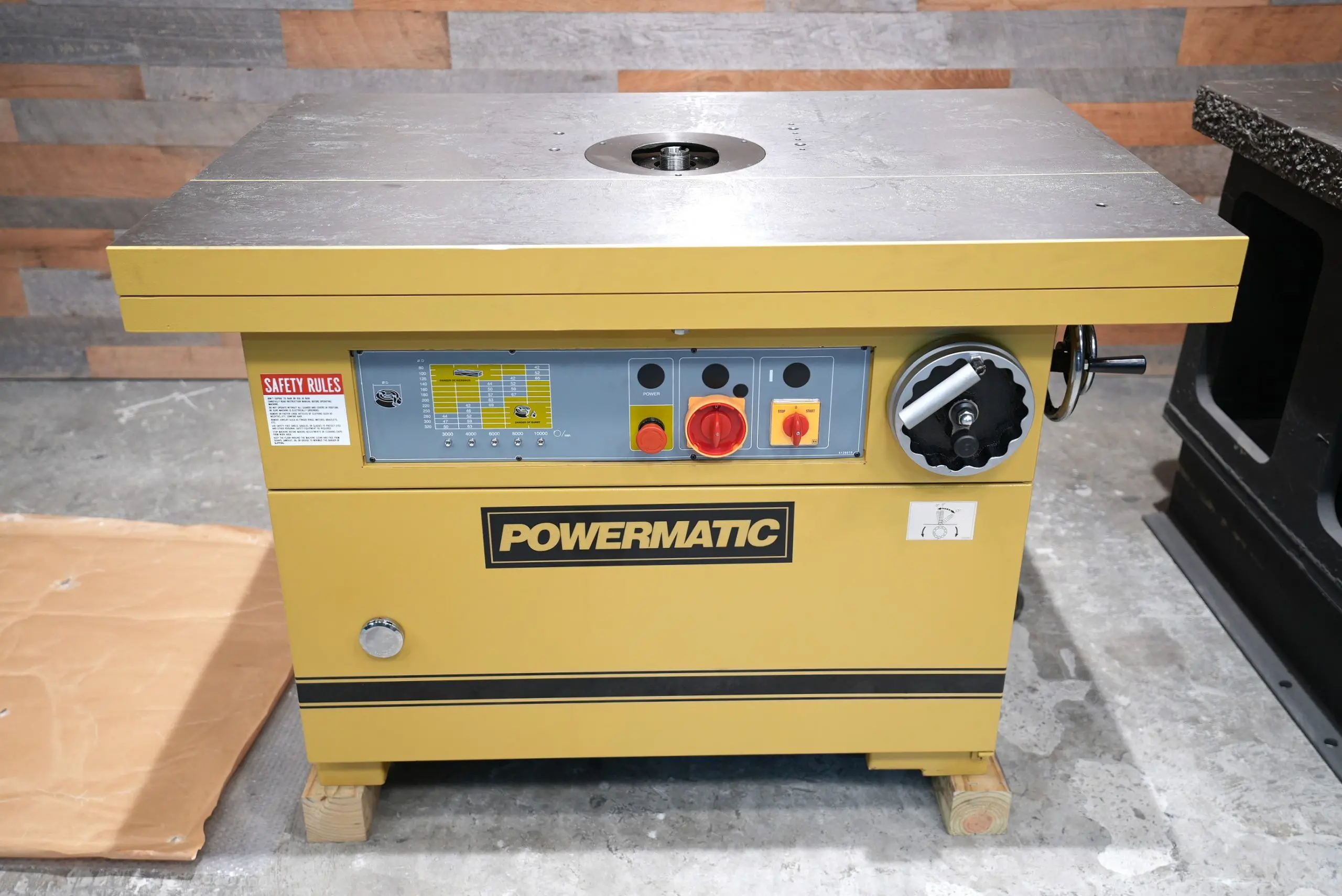

This is a Pre-Owned Unused 2025 Powermatic TS29 Shaper with a 7-1/2HP Tilting Spindle & Sliding Table. Please see full specs below. (note: free shipping does not apply to this particular machine)

• Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
• Large table with built-in slider with room for stock feeder
• 7″ vertical spindle travel allows stacked tooling
• Spindle tilts negative 5° to positive 45° for increased versatility
• Large diameter multiple table inserts accommodate virtually any size cutter
• Five spindle speeds in forward and reverse with lighted indicator
Specifications:
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in.) : 5 (dual ports)
Electrical Controls – Magnetic Starter : 24V Magnetic
Fence Size (L x H/in.) : 46 x 5
Fence Travel (Major and Minor/in.) : 5-3/8 and 3-5/8
Height (in): 53
Length (in): 51
Maximum Diameter Cutter Above Table (in) : 12
Maximum Diameter Cutter Below Table (in) : 9
Motor HP : 7-1/2HP
Motor Phase : 3PH
Motor Voltage : 230/460V (Currently Wired for 230V/3-Phase)
Net Weight (lb): 1,100
Overall Dimensions : 51 x 44 x 53
Part Number : 1791284
Prewired : Prewired 230V
Reversible : Yes
Router Bit Collet Diameter (in) : 1/4 and 1/2
Slide Table Size (in) : 11-1/4 x 51-1/4
Spindle Diameter (in) : 3/4, 1, and 1-1/4
Spindle Size Under Nut (in) : 3/4 Spindle – 3-1/2, 1 Spindle – 6-1/4, 1-1/4 Spindle – 6-1/4
Spindle Speed (RPM) : 3000, 4000, 6000, 8000, and 10,000
Spindle Travel (in) : 7
Table Inserts : one tilting, two straight
Table Size (in) : 51-1/2 x 33-1/2
Table Travel (in) : 49-1/4
Tilting Spindle (deg.) : 5° back, 45° forward
Width (in): 44
Shipping weight 1,280 lb.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Link to more images and info at 360
