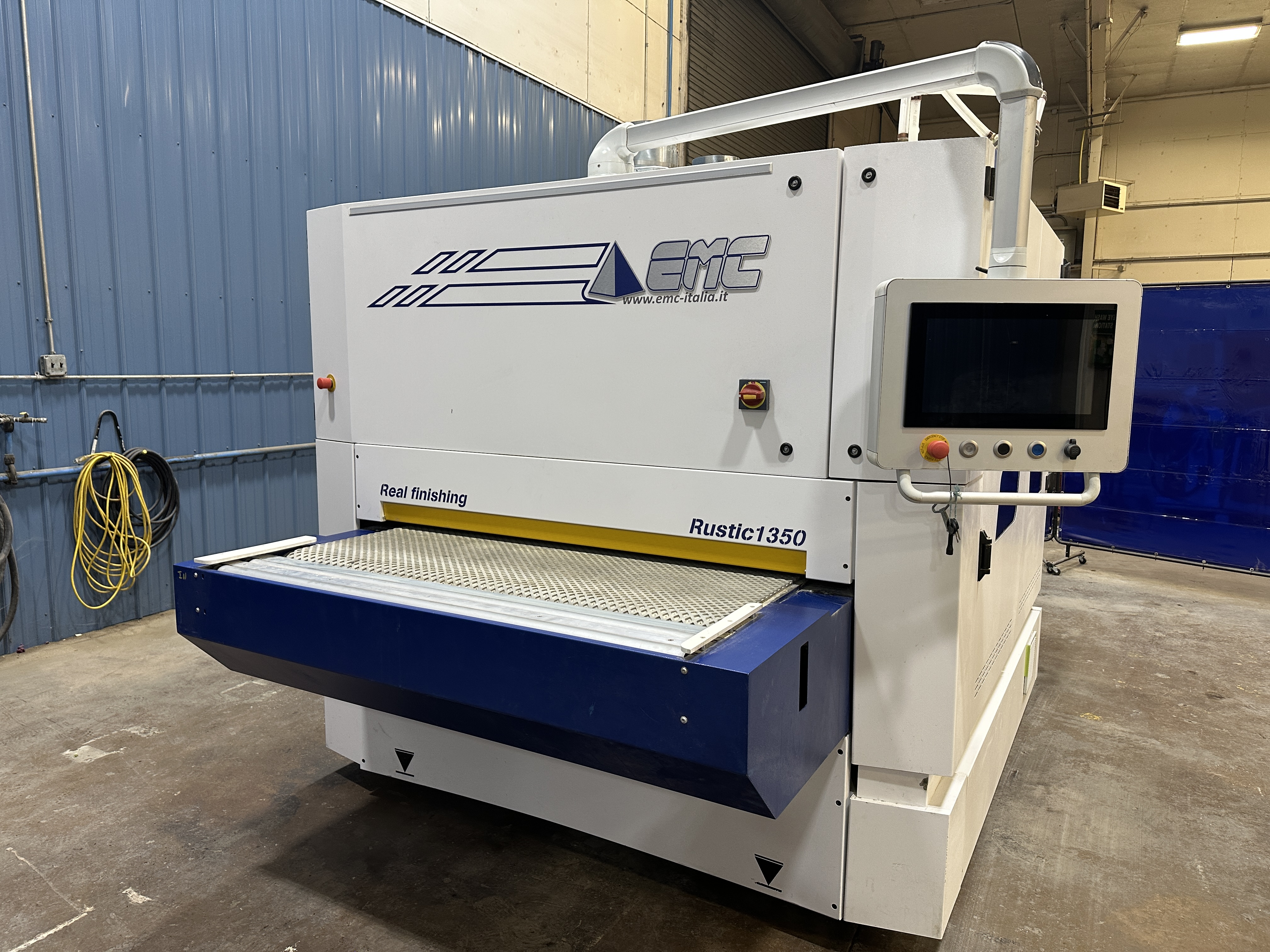

EMC Model Giant Rustic 1350 HHH Cup Brush Sanding Machine - Never Used
Serial #:112.20.01
Premium high volume sanding machine made in Italy. Installed and tested, but was never implemented into production.
Working width: 1.35m
Working thickness: 3mm to 150mm
CE and CSA Standards
Line machine: 900mm from floor.

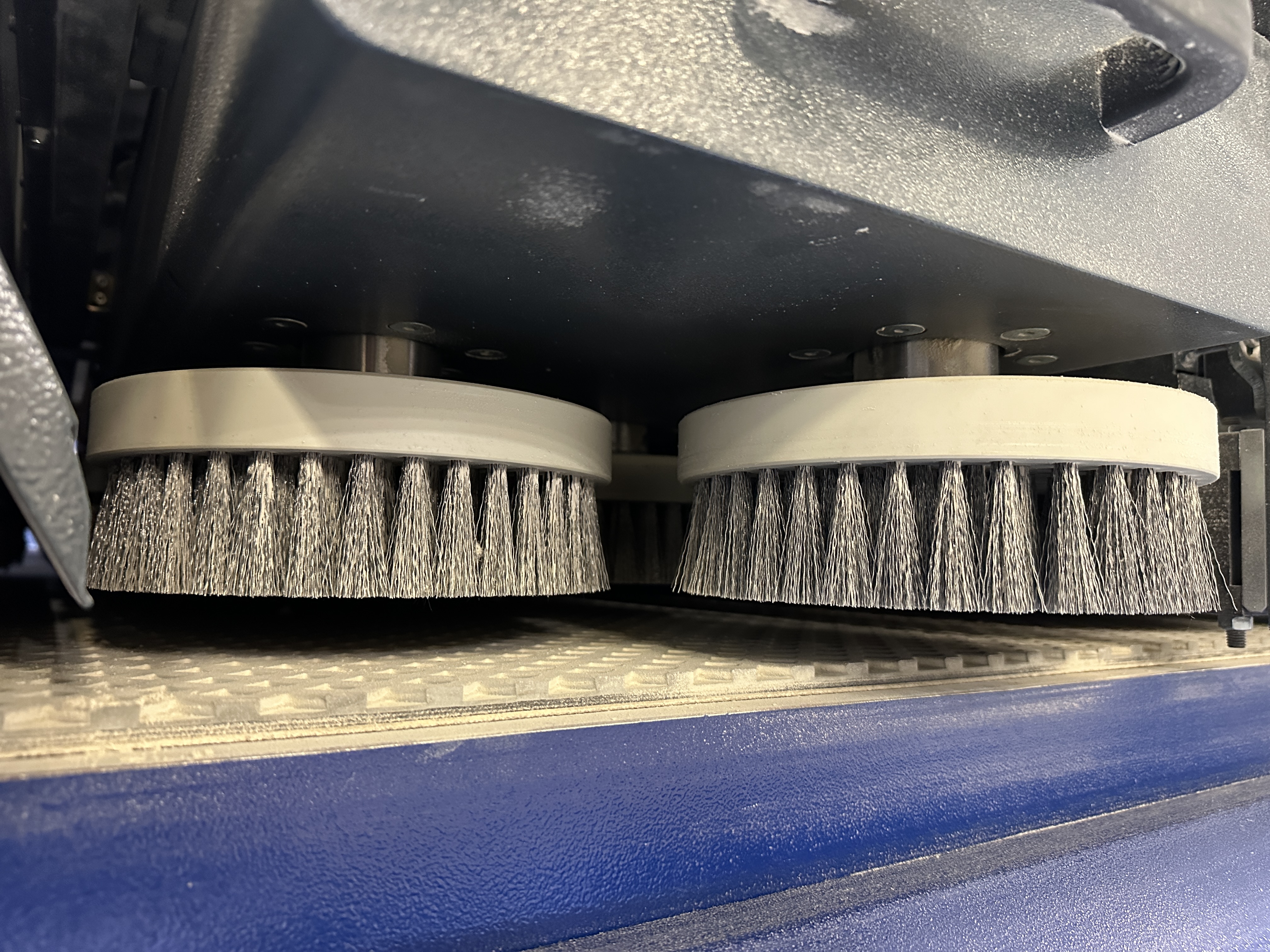

3 sanding brush groups 3 zones x 11 brush heads = 33 brush heads
200mm Disc diameter
3 x 15hp gear driven motors independently housed inside the machine's basement.
Welded monocoque type frame, made in heavy duty carbon steel construction for production setting.
Inverter controlled oscillation 70 to 140mm

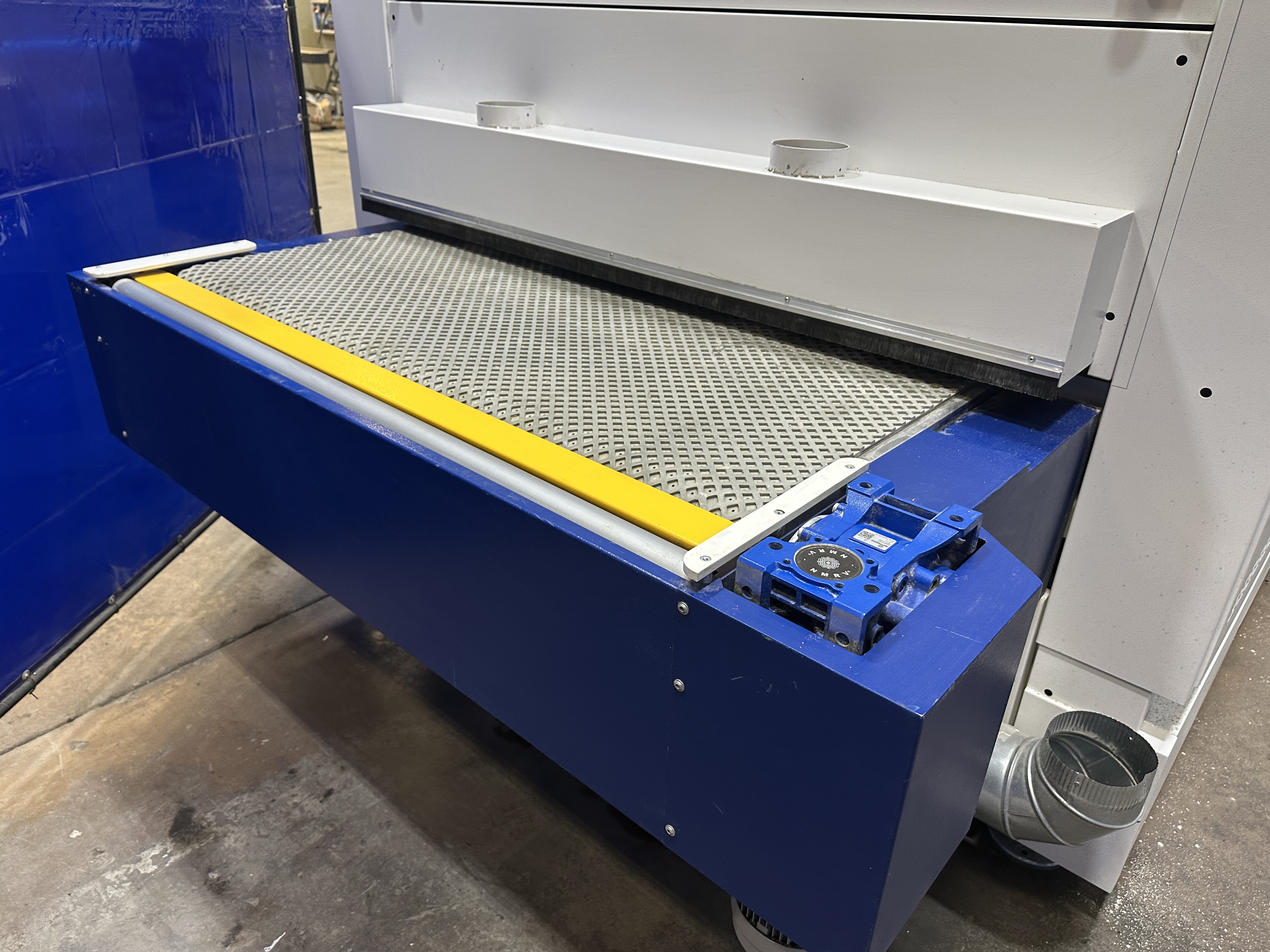

Inverter controlled rotation speed 280 to 1100 rpm Inverter controlled feed belt for variable feed speeds 0.5 to 8 m/min
Adjustable vertical pressure stroke 50mm
Each zone of brushes have discs on 2 staggered rows (6 and 5)
Automatic feed belt centering device.

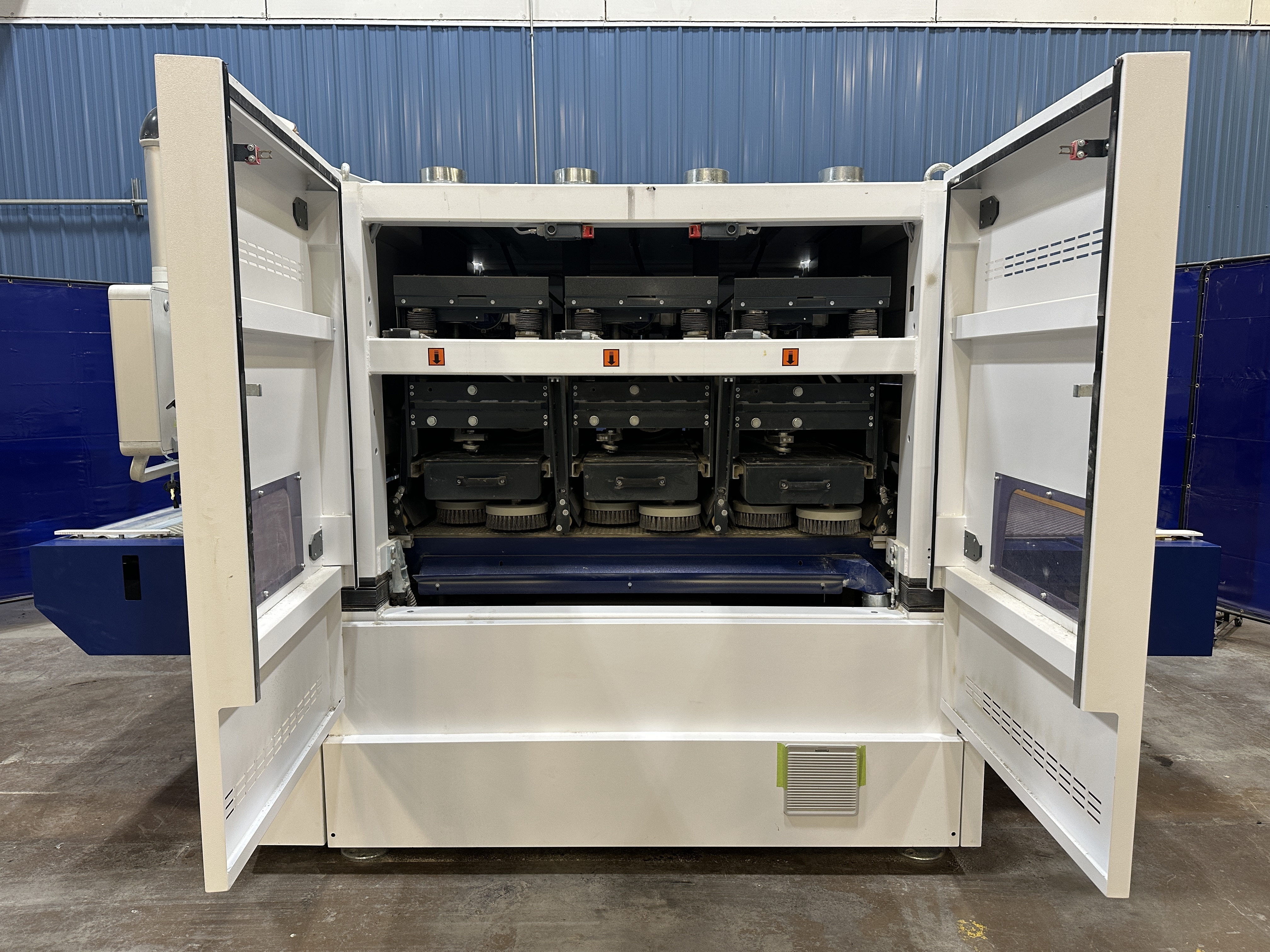

Soundproof protection on all doors.
Premium components - ball screws, rubber parts, electronics, pneumatics, etc.
Quick tool changer locking device for all 33 spindles
Vacuum holding system (5.5hp) under machine with short pipes and no curves.
Turbo blowers for piece and feed belt cleaning. Programmable and active by the working piece. Comes with a full Set of Metal brushes currently loaded in the machine.
All controlled and programmed by touch screen - fully computerized machine with customizable programs.
575v, 3ph (RT Can Help Source a Transformer for US-Voltage if Need Be
- RT Stock Number: 62182
Condition: Essentially New
