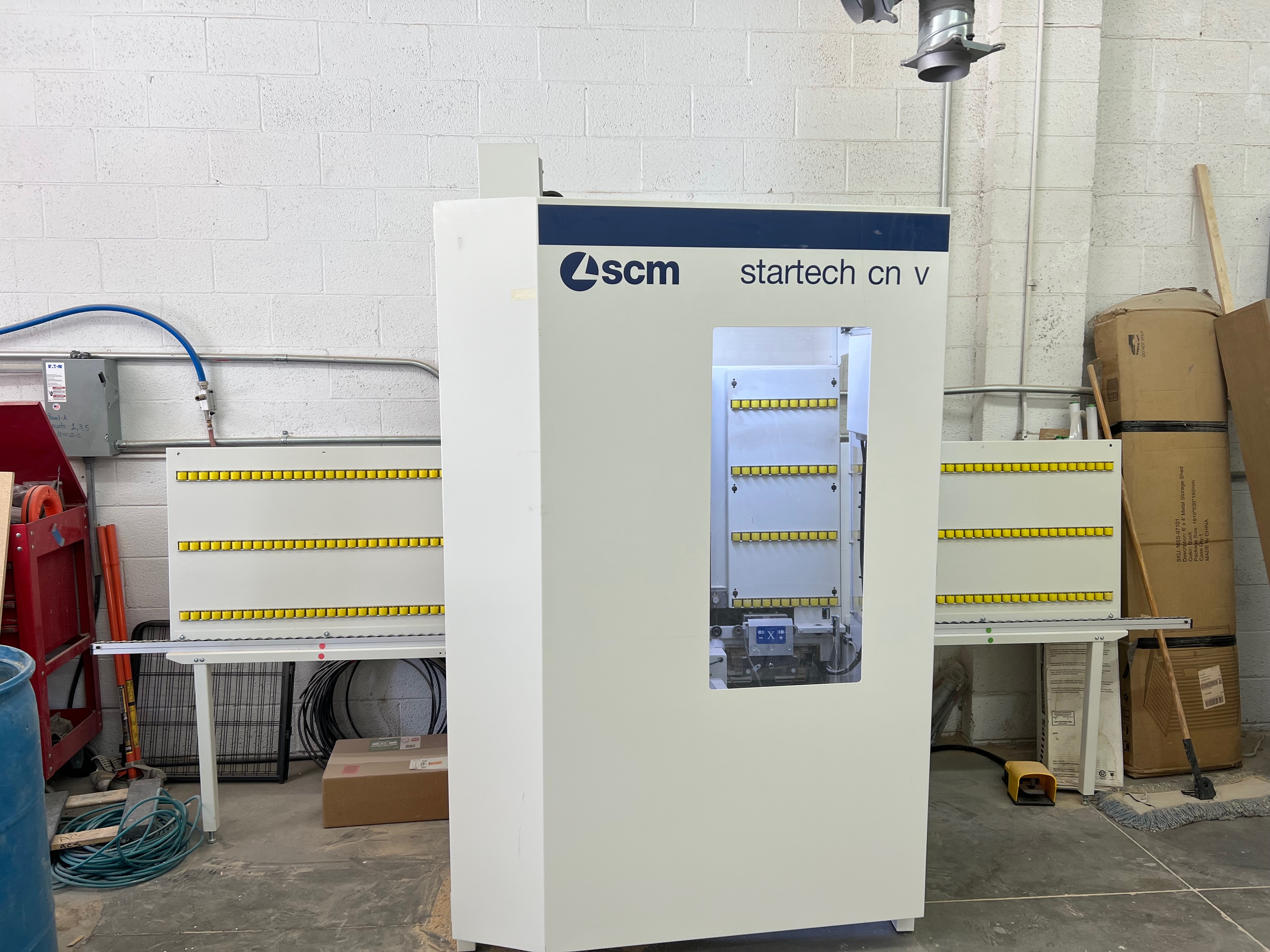

2024 SCM Startech CNC vertical CNC boring and grooving center in near-new condition with less than 20 operating hours. Machine was installed but never fully placed into production.
Excellent opportunity for a cabinet, closet, or casework manufacturer looking for CNC drilling capability without the footprint or complexity of a full nested CNC router.
Configured for vertical drilling, horizontal drilling on all four sides, and grooving operations in a compact, production-oriented package.
Features Include:

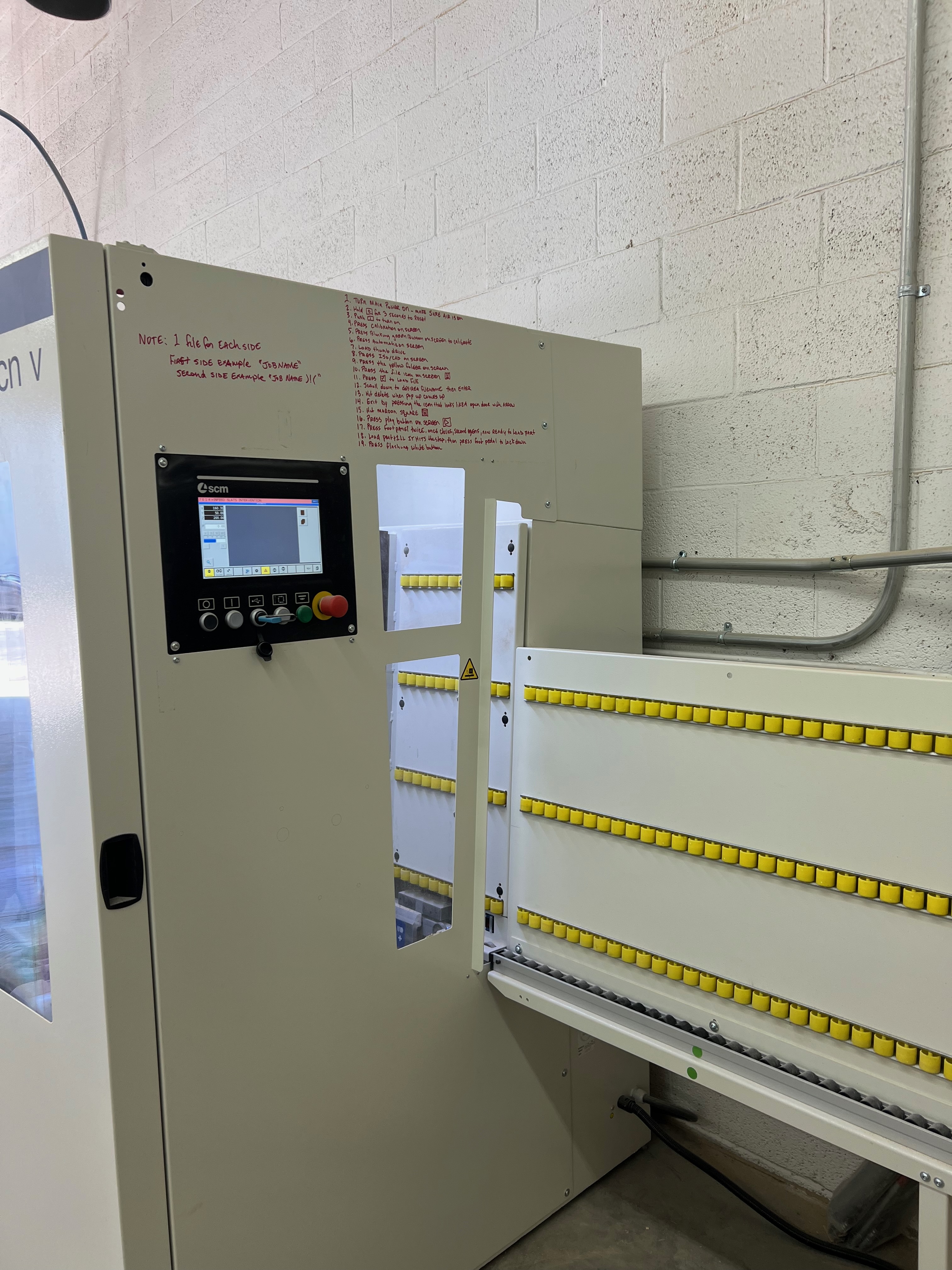

* 10” touchscreen CNC control

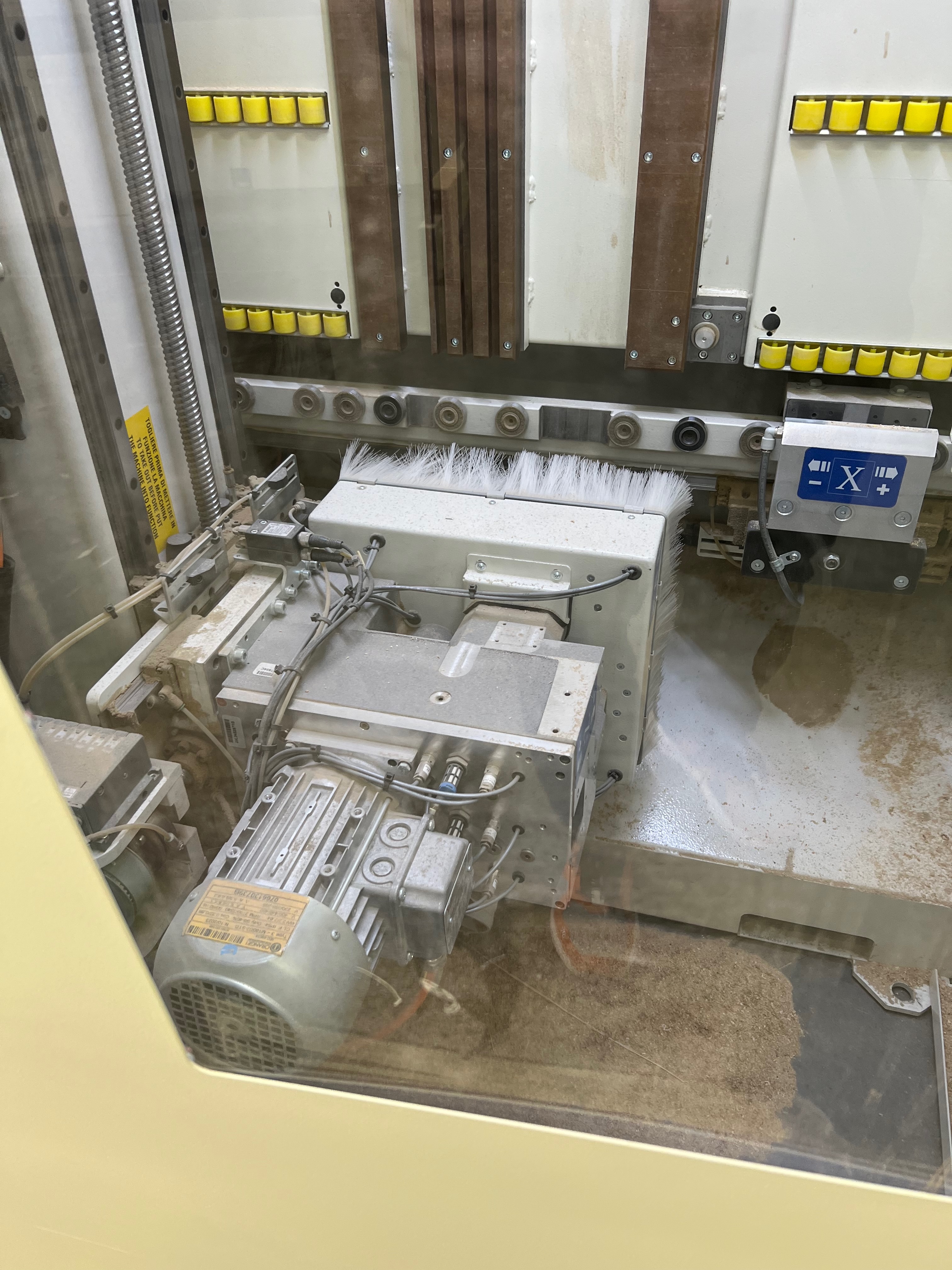

* 8 vertical drilling spindles
* 6 horizontal drilling spindles
* Integrated grooving blade
* SCM patented Ro.Ax. spindle technology
* Ball screw axis movement
* Linear guideways with recirculating bearings
* Automatic lubrication system
* Panel calibration sensor
* Internal machine lighting
* Electrical cabinet cooling fans
* USB program import/export capability
* Maestro / CAD-CAM compatible
Capacity:
* Panel Length: 11.8” – 118”
* Panel Width: 3.5” – 35.4”
* Panel Thickness: 3/8” – 2”
Electrical:
* 220V / 3 Phase / 60Hz
Additional Notes:
* Immediate availability
* Extremely clean condition
* Compact footprint
* Ideal for cabinet, closet, and panel processing applications
* Avoid new machine lead times and commissioning delays
* Current replacement cost approximately $45K–$50K installed
Machine available for inspection in Las Vegas, Nevada.
Freight and financing assistance available.
All information, including specifications, photos, and videos, has been obtained from third-party sources and is believed to be accurate. However, no guarantees or warranties are expressed or implied. Buyer is responsible for independently verifying machine condition, specifications, and all relevant details prior to purchase.
