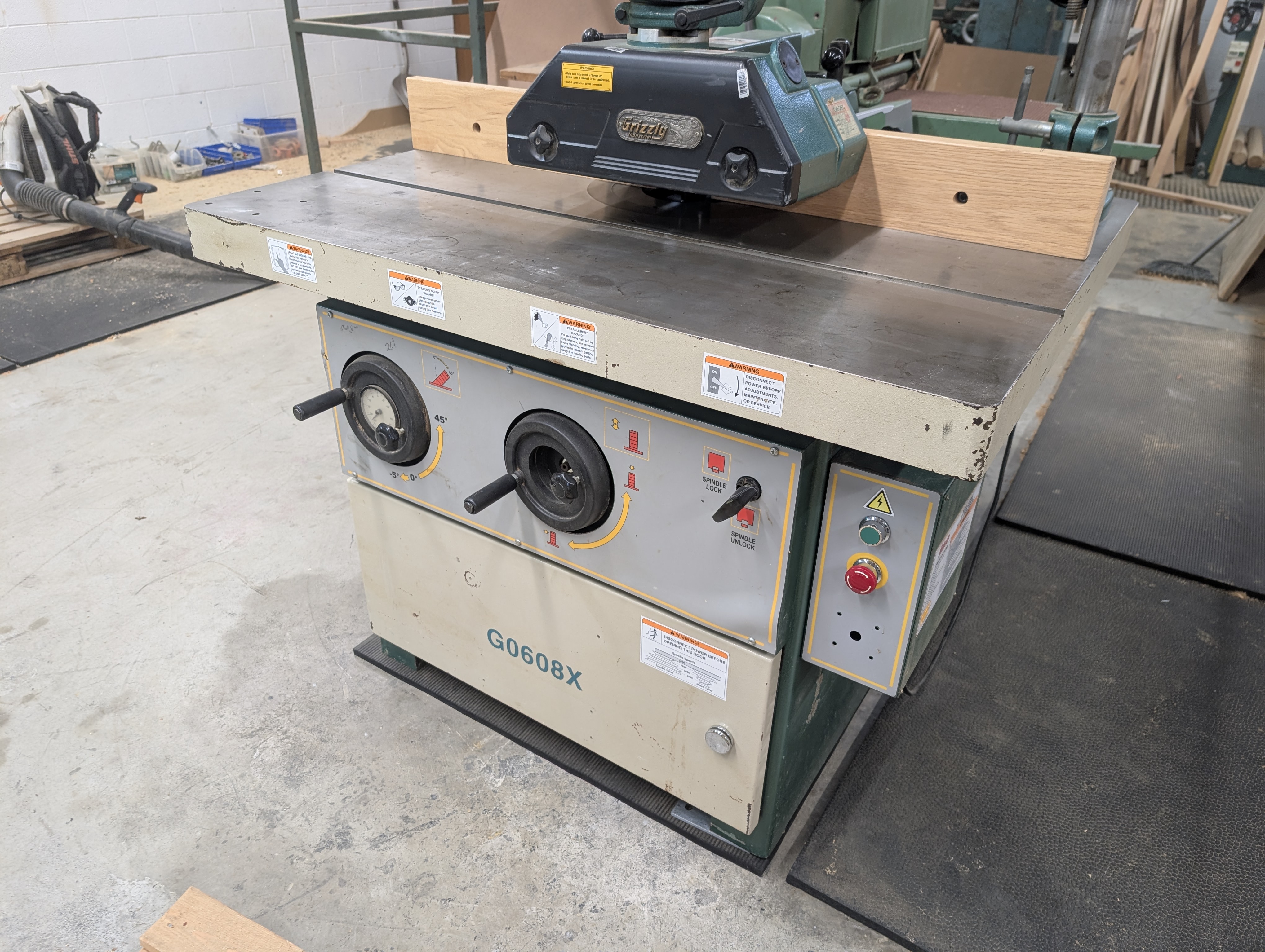

The Grizzly G0608X Extreme Series 7-1/2 HP 3-Phase Tilting Spindle Shaper is a heavy-duty industrial woodworking machine designed for precision profiling and shaping. Key features include a 7.5 HP motor, speeds ranging from 3,950 to 9,400 RPM, a spindle that tilts from -5 degrees to +45 degrees, and a large, durable cast-iron table for high-volume production.
Motor & Power: 7-1/2 HP, 3-phase, 220V motor, designed for extreme, continuous duty.

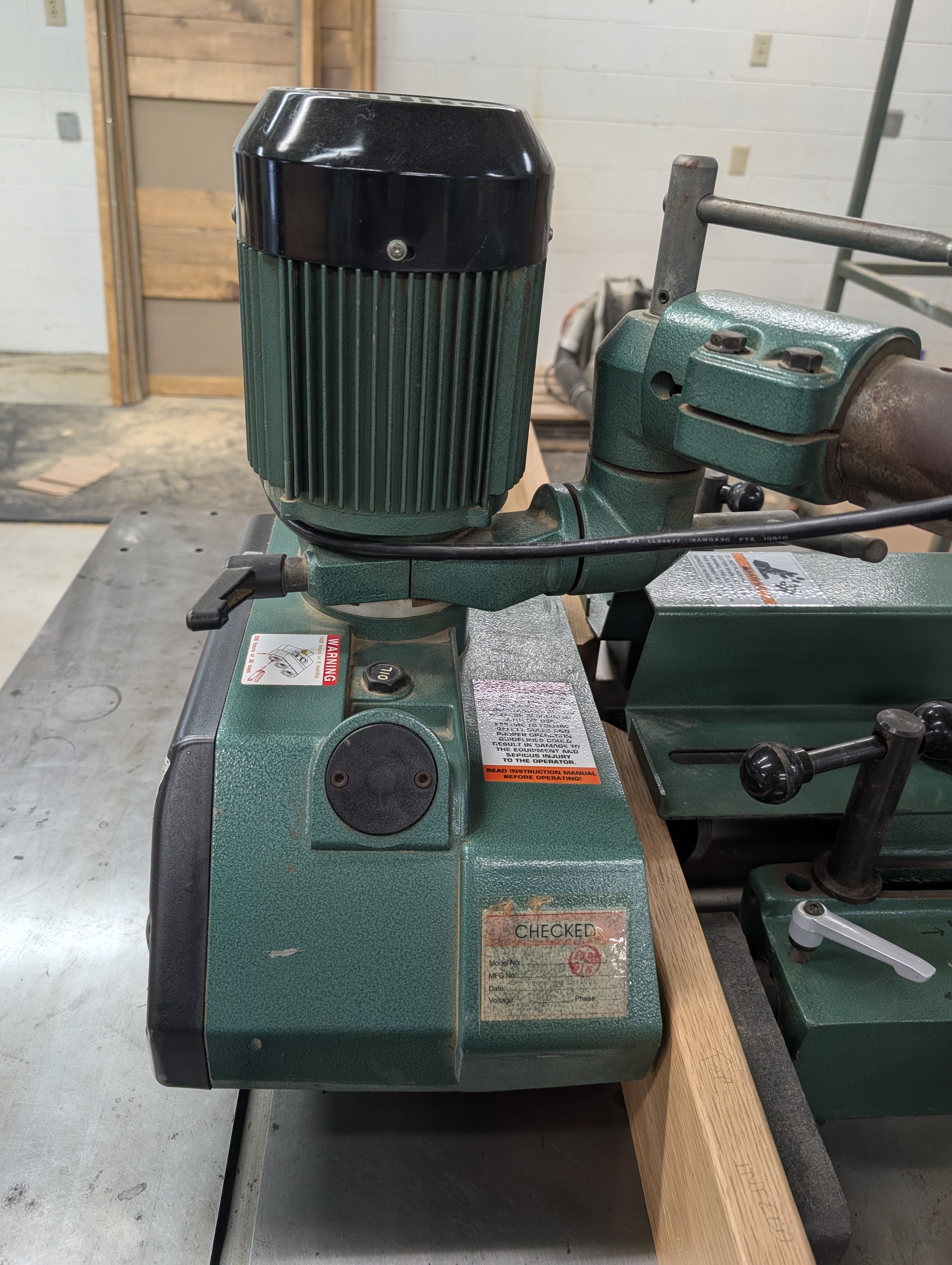

Power feeder is 1 HP, 220V single phase
Spindle Specifications: Tilting spindle capability -5 degrees to +45 degrees for angled cuts, providing versatility in shaping operations.
Speed Control: Multiple speeds: 3,950, 7,200, and 9,400 RPM, allowing for various cutter sizes and materials.
Large cast-iron table, roughly 48” X 34” built for stability and precision.
1 1/4" Spindle
-5 to 45 degree Tilt Capacity
14" Minimum Workpiece Length
9" Maximum Cutter
6 5/8" Spindle Travel
The G0608X is a discontinued model from Grizzly Industrial, often found in professional, high-capacity workshops.

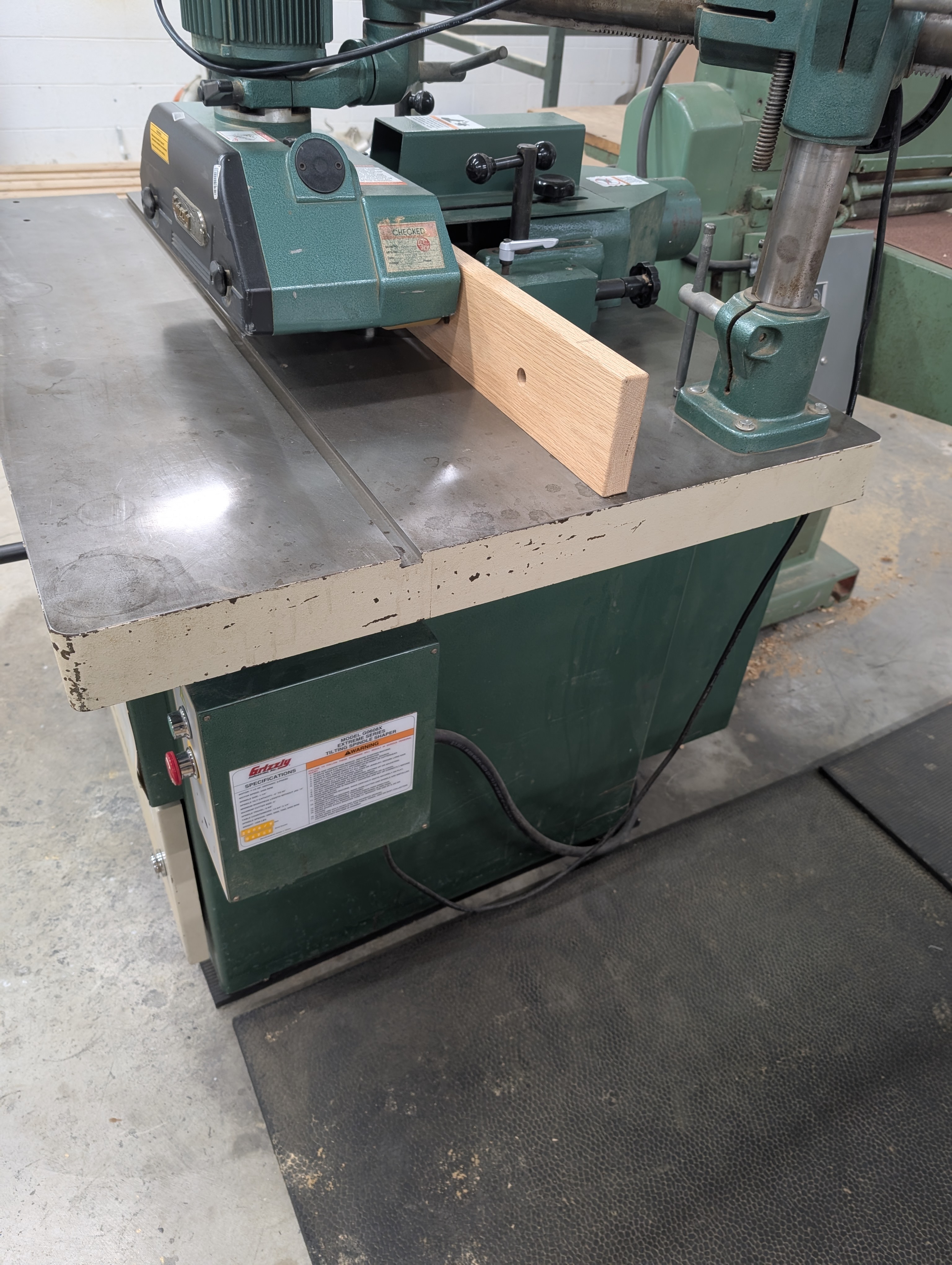

This shaper and power feeder is in excellent working order and currently set up with 1 ˝” radius bullnose and cove shaper knives for building “rounds”, hot tubs, showers, saunas, etc.… – with the extra large spindle, both knives can be installed over each other where you can cut all of your coves, lower the spindle, and then make all of your bullnose cuts. Super precise and handy! But this machine can perform any type of shaper tasks.
Wil include two sets of bead & cove knives
You can look up the model number and find all of the information you need so I will not answer too many questions about this machine other than where it is, how you can see it, and how you can pick it up. If you know what it is, you either want it or don’t want it. It is not currently wired. Last used 2 months ago. I am reluctantly selling most of my 3 phase equipment. There is a link with more pictures at the bottom of the page.
IN PERSON, CASH ONLY. No apps, checks, bitcoins, etc..
– Nigerian princes have zero chance here. But we will not discriminate!
Grizzly Shaper
