General Specifications:
Feed Speed: 8 m/min.
Panel Thickness: 8 - 40 mm (optional 60mm).
Edge Thickness (Coils): 0.3 - 3 mm.
Edge Thickness (Strips): 0.4 - 3 mm.
Panel Width (Minimum, 8-22mm thickness): 70 mm.

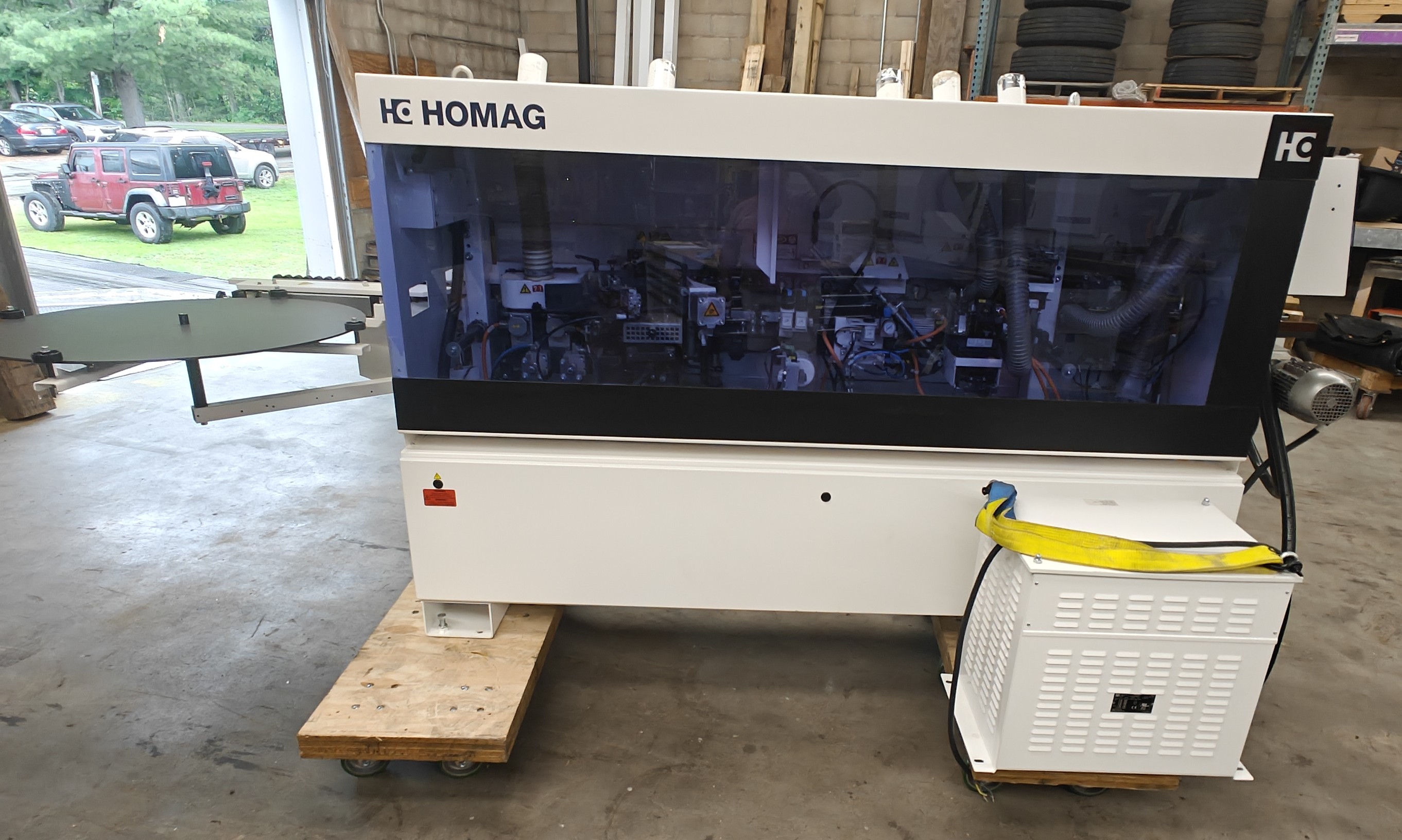

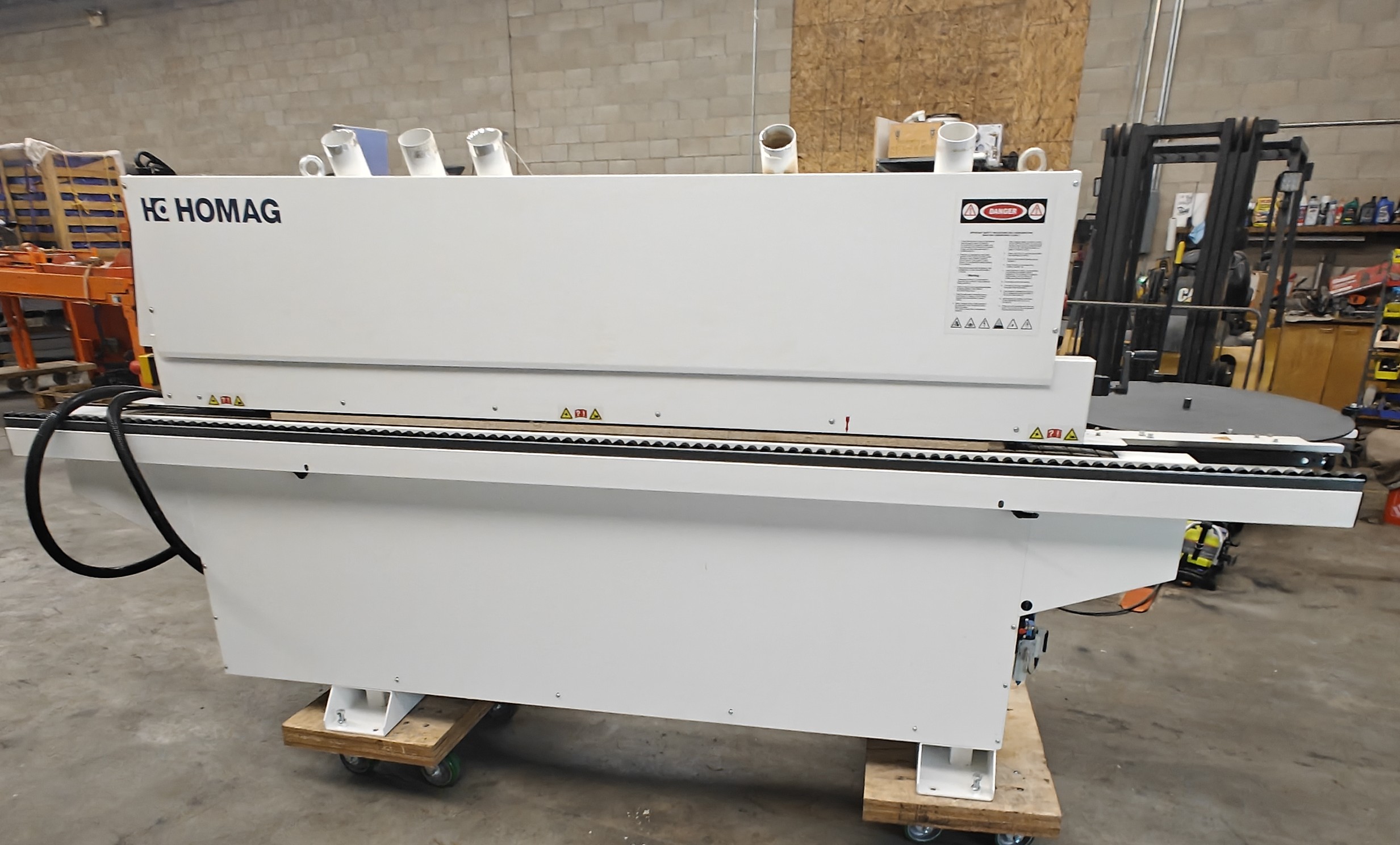

The S-200 F SS is designed for shops that have need for a feature rich machine that fits in compact areas, The S-200 F SS features;
2 motor pre-mill unit
Glue/Banding application w/pressure rollers
2 Motor End Trim
Top and Bottom Flush Trimmers
Top and bottom Profile Scrapers
Top and Bottom Glueline Scrapers
The machine also includes a touch screen controller with program storage and an automatic edge infeed device
