Very nice HOMAG 53" double head wide belt sander. This machine is ideal for calibrating solid wood, veneer sanding and lacquer sanding. It offers flexibility for any sanding job, and can accommodate workpieces up to 53" wide.
Max working width: 53"
Max working thickness: 8"
Upper machine frame adjusted by (4) four large diameter columns
Fixed table, constant passline design allows for use of transfer conveyors in and out of the sander
Vacuum table with blower fan to hold small parts
Abrasive belt size: 54" x 85"
Automatic thickness set up
Automatic grit set for drum position
7" LCD Touch screen controls for machine operation and setting up programs (125 programs)
Automatic star-delta starting
Electric eye abrasive belt tracking
Lexan side doors
Rubberized pressure rollers
Inverter controlled feed speed from 10-49 ft/min
Head 1: 6" diameter steel roller with auto positioning; drive motor: 29HP
Head 2: Combination rubber drum with electro - pneumatic segmented platen (25mm segments)
Abrasive belt speed variable from 6.5-59 fps; 23HP
Air jet blower on head 2
Cleaning brush
Voltage 460v - 99 amps
Compressed air- 15 cfm at 90 psi
Total dust cfm: 3260 cfm Head 1: 7" port, Head 2: 7" port, Panel cleaning brush: 5.5" port, vacuum table fan: 4"
New replacement cost today: +/- $100k

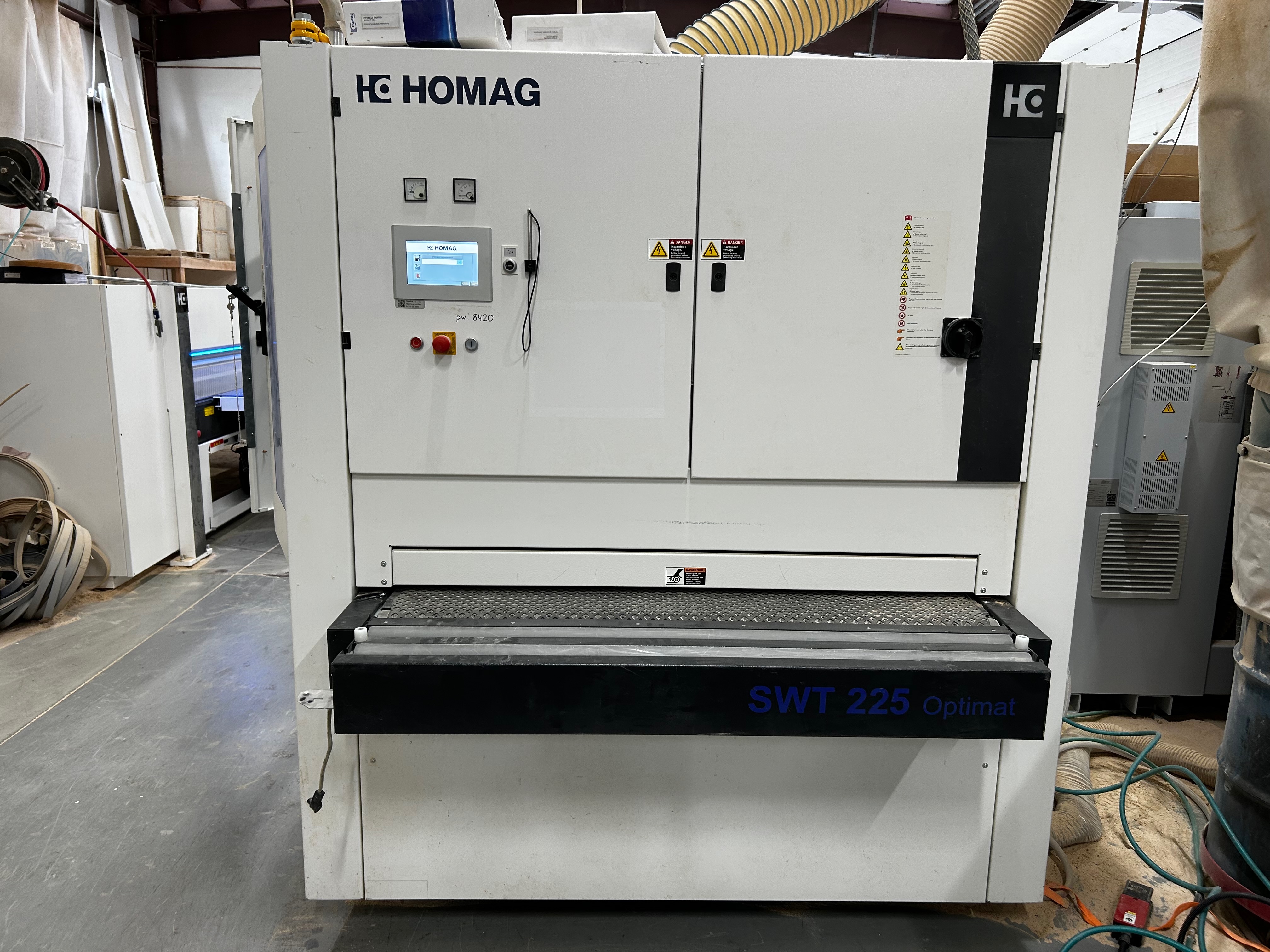

Homag SWT225 RC widebelt sander
