Specs:
Motor: 3 HP, 230V, single-phase, 12A
Maximum width of cut: 8″
Maximum depth of cut: 1/8″
Maximum rabbeting depth: 1/2″
Cutterhead diameter: 3-1/16″
Cutterhead type: 4-Row helical with 36 inserts
Insert size, type: 15 x 15 x 2.5mm, Indexable carbide
Cutterhead speed: 5500 RPM
Table size: 8″ x 76″
Fence size: 38″ x 4-1/2″
Minimum stock length: 10″
Minimum stock thickness: 1/2″
Dust port size: 4″
Footprint: 40″ x 16″
Overall dimensions: 76″ W x 25″ D x 41-1/2″ H
Approximate shipping weight: 487 lbs.
Features:

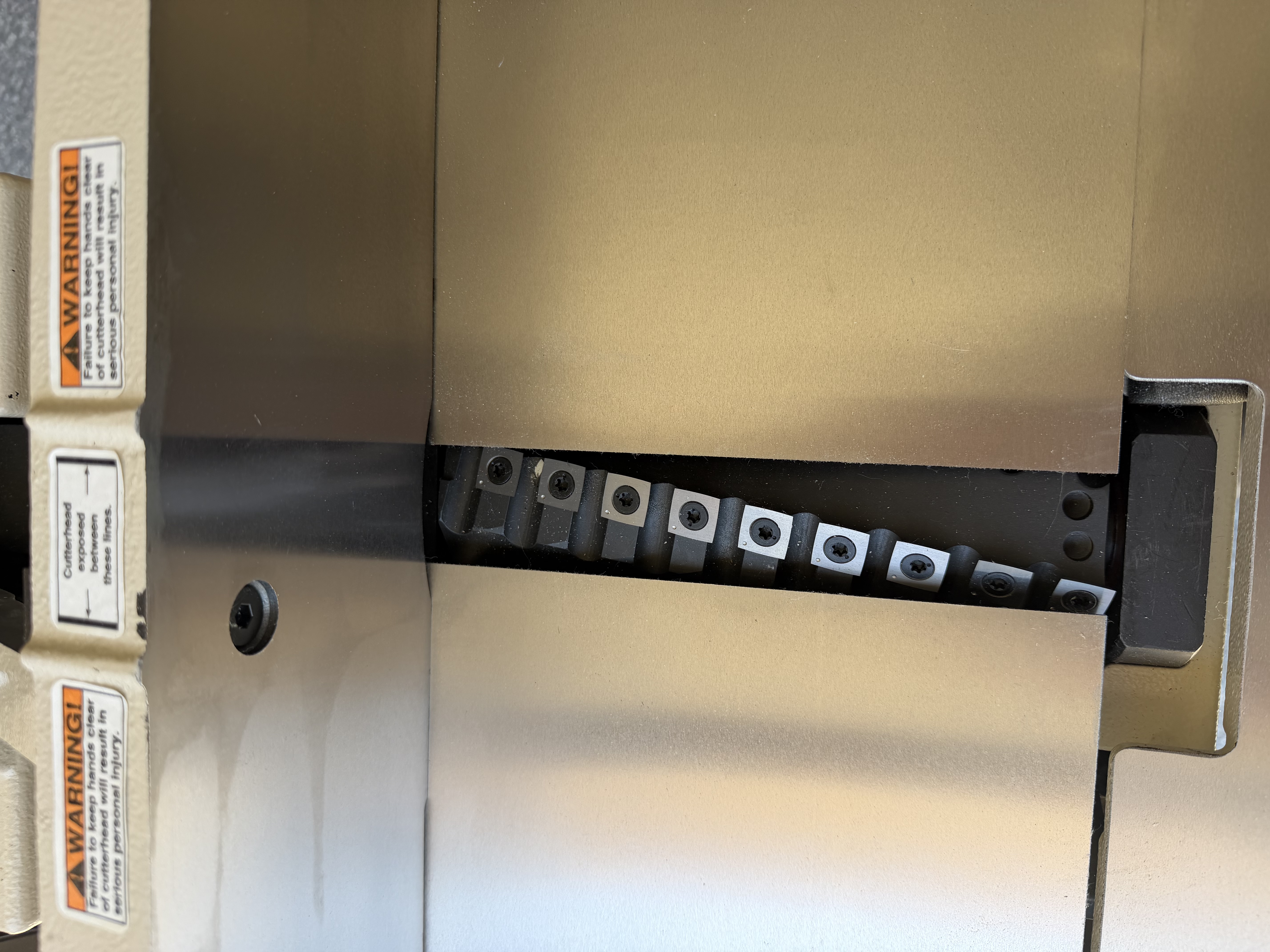

4-Row helical cutterhead with 36 indexable carbide inserts
Parallelogram tables with lever adjustment and depth scale
Extra-long 40″ infeed table
Rabbeting table
Precision-ground cast-iron tables
Built-in mobile base with internally-mounted, non-swivel casters
Cast-iron fence with rack-and-pinion adjustment and angle gauge
Fence stops at 45°, 90°, and 135°
Pedestal-mounted power switch with large STOP paddle
NOTES:
🔥 10 BLADE PRO MACHINERY
📞 1‑833‑410‑2523
📞 1‑833‑4‑10BLADE
📸 IG: @10bladepromachine
📘 FB: facebook.com/10BladeProMachinery
🚚 Immediate Pickup — No Tax — No Freight — No Regrets
Stored indoors. Unused. Sold exactly as received. NO TAX – NO FREIGHT – NO REGRETS
