SPECS:

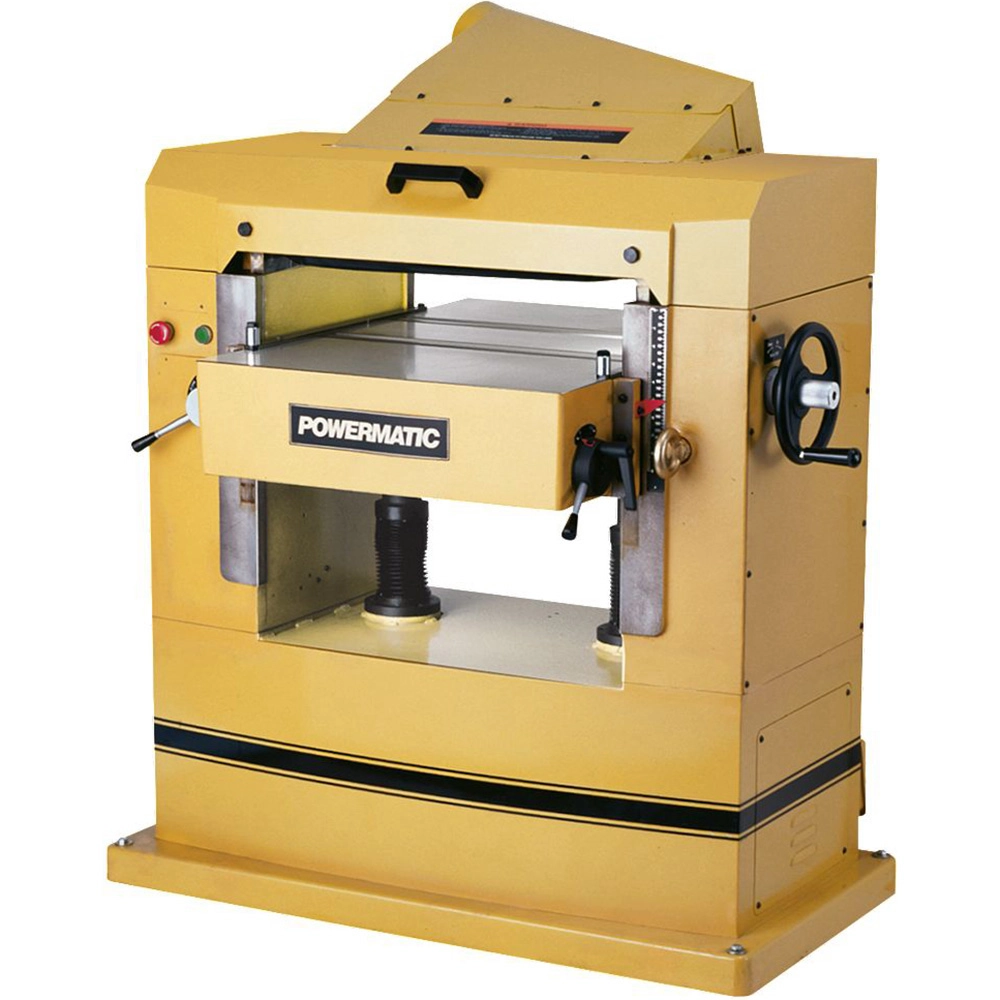

Product Name: Powermatic 201 Model 22-Inch 230V 7.5HP Planer (1791261)
Motor Power: 7.5 horsepower, single-phase
Planing Capacity: 22 inches width
Cutterhead Speed: 4,800 RPM
Number of Knives: 4 (High-Speed Steel)
Feed Speeds: 20 and 30 feet per minute
Dust Chute Diameter: 5 inches
Table Adjustments: Up to 1/16″ per turn of the handwheel
Feed Rollers: Roller bearing-mounted for smooth operation
Power Requirements: 230V
FEATURES:
Robust 7.5 Horsepower Motor: Provides ample power for handling hardwoods and thick materials.
Cast Iron Construction: Ensures exceptional stability and vibration dampening for clean, consistent results.
Large Ribbed Cast Iron Table: Smoothly travels on two large lead screws for precise height adjustments.
High-Speed Steel (HSS) Cutterhead: Rotates at 4,800 RPM for 19,200 cuts per minute, equipped with four knives for efficient planing.
Two Feed Speeds: Offers 20 and 30 feet per minute for versatility in stock removal and surface finish.
Adjustable Bed Rollers: Ensure smooth feeding of uneven or warped wood pieces.
Integrated 5-Inch Dust Chute: Connects easily to a dust collection system for efficient debris removal.
Convenient Control Panel: Located for easy access, simplifying operation.
Large Handwheel: Allows precise and quick adjustments of the table height.
Roller Bearing-Mounted Feed Rollers: Ensure smooth operation and extended service life.
Segmented Infeed Roller with Sectional Chipbreaker: Efficiently handles multiple boards of varying thicknesses, minimizing tear-out.
NOTES:
🔥 10 BLADE PRO MACHINERY
📞 1‑833‑410‑2523
📞 1‑833‑4‑10BLADE
📸 IG: @10bladepromachine
📘 FB: facebook.com/10BladeProMachinery
🚚 Immediate Pickup — No Tax — No Freight — No Regrets
New-in-crate. Unused. Sold exactly as received.
