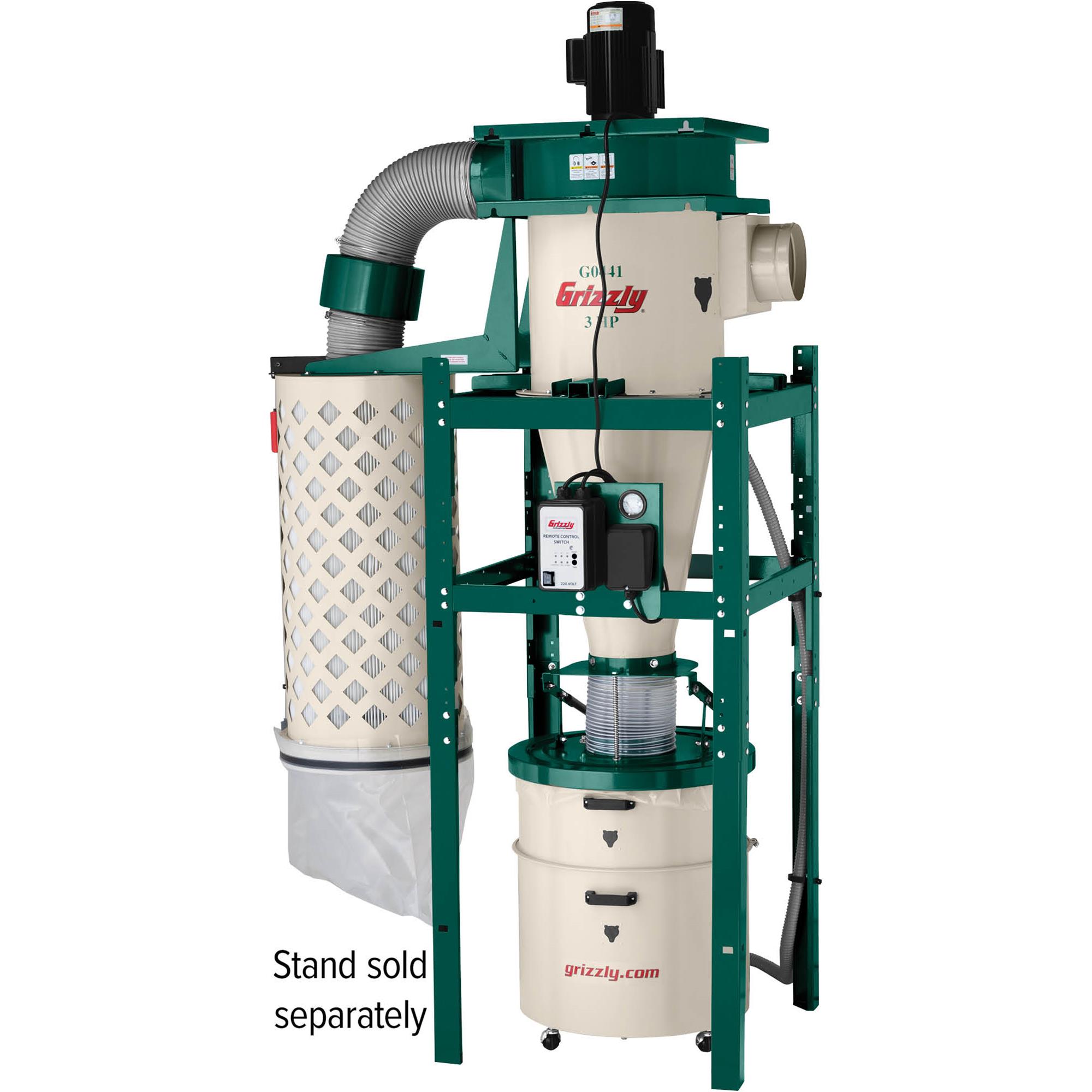

SPECIFICATIONS
Motor: 3 HP, 220V, single-phase, 22A
Main inlet size: 8"
Impeller: 15-1/2" steel
Airflow capacity: 1654 CFM @ 2.0" SP
Max static pressure: 14.2"
Filter surface area: 113 sq. ft.
Filtration: 0.2–2 micron
Collection size: 55-gallon drum
Sound rating: 83–85 dB
Footprint: 32-7/8" x 32-7/8"
Overall dimensions: 60-1/4" W x 38-1/2" D x 109" H
Approximate shipping weight: 400 lbs.
FEATURES
Blower and barrel rotate 360° for inlet and outlet positioning
Casters mounted on collection drum for easy moving
Gentle brush cleaning mechanism inside cartridge filter
Ramped inlet maximizes dust flow into collection drums
Reinforced motor mount
BIA-certified cartridge filter
Remote controlled magnetic switch
Wall mountable blower design
Price includes the H7509Z optional stand
NOTES:
🔥 10 BLADE PRO MACHINERY
📞 1‑833‑410‑2523
📞 1‑833‑4‑10BLADE
📸 IG: @10bladepromachine
📘 FB: facebook.com/10BladeProMachinery
🚚 Immediate Pickup — NO TAX - NO FREIGHT - NO REGRETS!
Stored indoors. Unused. Sold exactly as received.
