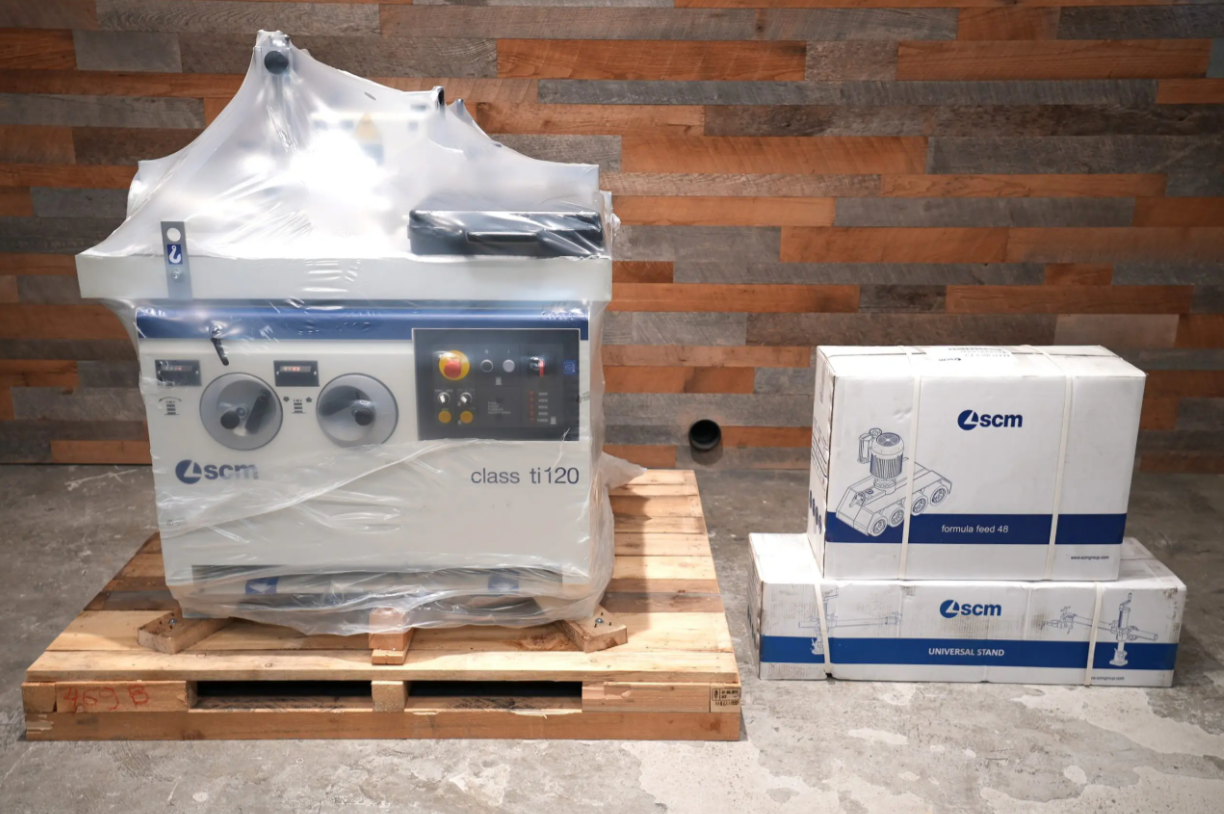

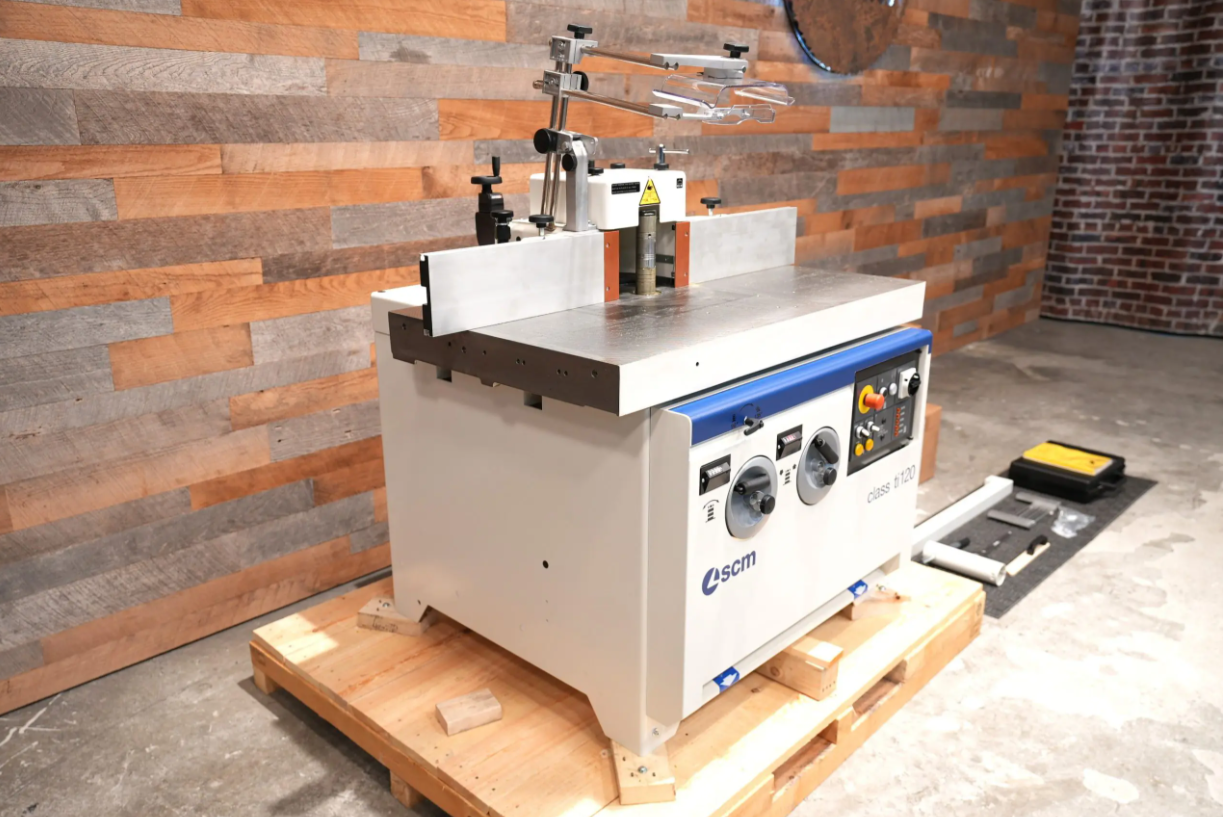

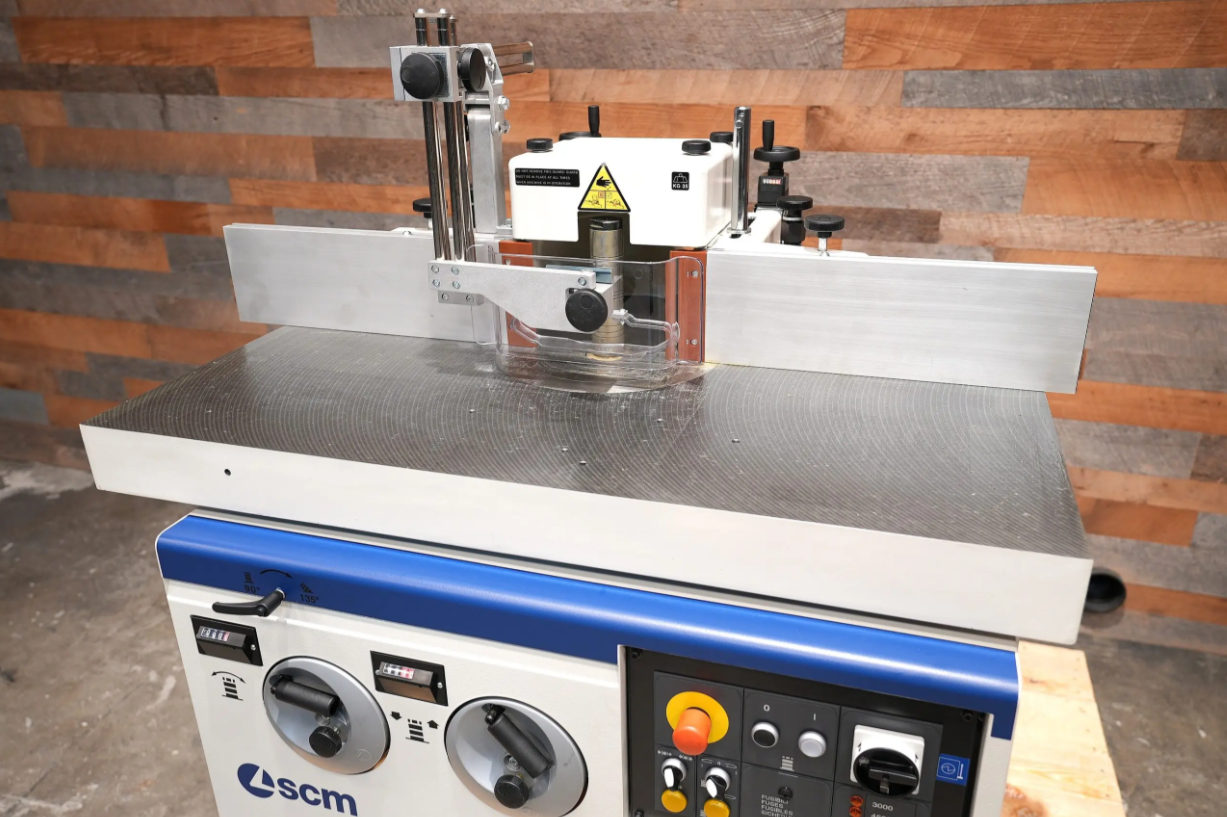

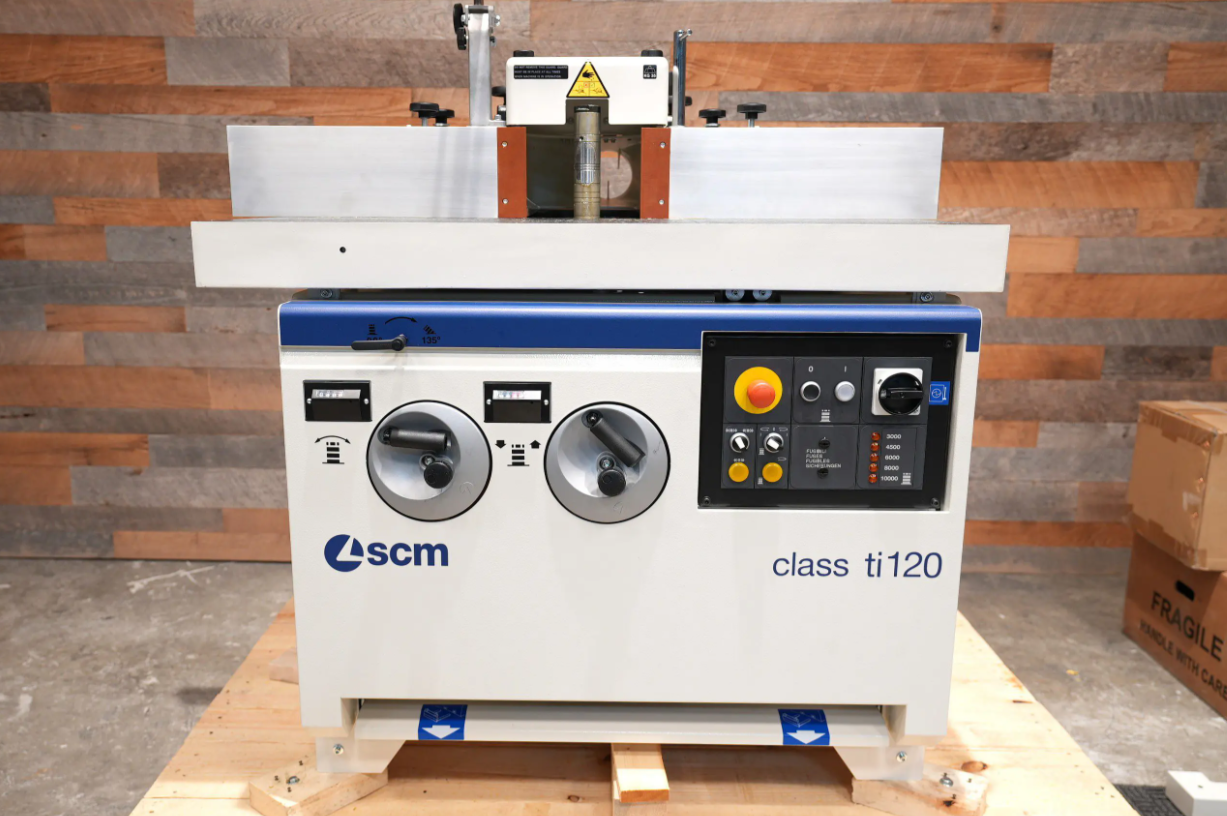

NEW SCM Class TI 120 Tilting Spindle Shaper + SCM Feed 48. Still has its protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price! (Machine is still sealed in factory Plastic/Non-plastic sealed Pictures and Video are of another machine so you know what you are getting) ***This machine has a heavy discount in lieu of free shipping and does not qualify for free shipping! Contact us for pricing!
Specs:
Table dimensions: 47.19″ x 31.87″ (1,200 x 810 mm)
Spindle dia.: 1-1/4″
Max. useful spindle length: 7.06″ (180 mm)
Tilt angle: 45° / +45°
No. 4 Morse Tape Spindle Mount: MK4
Max. tool dia. retractable under table: 12.56″ x 2.31″ (320 x 60 mm)
5 Spindle speeds (RPM): 3,000 / 4,500 / 6,000 / 7,000 / 10,000
Dust outlets dia. (hood): 4.69″ (120 mm)
Dust outlets dia. (base): 2x 3.12″ (80 mm)
Min. required dust collection: 900 CFM
Motor power: 11hp (8 kW)
Electrical requirements*: 220V, 60Hz, 3-phase, 26 A
Features:
Cast iron construction
Front-handwheels with mechanical readouts for adjusting the spindle and fence positions
5 spindle speeds
MK4 interchangeable spindle
Overload switch protection
Mechanical brake on the main motor
