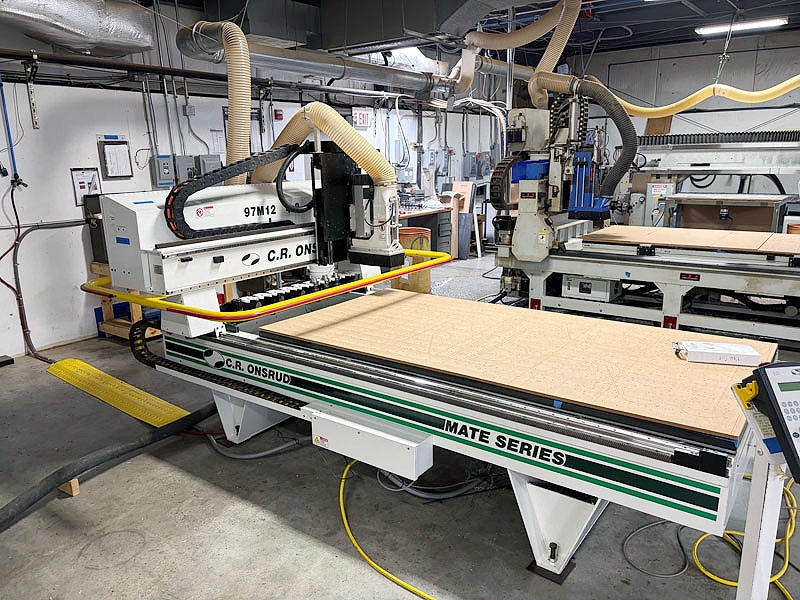

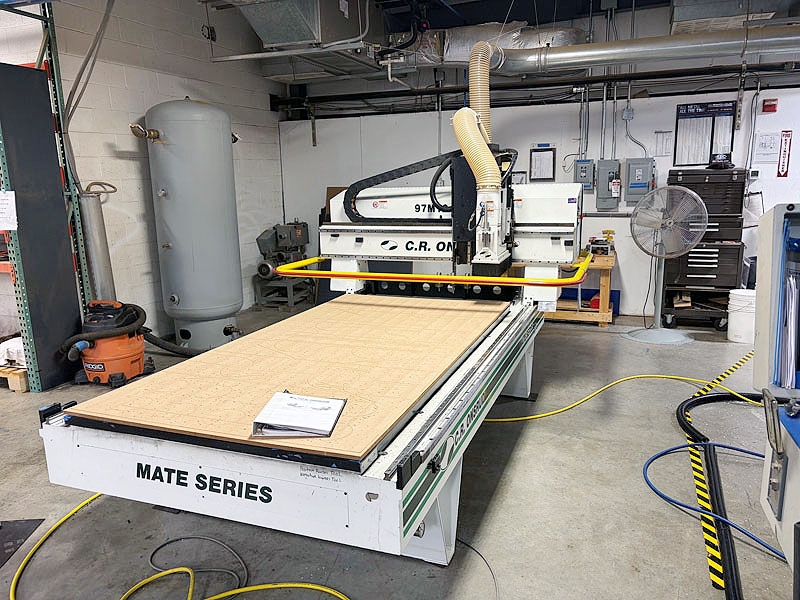

C.R. Onsrud Model 97M12 CNC Router & Airtech Vacuum Pump - 2014!
Serial #:097G140202
(3) Axis Moving Gantry CNC Router
Nominal 4’ X 8’ Table (Actual Size 97” X 49”)

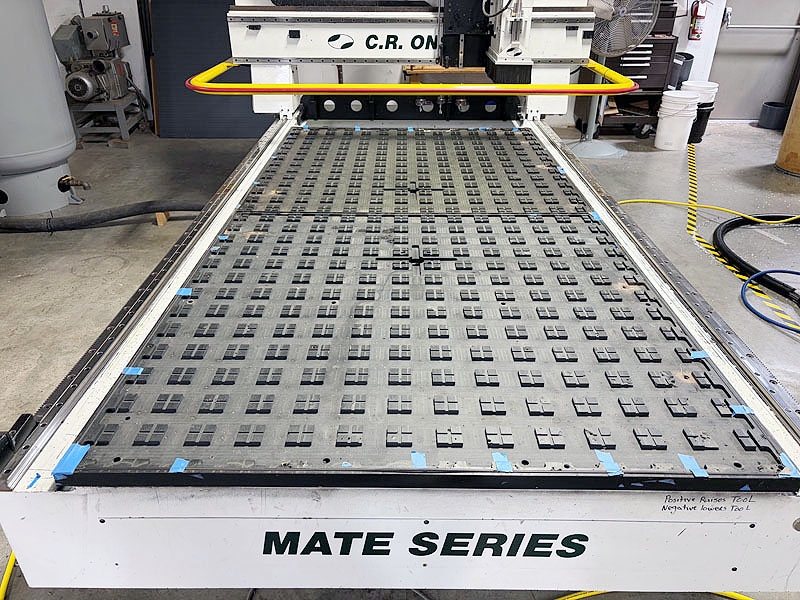

Onsrud Universal High Flow Vacuum Table System for flow-through spoil boards and dedicated fixtures
(1) Router Head (HSD Mechatronics ES 929 4-Pole Spindle) 12 HP, 24,000 RPM Fully Programmable, Variable Speed, Reversible, Capable of Routing & Drilling, Uses HSK 63 Tooling (4 Tool Holders Included)
Integrated Dust Transition System & Dust Extraction Hood

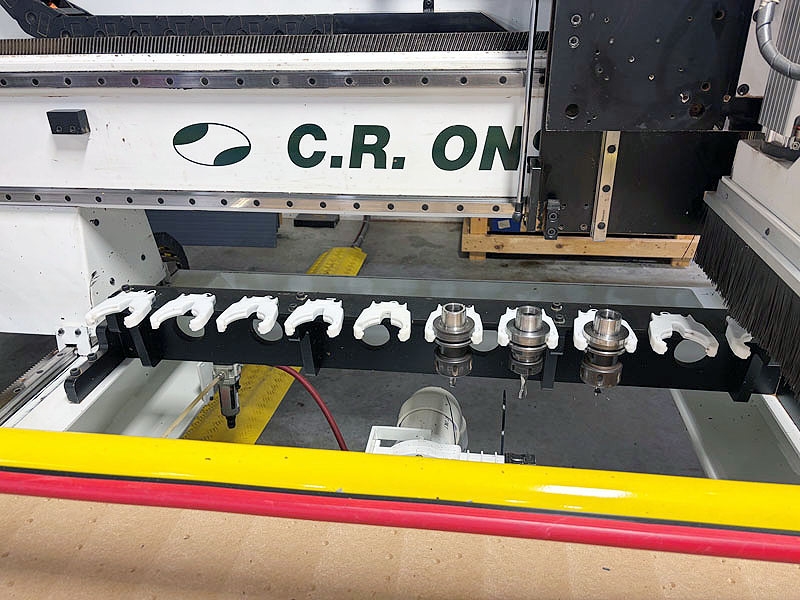

(10) Position Fixed Rack Automatic Tool Changer
Approximate Travel: X-Axis 97", Y-Axis 49" & Z-Axis 9"
Machining Speed 1,400 IPM
X & Y Rapid Traverse 2,500 IPM
440 Volts, 3 Phase, 60 HZ B & R Pendant CNC Controller
Airtech Vacuum Pump 8.6KW (11.5HP), 3,460 RPM
- RT Stock Number: 57267
