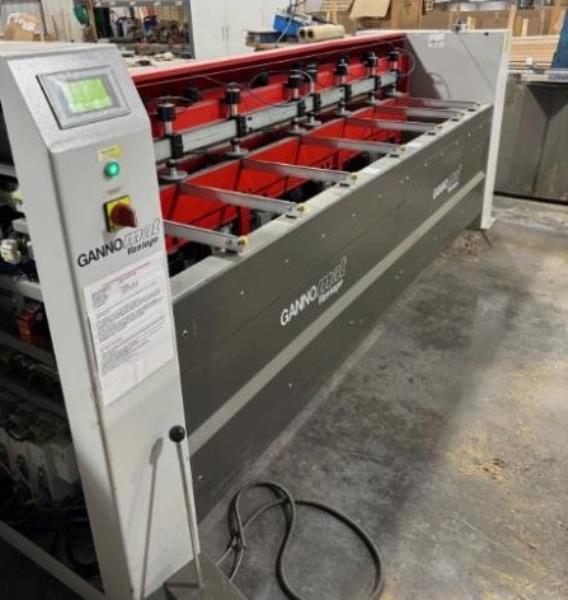

GANNOMAT VANTAGE 152 LINE BORER (CNC Line Boring)

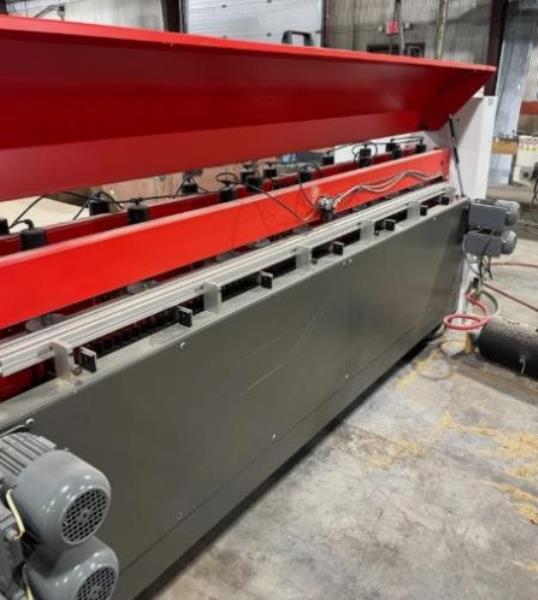

(1) Boring aggregate with: 152 Spindles; pitch 32.
The unit (aggregate) consists of 2 independent sets: (4) 19-Spindle drill heads; each drill head is powered by: 1.5 kW motor.
Up & down travel for each aggregate is by pneumatic/hydraulic feed.
Boring depth: 0 - 35 mm Wit9990oh 70 mm tooling installed. 2-Depth Selection for: Blind boring & through boring is programmable through the PLC.
76 Drill bits: 5 x 70 mm V-Point, right hand per. 76 Drill bits: 5 x 70 mm V-point, left hand.
(8) Holddown clamps for: Workpieces up to 40 mm thick.
"Y" Axis travel for the drilling unit; NC controlled from 20 - 580 mm from the fixed backstop ruler.
Travel speed: 250 mm Per second.
Back fence with: (2) End stops; adjustable from: 0 - 150 mm.

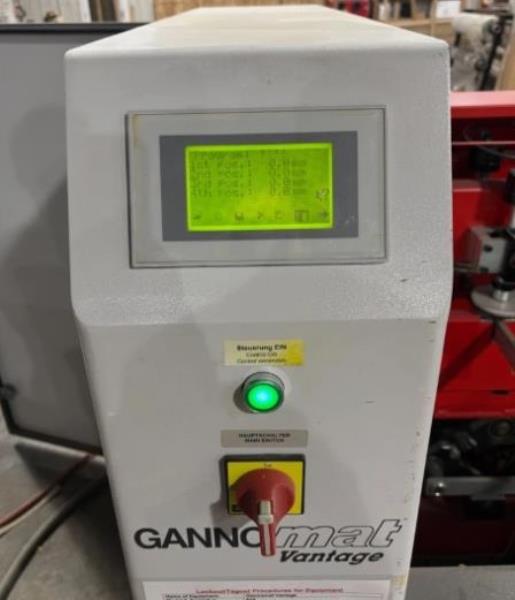

Electronic control with: LCD Display; (99) programs with: max. of (4) rows of holes per program.
