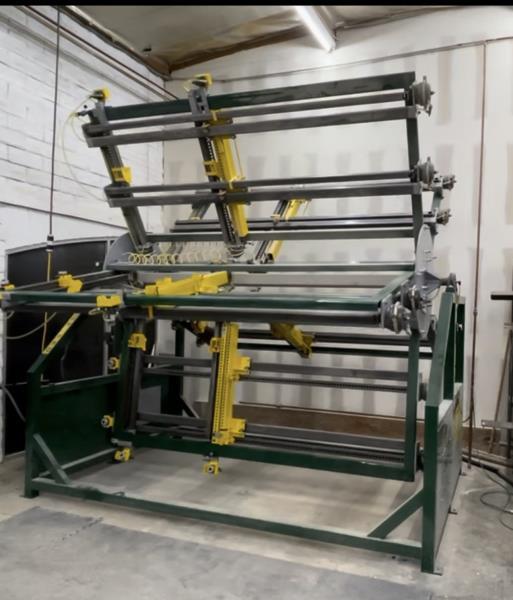

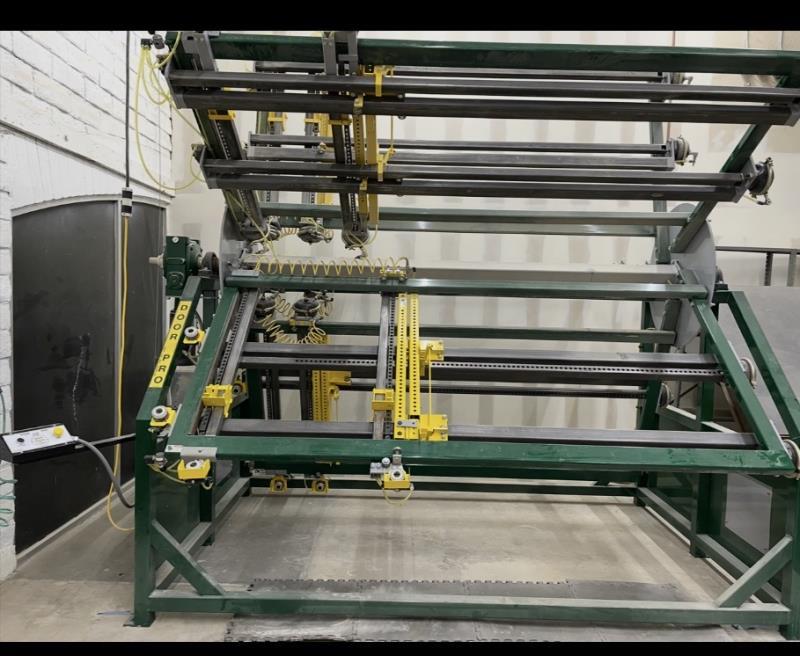

TAYLOR - 713A-5LCM: Rotary Door Clamp (5-Section)
5-Section rotating clamp for: Accurate squaring of Miter Doors & stile and rail doors. - Clamp & Square a door in: (2) Seconds.
Each section has: 26" x 97" Max. cap.; 4" x 12" min. cap.; counterclockwise rotation with: Auto indexing stop system.
Single lever operation with (2) vertical and (1) horizontal clamp, 500 Lbs. clamping force per cylinder.
Electric gear motor runs on standard 110 V; variable speed push button operated rotation system - counterclockwise for safety.
Taylor 713-M1 Rotary Door Clamp
