For cutting off or mitering post-formed, self-edged, coved, or solid surface countertops and connection bolt mortising all in (1) single operation; variable/fixed return speed; 16" dia. blade.
45" Crosscut cap. at 90°. 42" at 22-1/2°. 31" Cut at 45°.
5-5/8" Depth of cut with build-down (4-7/8" without build-down).
3/4" Max. build-down thickness; 5 HP belt drive main motor.
4-7/8" Max. backsplash height.
0.5 HP Feed drive motor; variable feed speed from 0 - 45 FPM in cutting direction.
Upper machine structure rotates to left and right to (5) fixed stops @ miter positions: 90°; 45° R & L; 22-1/2° R & L.
LED Indicator for any angle cuts; pneumatically actuated index pin secures position.
Hardened & ground saw carriage guides with linear bushings; (4) 1.5 HP High-Speed router motors for routing the draw bolt mortises.
4-5/8" Distance from fence to 1st router; 8-3/4" center distance between routers; 1/2" dia. x 2-1/4" long bits; full visible router template with the rotating pin to reduce template wear.
***Please click the link for full description***

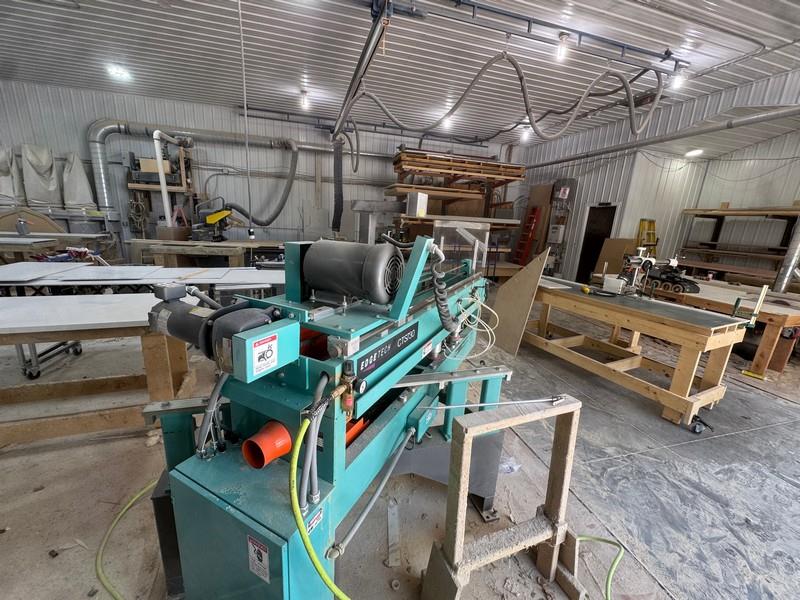

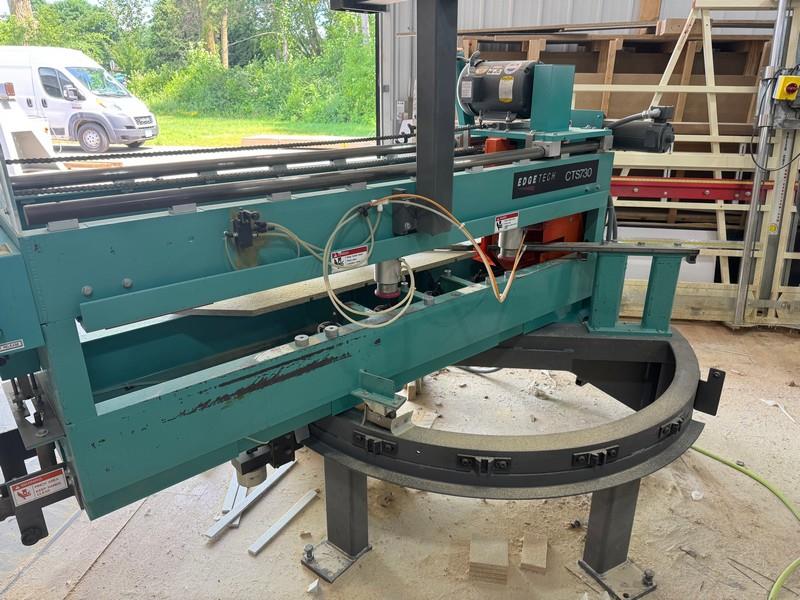

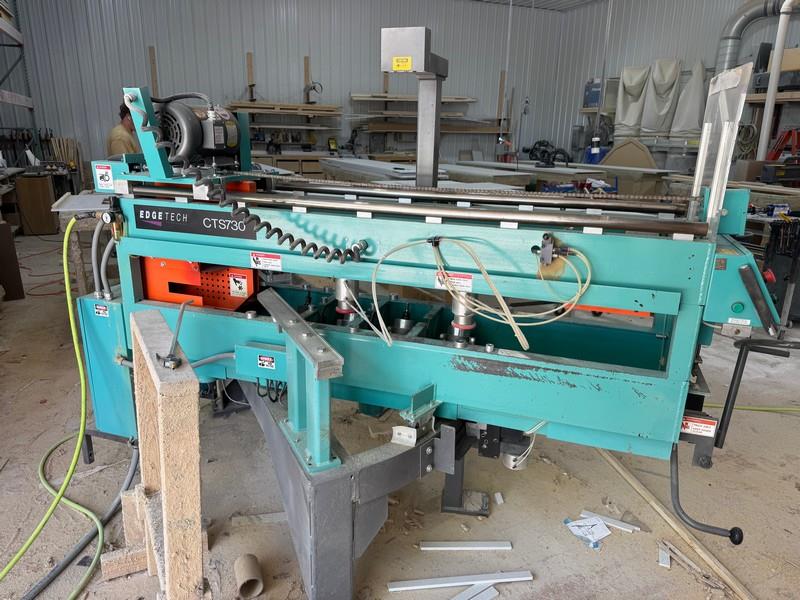

Edgetech CTS730 Countertop Saw
