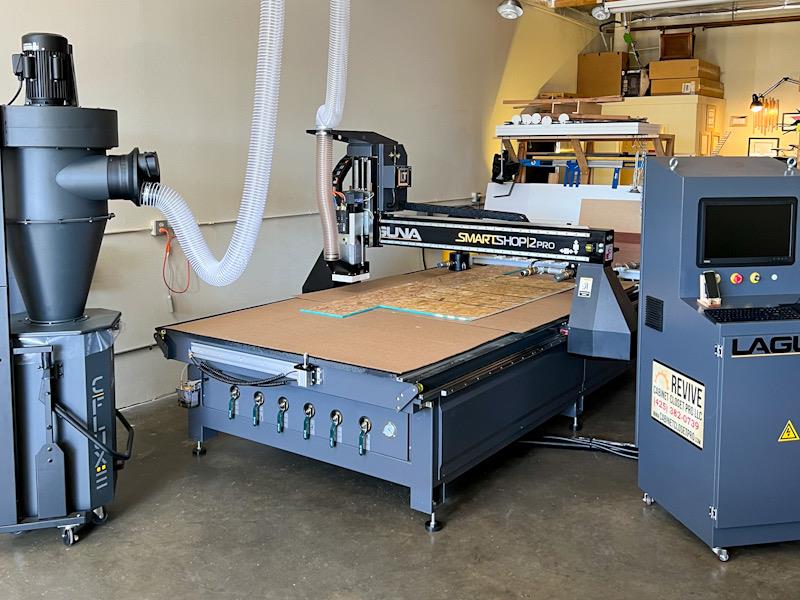

LAGUNA SMART SHOP 2 PRO CNC Router, 5' X 10' with ATC & 82 Hours Only! (Purchased & Delivered in March 2024):

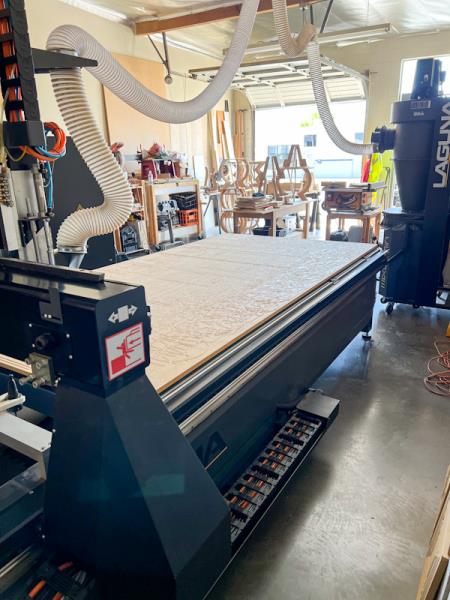

60" x 120" Moving gantry, fixed table design in a front-to-back configuration with a 6-zone vacuum table with T-slot table including manual controls.
Machine travel 61" x 121" x 9.5" axis travel with 12" clearance under the gantry, Speeds of 900 IPM rapid travel with 600 IPM max. cutting speed.

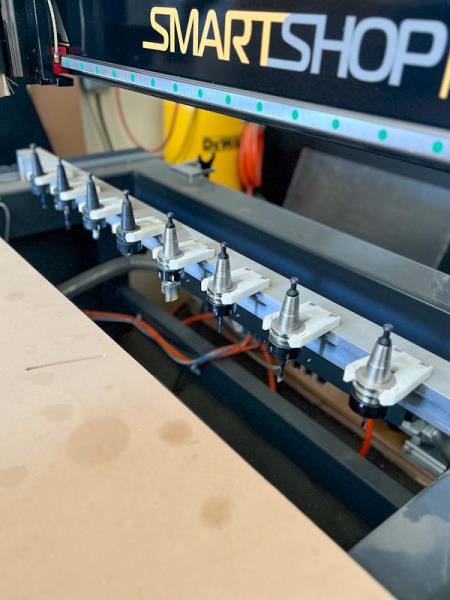

(1) 9.6 kW (12.87 HP) Electrospindle ISO-30 (ATC), 5,000 - 24,000 RPM Range, Ceramic Spindle Bearings supported by Automatic Tool Changer with (8) tool position tool rack; Includes assorted ISO-30 tool holders, collets, and precision collet nuts.
All axes ride on 25 mm heavy-duty HiWin HG Series linear bearings and rails on all axis rack. "Helical" rack-and-pinion drives on "X" and "Y" axis, and precision-ground ball screw drive on "Z" axis. Gantry is driven on each end (two "helical" rack-and-pinion drives on "Y" axis).

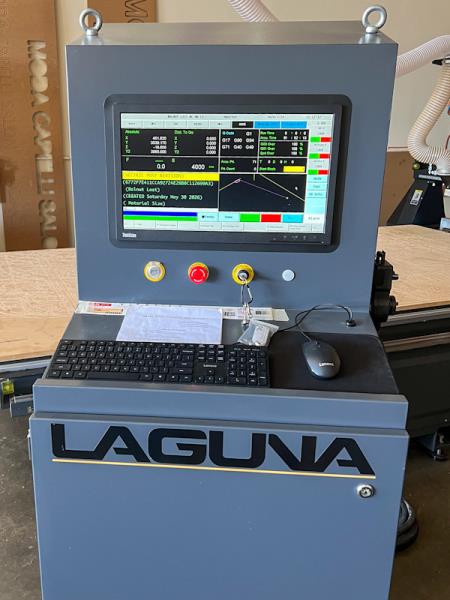

Control: SYNTEC TECHNOLOGY controller and drive components for easy diagnosis and exceptional reliability. Machine features the networking, connectivity and online troubleshooting typically found in Windows environments without the Windows baggage.
*** Please click the link for full description***
Laguna SMART SHOP II Cnc Router
